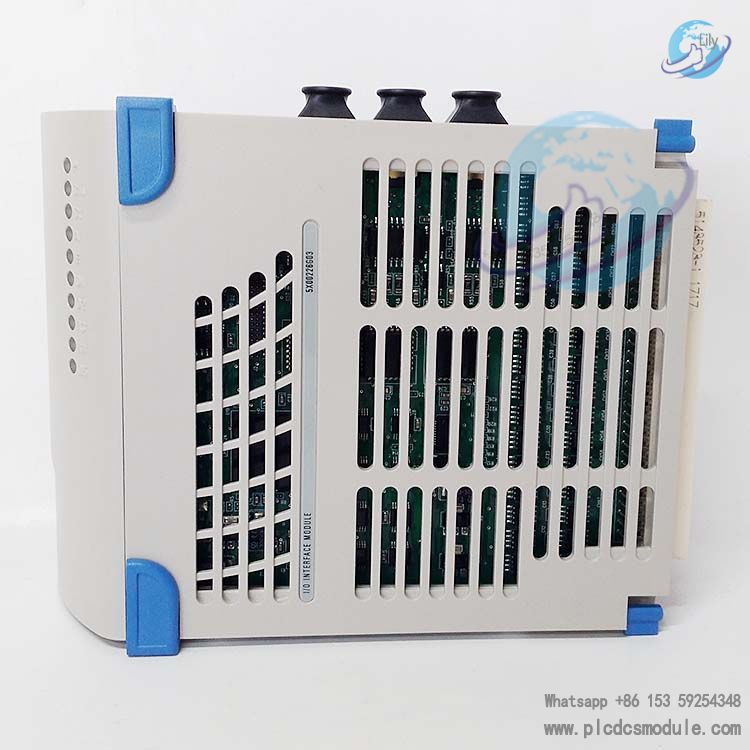

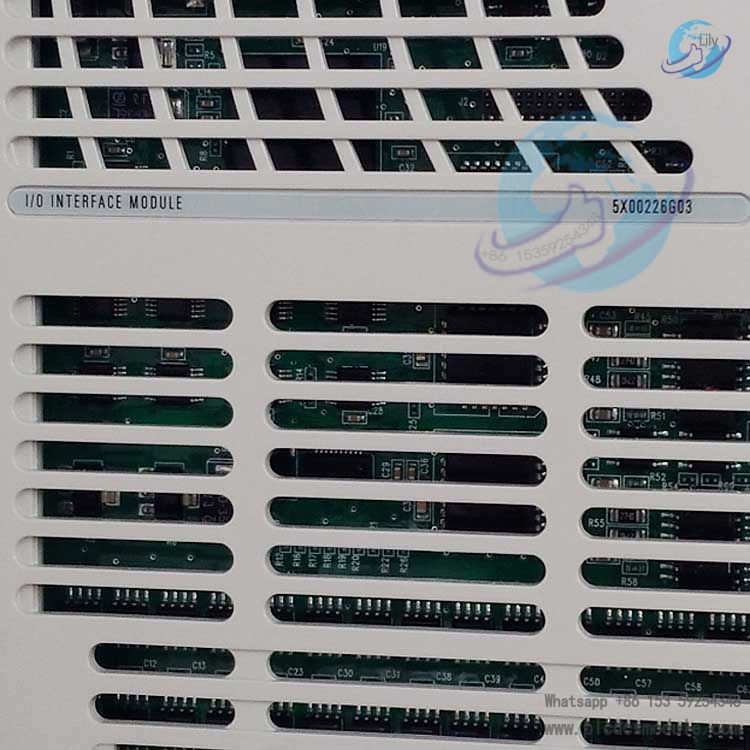

Equipped with professional I/O interface control capabilities, the module seamlessly integrates into Ovation control systems, enabling efficient data transmission and equipment interconnection. Leveraging Emerson's advanced electronic technology and manufacturing processes, it delivers exceptional performance in stability, compatibility, and durability, capable of adapting to the complex operating conditions of industrial sites. As a factory-certified replacement part, it fully complies with the design standards and performance requirements of the original equipment, and can be directly used for maintenance, upgrades, or fault replacement of existing Ovation control systems, ensuring continuous and stable operation of the systems.
related documents
Technical Specifications
Signal Channel Configuration: Equipped with 16 analog input channels, 16 digital input channels, 8 analog output channels, and 8 digital output channels. Some versions support 32 analog input channels, capable of meeting diverse on-site signal processing requirements.
Power Supply Specifications: Adopts 24V DC power supply with power consumption below 5W, delivering excellent energy efficiency performance.
Operating Environment: Features an operating temperature range of -40°C to +70°C, boasting strong adaptability to high and low temperatures. It can withstand harsh industrial environments, including high-temperature and vibration scenarios, with an IP67 protection rating.
Physical Characteristics: Weighs 0.429 kg and measures 115mm × 61mm × 30mm. The modular design facilitates easy installation and layout.
Connection Method: Equipped with M12 connectors, and the contacts adopt gold-plating technology to ensure excellent electrical conductivity and long-term operational stability.
Communication Protocols: Supports multiple communication protocols such as Modbus, Foundation Fieldbus, and HART. It is also compatible with block transfer and extended register protocols, ensuring seamless integration with different systems.
Core Features
Superior Industrial Durability: Manufactured using high-quality materials such as ceramics (99.9% Al₂O₃), PTFE, and stainless steel 316L/1.4435. With surface characteristics reaching Ra < 0.4/Rz 4, it exhibits excellent durability and stability, capable of adapting to harsh industrial operating conditions.
Comprehensive Status Monitoring: Equipped with 4 green LED indicators for switch status and a 4-digit numeric display for measuring values, enabling users to intuitively monitor the module's operating status and relevant parameters.
Seamless System Integration: Perfectly integrates with the Emerson Ovation control system, achieving efficient collaboration with the system and enhancing overall control efficiency.
High Reliability and Stability: Undergoes rigorous quality inspections and features anti-interference and anti-vibration properties, effectively reducing the failure rate and ensuring the continuous operation of industrial processes.
Easy Installation and Maintenance: The modular design simplifies installation, disassembly, and subsequent maintenance processes, lowering operational and maintenance costs and complexity.
Application Fields
The Emerson 5X00226G03 Ovation I/O Interface Module is widely used in various industrial scenarios, including power generation, oil and gas production, chemical processing, manufacturing automation production lines, the telecommunications industry, and energy management fields. In these applications, the module mainly undertakes tasks such as discrete control (e.g., controlling on/off devices like motors, valves, and relays), data acquisition (e.g., collecting sensor data such as temperature, pressure, and flow rate), and alarm indication (e.g., indicating faults or abnormal conditions), providing strong support for precise control and efficient operation in various industries.
