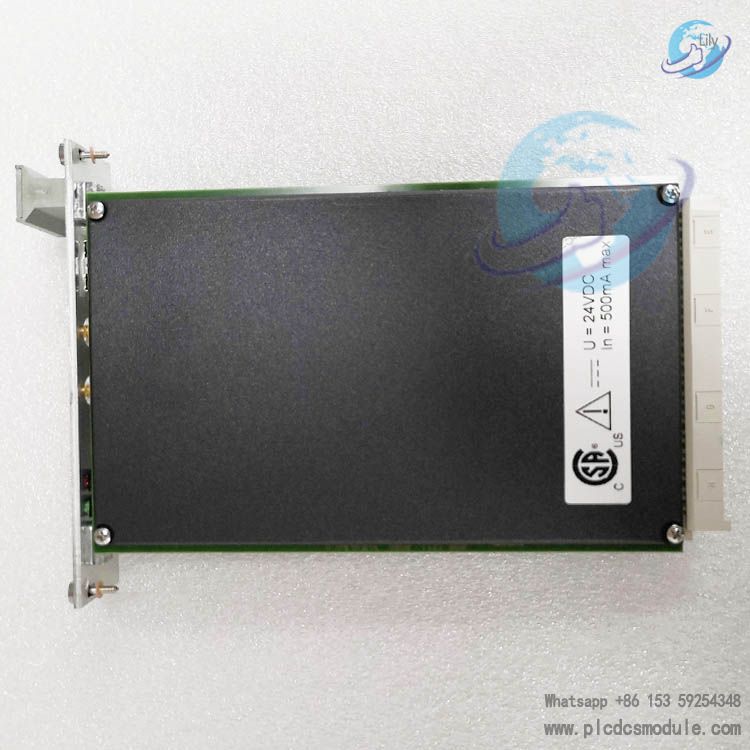

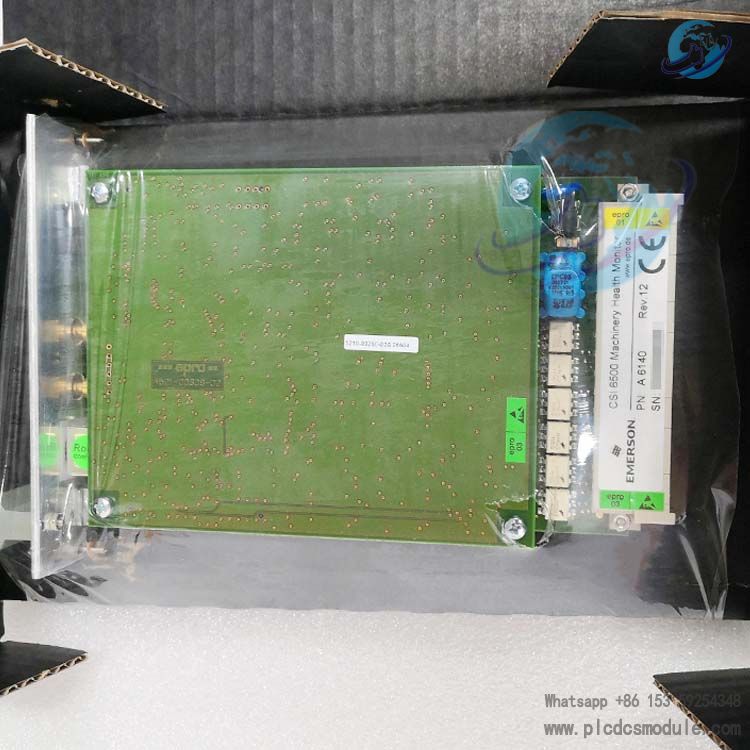

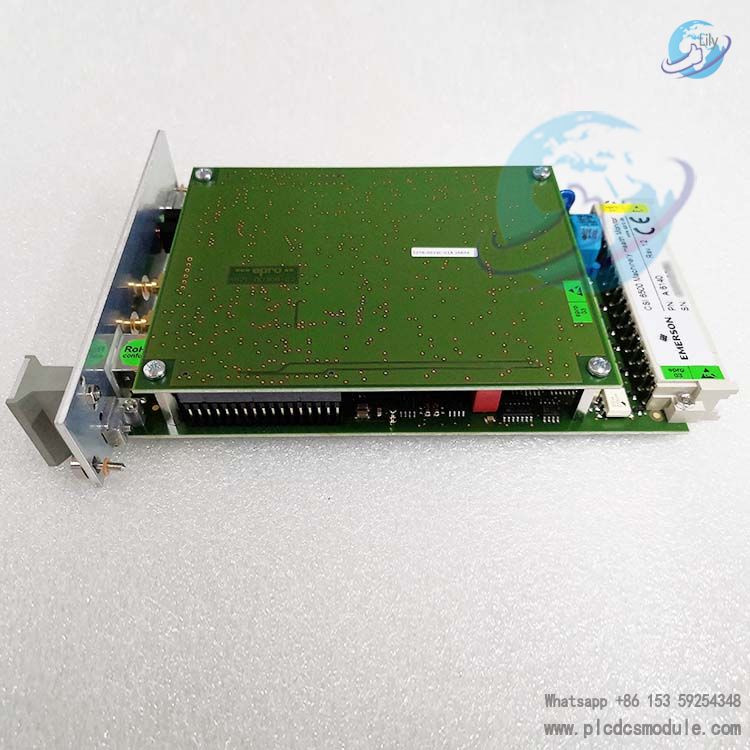

A6140 (Part Number: 9199-00058) is a dual-channel shaft absolute vibration monitor card dedicated to Emerson CSI6500 Machinery Health (AMS Suite) product line under the PlantWeb digital plant architecture and fully compliant with API 670 rotating machinery protection standards. It is engineered for critical heavy-duty rotating equipment fitted with plain bearings.
Built as a single-slot 3U pluggable module to replace conventional legacy 6U four-channel monitor boards, it enables up to 14 units to be installed within a single standard 19-inch rack. The card precisely computes shaft absolute vibration against free-space reference via phase compensation and differential calculation of two inputs: one eddy-current displacement probe signal and one case piezoelectric vibration signal. This corrects measurement errors caused by sole relative shaft vibration reading when bearing housings undergo substantial bouncing.Indispensable for equipment protection and predictive maintenance on steam turbines, gas turbines, large compressors and hydroelectric units, it can be assembled with all CSI6500 monitor cards to construct full API 670-compliant machinery interlock protection systems and achieve seamless data interconnection with mainstream DCS platforms including DeltaV and Ovation.
Download
Technical Specifications
(1) Channel & Sensor Matching
Dual-channel independent/composite dual-mode measurement: CH1 for Emerson 6422~6425 eddy-current probes + CON-series preamps; CH2 for piezoelectric case vibration transducers. Isolated excitation with floating circuitry suppresses field common-mode interference.
- CH1: −26.7 VDC supply (20 mA rated, max 35 mA), Zin＞100 kΩ, −1~−23 VDC input; filter: low cut 1/5 Hz, high cut 50~2000 Hz, span 0.4~2 Vpp.
- CH2: 0~8 mA /30 VDC constant-current excitation, Zin＞100 kΩ, −5~+15 VDC input; filter low cut 5/10 Hz, high cut 50~1000/1600 Hz.
(2) Configuration Features
Hot-switchable readings: RMS, zero-peak, peak-to-peak; user-defined sensitivity, filter and alarm limits. Auto extracts 0.5×,1×~10× harmonic & phase data for unbalance/misalignment/oil whirl spectrum diagnosis.
(3) Output Specifications
Rear Terminal Output
- 4~20 mA: per-channel or composite Max-Shaft-Vibration output, load＜500 Ω, ±1%FS accuracy, 0~10 s configurable response, short/open protection.
- 0~10 VDC: load＞10 kΩ; CH1 additionally outputs gap DC voltage for probe clearance check.
- Buffered raw signal: CH1 0~16 kHz, CH2 0.1~5 kHz for portable analyzer diagnostics.
Front Panel Output

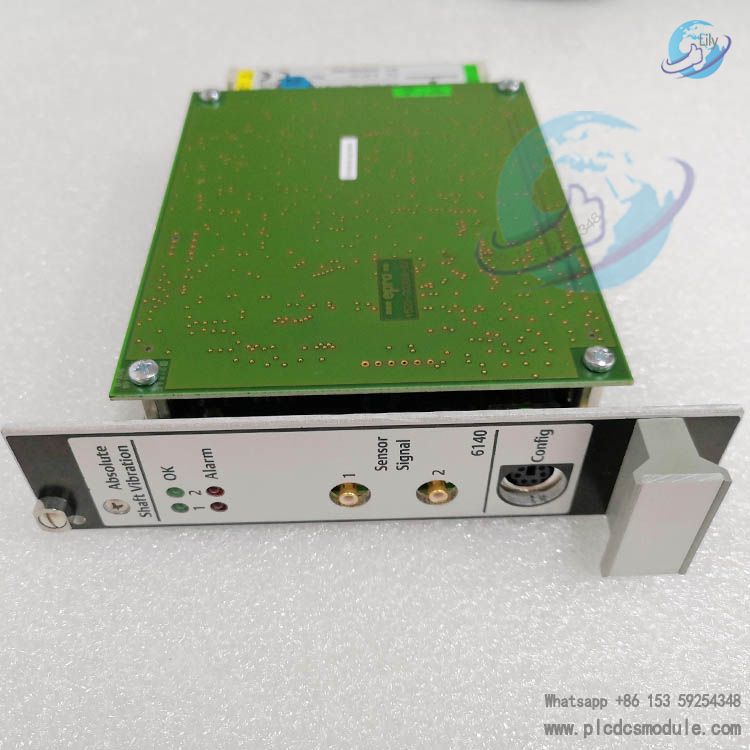

Two buffered analog outputs with specified range & bandwidth; green = healthy, red = Alert/Danger, LED flashes on fault.
(4) Alarm & Interlock
Two-stage Alert/Danger with NO/NC relay; onboard 0~5 s delay (0~36 s via A6740 relay card). Threshold:5%~100%FS (1%FS resolution), hysteresis 0~20%FS; remote 1.00~4.99× span adjustment & fault alarm suppression available. Normally-closed OK contact opens + green LED off/flashes upon power/sensor/overtemp fault.
(5) Mechanical Data
DIN41494 3U Eurocard:30×128.4×160 mm, net 320 g / packed 450 g; front panel IP21, password-protected parameter setup.
Application Scenarios
1. Thermal Power Industry
For steam turbine and generator rotors with plain bearing housings in coal/gas-fired power plants, substantial bearing housing displacement occurs during unit startup/shutdown and load fluctuation. Shaft absolute vibration monitoring via A6140 is mandatory for overspeed protection and bearing wear trip interlock. Also deployed for online protection of heavy plain-bearing rotors on boiler induced draft and booster fans.
2. Petrochemical Industry
Applied on large reciprocating/centrifugal feed & recycle compressors for refinery and coal chemical plants, as well as screw and turbo compressors. Process pressure fluctuation triggers severe casing vibration; A6140 eliminates housing interference to capture authentic shaft vibration and execute emergency shutdown interlock.
3. Hydropower Industry
Hydro-generator main shafts and thrust bearings suffer violent base oscillation from hydraulic shock, which distorts conventional relative vibration readings. A6140 absolute vibration monitoring effectively avoids false alarms induced by water hammer disturbance.
4. Metallurgy & Air Separation
Used for heavy plain-bearing equipment including large blast furnace blowers and air separation booster turbines. Paired with CSI6500 system for predictive maintenance to give early warning of rotor unbalance and oil whirl.
Model Selection Rule
Select A6140 preferentially for machines with sleeve plain bearings, comparable mass between bearing housing and rotor, and obvious casing shake during operation; pick A6110 relative vibration card for rolling-bearing units with rigid machine casings.
Product Comparison (A6140 / A6110 / A6210)
| Parameter | A6140 (9199-00058) Dual-Channel Absolute Shaft Vibration | A6110 Dual-Channel Relative Shaft Vibration | A6210 Axial Displacement / Differential Expansion Module |
|---|---|---|---|
| Measuring Principle | CH1 relative shaft vibration + CH2 casing vibration calculated via differential algorithm for absolute shaft vibration | Single eddy-current input for shaft vibration relative to bearing housing | Single eddy-current input for rotor axial displacement, differential expansion or piston rod displacement |
| Sensor Arrangement | 1×eddy-current probe + 1×piezoelectric casing transducer | Dual eddy-current probes | Single eddy-current probe |
| Applicable Bearings | Plain-bearing units with susceptible casing shake (steam & hydro turbines) | Rolling bearings or rigid-housing plain bearings (fans, small compressors) | Thrust bearings for rotor axial position supervision |
| Core Output | Smax absolute shaft vibration, relative shaft vibration, casing vibration | Peak-to-peak / zero-peak relative shaft vibration | Axial displacement value |
| Typical Applications | Steam turbines, large compressors, hydro turbines | Medium/small fans, pumps, booster compressors | Steam turbine thrust bearings, unit thermal expansion monitoring |
| Hardware Layout | 3U single-slot, hot-swappable, dual isolated inputs | 3U single-slot, dual eddy-current inputs | 3U single-slot, single channel with adjustable span |
FAQ
Q: Is OEM 642X eddy-current probes and CON preamplifiers mandatory when ordering A6140?A: OEM datasheet specifies 6422/6423/6424/6425 probes plus CON011/021/041 preamps as preferred matching parts. Third-party transducers with identical power and impedance specs are physically compatible, yet full-set Emerson original hardware guarantees ±1% FS measurement accuracy. Non-standard third-party components commonly cause zero drift and spurious alarms.
Q: Can A6140 run standalone without CSI6500 rack?A: No. It is a dedicated plug-in card requiring original CSI6500 3U backplane for power and communication; no standalone housing or independent power supply is available.

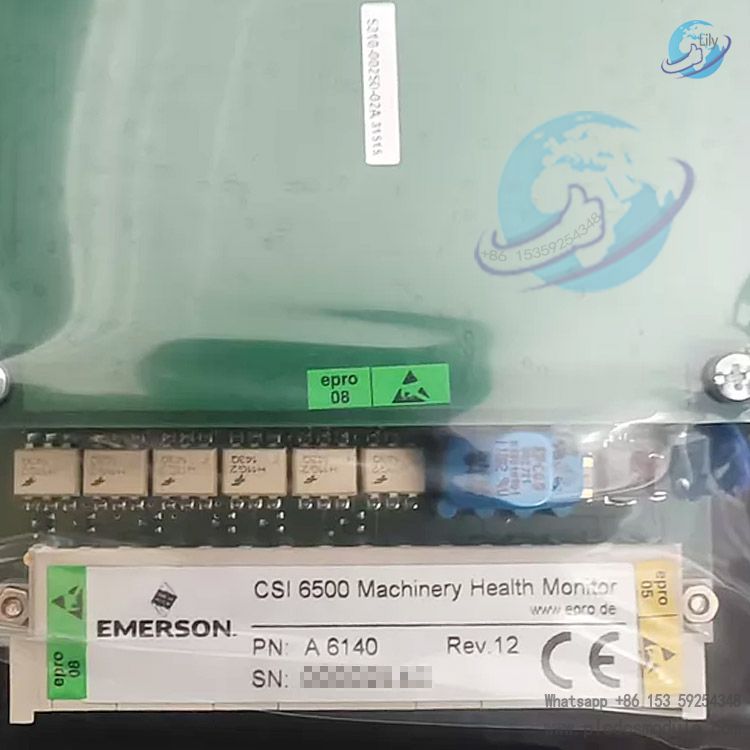

Q: Relationship between part No.9199-00058 and model A6140, which to use on purchase order?A: A6140 is model name; 9199-00058 is OEM purchasing part code. List both on PO to avoid shipping errors. Only part code may change across batches with unchanged hardware specifications.
Q: Quantity of A6140 required per absolute vibration measurement point?A: One A6140 per single bearing pedestal; two cards for front and rear turbine bearing measuring points.
Q: Green front-panel LED off with steady red LED on, fault diagnosis?A: Card self-test failure with three typical causes:① Open/short-circuit on CH1/CH2 transducer wiring (most frequent);② Loss of 24VDC module supply;③ Internal over-temperature when ambient exceeds 65℃.Retrieve fault codes via AMS host and isolate transducers one by one for troubleshooting.
Q: Erratic and sharp fluctuation of 4~20mA signal received at DCS endA:① Incorrect eddy-current probe air gap (nominal 1.5 mm for 642X series);② Loosely secured piezoelectric transducer leading to abnormal casing vibration pickup;③ Poor shield grounding inducing variable-frequency drive interference.Recalibrate probe gap, fasten piezo sensors and implement single-point shield grounding for remedy.
Q: Failure to output Smax absolute vibration under composite modeA: Dual-channel composite calculation function disabled in configuration or mismatched sensitivity settings between two channels. Enable composite mode and align sensitivity values before downloading updated parameters.
Q: Loss of communication and unresponsive RS232 after hot swapA: ESD surge damages serial chip during hot-plug. Power off for 5 minutes then re-seat the card for reset; return to factory for repair if fault persists due to internal communication circuit damage.
Q: Frequent false alarms with no abnormal actual unit vibrationA:① Excessively low alarm hysteresis (＜5% FS); adjust to 10%~15% FS;② Undersized filter cutoff allowing mains noise ingress; raise low-cut frequency to 5 Hz;③ Transducer cabling routed alongside high-power cables causing interference; separate signal and power wiring.
Q: Missing 0~10V gap voltage output on CH1A: Defective eddy-current preamplifier or lost CH1 excitation supply. Measure −26.7VDC terminal voltage; absent supply indicates faulty onboard channel circuitry.
