The A6312 Speed and Keyphase Monitor is a dedicated dual-channel speed & keyphase monitoring card exclusively for the classic Emerson AMS6500 unit. Its supporting part number 9199-00025 covers dedicated configuration software and matching cable assemblies for this module, making the card one of the core functional boards of the complete API670-compliant rotating machinery protection system.

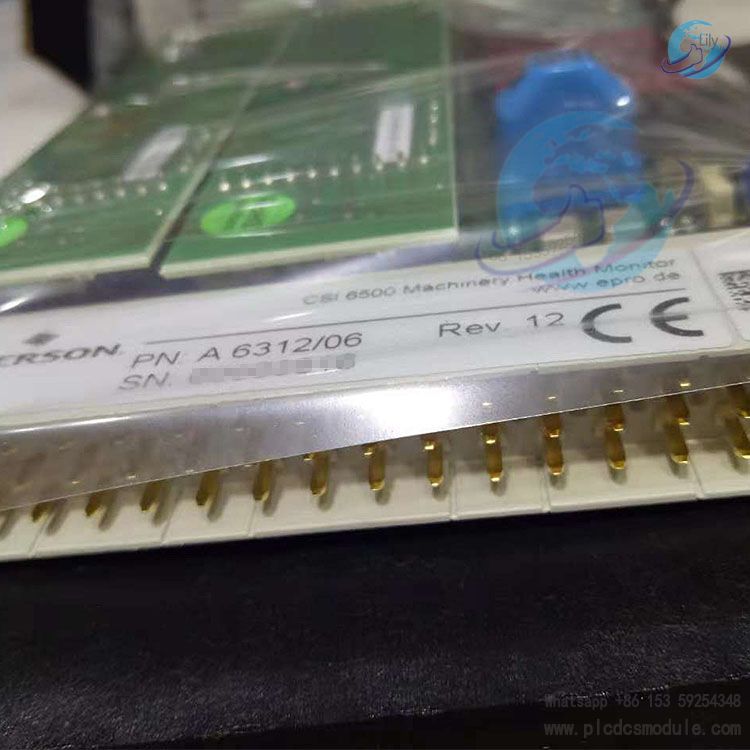

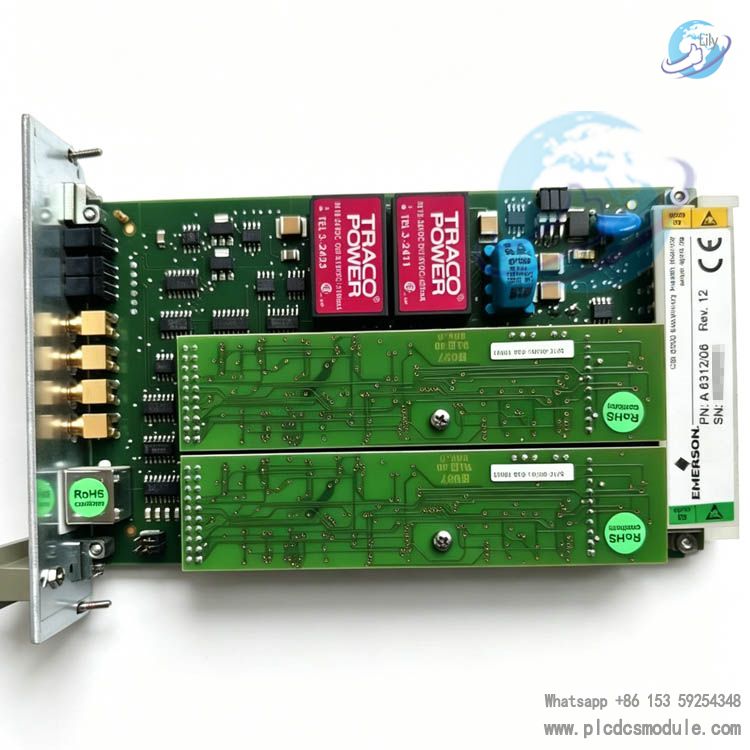

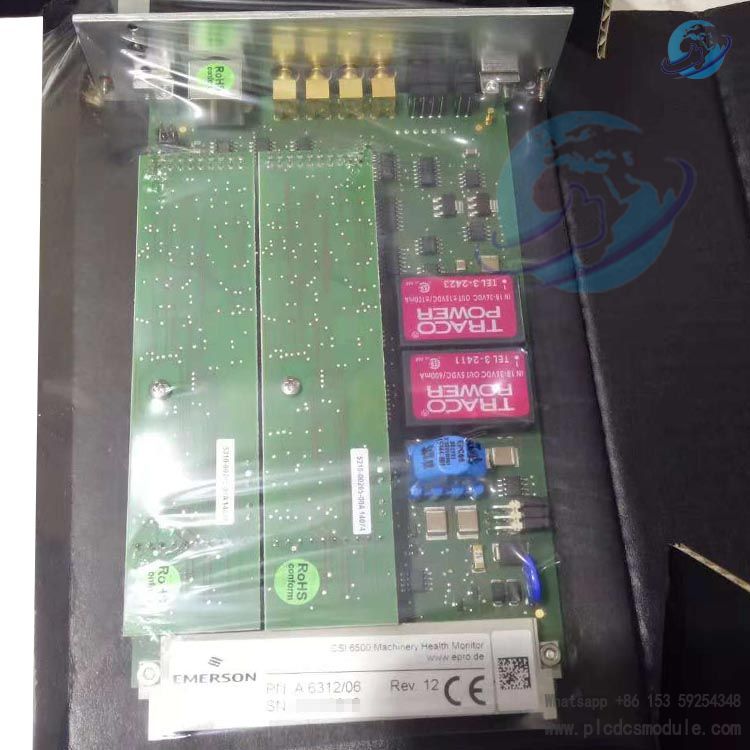

Designed as a 3U single-slot Eurostyle DIN rail card, this product is available in two variants: the A6312 (6TE form factor, compatible with legacy IMR6000 chassis) and the A6312-8 (8TE form factor, suited for AMS6500 / IMR6500 chassis). It primarily acquires pulse signals via eddy current displacement sensors (PR6422, PR6423, PR6424, PR6425) to deliver four core functions: rotational speed measurement, zero-speed alarming, reverse rotation detection and keyphase pickup. The card supports standalone single-card setup or redundant switching with dual sensors. Collected data is uploaded to DeltaV and Ovation distributed control systems over Modbus TCP/RTU, supplying overspeed, stall and reverse rotation interlock protection as well as reference keyphase signals for fault spectrum analysis for critical rotating equipment including steam turbines, compressors and water turbines.Part No.9199-00025 is an essential accessory for A6312 commissioning, consisting of upper computer configuration software and RS232 commissioning cables; parameter configuration and calibration of the module cannot be accomplished without this accessory.
Product Features
(1) Hardware Channel & Sensor Specifications
Channel Configuration: Equipped with 2 independent differential eddy-current input channels; each channel is configurable for either speed measurement mode or keyphase mode. For speed measurement, the gear target ranges from 1 to 255 teeth; for keyphase pickup, the shaft requires one single keyway per revolution to capture once-per-revolution reference phase signal.
Sensor Compatibility: Factory-matched with Emerson PR6422/6423/6424/6425 series eddy-current probes and CON011/91, CON021/91 proximitors. Nominal probe supply voltage: -26.75 VDC; rated output current 20 mA with peak maximum 35 mA; input impedance＞100 kΩ, input voltage range: 0~±27.3 VDC.
Range Parameters: Speed input frequency: 0~20 kHz, corresponding to a maximum rotational speed of 65535 RPM. Input signal amplitude: 2 V ~ 30 V (continuously adjustable via software); programmable pulse window: 5~10 ms. Zero-speed detection timing range: 1~1700 s for accurate coast-down monitoring of unit shutdown.
(2) Alarm & Logic Characteristics
Three-Tier Alarm Hierarchy: OK (Channel Healthy), Alert (Pre-warning), Danger (Trip). Each channel features an onboard adjustable delay of 0~5 s; extended delay from 0~36 s is available via interconnection with A6740 relay card. Alarm threshold adjustable from 5% to 100% FS with 1% FS resolution; dropout hysteresis settable 0~20% FS to eliminate nuisance spurious alarms.
Remote Functions: Supports remote Limit Multiplier calibration (1.00~4.99×) and remote Trip Bypass; local/central control interlock switching is realized via external dry contact terminals.

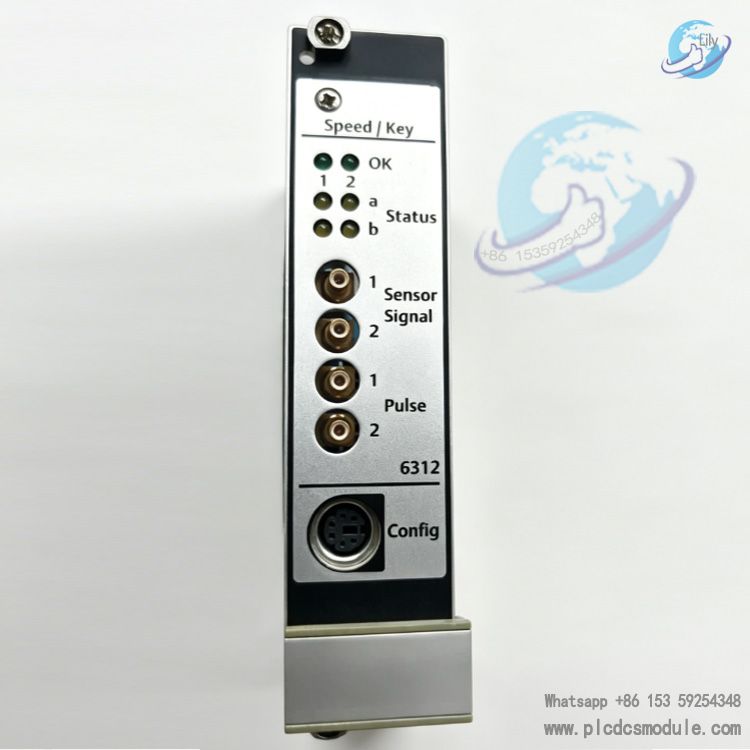

Built-in Self-Diagnosis System: Continuous real-time monitoring of supply voltage, card temperature, probe open/short circuit, proximitor malfunction and hardware overload. Upon fault occurrence, front-panel green OK LED extinguishes while fault indicator flashes; fault codes are uploaded to host system over Modbus bus for rapid fault pinpointing.
(3) Electrical & Environmental Ratings

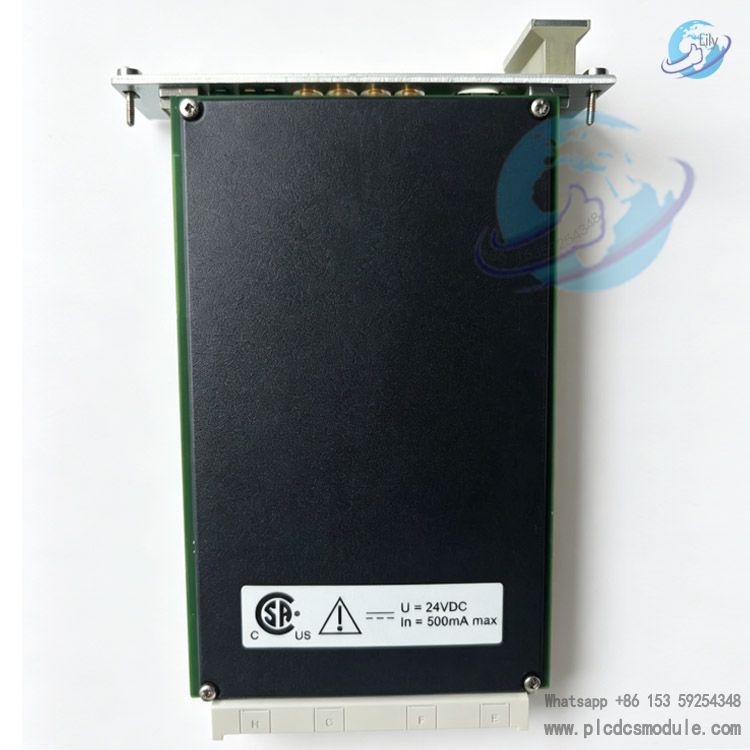

Power Supply: 24 VDC system input; operating current ≤250 mA, max power consumption: 6 W.Temperature & Humidity: Operating ambient: 0~65℃; storage/transport: -30~85℃; relative humidity 5%~95% non-condensing.Vibration & Shock Resistance: Vibration: 10~55 Hz (0.15 mm amplitude), 55~150 Hz (19.6 m/s²); Shock: 98 m/s² (9.98 g, 16 ms), compliant with IEC68-2. EMC complies with industrial standards EN50081-1 / EN50082-2.
(4) Physical Dimensions
- A6312 (6TE): W30 mm × H128.4 mm × D160 mm, net weight approx. 320 g
- A6312-8 (8TE): W40.3 mm × H128.4 mm × D160 mm, net weight approx. 320 g
Both variants share identical height and depth dimensions and differ only in rack mounting width; up to 14 modules can be installed within one standard 19-inch rack chassis.
(5) Description for Supporting Part No.9199-00025
Part No.9199-00025 is a dedicated accessory kit exclusively for A6312, consisting of AMS6500 configuration software installer and RS232 Mini-DIN commissioning cable. The cable connects the front panel serial port to PC for parameter downloading including measuring range, gear tooth quantity, alarm setpoints and redundancy setup. On-site commissioning and calibration cannot be completed without this accessory kit.
Core Advantages
Compliance & Safety Benefits: API670 Certified with Hot-Swap Function
The card fully complies with API670 standard for industrial machinery protection and supports online hot swapping. Faulty card replacement is achievable without unit shutdown to avoid production losses from outage maintenance. Integrated with hardware watchdog, overvoltage and short-circuit protection circuits, it features galvanic isolation between sensor power supply and mainboard circuitry, so short-circuit of field wiring will not damage the module.
Redundancy Protection: Automatic Switchover via Dual-Channel Redundancy
Two independent acquisition channels can be configured in master-standby redundant mode to continuously monitor gap voltage and pulse count from both sensors. Instant automatic switchover to the backup sensor takes place upon main channel failure. For redundant configuration, two speed probes shall be installed coaxially to ensure zero phase shift after switchover and maintain continuity of interlock and keyphase data.
System Compatibility: Native Compatibility with PlantWeb Architecture
Fully integrated into Emerson PlantWeb digital plant infrastructure with seamless native connection to DeltaV and Ovation DCS platforms. Measured values and alarm status can be directly uploaded to control systems. Paired with A6740 relay output card, customized logic can be set up for overspeed shutdown and zero-speed interlock trip functions.
Space & Power Efficiency: Compact 3U Single-Slot Layout
Conventional speed monitor cards commonly adopt 6U dual-slot structure, while the A6312 occupies only a single rack slot in two widths (6TE / 8TE), cutting cabinet installation footprint by 50%. Maximum power consumption is limited to ≤6W at 24VDC (250mA input); low heat generation enables long-term continuous operation inside sealed control cabinets.
Multi-Format Output Compatibility
Three types of rear-side outputs are available simultaneously: 4~20mA analog signal, buffered 0~10V voltage and raw TTL pulse signal. The outputs feed local digital indicators as well as fault analyzers for original keyphase waveform capture, satisfying both process monitoring and equipment fault diagnosis requirements.
Application Scenarios
1. Thermal Power Industry
Steam Turbine: Speed measurement for high & intermediate pressure rotors, zero-speed interlock for turning gear switching, overspeed trip protection; keyphase signal serves as reference for vibration spectrum analysis and rotor dynamic balancing diagnosis.Boiler Induced Draft / Forced Draft Fans: Anti-reverse rotation protection and stall alarm to prevent bearing burnout caused by dead-head running of fans.
2. Oil & Gas and Petrochemical Industry
Natural Gas Compressors & Reciprocating Compressors: Overspeed shutdown interlock and reverse rotation protection; keyphase provides synchronous reference for piston rod displacement and eccentricity monitoring.Refining Hydrogenation Turbine Units: Coast-down zero-speed monitoring to trigger interlock for inlet steam valve cutoff.
3. Hydropower Industry
Hydroelectric Generating Units: Turbine speed monitoring, overspeed protection and low-speed brake control; keyphase enables synchronous sampling for generator stator fault inspection.
4. Metallurgy & Air Separation Industry
Blast Furnace Blowers and Large Air Compressors: Speed supervision during unit startup/shutdown and anti-reverse interlock, cooperating with DCS to execute anti-surge control logic.
General Feature
The A6312 module is standard equipment for all medium-to-large rotating machinery requiring overspeed safeguard, reverse rotation prevention and keyphase reference for vibration analysis, complying with acceptance criteria of API670 mechanical protection specification.
Comparison of Monitoring Cards
| Model | Description | Core Monitored Parameters | Compatible Sensors | Primary Application | Differences from A6312 |
|---|---|---|---|---|---|
| A6312 | Speed & Keyphase Monitor | Rotational speed, zero speed, rotation direction, keyphase position | Eddy-current PR642X series | Overspeed/zero-speed interlock protection; reference keyphase signal for vibration analysis | Dedicated speed & keyphase card, no vibration, temperature or shaft displacement measurement |
| A6110 | Shaft Relative Vibration Monitor | Peak-to-peak shaft radial relative vibration | Eddy-current PR642X series | Bearing & rotor vibration protection | Measures vibration only, no speed or keyphase functions |
| A6125 | Case Piezo Vibration Monitor | Housing vibration in acceleration/velocity | Piezoelectric acceleration transducers | Bearing housing vibration monitoring | Works with A6312 to build an integrated machine monitoring system covering vibration plus speed |
| A6210 | Axial Displacement/Differential Expansion/Piston Rod Monitor | Thrust displacement, casing differential expansion, piston rod drop | Eddy-current PR642X series | Anti-rubbing protection for turbine axial system | For axial displacement measurement without speed detection |
| A6630 | Temperature Monitor | RTD / thermocouple temperature (bearing lube & winding temp) | PT100, Type K/J thermocouple | Bearing and winding overtemperature protection | Exclusive for temperature acquisition, no rotating machinery parameter measurement |
| A6824 | Modbus Communication Card | Aggregate and upload full rack data | No field sensor connection | Modbus protocol conversion for entire AMS6500 rack | Communication gateway to transmit speed data collected by A6312 |
FAQ
Q1: How to select between A6312 and A6312-8? Is part 9199-00025 a mandatory purchase?A: Model selection depends on rack type: legacy IMR6000/10/20/30 racks adopt A6312 (6TE); new AMS6500 / IMR6500 racks adopt A6312-8 (8TE). 9199-00025 is indispensable for module commissioning. It is recommended to purchase together with new modules; duplicate purchase is unnecessary for existing projects already equipped with matching software. Configuration and on-site calibration cannot proceed without the matching cable assembly.
Q2: Are OEM Emerson PR642X probes mandatory? Can third-party eddy-current probes be used?A: The card is factory-calibrated for Emerson PR6422~6425 probes paired with CON-series proximitors. Third-party eddy-current probes may serve temporary substitution if their electrical specifications (-26.7V supply, impedance) match, yet full onboard self-diagnosis (open/short-circuit detection) will be disabled. Non-standard replacement is not allowed for units subject to API670 acceptance inspection.
Q3: How many A6312 cards are required per unit? How to specify redundant procurement?A: One card per single shaft under standard configuration (one channel for speed pickup, the other for keyphase). Two A6312 cards shall be ordered for SIL-compliant overspeed redundant protection; two independent probes feed separate cards to realize 2-out-of-1 hardware trip logic. Internal dual-channel redundancy within a single card only suffices for process monitoring and fails to meet SIL3 safety interlock criteria.
Q4: Warranty period and delivery lead time for A6312?A: 12-month warranty for brand-new units. In-stock items ship within 1~2 weeks; factory lead time is 4 weeks for non-stock orders of A6312/A6312-8.
Q5: Troubleshooting steps when green LED goes out with Channel Not OK alarm?A:
- Verify 24VDC rack power supply;
- Check nominal -26.75VDC supply to proximitors;
- Inspect probe cable for open/short circuit and out-of-tolerance probe mounting gap;
- Replace faulty card with spare unit via hot swap, retrieve fault codes using software from kit 9199-00025 for precise fault localization.
Q6: What causes fluctuating speed readings and lost keyphase signal?A:
- Missing teeth or excessive burrs on target gear wheel;
- Probe installation gap out of standard 0.5~1.5mm rated range for eddy-current sensors;
- Degraded proximitor or poor shield grounding of field cables;
- Incorrect gear-tooth count programmed; revise parameter via matching configuration software.
Q7: Troubleshooting for inaccurate 4~20mA output failing to reach full-scale 20mA?A:
- Confirm downstream load resistance ≤500Ω (maximum rated load for card’s 4-20mA circuit);
- Perform zero & full-scale recalibration with software from 9199-00025 kit;
- Install signal isolator to suppress field electromagnetic interference.
Q8: Failures of automatic switchover under redundant setup?A: OEM specification requires two speed probes mounted on identical axial cross-section of the shaft. Misaligned installation or asynchronous gear triggers switchover malfunction. Enable redundant switchover function inside configuration software and verify gap voltage threshold settings of both channels.
Q9: Does the card support hot swapping? Is unit shutdown required during replacement?A: Designed in compliance with API670 hot-swap standards; cards can be plugged/unplugged under live rack power without unit shutdown, followed by parameter download for commissioning. Bypass hardwired interlock terminals temporarily before replacement to avoid inadvertent trip.
Q10: Preventive measures against module damage from humid & condensation-prone environment?A: Install dehumidifier inside control cabinet to maintain relative humidity below 95% without condensation. Front panel ingress protection is IP21 while module body is IP00; prevent any liquid spillage onto circuit assembly.
