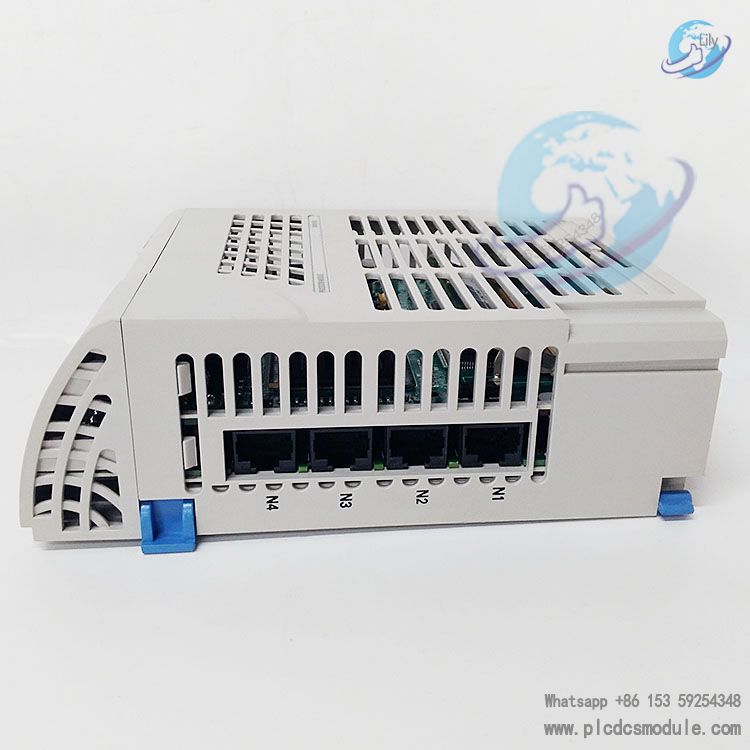

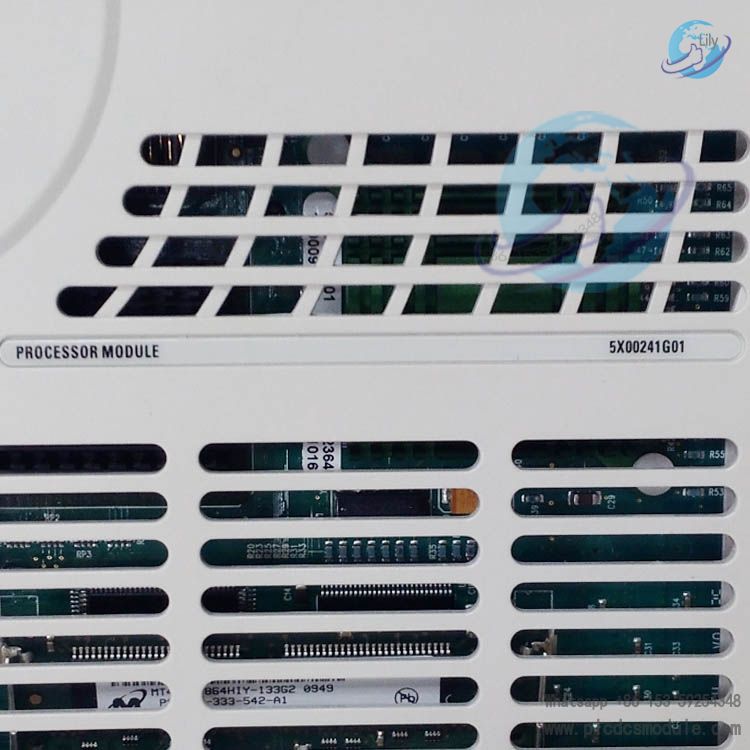

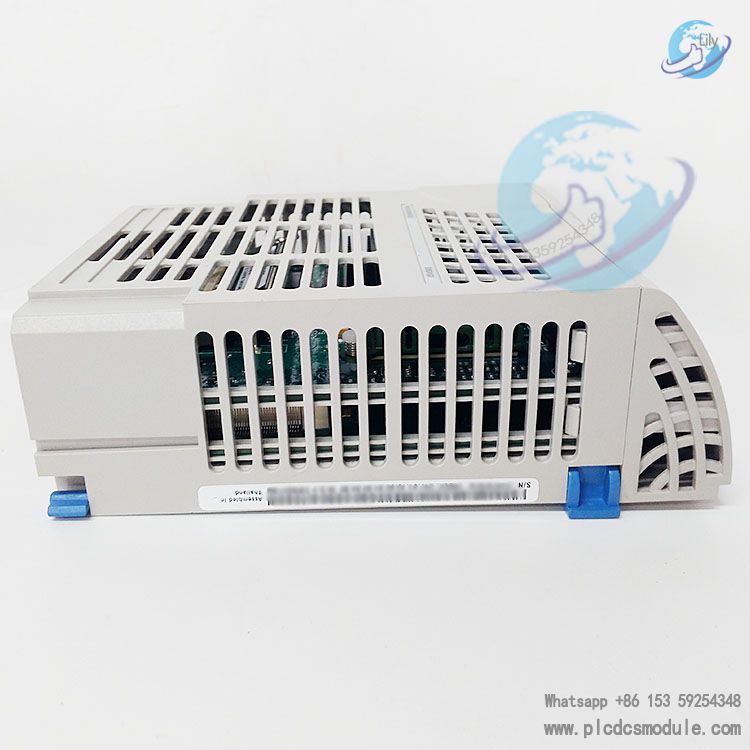

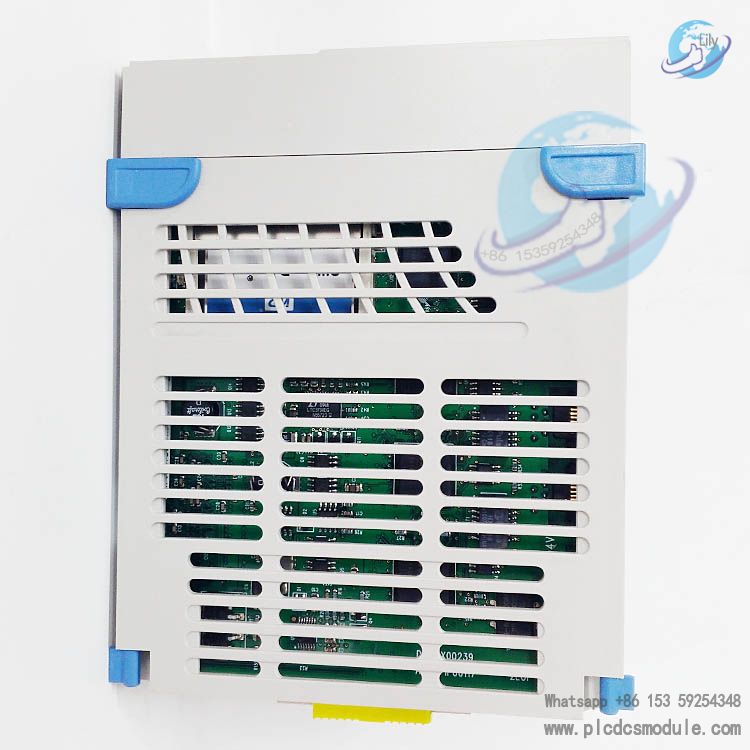

Emerson 5X00241G01 is a processor module in the Ovation Distributed Control System (DCS), belonging to the Ovation 5 series. It primarily undertakes core tasks such as control algorithm execution, real-time data processing, human-machine interaction, and inter-device communication. This module can be deployed as a master controller or a redundant controller. With its stable operational performance and flexible adaptability, it provides reliable control support for critical industrial processes.

Technical Specifications

Processor Configuration: Equipped with a high-performance 64-bit processor, delivering powerful data computing and processing capabilities.

Power Supply Specifications: Supports 24VDC or 12VDC input, compatible with the dual DC/DC power supply of the KJ1501X1-BC1 system.

Power Circuit Requirements: The wiring inductance of the input power main circuit must be less than 23 microhenries, or a certified power supply with an open-circuit voltage of 12.6VDC and inductance (including wiring inductance) less than 23 microhenries shall be used.

Hot-Swappable Feature: Allows insertion and removal operations while the system is powered on; only one module can be swapped at a time.

Place of Origin: United States (USA)

Compatibility: Fully compatible with the Ovation series Distributed Control System (DCS), supporting linkage with various Ovation I/O modules and peripheral devices.

Safety Requirements: Non-sparking field circuits must be powered off before module insertion/removal; terminal block fuses of non-sparking circuits shall not be removed while the field is powered on.

Functional Features

High-Performance Processing: The 64-bit processor architecture ensures efficient multi-task parallel processing, enabling rapid response to complex control algorithms and meeting real-time control requirements.

Flexible Expandability: Adopts a modular design for easy system capacity expansion and configuration upgrades, allowing flexible adjustment of the system architecture according to industrial scenario needs.

Redundant Deployment Support: Can be used as a redundant controller, effectively improving system fault tolerance and reducing downtime risks for critical processes.

Multi-Communication Adaptability: Supports multiple communication methods, enabling efficient data interaction with field devices, human-machine interfaces (HMIs), and upper-level systems, enhancing overall system linkage.

High Reliability: Field-proven in industrial environments, featuring stable operational performance, adaptable to various harsh industrial conditions, and ensuring continuous and stable control processes.

Main Application Fields

Power Industry: Suitable for scenarios such as power plants and substations, providing support for the automatic control of power generation, transmission and distribution links.

Petrochemical Industry: Adaptable to processes like petroleum extraction, refining and natural gas processing, enabling process control under harsh environments such as high temperature and high pressure.

Metallurgical Industry: Applied in the metallurgical production processes of steel and non-ferrous metals, ensuring precise control over links including smelting and rolling.

Water Treatment Industry: Compatible with municipal and industrial water treatment processes, realizing automatic management and control of water quality monitoring and purification procedures.

General Industrial Fields: Covering multiple sectors including mining, food and beverage, pulp and paper, pharmaceuticals, and manufacturing. It provides core control support for various automatic production processes.
