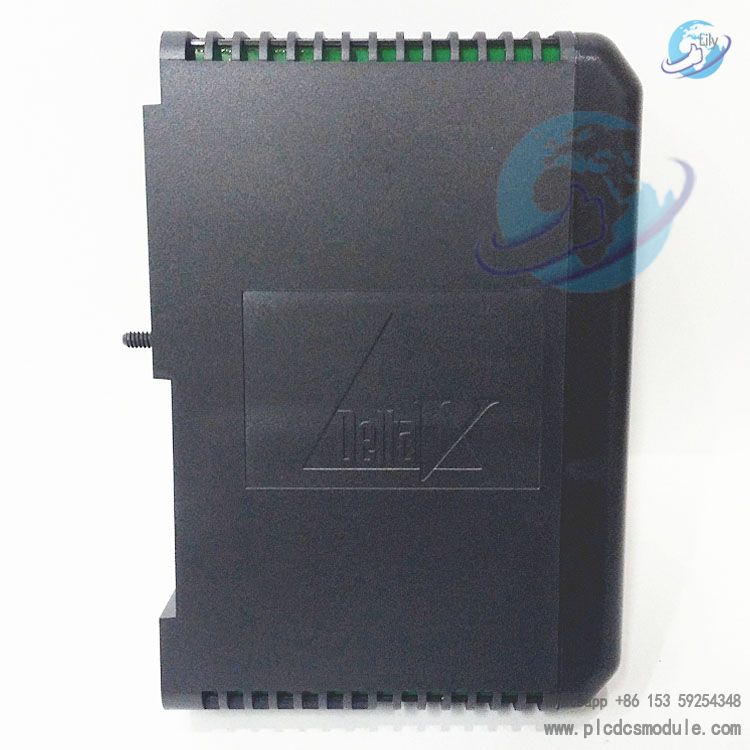

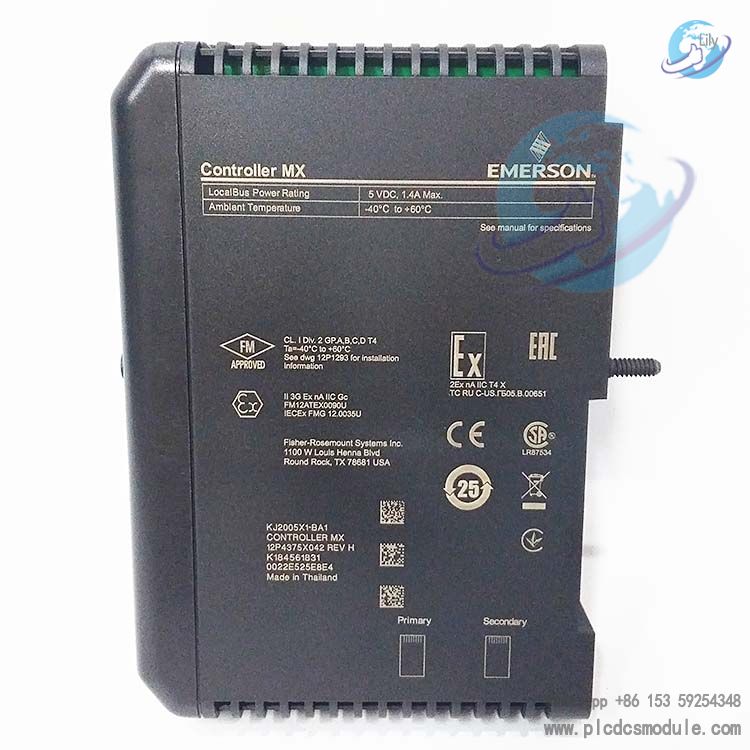

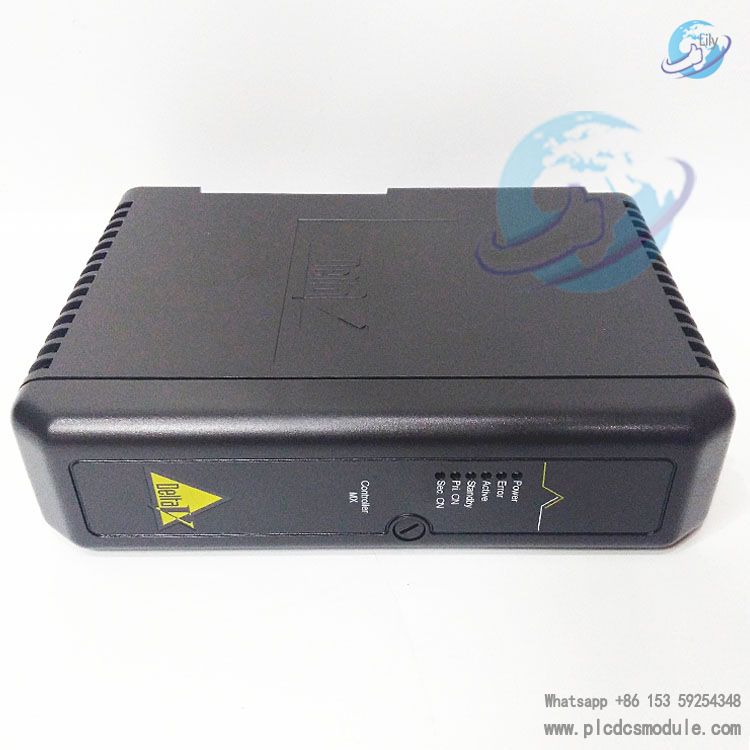

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. The CE3007 12P4375X042-233C KJ2005X1-BA1 DeltaV MX Controller is a high-performance M-series controller in Emerson DeltaV Distributed Control System (DCS), serving as the core communication and control hub between field devices and control network nodes; it is fully compatible with the control strategies and configurations of earlier DeltaV systems, retains all the functions of the MD Plus controller while doubling its capacity, enables the integration of large control units that originally required two MD Plus or MQ controllers into a single node, is ideal for centralized control of large-scale process industry installations, complex batch processes and advanced control applications, and also supports 1:1 redundancy and plug-and-play installation, achieving an optimal balance between high availability and engineering convenience.
Technical Specifications
Core Positioning: High-performance M-series controller for DeltaV DCS, matched with the M‑series I/O subsystemCapacity Configuration: Twice the capacity of the MD Plus controller; 96MB user-configurable memory, double the DST countPower Supply & Power Consumption: Powered via 2‑wide power supply/controller carrier; typical power consumption: 5W, maximum power consumption: 7W; equipped with a non-replaceable 3.0A fuseNetwork Interface: Primary control network + redundant control network, both with 8-pin RJ‑45 interfacesInstallation Method: Installed in the right slot of the power supply/controller carrier, 2‑wide sizeOperating Environment: Temperature range: -20°C to 70°C, suitable for harsh industrial environmentsCore Performance: Supports data processing of over 100 I/O points per second; control strategy execution cycle can reach 100ms, with a maximum of 4000 exception values transmitted per secondRedundancy Capability: Supports 1:1 controller redundancy to enhance system availability
Functional Features
Enhanced Control CapabilitySupports DeltaV Batch control and can run advanced control algorithms such as neural network control and Model Predictive Control (MPC), catering to the requirements of complex process technologies.Compatible with the M-series I/O subsystem, it uniformly manages the control activities of I/O interface channels and the communication of regional control networks, and can connect to the existing I/O architecture without additional configuration.When control parameters are modified online, the system automatically saves the changes for subsequent uploading to the engineering database, reducing the cost of project modifications in the later stage.
Intelligent Data and Device ManagementEquipped with HART intelligent information transparent transmission capability, it can transmit the diagnostic and parameter data of field HART/Foundation Fieldbus devices to control network workstations. It is compatible with device management tools such as AMS Device Manager, supporting remote device operation and maintenance.It can automatically restart after power failure. The control strategies are stored in non-volatile memory, enabling the system to resume operation without manual intervention after restart.
Engineering and O&M ConvenienceFeaturing a plug-and-play design without the need for jumper settings, it can be directly inserted into the right slot of the carrier during installation, greatly simplifying the deployment process.It can directly replace the MQ controller, with the original configurations, documents and hardware designs fully reusable, which is suitable for the later capacity expansion needs of the project scope.It supports modular expansion from a single controller to 100 controller nodes, adapting to scale changes from small-scale installations to large-scale integrated installations.
Application Scenarios and Value
Core Application Scenarios
Large-scale Process Industry InstallationsApplicable to large-unit control in sectors such as chemical engineering, oil refining and electric power. It can integrate the control requirements of multiple units, reduce the number of controllers and lower system complexity.
Advanced Control ProjectsIdeal for scenarios where complex strategies like MPC and batch control need to be deployed. Its high memory capacity and computing power ensure control accuracy and response speed.
Legacy System UpgradesSuitable for the migration of DeltaV legacy systems, compatible with existing control logic, thus reducing the engineering costs and risks associated with upgrade projects.
Core Value
Performance ImprovementWith twice the capacity and computing power, it cuts down hardware investment while enhancing control efficiency and system stability.
O&M OptimizationThe intelligent device data transparent transmission and redundancy design reduce on-site maintenance workload and minimize unplanned downtime.
Investment ProtectionCompatible with existing hardware and configurations, it supports smooth system upgrades and extends the overall system service life.
