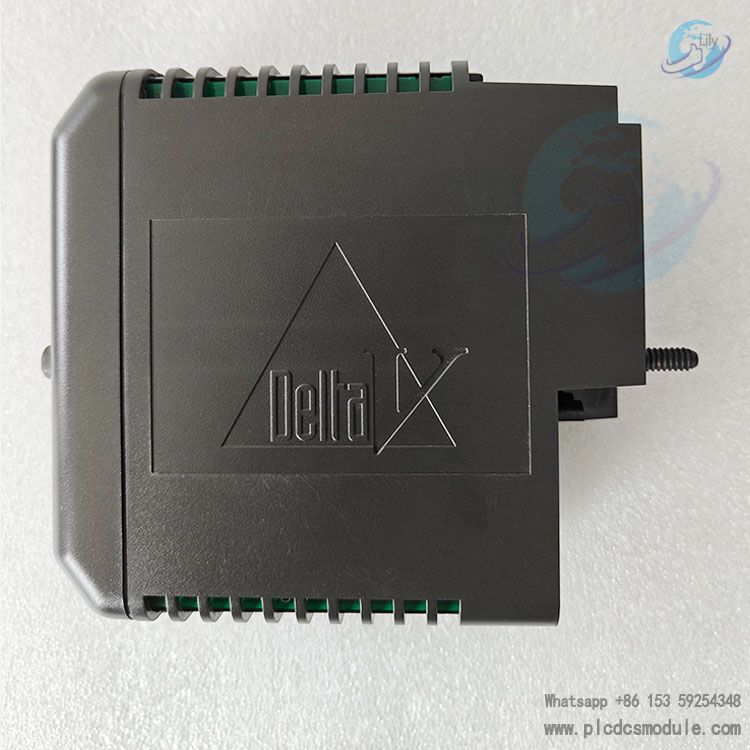

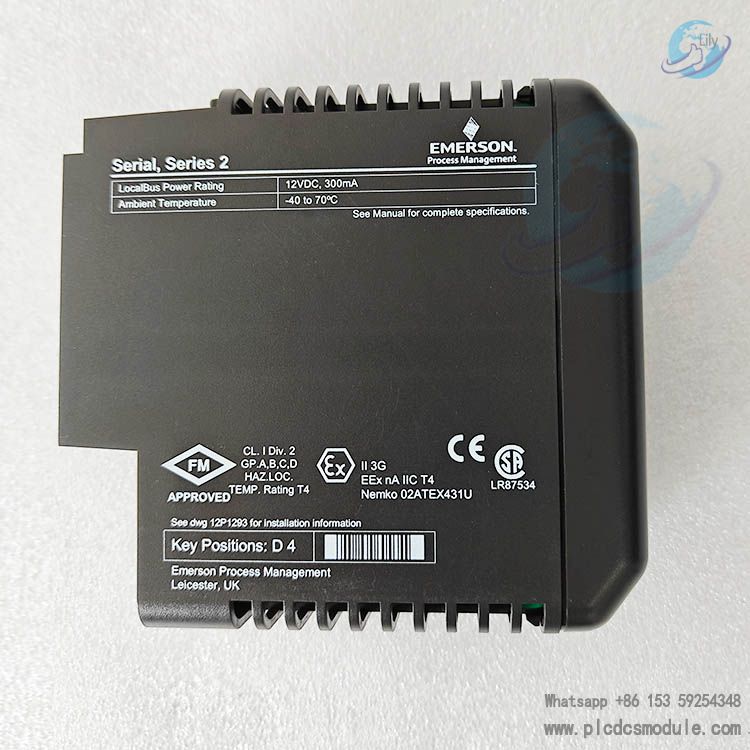

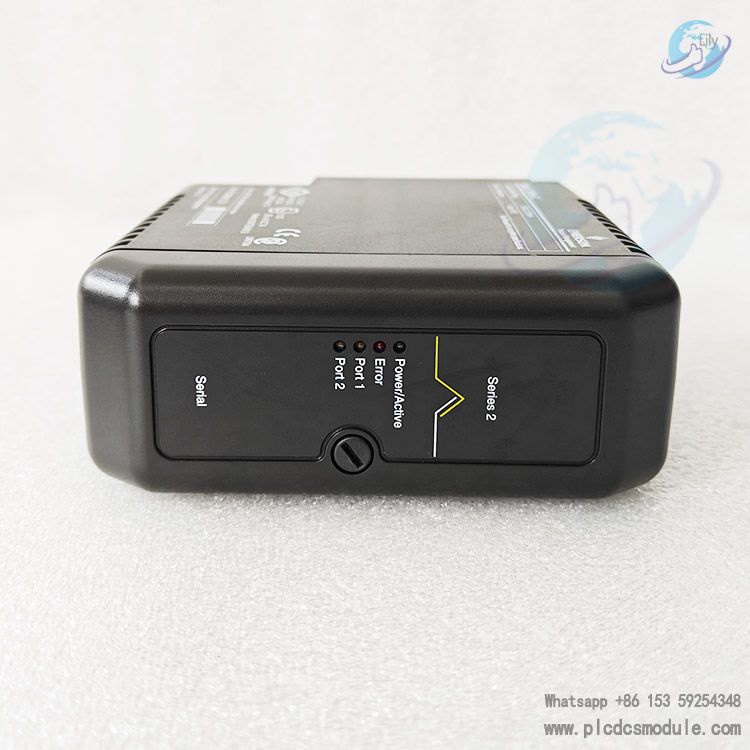

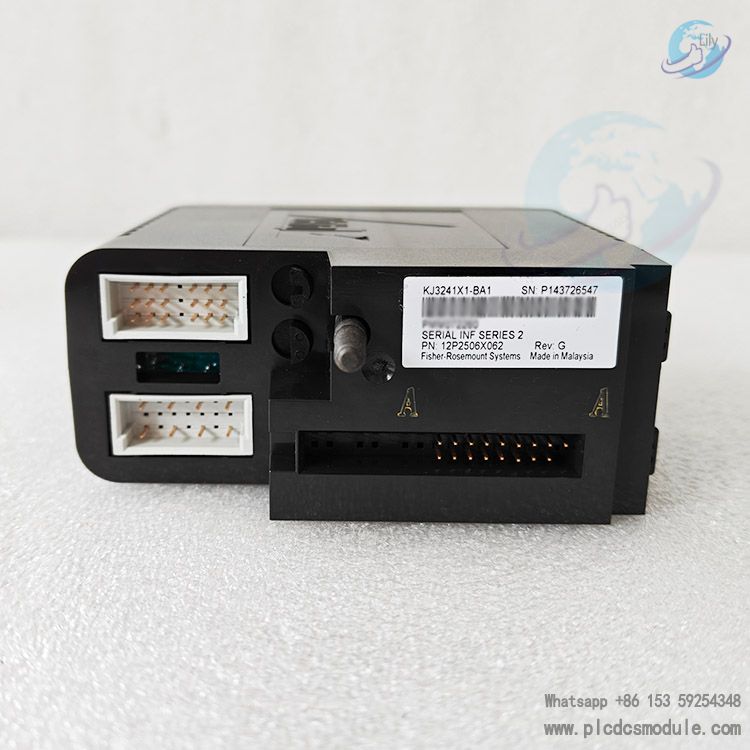

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. VE4006P2 is the second-generation serial interface card of the M series in Emerson DeltaV distributed control system (DCS), which is mainly used to realize the connection between the DeltaV system and third-party devices supporting serial protocols (such as Modbus, Allen Bradley Data Highway Plus, etc.), providing a reliable signal interaction interface for industrial automation control scenarios.
EMERSON VE4006P2.pdf
- Integrates information from all serial devices into the DeltaV system, displaying it in real time on the Operator Interface.
- When connected to a PLC, DeltaV software can transmit monitoring information to the PLC and coordinate cross-system control strategies.
- No DIP switches required; directly insert into any available slot of the I/O interface carrier.
- The DeltaV controller automatically identifies the interface card and provides configuration options, enabling quick operation via click-based configuration.
- Supports efficient docking with existing PLCs or other serial devices. Without replacing original equipment, it overlays DeltaV’s advanced control functions onto the existing system.
- Supports 1:1 redundancy configuration (requires slave devices to support redundant serial ports). Redundant and non-redundant cards use the same model to protect existing I/O investments.
- The system automatically senses redundant I/O, manages redundant card pairs as a single card, and switches from the primary card to the standby card automatically in case of failure—no manual intervention is needed, with prompts displayed on the Operator Interface.
- Each card includes 2 serial ports supporting RS232, RS422/485 half-duplex or full-duplex signals. Ports can be configured independently, with a maximum data rate of 115 KBaud.
- Supports Modbus RTU and ASCII protocols. Each port can be configured as a master or slave device, with a single card supporting up to 32 data sets (16 per port).
- Enables reading and writing of Modbus coils, input states, holding registers, etc. The output mode can be configured as single coil, register, or full data set mode.
| Parameter Item | Details |
|---|
| Number of Serial Ports | 2 |
| Number of Data Sets | 32 (16 per port) |
| Port Types | RS232, RS422/485 half-duplex, RS422/485 full-duplex |
| Isolation Feature | Each port is isolated from the system and other ports; external grounding required |
| Operating Temperature | -40℃~70℃ (long-term high-temperature operation shortens lifespan) |
| Storage Temperature | -40℃~85℃ |
| Relative Humidity | 5%~95% (non-condensing) |
| Protection Level | IP20 |
| Shock/Vibration Resistance | 10g half-sine wave (11ms); 3mm peak-to-peak at 5~13Hz, 0.5g at 13~150Hz |
| Configuration Item | Support Range |
|---|
| Baud Rate | 300/1200/2400/4800/9600/19200/38400/57600/115200 |
| Parity | Even, Odd, None |
| Data Bits | 7 or 8 |
| Stop Bits | 1 or 2 |
| Retry Times | 0~255 |
| Message Timeout | 100~25500ms (in 100ms increments) |
| Transmission Delay | 0~25500ms (in 100ms increments) |
| Startup Output | Configurable in DeltaV Explorer whether to send output during initialization |
VE4006P2 adopts a single-card configuration, including 1 interface card and 1 simplex terminal block. For redundancy requirements, VE4036P2 (with 2 interface cards and a redundant terminal block) is available, supporting automatic primary-backup card switching. It is suitable for scenarios with high reliability demands (such as hardware failures, communication interruptions, or manual trigger switching).
