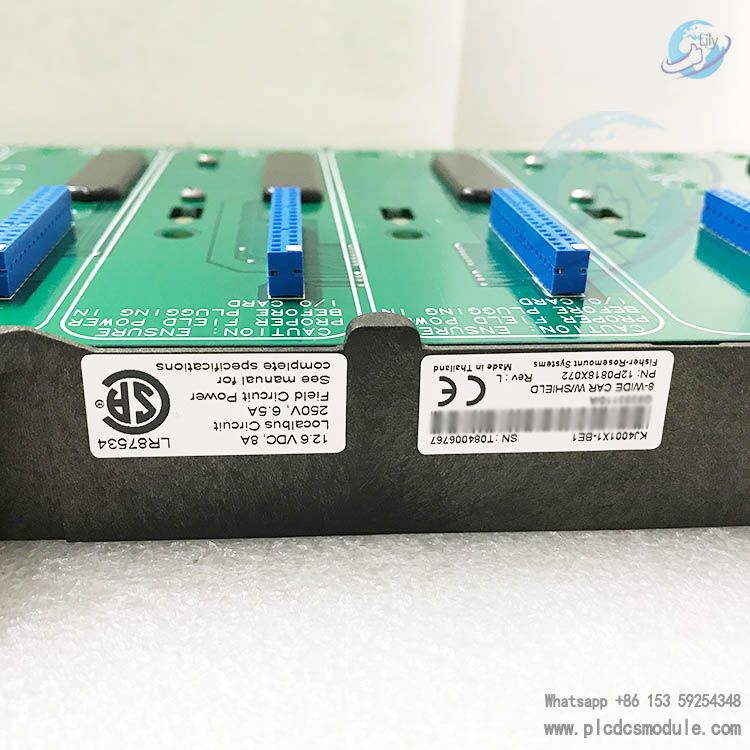

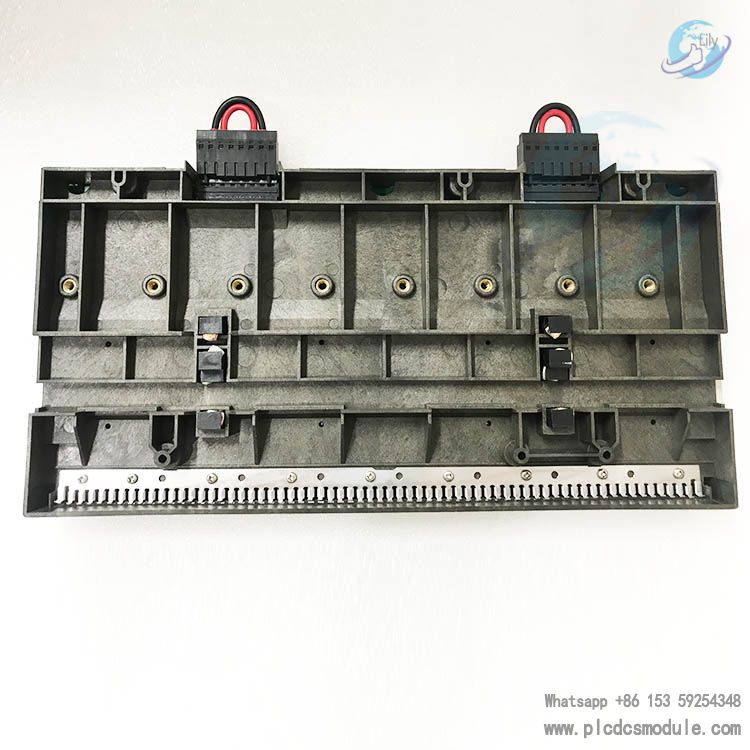

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. VE4050E1C0 is an 8-channel I/O interface carrier of the M-series horizontal mounting I/O subsystem in Emerson DeltaV distributed control system (DCS). As a core component of the modular I/O subsystem, it is used to connect the power/controller carrier and I/O cards, and supports signal access and power distribution of field devices.
Data Sheet
VE4050E1C0.pdf
VE4050E1C0..pdf
- Mounted via T-type DIN rail, it can be directly inserted into the power/controller carrier, supporting plug-and-play without additional external cables to connect the system power supply and controller.
- Enables online expansion: Through Carrier Extenders, I/O carriers can be deployed in multiple rows with 1-4 carriers per row, supporting up to 8 eight-channel carriers (64 I/O interfaces in total).
- The carrier integrates an internal power bus to provide 24V DC power for I/O cards and field devices, simplifying wiring and grounding designs.
- Equipped with a shielded ground bar to isolate field noise and ensure system power stability.
- Supports DeltaV SIS (Safety Instrumented System), achieving fault-tolerant configuration via Dual Carrier Extenders, compatible with redundant safety buses (Safety Logic Solvers).
- Extenders feature two 44-pin D-shell connectors (A/B ports in parallel), supporting dual-cable connections to enhance system reliability.
- Capacity: Supports 8 I/O cards and corresponding terminal blocks.
- Dimensions:
- Height: 16.5 cm (6.5 in), Width: 33.6 cm (13.2 in), Depth: 3.1 cm (1.2 in).
- Current Ratings:
- Backplane: 8 A max (for I/O cards);
- Field power bus: 6.5 A max per two I/O cards (legacy specification) or 3.2 A max per card (independent power version).
- Operating Temperature: -40°C to 70°C (long-term high temperatures reduce service life);
- Storage Temperature: -40°C to 85°C, Relative Humidity: 5%–95% (non-condensing);
- Protection Level: Meets ISA-S71.04-1985 Class G3 anti-corrosion standards, withstands 10g half-sine wave shock (11 ms), and vibration: 1 mm peak-to-peak at 5–16 Hz, 0.5g at 16–150 Hz.
- The I/O bus can be expanded across different rows via 1-Wide Local Bus Extenders, supporting multi-row deployment.
- When connected to power/controller carriers, a single I/O subsystem can support up to 64 I/O interfaces (8 eight-channel carriers).
- Compatible with M-series controllers (e.g., PK controllers). When mixing 4-channel and 8-channel carriers, note the slot numbering rule: slot numbering starts from position 9 when an 8-channel carrier follows a 4-channel carrier.
- Incompatible with S-series controllers unless using a DeltaV SIS adapter.
- 8-channel I/O interface carrier with Carrier Shield Bar.
- Standard configuration includes a 1.2m Single Enhanced Carrier Extender Cable for connecting to other carriers or extenders.
- VE4050E1C2: Adds redundant SISNet coaxial cables, suitable for safety systems.
- VE4050E2C0: Features dual carrier extender cables without SIS redundancy.
- VE4050K1C0: Independent field power version with individual power supply for each card.
- Carrier Extender Cables: 0.8m/1.2m/1.5m coaxial cables (black and white, compatible with SIS).
- Blank Cover: VE6101 for unused carrier slots.
- Suitable for high-reliability scenarios in chemical, petroleum, and power industries, supporting analog/digital I/O card access (e.g., 4-20mA, HART, RTD, thermocouples, etc.).
- Works with DeltaV SIS for safety instrumented systems, reducing downtime risks through redundancy design and meeting SIL safety standards.
- Ideal for phased deployment projects, allowing on-demand addition of I/O carriers to reduce initial investment costs.
