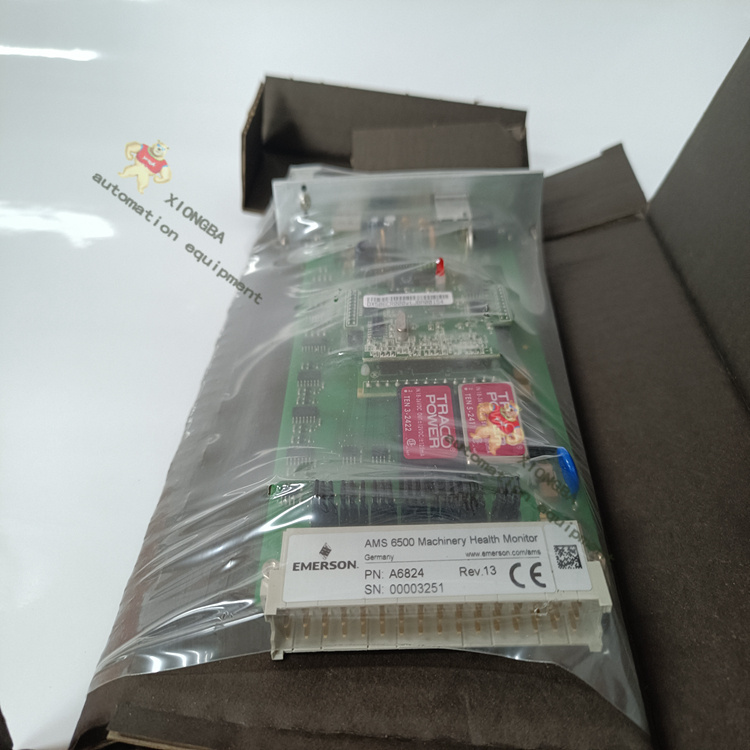

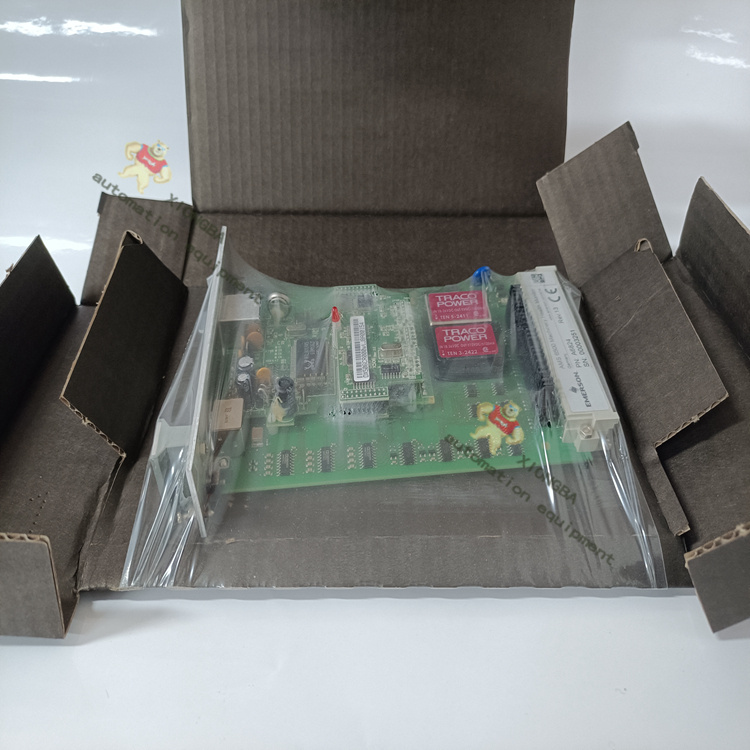

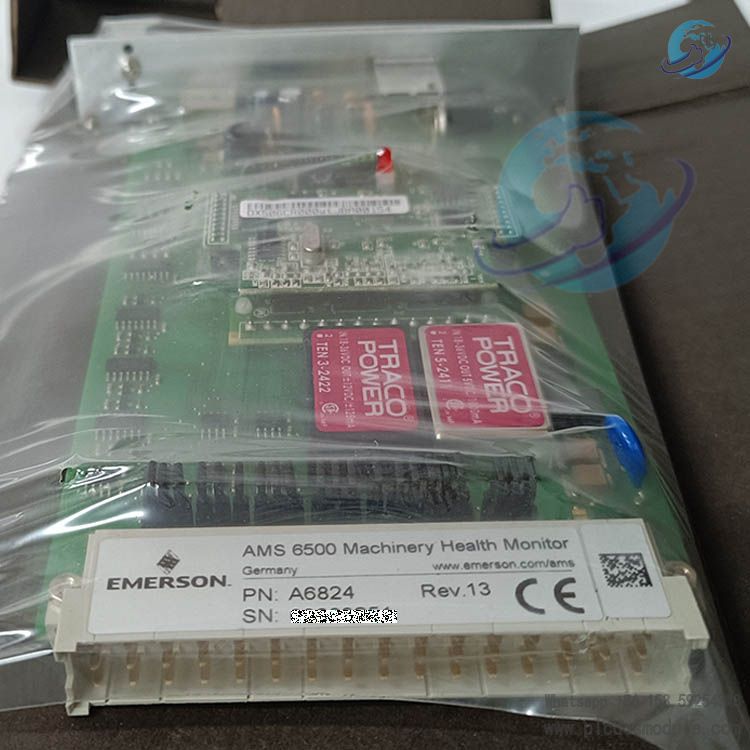

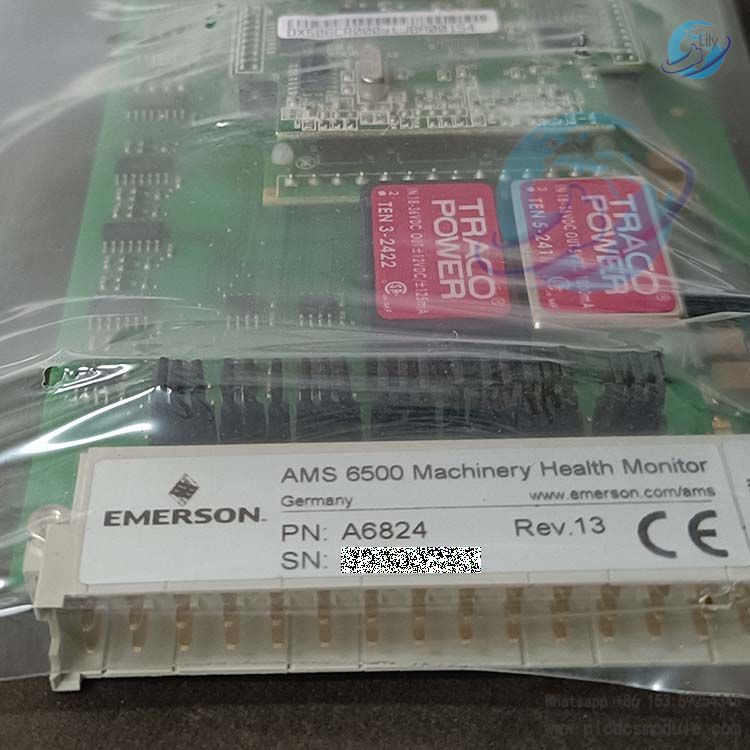

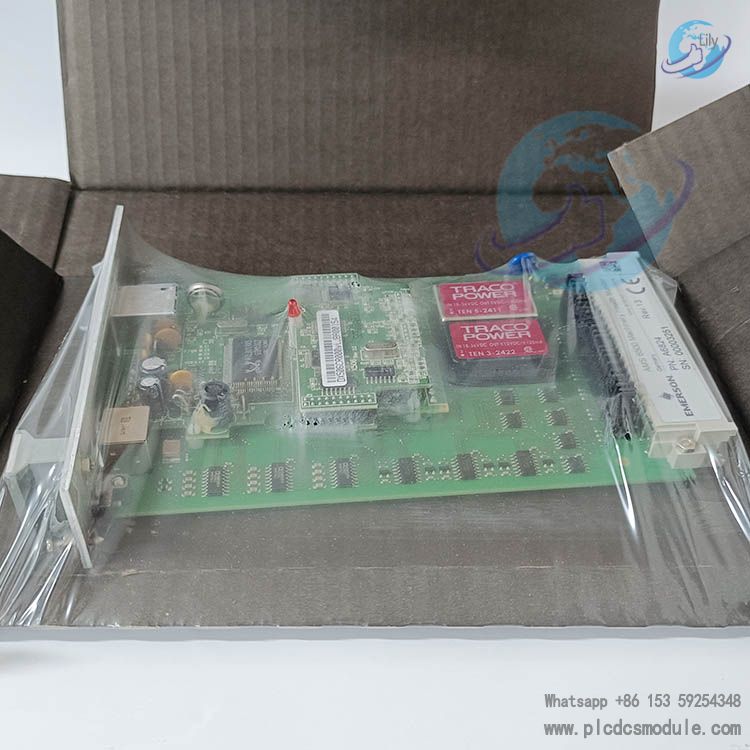

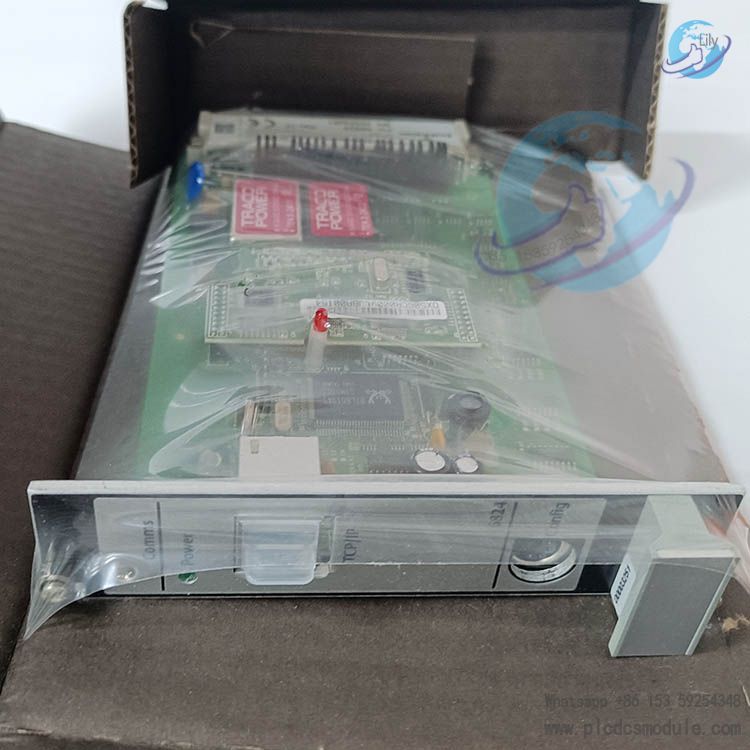

EMERSON A6824 (Part No. 9199‑00090) CSI 6500 Machinery Health Monitor Module
Overview
EMERSON A6824（Part No.9199‑00090）is a ModBus and Rack Interface communication module for CSI 6500 Machinery Health Monitor system. It is hardware component of PlantWeb digital plant architecture and AMS Suite asset health management platform. A6824 retrieves measurement parameters from all CSI 6500 modules inside 19‑inch rack, transmits data via ModBus TCP/IP and ModBus RTU serial interface for DCS or PLC integration. It also drives local rack‑mount graphic display unit for on‑site machinery status readout. A6824 fits IMR6000 series 19‑inch rack. Its variant A6824R is designed for IMR6500 rack with optional communication redundancy. One A6824 unit can serve multiple 19‑inch racks to build complete API 670 compliant machinery protection system.
Product Parameter & Physical Specification
Communication & Electrical
ModBus RTU:19.2kbaud,8 data bits,Even parity,1 stop bit ModBus TCP/IP:RJ45 10BaseT,default IP:192.168.255.1,subnet mask 255.255.255.0 Available data output:Speed,vibration(1/2x,1x etc.),gap value,alarm status,channel OK status,phase,module & sensor identification info. Max power consumption:6W,24VDC power supply,max 250mA operating current.
Environmental Specification
Operating temperature:0‑65℃;Storage temperature:-30‑85℃ Relative humidity:5‑95% non‑condensing Vibration compliance:IEC68‑2‑6;Shock compliance:IEC68‑2‑29 EMC:EN50081‑1,EN50082‑2 Module body IP00,front panel IP21.
Physical Dimension for A6824 9199‑00090
DIN41494 Eurocard form factor,6TE width,3U(3HE) height Dimension:100×160mm,width 30.0mm,height 128.4mm,depth160mm Net weight approx.320g,gross weight 450g with standard packing Occupies one rack slot,maximum 14 modules per single 19‑inch rack.
A6824R Physical Comparison
4TE width,3U height,same height,depth and weight as A6824;for IMR6500 rack,support optional redundancy mode.
Core Advantages
First,dual‑protocol simultaneous transmission.ModBus TCP/IP and ModBus RTU can run at same time to set up redundant communication path,prevent data loss caused by single link failure.A6824 consolidates machinery health data from multi‑racks and forwards to plant‑wide control system without extra gateway hardware. Second,compact 3U Eurocard design cuts cabinet space requirement in half compared with traditional 6U monitor cards.One A6824 supports multiple 19‑inch racks,which reduces hardware cost and field wiring workload for large‑turbine multi‑rack setup. Third,native integration with Emerson automation ecosystem.Seamless connection to DeltaV and Ovation control system,data feeds directly to AMS Suite predictive diagnostic software.No extra protocol converter hardware required for maintenance staff to access early fault warning data. Fourth,comprehensive onboard self‑check.A6824 continuously monitors hardware circuit,power supply input and board temperature.Hardware abnormality generates status point for quick troubleshooting of communication module failure.
Product Features
1.API 670 compliant,hot‑swappable for online replacement without rack shutdown. 2.Password‑protected user configuration to avoid unauthorized parameter modification. 3.Onboard self‑diagnosis monitors hardware,power input and module temperature. 4.Drives local rack‑mount graphic display for on‑site machine and instrument reading. 5.A6824 has no redundancy option;A6824R provides optional redundant communication for high‑safety unit. 6.Native PlantWeb architecture support,integrate machinery health data into plant process control.
Application Scenarios
- Power plant steam turbine and gas turbine protection.A6824 transmits shaft vibration,shell vibration,tacho speed and thrust gap data to DCS platform.
- Petrochemical process compressor monitoring for centrifugal and screw compressors,forward vibration alarm and interlock status.
- Hydro power turbine‑generator unit monitoring for low‑speed rotating machinery,vibration,phase and gap data acquisition.
- Heavy‑industry mill rolls,large fans and critical pump sets,visualize asset health within plant DCS.
- Retrofit & upgrade project,connect legacy monitoring hardware with modern PLC / DCS via ModBus interface of A6824.
Peer Product Comparison
| Item | A6824 9199‑00090 | A6824R | A6500‑CP |
|---|---|---|---|
| Rack Compatibility | IMR6000 series 19‑inch rack | IMR6500 series 19‑inch rack | AMS6500‑ATG new generation rack |
| TE Width | 6TE | 4TE | 10TE |
| Redundancy | No redundancy support | Optional redundancy | Redundancy supported,support OPC‑UA |
| Protocol | ModBus TCP/IP,ModBus RTU | ModBus TCP/IP,ModBus RTU | ModBus TCP/IP,ModBus RTU,OPC‑UA,mobile APP |
| Local Display Drive | Supported | Supported | Supported |
| Target System | Classic CSI6500 | Classic CSI6500 | AMS6500 ATG new‑gen platform |
Compatible Part Numbers
Rack Chassis:IMR6000/10,IMR6000/20,IMR6000/30(A6824 dedicated rack),IMR6500 rack(for A6824R) Signal input modules:A6110 shaft vibration monitor,A6210 displacement monitor,A6620 process input monitor Relay module:A6740‑10 16‑channel relay output module Software:AMS Suite predictive diagnostic software,DeltaV, Ovation control system Accessory:local rack graphic display panel.
Sourcing & Selection Guide
1.Confirm existing rack hardware.IMR6000 rack selects A6824 part number 9199‑00090.IMR6500 rack selects A6824R. 2.For high‑safety unit with zero‑tolerance communication outage,choose A6824R redundancy mode.Auxiliary non‑critical machine can adopt A6824. 3.Check control system interface.If DCS has both Ethernet and RS485 serial port,enable dual‑protocol on A6824 for redundant link. 4.Single A6824 supports multiple 19‑inch racks.Control rack quantity to avoid slow data refresh and delayed vibration alarm response.
Pitfall Tips & Service
Pitfall Tips 1.A6824 and A6824R are mechanically incompatible.Do not insert A6824 into IMR6500 rack,causing slot mismatch and module malfunction. 2.Factory default IP for A6824 is 192.168.255.1.Modify IP before connecting to site LAN to avoid IP address conflict. 3.Add termination resistor at bus end for ModBus RTU RS485 wiring,otherwise packet loss and garbled data occurs. 4.A6824 supports hot swap.Avoid touching metal pin connector during hot‑swap to prevent static damage of PCB board.
Service Guidance 1.When A6824 loses communication,check front‑panel LED status and self‑diagnosis point to distinguish fault source between A6824 module or downstream signal acquisition modules. 2.Configuration error can be solved by restoring factory communication preset and re‑download project configuration.Do not directly modify raw register value by third‑party tool. 3.Hardware failure allows hot‑swap replacement.Re‑download rack configuration file after replacement,full system shutdown is not needed.
FAQ (8 Q&A for procurement & operation)
Q:Can A6824 9199‑00090 be interchanged with A6824R?
A:Direct swap is not allowed.A6824 is 6TE for IMR6000 rack.A6824R is 4TE for IMR6500 rack.Mechanical slot dimension and rack firmware adaptation differ,cross‑usage results in unrecognized modules.
Q:Is simultaneous operation of ModBus TCP and ModBus RTU supported on A6824?
A:Yes.A6824 can run both protocols at same time for different master station and redundant communication path.If one communication path fails,the other path continues machinery health data transmission.
Q:How many 19‑inch racks can one A6824 manage?
A:Hardware specification permits one A6824 to serve multiple IMR6000 racks.Limit rack quantity on real project to prevent slow data refresh and delayed alarm response.
Q:Will hot‑swap A6824 trigger machinery protection trip of CSI6500 rack?
A:A6824 is only data forwarding module and not involved in protection logic.Hot‑swap will not activate protection interlock but communication data will be temporarily interrupted.
Q:Is extra license required for A6824 procurement?
A:Basic ModBus communication function is embedded inside A6824 without additional license.AMS Suite advanced predictive analytics needs separate software license purchase.
Q:What should I troubleshoot first if A6824 ModBus returns garbled vibration data?
A:Verify master station serial setting including baud rate,parity and stop bit to match A6824 configuration.Check RS485 termination resistor,register high‑low byte order and physical cable wiring.
Q:Can I buy A6824 9199‑00090 for existing IMR6500 rack?
A:Not allowed.IMR6500 rack is designed for A6824R.A6824 with 6TE width cannot physically fit slot.Select A6824R for IMR6500 chassis.
Q:Does A6824 provide direct 4‑20mA analog signal output?
A:A6824 only provides ModBus protocol communication output,hard‑wired 4‑20mA output is not available.If analog output is required,use analog output channel on A61xx series monitor modules.
Recommended Product List
A6824 ModBus and Rack Interface Module
A6824R Redundant ModBus Rack Interface Module
A6110 Dual‑Channel Shaft Vibration Monitor Module
A6140 Vibration Displacement Monitor Module
A6151 Low‑Frequency Shaft Vibration Monitor Module
A6210 Position Gap Monitor Module
A6620 Process Input Monitor Module
A6740‑10 16‑Channel Relay Output Module
A6500‑RC System Relay Card
A6500‑CP Pro System Communication Card
IMR6000/30 19‑inch Monitor Rack
IMR6500 19‑inch Monitor Rack
A6500‑PE Prediction Extension License
Important Notes
1.A6824 only forwards measurement data.Machinery protection interlock logic is executed by other signal acquisition modules.Do not set A6824 communication loss as trip trigger condition. 2.Keep sufficient ventilation for A6824 inside cabinet.High ambient temperature will trigger A6824 self‑check alarm. 3.All slave devices on ModBus RTU bus shall adopt unified baud rate and parity.A6824 uses even parity by default,master station must match. 4.Download configuration to A6824 by official configuration tool.Do not overwrite internal register with third‑party software to avoid configuration corruption. 5.ESD protection is mandatory for transportation and storage of A6824 PCB board.Static discharge causes hidden hardware failure.
