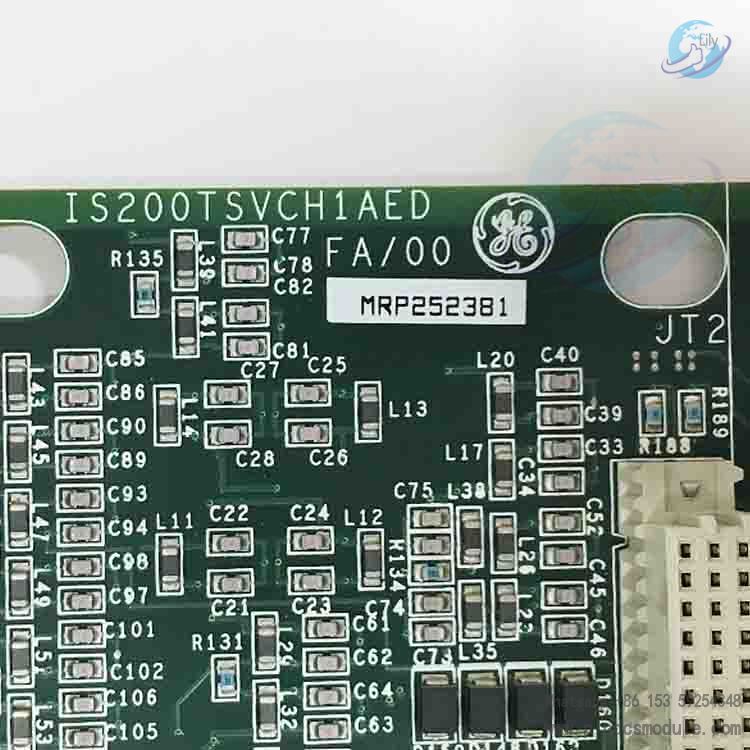

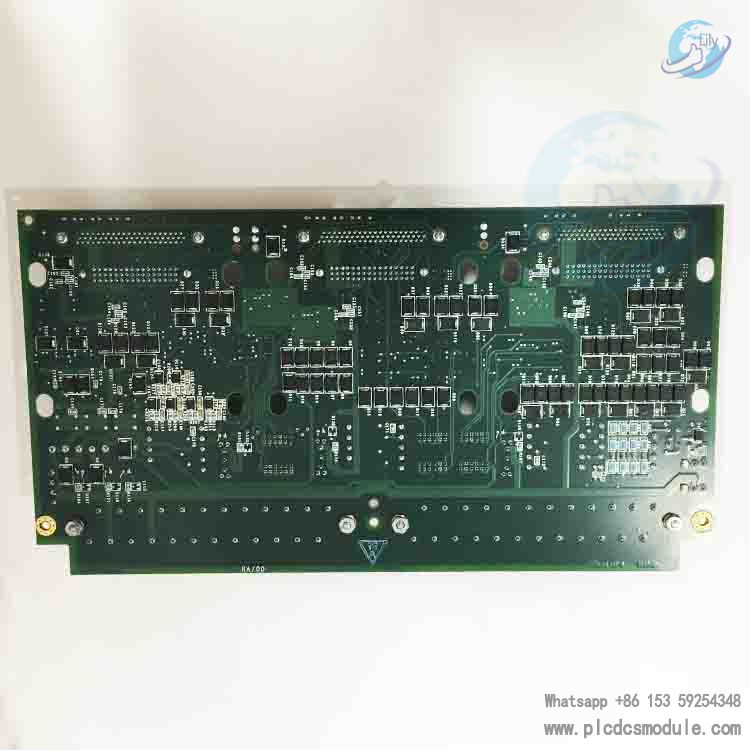

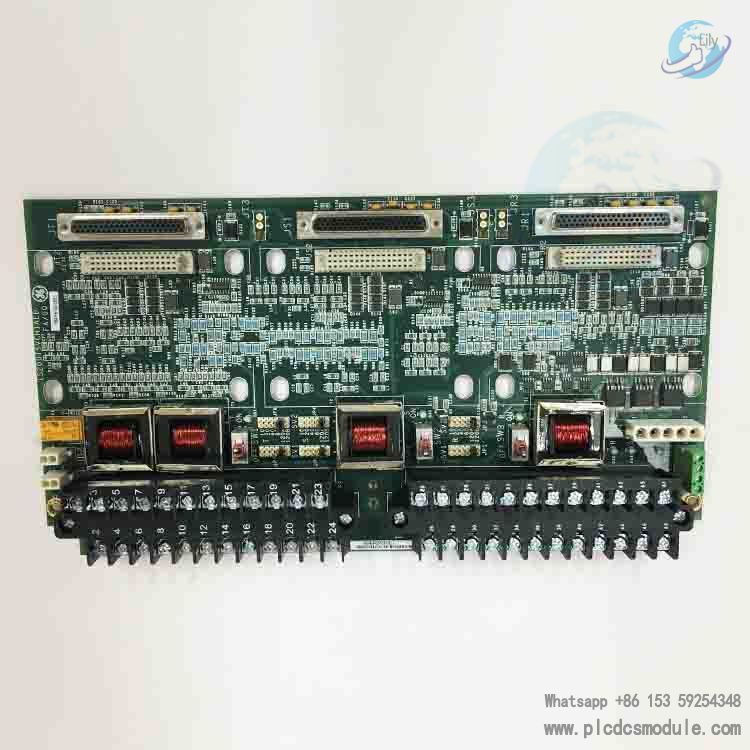

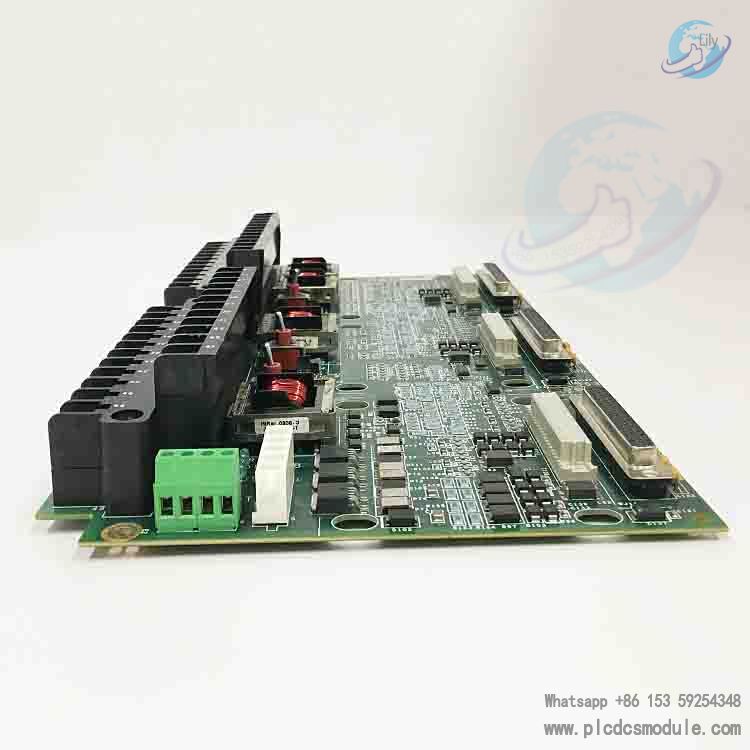

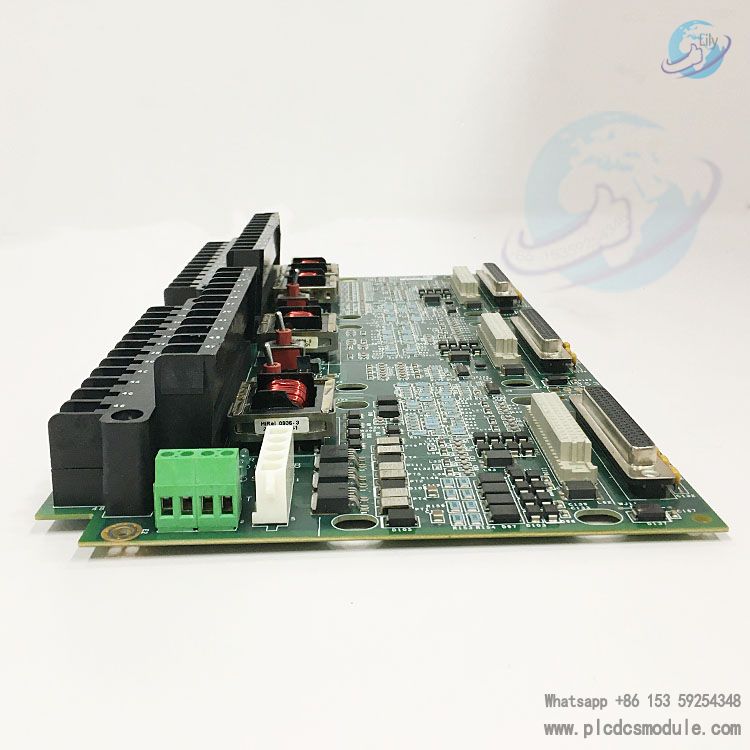

GE IS200TSVCH1AED Mark VI SERVO TERMINAL BOARD

The GE IS200TSVCH1AED is a Mark VI series servo terminal board. Designed for industrial automation scenarios like gas/steam turbine control systems, it supports multiple signal I/Os (analog/digital) to connect sensors and actuators. Equipped with Hall effect pulse inputs, it captures equipment speed signals. With industrial-grade hardware, it operates in harsh environments from -40°C to 70°C. Supporting communication protocols like Modbus, it integrates with PLC systems to ensure real-time data transmission.

• Performance Features:
• Strong Control Capability: Possibly equipped with an Intel or professional industrial-grade processor (main frequency ≥100MHz), supporting multi-threaded processing. It offers high-performance control for critical loops in industrial automation systems, enabling complex logic operations and real-time control.
• Rapid Data Processing: Features fast data processing to respond to high-frequency input signals, ensuring control accuracy.
• Abundant Interfaces:
• Analog Interfaces: 2 channels of 12-bit or 16-bit analog inputs, accepting signals like 4-20mA and 0-10V.
• Digital Interfaces: 4 digital inputs and 4 digital outputs, operating at 24V DC.
• Pulse Interfaces: 2 Hall effect pulse inputs with up to 50kHz frequency, used to acquire speed or position signals of rotating equipment.
• Communication Interfaces: Equipped with Ethernet (10/100Mbps), RS-485/RS-232 ports, supporting industrial protocols like Modbus, EtherNet/IP, and PROFINET for seamless integration with PLC, DCS systems, or host devices.

• Power Supply & Dimensions:
• Power Supply: Supports wide voltage inputs of 24V DC or 100-240V AC, adapting to industrial power fluctuations.
• Dimensions: Approximately 100mm×200mm×50mm, with a compact design for easy cabinet installation.
• Other Features:
• Operating Temperature: Functions in -40°C to 70°C with industrial-grade hardware, featuring wide-temperature resistance, vibration/shock immunity for harsh environments.
• Certifications: CE/UL certified, and possibly ATEX explosion-proof certified for use in hazardous areas.
• Storage: Built-in Flash/EEPROM for program storage and RAM for real-time data processing, supporting firmware upgrades.
