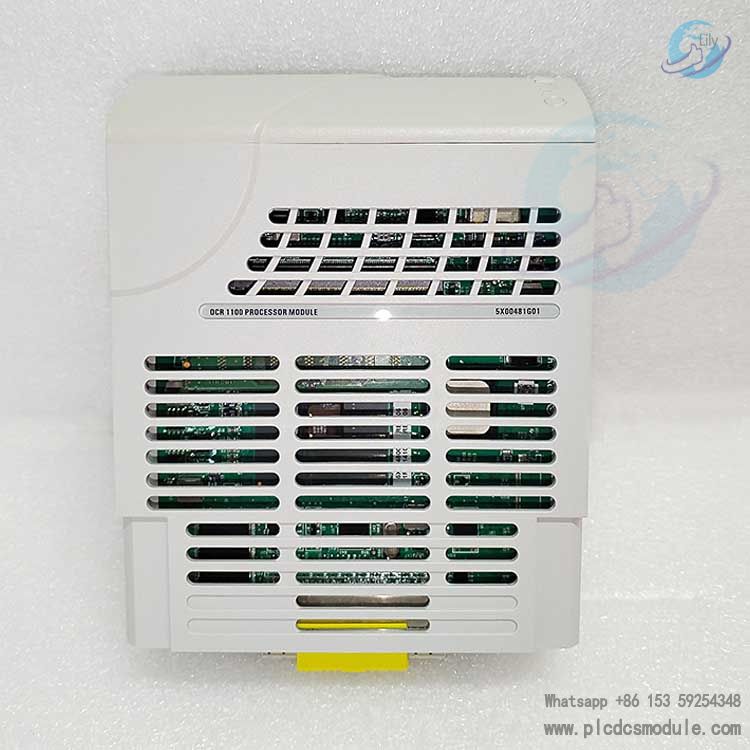

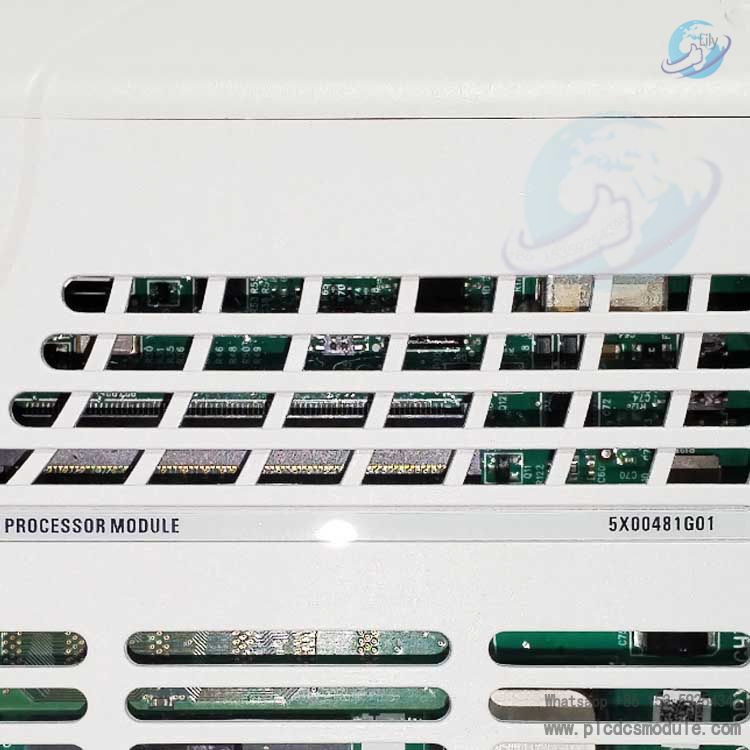

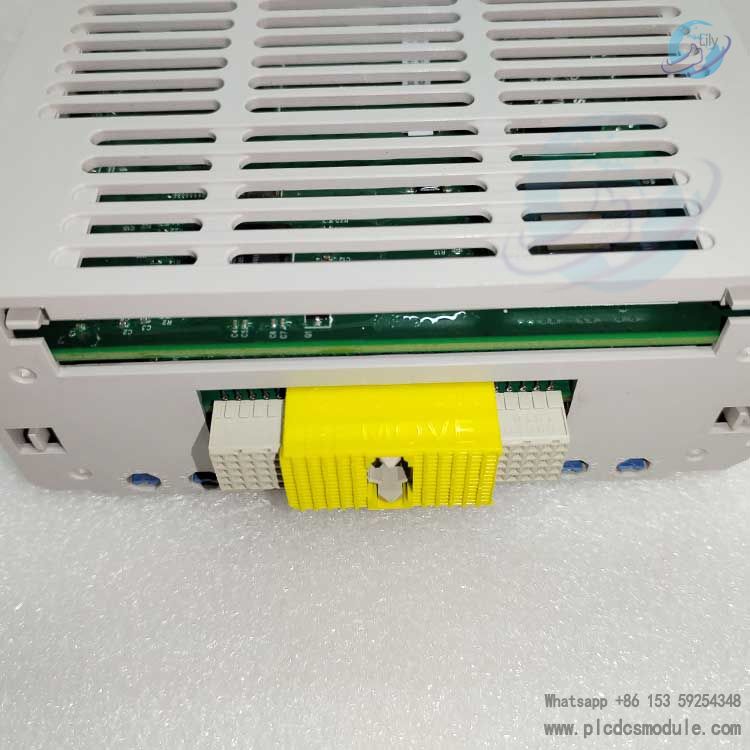

The Emerson 5X00481G01 OCR1100 Controller Atom CPU Module is a critical component of Emerson's Ovation control system, engineered for high-performance applications in demanding industrial environments. It reliably executes complex control tasks to ensure system stability and operational integrity.
The Emerson 5X00481G01 OCR1100 Controller Atom CPU Module features technical specifications including an Intel Atom series processor (either Intel Atom E6400 at 1.2GHz or Intel Atom D525 at 1.8GHz) for high-efficiency complex instruction processing, 1GB DDR2 SDRAM with 4GB solid-state drive (or eMMC storage) for fast data access, Windows Embedded Standard 7 OS for compatibility, and I/O interfaces like 2 Ethernet ports, 2 USB ports, and 1 RS-232 port. Its key features and advantages include high-performance processing via the Intel Atom chip for real-time industrial automation tasks such as high-speed production line monitoring, a compact ~140mm x 100mm x 25mm design weighing 370g that withstands -40°C to +70°C temperatures, 5%–95% humidity, 5g rms vibration, and 30g shock for harsh oil & gas/chemical environments, hot-swappable functionality to minimize downtime, and wide compatibility with Ovation I/O modules like the 5X00594G01 for seamless system integration.
Technical Parameters
Electrical Specifications
Operating voltage: Typically 24VDC (some sources mention alternative voltages like 220V, requiring further verification), ensuring stable operation in industrial environments.
Environmental Parameters
Storage temperature: -55°C to 85°C (complementary to the previously mentioned operating temperature/humidity/vibration/shock parameters), adapting to diverse storage conditions.
Application Fields
Energy Industry
Power Generation: Precisely controls power equipment operation and monitors parameters to ensure stable power output in power stations.
Oil & Gas: Manages production processes to guarantee safety in extraction and processing scenarios.
Water Treatment Industry
Applies to waterworks and wastewater treatment plants, monitoring/controlling parameters like water level and quality for automated processing.
Manufacturing Industry
Used in automated production lines (e.g., automotive manufacturing, electronics production) to control equipment operation, ensuring production precision and efficiency.
