The Hirschmann brand GRS105-24TX/6SFP-2HV-2A, under Emerson, is a fully managed industrial switch from the GREYHOUND 105/106 series. Equipped with the HiOS 10.3 operating system, it features a total of 30 service ports and adopts a fanless 19-inch rackmount design, making it suitable for harsh industrial field environments.
The device supports dual AC power inputs and enables hybrid networking of fiber and copper ports. It supports a comprehensive suite of industrial redundancy protocols, multi-layer security control, and high-precision clock synchronization. Capable of serving as a plant backbone switch, it carries high-bandwidth industrial communication services. Its hardware protection, electromagnetic compatibility (EMC), and wide-temperature operating performance all comply with international industrial standards. The hardware architecture allows long-term iteration to match evolving network bandwidth and power supply requirements, delivering outstanding adaptability for long-term deployment.
Download document
Model Code Decoding
Model: GRS105-24TX/6SFP-2HV-2A
- GRS: Product code for GREYHOUND series industrial switches
- 105: GREYHOUND 105 hardware platform, compatible with the software ecosystem of the 106 series
- 24TX: 24 copper electrical ports, consisting of 8 FE/GE TX ports plus 16 FE/GE TX ports
- 6SFP: 6 hot-swappable SFP slots, supporting mixed deployment of 1G and 2.5G optical transceivers
- 2HV: Dual high-voltage AC power inputs (110–240 VAC)
- 2A: Hardware configuration with 2-pin alarm signal terminals

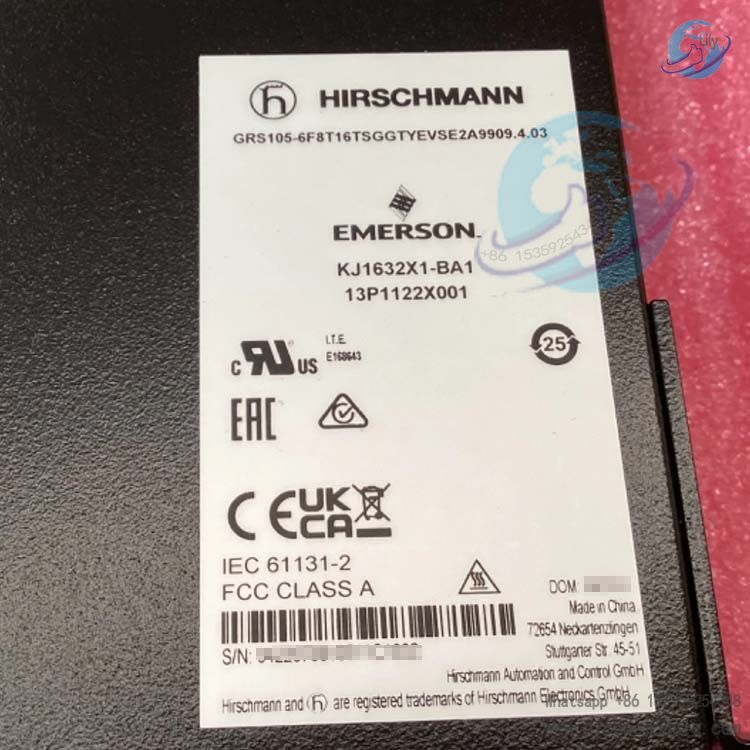

Full part number: GRS105-6F8T16TSGGY9HHSE2A99XX.X.XX Material No.: 942 287 002
Hardware & Software Specifications
(I) Hardware Specifications
The switch is equipped with a total of 30 service ports. Twisted-pair cable supports transmission distances from 0 to 100 meters, while fiber transmission distance is determined by the specifications of matched SFP modules.
- Dimensions: 444 × 44 × 355 mm
- Estimated weight: 5 kg
- Mounting: Standard 19-inch rack-mount design
- MTBF: 837,450 hours @ 25°C ambient temperature
- Storage temperature: -20°C ~ +70°C
- Operating relative humidity: 5%–90% non-condensing
It complies with IEC 60068 vibration and shock test standards, and has obtained full industrial immunity certifications including ESD, surge, electrical fast transient burst and radio frequency radiation for electromagnetic compatibility (EMC). Hardware interfaces include dual independent IEC AC power connectors, an SD card slot, USB-C local management port, and 2-pin alarm signal terminals.
(II) Software Functional Specifications
Switching Functions
Supports QinQ double VLAN, full-version IGMP snooping, port traffic shaping, jumbo frames, multi-type VLAN segmentation (MAC-based / IP-based / subnet-based / protocol-based), storm suppression and traffic priority scheduling.
Redundant Networking
Compatible with proprietary ring protocols and international standard ring protocols; supports link aggregation, redundant network coupling and sub-ring management.
Management Modes
HTML5 web GUI, CLI command line, SSH, full-version SNMP, OPC-UA, LLDP-MED, and IPv6 remote management.
Diagnostics Functions
Integrated cable testing, SFP module monitoring, multi-mode port mirroring, RSPAN, sFlow, loop protection, link fluctuation detection, and persistent local log storage.
Configuration Management
SD card offline automatic configuration, configuration rollback, DHCP auto-deployment, and batch script distribution.
Security Architecture
Port security, multi-dimensional ACL, DoS protection, remote authentication via RADIUS/LDAP, password policies, and device audit logs.
Clock Synchronization
PTPv2 two-step transparent clock, boundary clock, and automotive Ethernet 802.1AS protocol.
Native Industrial Protocol Compatibility
PROFINET, EtherNet/IP, Modbus TCP.
Applicable Industries
Rail transit signal communication, intelligent factory automated production lines, monitoring for hazardous explosive zones in oil, gas and chemical industries, new energy wind & solar power stations, port & terminal logistics dispatching, underground industrial control for mining, water treatment automation systems, large-scale intelligent power distribution in buildings, AGV scheduling for large warehouses, secondary communication of power substations.
Core Advantages

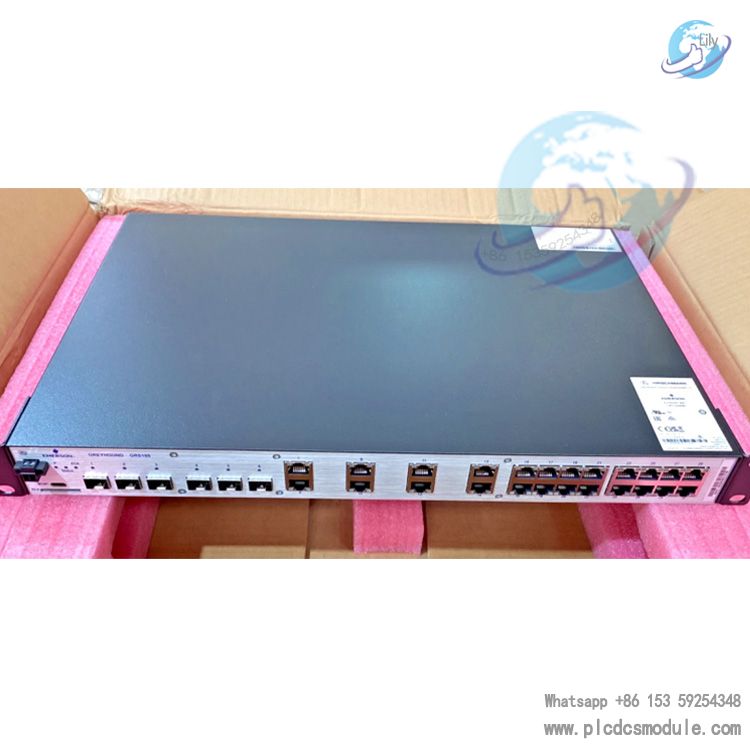

- Flexible port expansion: Equipped with six 2.5G/Gigabit SFP fiber ports and 24 Gigabit copper ports for hybrid fiber-copper deployment. It accommodates long-distance fiber transmission and local terminal access, enabling integrated backbone aggregation and field access networking with a single unit.

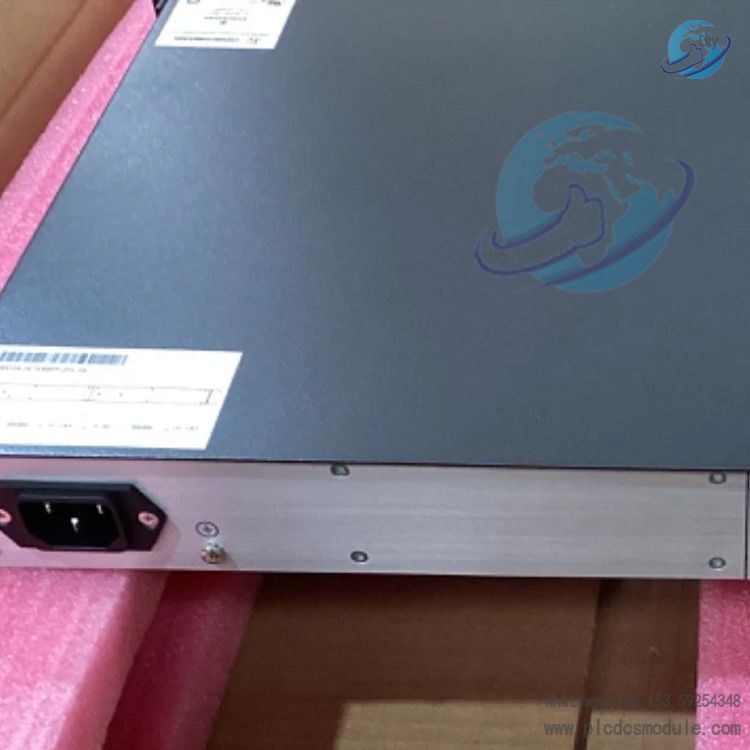

- Redundant dual 110–240 VAC power supply with two independent IEC power connectors. Each power supply has a maximum power consumption of 35 W. Seamless switchover occurs upon power failure to prevent total network outage caused by single power source loss.
- Fanless sealed enclosure with IP30 protection rating, delivering stable operation across a wide temperature range of -10°C to +60°C. It meets industrial mechanical stability standards for vibration and shock resistance. The absence of cooling components eliminates wear and tear, cutting long-term maintenance costs.
- Comprehensive industrial redundant link suite supporting multiple ring redundancy mechanisms including HIPER-Ring, MRP, RSTP, MSTP and LACP link aggregation. Its fast fault self-recovery meets real-time communication requirements of automated production lines.
- Multi-layer security architecture featuring 802.1X port authentication, multi-dimensional ACL access control, DHCP Snooping, Dynamic ARP Inspection, secure boot and firmware signature verification, which blocks unauthorized access and cyberattacks targeting industrial networks.
- Compatibility with multi-protocol industrial buses. Natively supports mainstream industrial Ethernet protocols including PROFINET, EtherNet/IP and Modbus TCP, allowing direct connection to automation hardware such as PLCs, industrial PCs and field instruments.
- Diversified local maintenance interfaces: SD card slot, USB-C debug port and 2-pin alarm signal terminals support offline configuration backup, on-site rapid troubleshooting and visual/audio fault alarm output.
- High-precision time synchronization: Compatible with PTPv2 transparent/boundary clock, 802.1AS and SNTP client/server, satisfying high-accuracy timing control scenarios for smart manufacturing and rail transit.
FAQ
Q1: Can this switch build ring network and link aggregation simultaneously?
A1: Yes. The device supports MRP over Link Aggregation and HIPER-Ring over LACP. Redundant ring networks can be deployed on aggregated links to improve reliability of backbone connections.
Q2: What is the maximum power consumption of the unit when running on a single power supply? Will it exceed the power load of cabinet power supply?
A2: The maximum power consumption with one power supply is 35 W, equivalent to a heat output of 120 BTU/h. It can be easily supported by standard industrial cabinet power loads. Dual power input enables power redundancy.
Q3: Does the switch support mixed networking of 2.5G fiber ports and Gigabit copper ports?
A3: Yes. The six SFP slots accept hot-swappable 1G/2.5G transceivers, while the 24 TX copper ports auto-negotiate 100M/1G speeds. There is no speed isolation between ports for flexible mixed networking.
Q4: Can the switch operate stably in chemical high-temperature workshops at -5°C to 58°C?
A4: The rated operating temperature range of the unit is -10°C to +60°C, so the target temperature falls within specifications. Its fanless design avoids heat dissipation blockage caused by dust, making it suitable for dusty, high-temperature chemical sites.
Q5: Do SD cards and optical transceivers need to be purchased separately at the time of order?

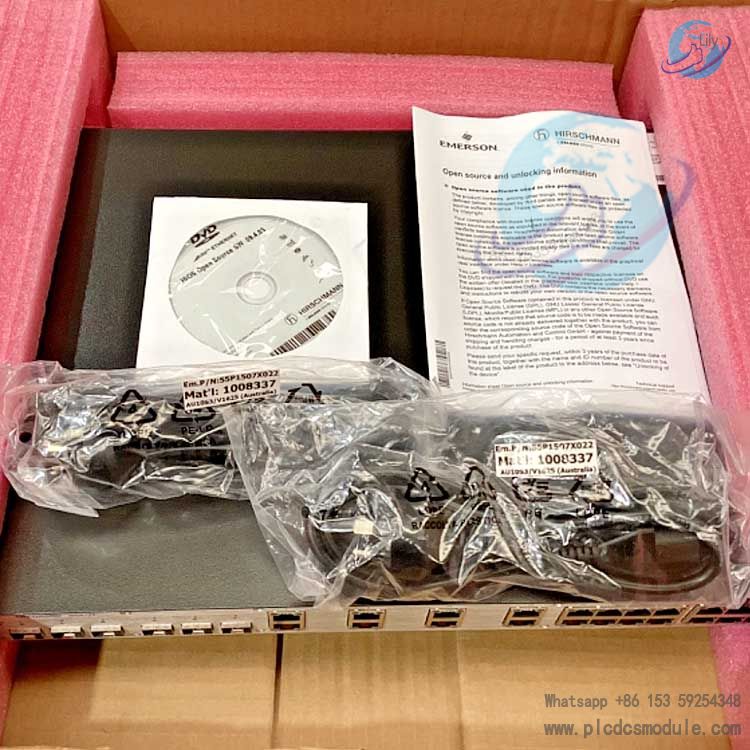

A5: The factory package only includes the main unit and safety documentation. ACA31 adapter, all types of SFP transceivers and management software must be ordered separately.
Q6: How to realize batch configuration backup and rapid equipment replacement?
A6: Use the ACA31 SD card adapter to store standardized XML configuration files. When replacing a faulty unit, simply insert the SD card and power on the new switch; it will automatically load all network parameters without repeated commissioning.
Q7: Which industrial real-time fieldbuses are supported? Is connection to Siemens PROFINET PLC available?
A7: PROFINET, EtherNet/IP and Modbus TCP are embedded natively. Direct connection to full ranges of Siemens and Rockwell industrial PLCs is supported without additional protocol conversion modules.
Q8: If ports drop connections frequently, can the built-in diagnostic functions locate cable faults?
A8: Integrated copper cable test, link fluctuation detection and duplex mismatch detection allow one-click troubleshooting of cable breaks, signal attenuation and poor RJ45 contact issues. Port mirroring is also available to capture traffic for auxiliary analysis.
