Emerson Ovation 1C31223G01 Module
Module Overview

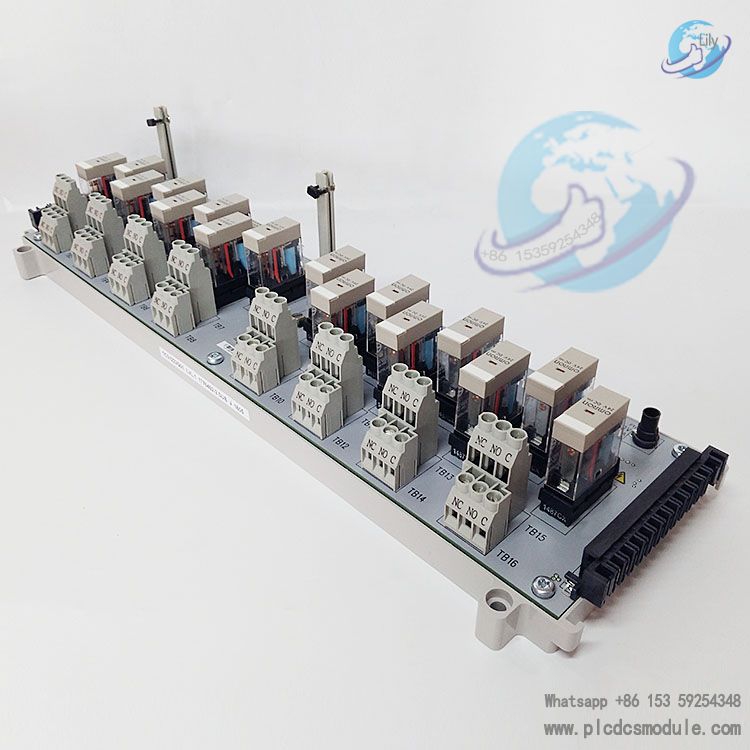

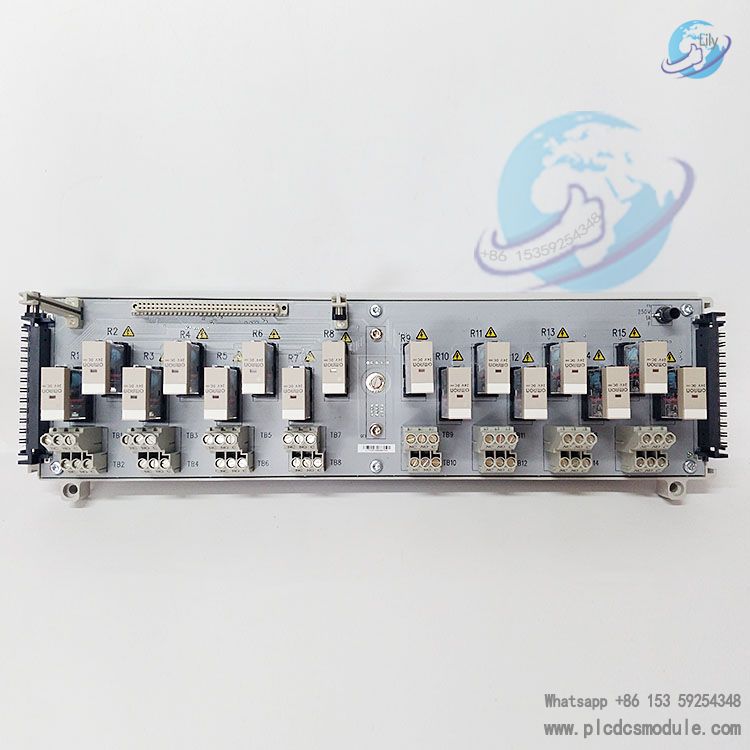

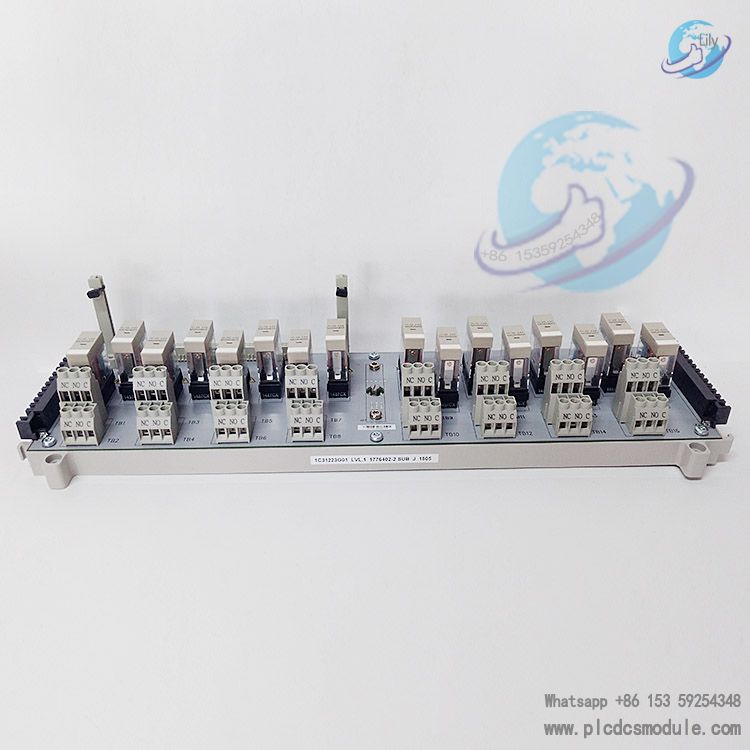

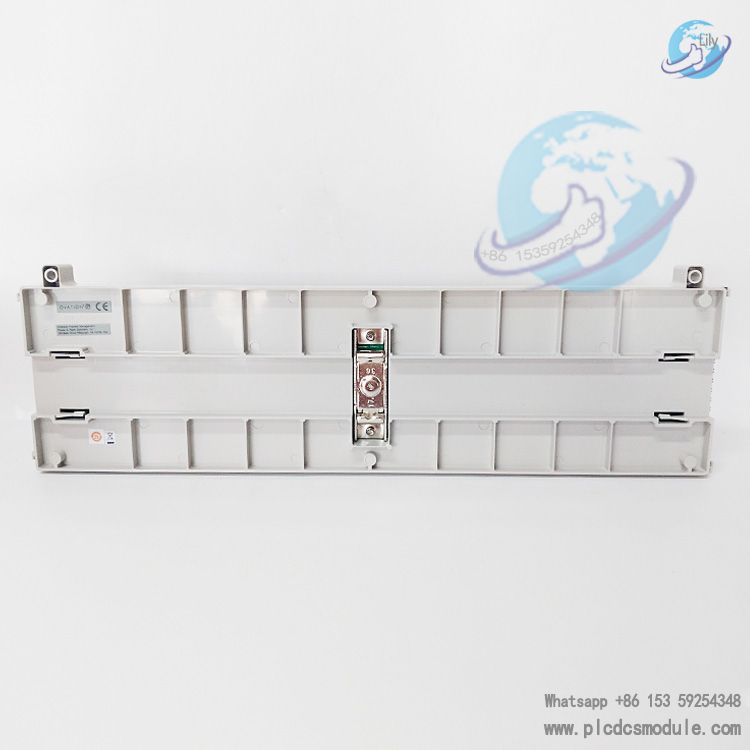

Emerson Ovation 1C31223G01 is a high-performance relay output module composed of an electronics module, a base assembly, and relays. Designed specifically for industrial automation control systems, it enables reliable switching of high AC and DC voltages at high currents, providing a stable signal interface for field devices. The module is compatible with CE-marked systems and features a modular design for easy installation, seamlessly integrating into the Ovation Distributed Control System to meet the high-precision control requirements of industrial scenarios.
related documents
Technical Specifications
16 Form C (G2R style) relays, each with one Form C contact arrangement for terminal block wiring
10 amps @ 250 VAC (PF=1), 10 amps @ 30 VDC
Operate: 15 mSec (bounce ~3 mSec), Release: 10 mSec (bounce ~8 mSec)
Dielectric isolation between relay contacts and logic: 2300V AC/DC
Auxiliary power: 25V typical, 25.5V max @ 60°C
0 to 60°C (32°F to 140°F)
-40 to 70°C (-40°F to 158°F)
35 - 85% (non-condensing)
Auxiliary power: 9.1 W typical, 11.68 W max
Module Advantages
- High-current and high-voltage switching capabilities, adaptable to various industrial field device power requirements
- Integrated electronics module with configurable communication timeout periods and LED status indicators for real-time output monitoring
- Modular structure simplifies installation and replacement, improving system maintenance efficiency
- Strict dielectric isolation design enhances anti-interference ability, ensuring stable operation in industrial environments
- Compatible with CE-marked systems, meeting international industrial standards with wide applications
- Seamless integration with Ovation I/O Controller for efficient control system collaboration
Application Fields
Widely used in industrial automation scenarios as a core executive component of the Ovation Distributed Control System to drive field actuators such as motors, valves, and indicator lights. Suitable for high-voltage and high-current switching links in process control, sequential control, and data acquisition systems, especially for critical industrial processes with strict reliability and stability requirements.
Maintenance Requirements
- Regularly check the module's LED indicators to confirm normal communication and output functions
- Adhere to relay contact rating specifications, avoid overload operation, and configure external current limiting protection if necessary
- Keep the module's operating environment clean and dry to prevent dust and moisture from affecting electrical performance
- Cut off relevant power supply before replacing the module to ensure operational safety
- Regularly check terminal block wiring tightness to prevent poor contact due to loosening
Recommended to use diagnostic tools supporting the Ovation system for regular troubleshooting
