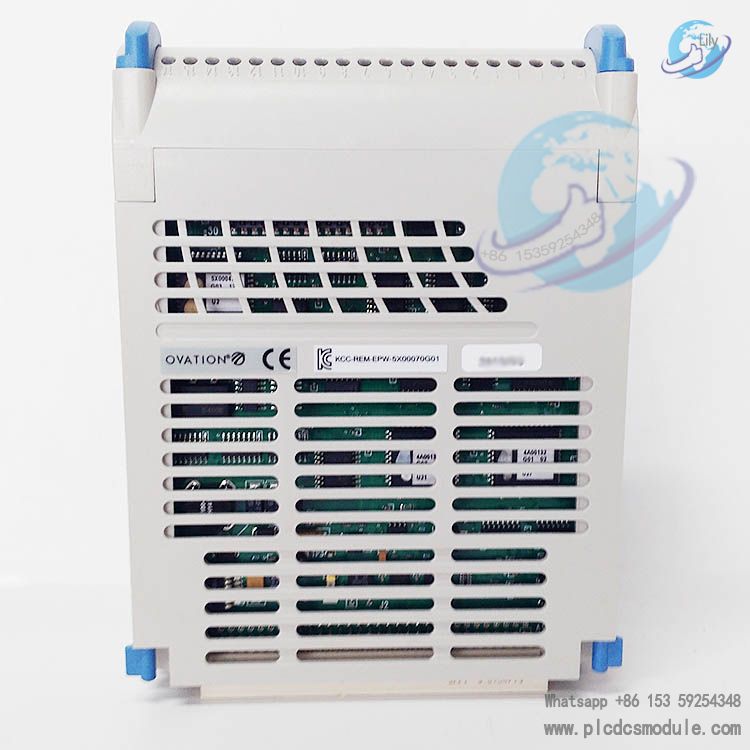

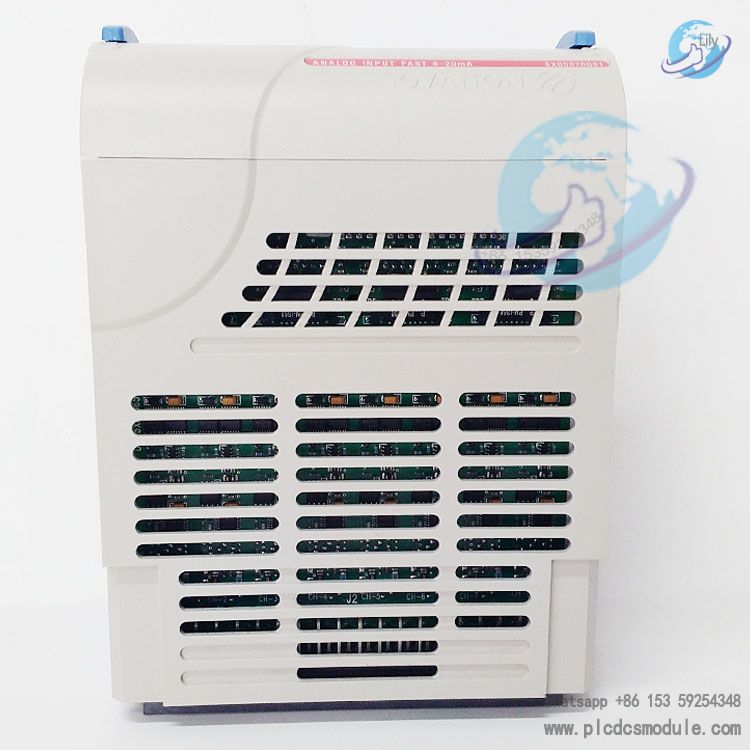

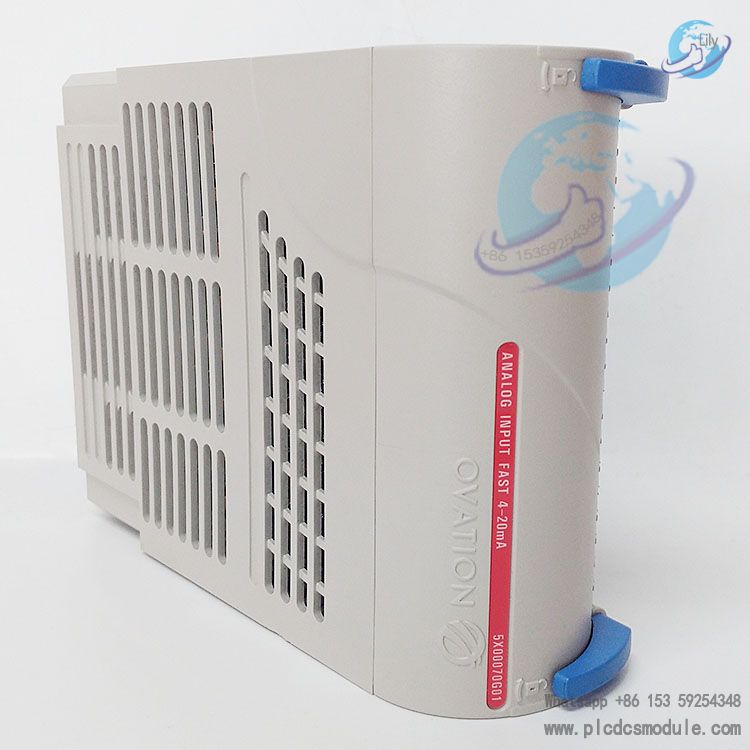

Emerson 5X00070G01 Analog Input Module
Emerson 5X00070G01 is a high-performance 14-bit high-speed analog input module designed for precise and efficient signal acquisition in industrial process control systems. It operates with an input range of 4-20mA, supporting both field and locally powered configurations to meet diverse application requirements. The module combines with the 1C31227G01 personality module to form a complete analog input subsystem, featuring eight individually isolated input channels that ensure reliable signal isolation and minimize interference.
Technical Specifications
Key Features
- High-Speed Conversion: Delivers fast sampling rates of 50 or 60 samples per second, enabling real-time data capture for time-critical industrial processes.
- Reliable Isolation: Each input channel is individually isolated, providing strong protection against electrical interference and ensuring stable operation in harsh industrial environments.
- Surge Protection: The compatible 1C31227G01 personality module offers surge protection to safeguard the module’s input circuits from voltage spikes and transient disturbances.
- Self-Calibration: Supports on-demand self-calibration initiated by the Ovation Controller, maintaining measurement accuracy over time without manual intervention.
- Comprehensive Diagnostics: Equipped with internal fault detection, out-of-range detection, and open loop detection for current inputs, providing clear status feedback via diagnostic LEDs and registers.
- Flexible Wiring: Supports both local and field grounding configurations, with clear wiring guidelines and terminal block labels for easy installation and maintenance.
Seamless Integration: Interfaces with the Ovation Serial I/O Bus, ensuring smooth communication with Ovation control systems for unified process management.
Wiring and Installation Notes
When using locally powered current inputs, the power distribution panel must be equipped with jumper module 5A26471G01 to ensure proper grounding of the auxiliary bus supply.
Field wiring should use shielded twisted-pair wire, with the analog input negative terminal and shield tied together and grounded either locally at the cabinet or at the field device to minimize noise.
The module’s terminal block features clear abbreviations for easy identification, simplifying wiring and reducing installation time.

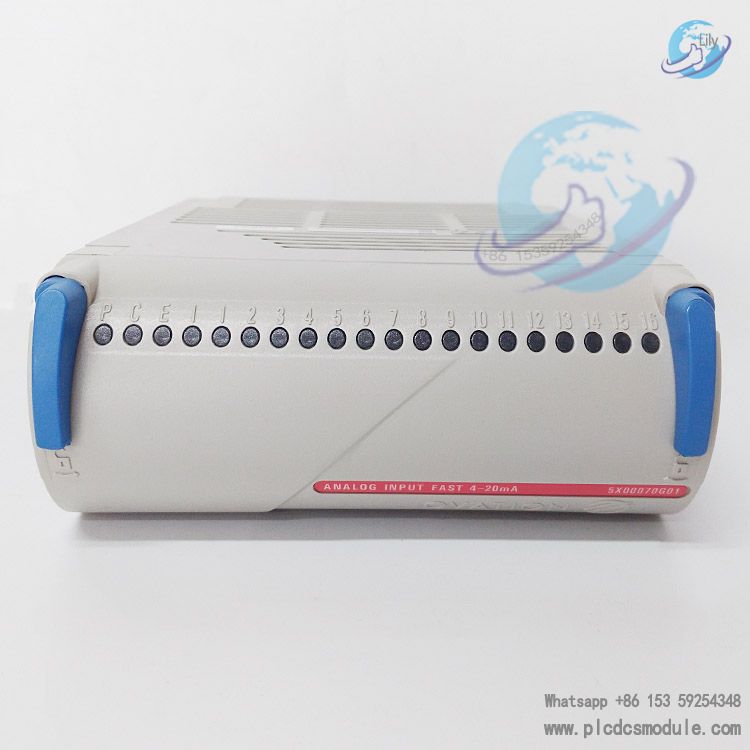

Diagnostic LEDs
Power OK (Green)
Lit when the +5V power supply is functioning correctly.
Communications OK (Green)
Indicates successful communication between the module and the controller.
Internal Error (Red)
Illuminates for module errors such as initialization in progress, I/O bus timeout, memory errors, uncalibrated status, or forced errors.
Channel Errors (Red, CH1-CH8)
Lit for channel-specific issues including overrange inputs, open loops, blown fuses, or self-calibration failures.
Related Emerson Modules
5X00106G01 Analog Output Module
16-bit analog output module with 4-20mA output range, 8 channels, and built-in fault detection. Designed for precise control signal generation in industrial process systems, compatible with Ovation controllers.
1C31227G01 Personality Module
Companion personality module for 5X00070G01, providing surge protection, channel configuration, and auxiliary power management for analog input subsystems.
5X00051G02 Digital Input Module
32-channel digital input module with 24VDC input range, opto-isolated channels, and high-speed sampling. Ideal for monitoring discrete signals in industrial automation applications.
5X00083G01 Digital Output Module
16-channel digital output module with relay outputs (SPDT), 250VAC/30VDC rating, and diagnostic feedback. Suited for controlling contactors, valves, and other discrete loads in process control systems.
1C31197G01 Control Processor Module
High-performance Ovation controller processor module with 800MHz CPU, 1GB RAM, and redundant configuration support. Serves as the core of Ovation control systems for real-time process management.
5X00063G01 RTD Input Module
16-channel RTD input module supporting Pt100, Pt1000, and Ni1000 sensors, with 16-bit resolution and cold-junction compensation. Optimized for temperature measurement in industrial processes.
