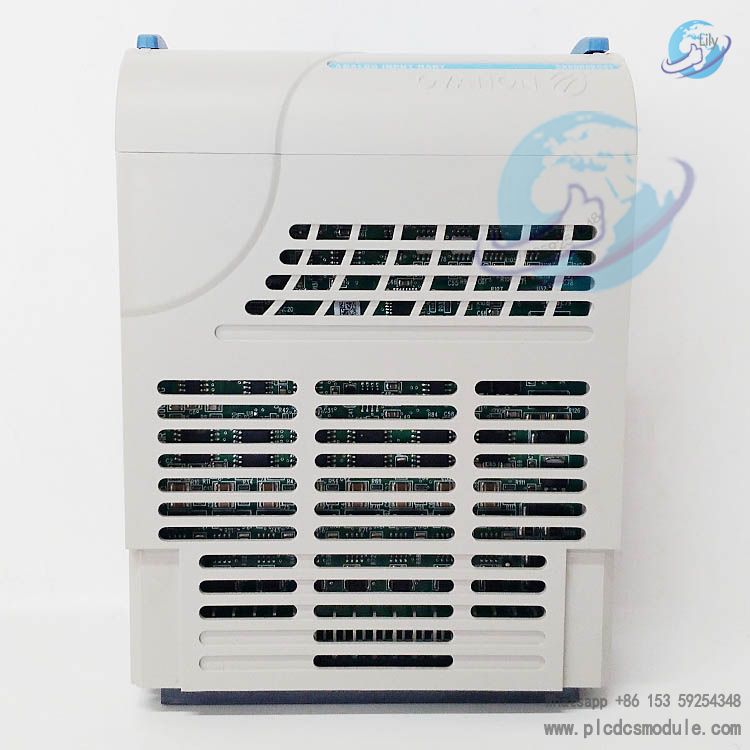

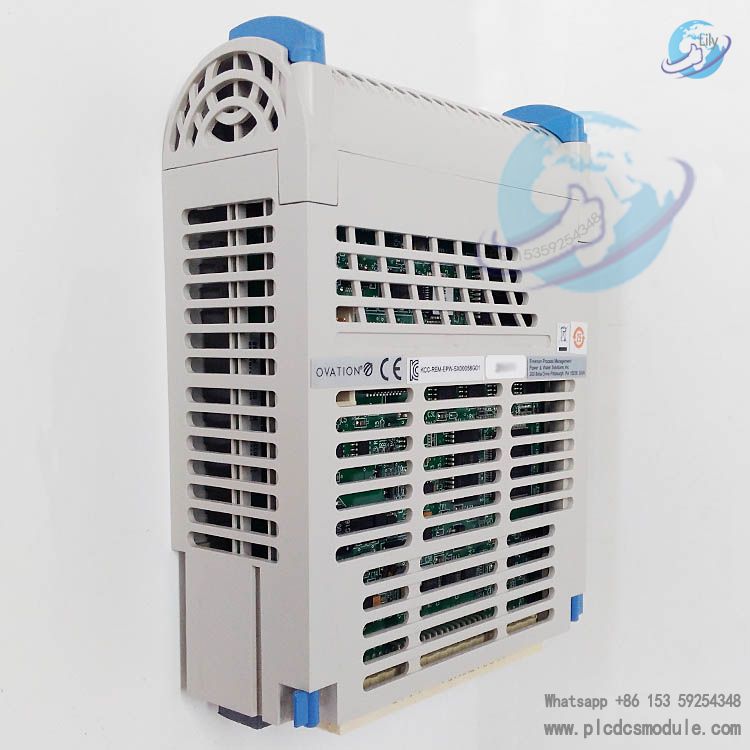

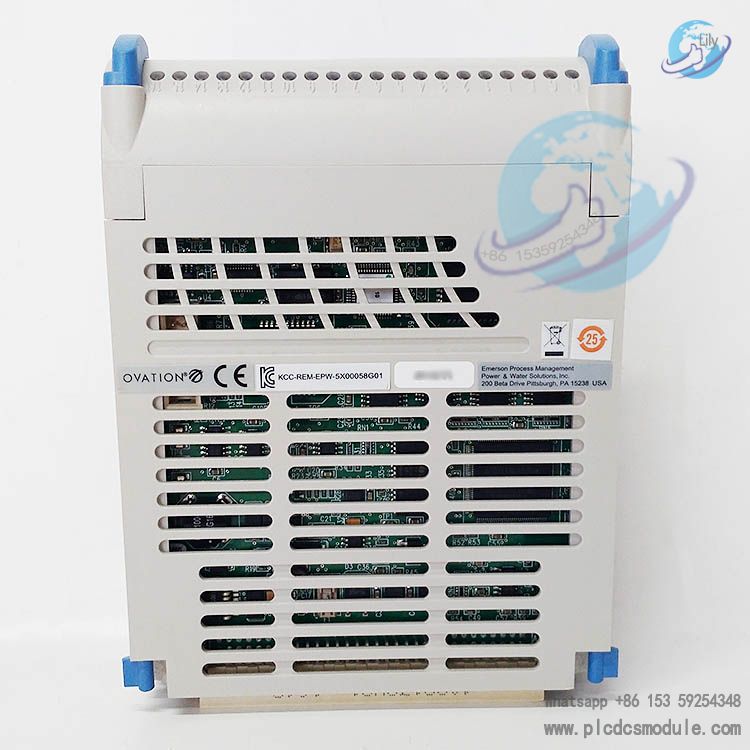

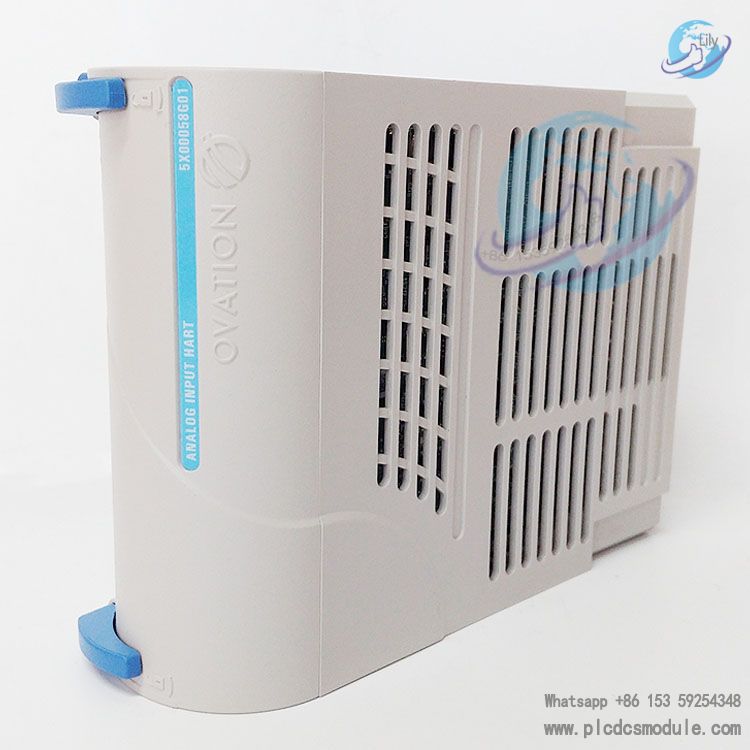

Emerson 5X00058G01 Analog Input Module
A high-performance 16-bit HART analog input module designed for seamless integration with industrial process control systems, supporting simultaneous analog 4-20 mA signal transmission and digital communication over a single pair of wires.
Technical Specifications
Key Features
HART Protocol Support
Superimposes low-level frequency-shift-keyed sine wave digital signals on 4-20 mA analog loops, enabling smart field devices to transmit multiple measurements and diagnostic data without disrupting analog signals.
High Precision Conversion
16-bit A/D resolution and ±0.05% reference accuracy ensure accurate capture of process data for critical industrial applications, maintaining reliability even in harsh operating conditions.
Flexible Transmitter Compatibility
Works with both two-wire loop-powered and four-wire active-source HART transmitters, offering flexible integration options for diverse field setups and legacy system compatibility.
Comprehensive Protection & Diagnostics
1000 VAC/VDC isolation protects against electrical interference, while channel-specific fault detection (overrange/underrange/reference errors) and diagnostic LEDs provide clear status feedback for quick troubleshooting.
Seamless System Integration
Designed as a standard Ovation I/O module, it interfaces smoothly with Ovation control systems, supporting unified process management, remote monitoring, and easy integration into existing industrial automation architectures.
Wiring & Installation Requirements
Cable Specifications: Use shielded twisted-pair cable (24 AWG min for < 5,000 ft / 1524 m; 20 AWG min for 5,000-10,000 ft / 1524-3048 m) to minimize signal degradation and electromagnetic interference.
Shield Grounding: Connect cable shields to earth ground at the cabinet entry point to reduce noise, particularly critical for multi-pair cable installations in industrial environments.
Auxiliary Power: Utilize a low-noise external linear power supply for auxiliary power to maintain HART communication stability, following manufacturer guidelines for external power connections.
Terminal Connections: Refer to module wiring diagrams for proper termination (A1-A8+: analog inputs; P1-P8+: loop power outputs; SH1-SH8: shield terminals; PS+/PS-: auxiliary power) to ensure correct signal routing and safety compliance.
Diagnostic LEDs
Power OK (Green)
Illuminates when the +5V power supply is functioning correctly, indicating basic module power integrity.
Communications OK (Green)
Indicates successful bi-directional communication between the module and the Ovation controller, critical for system integration.
External Error (Red)
Activates upon loss of external auxiliary (field) power, detected via abnormal EOC (end-of-convert) signal transitions, alerting to field-side power issues.
Internal Error (Red)
Triggers for internal module faults (controller-forced errors, communication loss, ground/reference anomalies, memory diagnostics failures) requiring module inspection or replacement.
Channel LEDs (Green, 1-8)
Indicate HART communication activity: illuminates on message send, extinguishes on successful response. A failed response triggers all LEDs except the target channel, simplifying channel-specific fault isolation.
Emerson Related Products
5X00059G01 Personality Module
Companion configuration and identification module for 5X00058G01, providing tailored system integration and compatibility with Ovation control platforms, essential for module initialization and parameter management.
Ovation™ Controller Module (OVATION-CM01)
Central processing unit for Ovation I/O modules, delivering high-performance process control, data processing, and network communication capabilities for industrial automation systems, serving as the core of the Ovation architecture.
5X00106G01 Analog Output Module
16-bit HART analog output module with 8 channels (4-20 mA), complementing the 5X00058G01 input module for complete analog signal processing, enabling closed-loop control and seamless integration with field actuators.
5X00070G01 Communication Module
Multi-protocol communication gateway supporting HART, Modbus, and Ethernet/IP, facilitating data exchange between Ovation systems and third-party devices, sensors, and control platforms for enhanced system interoperability.
