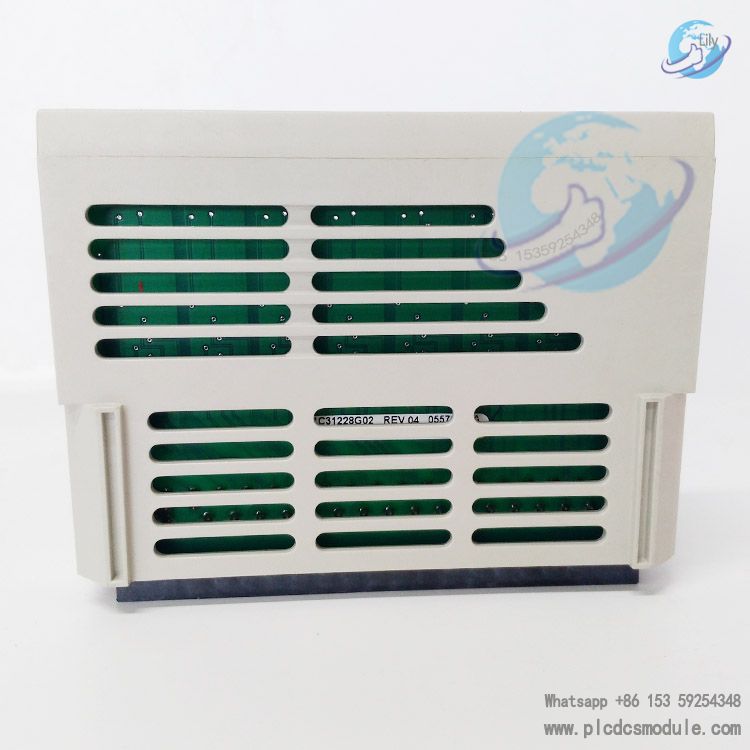

Technical Specifications
| Input Range | ±1V DC (with 1C31224G02); other ranges with high-speed modules |
| Number of Channels | 8 individually isolated channels |
| Resolution | 13 bits (±1V configuration) |
| Guaranteed Accuracy (@25°C) | ±0.10% of full scale ± 1/2LSB @99.7% confidence |
| Temperature Coefficient | ±0.24% of full scale over 0 to 60°C |
| Input Impedance | 10 MΩ |
| Sampling Rate | 20/s (60Hz rejection); 25/s (50Hz rejection) |
| Dielectric Isolation | 1000 V AC/DC (channel to channel & logic) |
| Module Power | Main: 2.4W typical, 3.125W max; Aux: 3.84W typical (8 inputs @20mA) |
| Operating Temperature | 0 to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 0% to 95% non-condensing |
| CE Mark Compliance | Yes (4-20mA configuration) |
related documents
Core Advantages
High Precision Measurement
Accurate data conversion with strict temperature coefficient control for reliable performance across operating ranges.
Strong Isolation Performance
Individually isolated channels prevent cross-interference and enhance system stability in complex environments.
Flexible Compatibility
Works with multiple electronic modules to support various input types and ranges for diverse industrial needs.
Robust Noise Rejection
Excellent normal and common mode rejection minimizes impact of industrial electromagnetic interference.
Simplified Installation

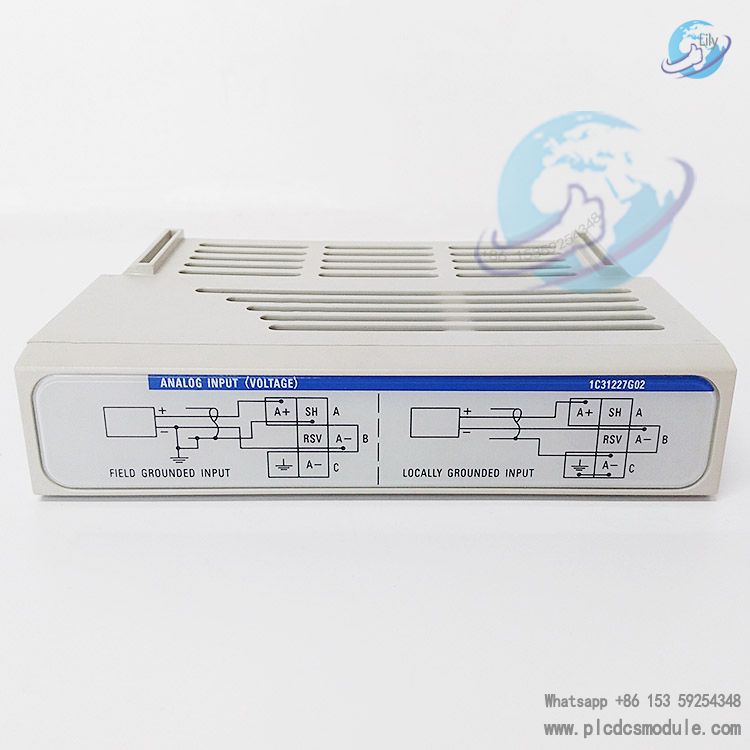

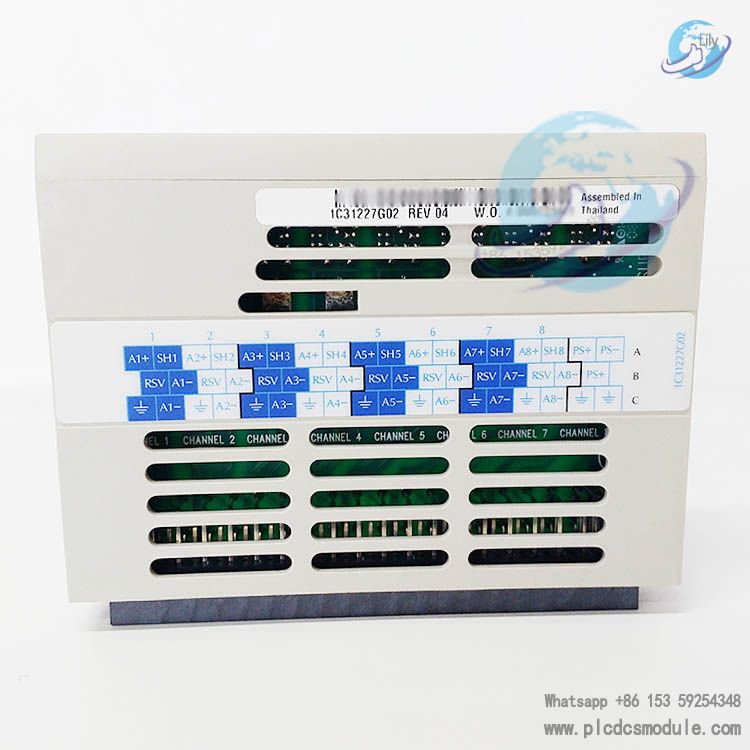

Clear wiring labels and standardized terminal block design reduce installation time and operational errors.
Comprehensive Diagnostics
Built-in self-calibration and fault detection enable quick troubleshooting and reduce downtime.
Industrial-Grade Durability
Designed to withstand harsh industrial conditions for long-term stable operation in extreme environments.
Application Fields
Maintenance Guidelines
- Regular Inspection: Check wiring connections for tightness and corrosion to ensure stable signal transmission.
- Calibration: Perform on-demand self-calibration via Ovation Controller; document calibration records.
- Visual Checks: Inspect diagnostic LEDs to quickly identify power, communication, or channel errors.
- Environmental Control: Ensure operation within specified temperature and humidity ranges to avoid performance degradation.
- Fuse Replacement: Use exact equivalents for user-serviceable fuses; refer to module labels for ratings.
- ESD Protection: Follow standard electrostatic discharge guidelines during installation and maintenance.
- Documentation: Keep records of configuration, wiring diagrams, and maintenance activities for future reference.
