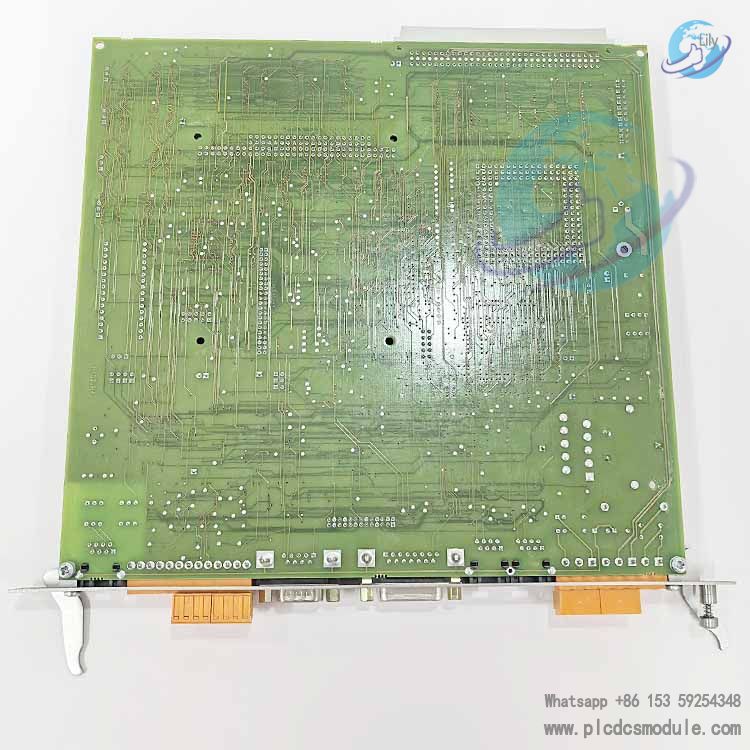

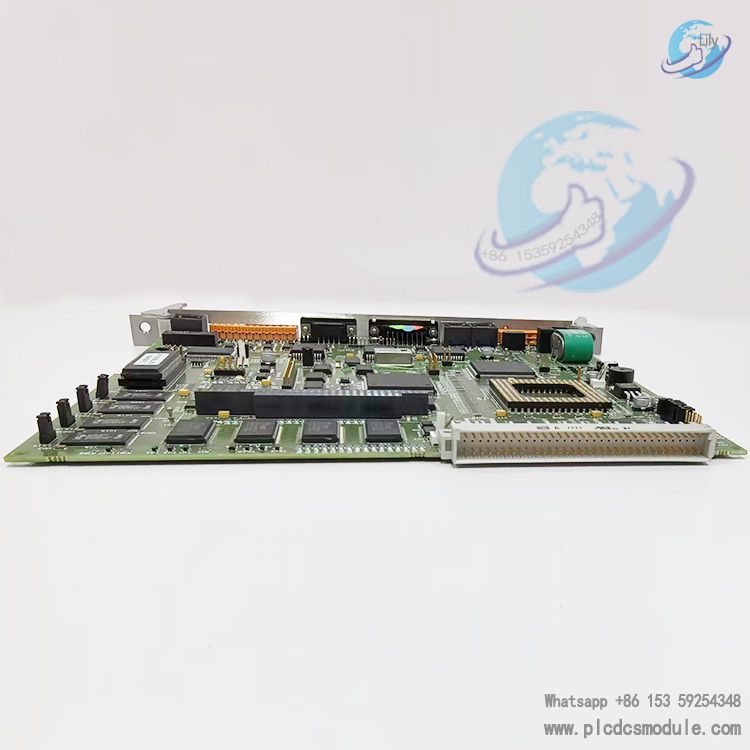

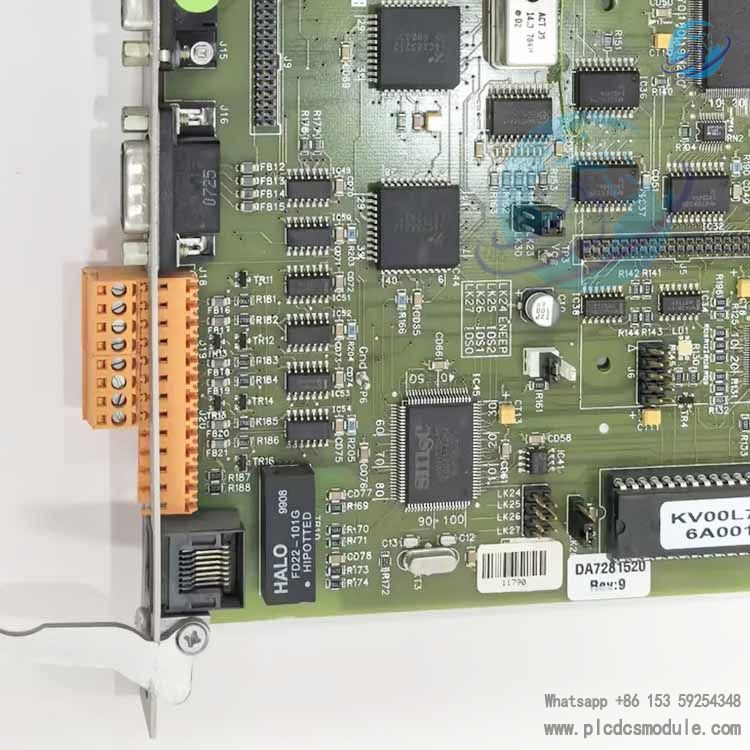

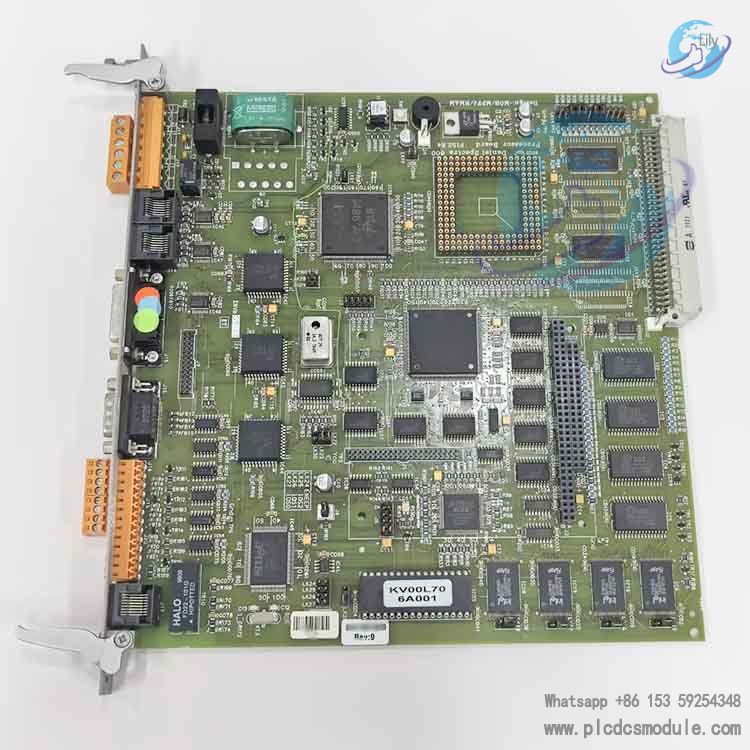

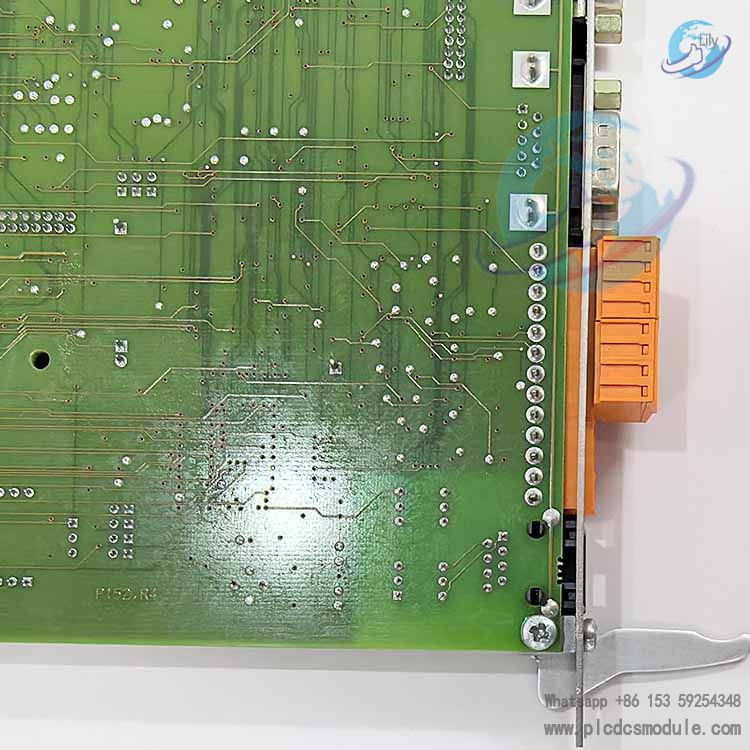

Emerson P152.R4 is the core main control board for the FloBoss S600+ flow computer. Serving as the "brain" of the unit, it adopts the industrial-grade 32-bit ColdFire MPC8313C processor, and integrates rich communication interfaces, non-volatile memory, power management, watchdog timer and battery backup.

Designed specifically for high-precision custody transfer measurement, flow calculation and remote monitoring in oil, gas and chemical industries, it supports multiple I/O expansion and long-term stable operation in harsh industrial environments. It is a key hardware component that enables the S600+ to achieve high reliability, real-time performance and scalability.

Hardware Specifications

1. Processor & Memory

• Main processor: ColdFire MPC8313C, 333MHz / 300 MIPS, with hardware floating-point acceleration, ensuring real-time performance and accuracy of flow calculation.
• Memory: 256Mb FLASH; 4Mb non-volatile SRAM (retains configuration and critical data during power loss).
• Clock: Onboard real-time clock (RTC) with battery backup.

2. Power Characteristics

• Input: 24Vdc (20–32Vdc), rated 2A, inrush current approx. 6A/100ms at startup.
• Protection: 2.5A surge-protective main fuse; onboard 15V/24V loop power supply with thermal fuse protection.
• Output: +24Vdc (500mA), +15Vdc (100mA) for field loops / preamplifiers.

3. Battery Backup (Critical)

• Type: 3V 1500mAh rechargeable Li-Mn battery, field-replaceable.
• Purpose: Backs up SRAM configuration, BIOS, and calendar clock.
• Management: Weekly load self-test; triggers BATT FAIL alarm on abnormality; backup duration approx. 2 weeks at ambient temperature after failure, replacement recommended within 2 weeks.
• Lifetime: Typical 5–7 years; charging (20%–80%) approx. 48 hours.

4. Communication Interfaces (Total 13 Channels)

• Serial ports (10 channels):
• 3×RS232 (1 dedicated front-panel port for download / configuration)
• 3×RS422/485
• 4×RS485
• Ethernet: 2×10/100M Ethernet, supporting Modbus TCP, remote configuration and data upload.
• General: 1×USB for configuration, log export and firmware upgrade.

5. Control & Protection

• Watchdog relay: Single-pole double-throw (SPDT), failsafe on CPU fault/power loss, provided with NC/COM/NO terminals.
• Cold start: P2 jumper for forced power-on cold start, used for factory reset / clearing abnormal configurations.

6. Mechanical & Expansion

• Modular design, fits S600+ standard enclosure, supports CPU plus up to 3 I/O boards, expandable to 10 flow runs metering.
• Inter-board addressing: Slave boards such as P144 I/O, P154 Prover, P188 HART set addresses via jumpers, automatically recognized by the main controller.

Functions & Application Value

• Main Control & CalculationCoordinates the entire unit, executes flow algorithms including AGA/API/GPA, and performs 64-bit double-precision calculations to meet custody transfer metering requirements.
• Data SecurityNon-volatile SRAM with battery backup preserves configurations, totalizers, and event logs during power outages.
• Communication CompatibilityMultiple serial ports plus dual Ethernet support Modbus RTU/TCP, EFM, HART, and other protocols for easy integration with SCADA/DCS systems.
• Industrial ReliabilityWide voltage input, surge/overcurrent/overtemperature protection, watchdog timer, and battery self-test enable long-term unattended operation at field metering stations.
• Flexible ExpansionSupports cascading with P144 standard I/O, P154 Prover, and P188 HART modules to adapt to multi-run and multi-instrument applications.

•

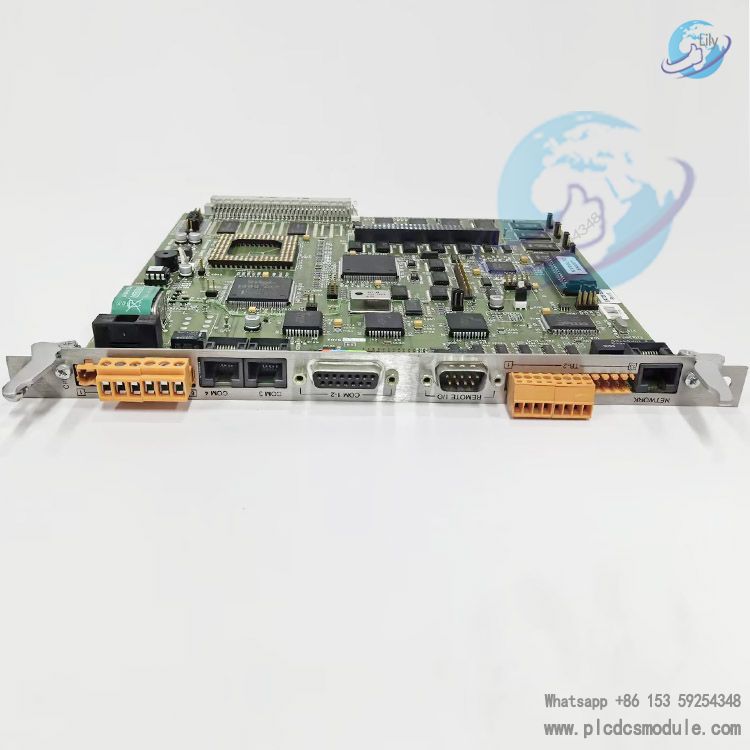

• The P152 CPU board houses the main processor and associated peripherals, forming the core of the system. Various plug-in connectors are provided on the rear backplate of the CPU board; refer to Figure 3-1 for an illustration of the P152 CPU board backplate. Additional connectors and bit links (jumpers) are also used on the board, which are pre-configured at the factory prior to shipment.

• It is recommended that all wiring be made with stranded wire that is no larger than 16 AWG. For the communication ports, wiring of 18 to 22 AWG is recommended. Power wiring is recommended to be 16 AWG. All local wiring practices and regulations should be observed.

• ⚠️ CAUTION

• Do not use a Megger or similar instrument to check for isolation or continuity between signals on any of the connectors of the FloBoss S600. These instruments produce voltages far in excess of design parameters, and damage may occur.

Cooperation with Companion Boards

• P144 I/O ModuleProvides AI/AO/DI/DO, pulse, frequency, and RTD inputs for field signal acquisition and control output.
• P154 Prover ModuleOffers pipe prover interface supporting unidirectional/bidirectional proving and ball-switch/turbine signal processing.
• P188 HART Module12-channel interface; each channel supports up to 8 devices, with a system maximum of 50 HART instruments.

Frequently Asked Questions (FAQ)

Q1: How to resolve the BATT FAIL alarm on the P152.R4?

A: The alarm indicates the battery failed the load test. A rechargeable 3V 1500mAh lithium battery of the same specification must be replaced within 2 weeks. After replacement, the system will automatically charge for approximately 48 hours to restore backup capability.

Q2: What to do if the unit fails to power up or configuration is lost?

A: Verify the 24Vdc input is within 20–32V; ensure the 2.5A main fuse is intact; short the P2 jumper to perform a cold start and restore factory defaults. If the problem persists, check the battery voltage and mainboard connections.

Q3: How many expansion boards can be connected at most, and how are addresses set?

A: The standard enclosure supports 1×P152 + 3× slave boards (combination of P144/P154/P188). Addresses are set via onboard jumpers: 1st P144 = 1, 2nd = 2, P154 = 3, etc. Duplicate addresses are not allowed.

Q4: How to troubleshoot serial/Ethernet communication failure?

A: Confirm interface mode (RS232/422/485), baud rate, parity, and slave address are matched. For Ethernet, check IP address, subnet mask, and gateway. Use the front-panel RS232 port to connect directly to a PC for local diagnostics to rule out wiring and module faults.

Q5: What is the function of the watchdog relay?

A: It monitors CPU operation in real time. If the CPU crashes or malfunctions, the relay de-energizes to trigger an external alarm or shutdown, achieving fail-safe operation. It is commonly used for interlock protection at critical metering stations.

Q6: Which communication protocols does the P152.R4 support?

A: Serial ports support Modbus RTU/ASCII and remote I/O. Ethernet supports Modbus TCP, EFM (flow metering), and configuration upload/download. With the HART module, it supports the HART protocol.

Q7: Is reconfiguration required after battery replacement?

A: Reconfiguration is not needed during normal replacement. If full power loss occurred before replacement, SRAM data will be lost, and configuration must be reloaded from a backup file or via the front panel/USB port.
