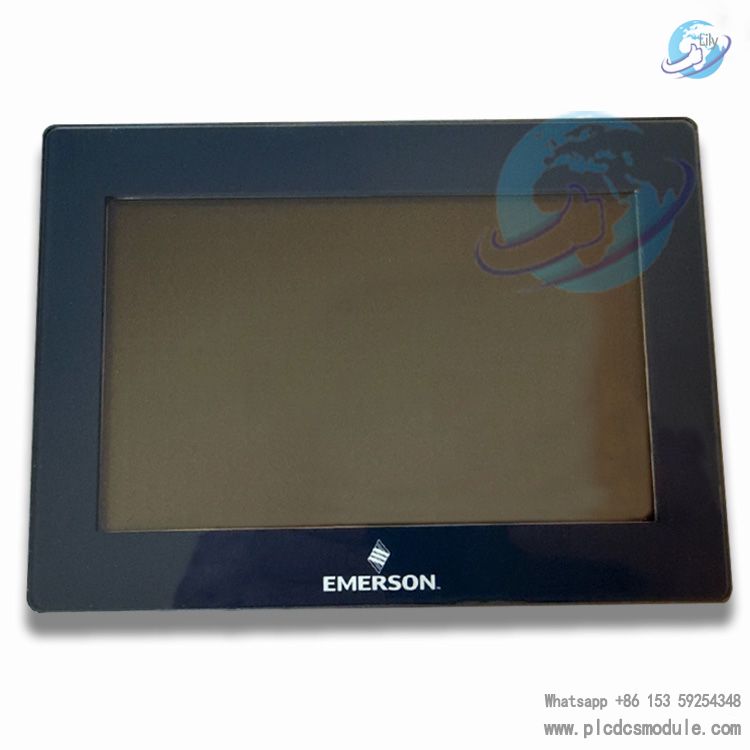

IC755CSW07CDA‑AEBA is a 7-inch color industrial human-machine interface (HMI) from Emerson QuickPanel+ series. Designed for harsh industrial environments, it integrates a high-resolution touch screen, abundant communication interfaces, and a stable embedded system. It supports equipment monitoring, data acquisition, alarm management, and remote operation, and is widely used in automated production lines, equipment control, process monitoring, and other applications, serving as a reliable integrated operation terminal for industrial sites.

Basic Information

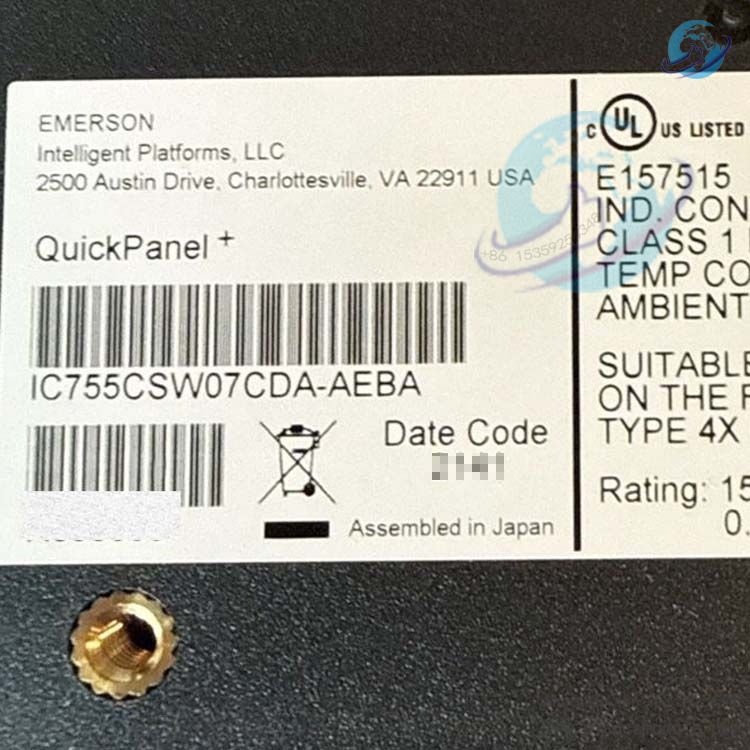

• Model Number: IC755CSW07CDA‑AEBA
• Product Series: Emerson QuickPanel+ (formerly GE Intelligent Platforms)
• Display Specification: 7-inch color TFT LCD with high-resolution touchscreen
• Firmware Version: Corresponding to Build 38 / 38D, released October 2020
• Operating System: Windows Embedded Compact 7 (WinCE NET v7.00)
• Compatible Software: PAC Machine Edition 8.50 SIM or higher for configuration and programming

Hardware & Performance

Display & Touch

• 7-inch widescreen color LCD, high brightness, wide viewing angle, providing clear industrial-grade visualization
• Industrial touchscreen supporting reliable single-point / multi-point operation, anti-interference and oil-resistant

Hardware Configuration

• Processor: High-performance industrial processor ensuring smooth operation
• Memory: 512MB DDR3 RAM, 512MB NAND Flash storage
• Storage Limit: 128MB hardware storage limit (officially confirmed)

Electrical & Environmental

• Power Supply: 24VDC (±20% tolerance), fanless natural convection cooling
• Operating Temperature: 0–55℃, humidity ≤85% (non-condensing)
• Protection: High front-panel protection rating, suitable for control cabinet panel mounting

Interfaces & Communication

• Standard Ethernet port supporting 10/100 Mbps
• Multiple serial ports (RS‑232/485) compatible with mainstream industrial protocols
• Direct connection to PLCs, inverters, servos, sensors and other field devices

•

Main Functions & Applications

Industrial Monitoring

• Real-time screens, parameter display, equipment start/stop control
• Alarm management, event logging, historical trending, recipe management

Communication Capability

• Supports common protocols including Modbus, TCP/IP, OPC
• Simultaneous multi-device networking, compatible with multi-brand controllers

Remote Access & Maintenance

• Supports VNC remote access (VNC requires restart after Ethernet reconnection)
• Supports FTP file transfer (note: FTP service is unencrypted; recommended for intranet use only)
• Supports remote firmware update via Web for simplified on-site maintenance

Typical Applications

• Automated production lines, packaging machinery, machine tools
• Water treatment, HVAC, energy management, small industrial control cabinets

Upgrades & Compatibility

Firmware Upgrade Requirements

• IC755CSW07CDA‑AEBA (Build 38): New upgrade guide applicable for Build 21 and above
• Upgrade file: Corresponding 7-inch model OS Image package; execute according to instructions after extraction

Software Compatibility

• Programming software: PAC Machine Edition 8.50 SIM or higher

• Supports project upload / download, screen editing, and parameter configuration

•


  ---







• Frequently Asked Questions (FAQ)

• Q: What is the corresponding firmware version for IC755CSW07CDA‑AEBA?A: It corresponds to Build 38 / 38D, released in October 2020, which is a stable version for the 7-inch model.
• Q: How to upgrade the firmware? Is a USB flash drive mandatory?A: Firmware can be upgraded via Web or USB flash drive. First download the corresponding 7-inch OS image package, extract it, and follow the Upgrade Installation Instructions. The new upgrade document is applicable for Build 21 and above.
• Q: What should I do if VNC remote connection fails or disconnects?A: Unplugging and replugging the Ethernet cable will disable VNC. You can restore it by restarting the VNC service in the device’s Launch utility.
• Q: What programming software is required and what is the version requirement?A: PAC Machine Edition is used, and version 8.50 SIM or higher is mandatory; otherwise, compatibility issues may occur.
• Q: What if FTP fails to connect or is insecure?A: The device’s FTP service has no encryption, so it is only recommended for use on the internal network. Check the IP address, subnet mask, port and permissions, and disable firewall blocking.
• Q: How to resolve insufficient storage space warnings?A: The hardware is limited to 128MB. Reduce large files such as logs, images and recipes, and delete unused projects and historical data.
• Q: What are the power supply and installation requirements?A: Standard 24VDC (±20%) with fanless natural convection cooling. Supports panel mounting and VESA 75 bracket mounting.
