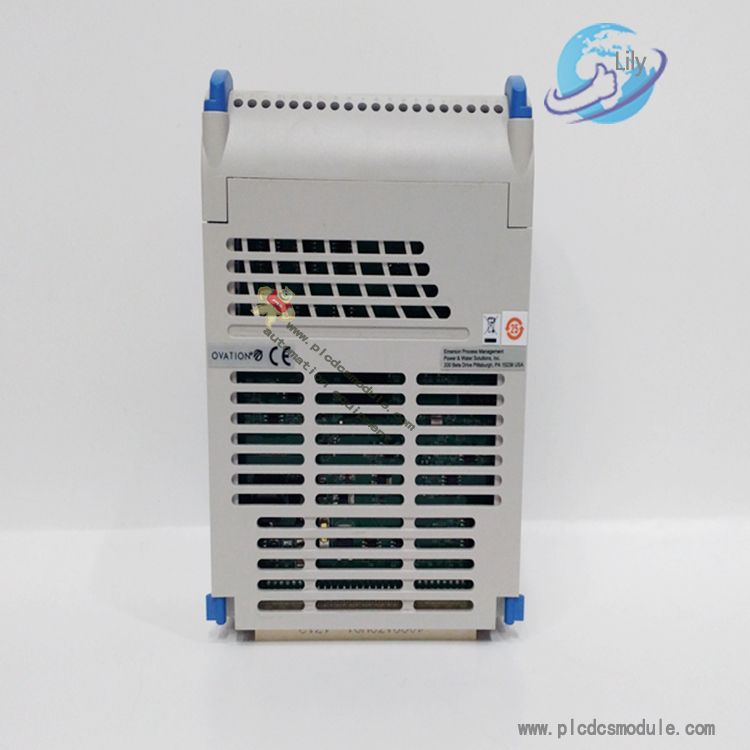

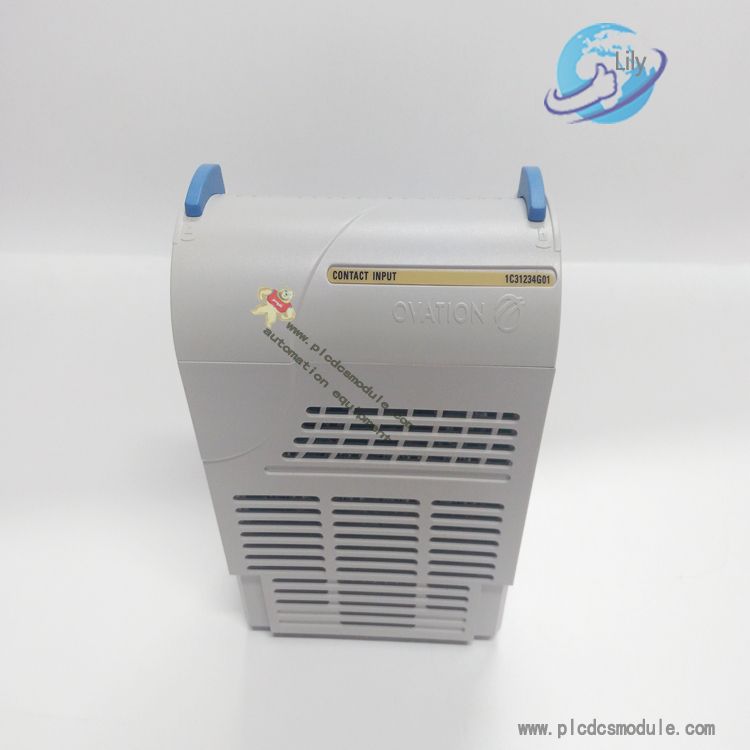

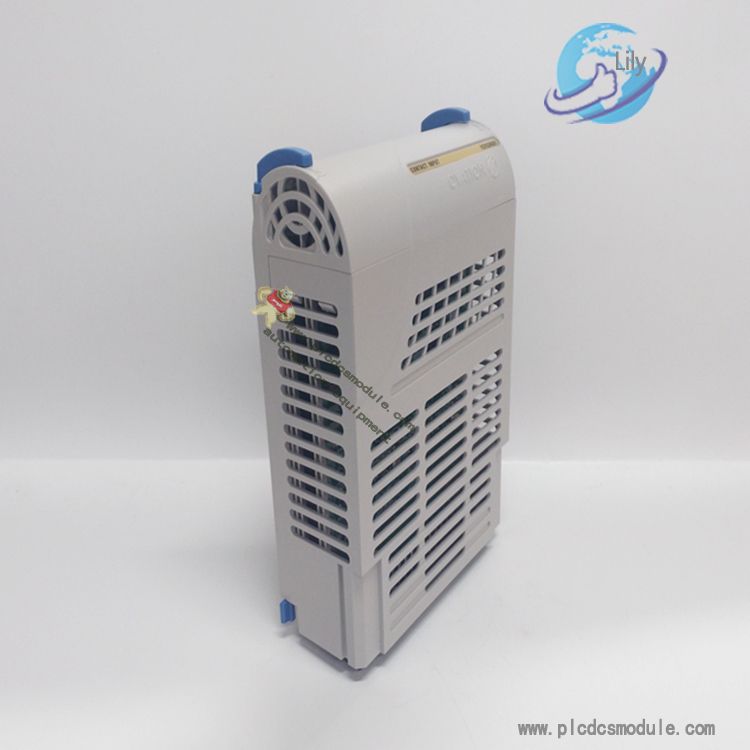

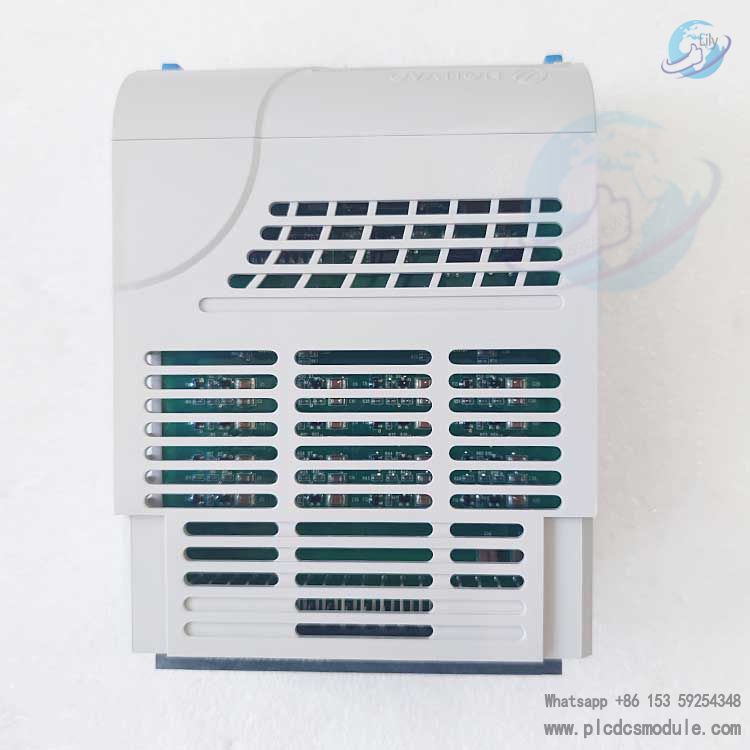

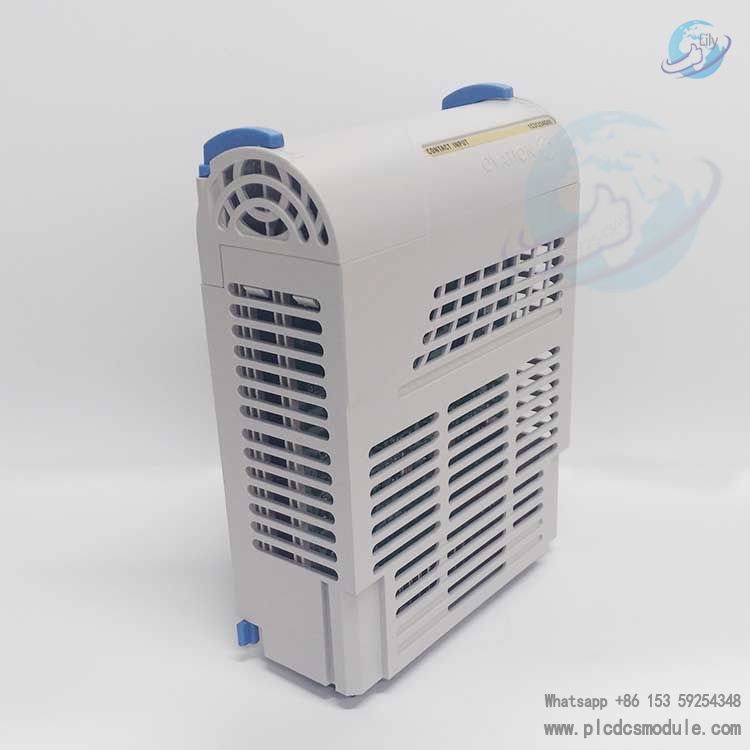

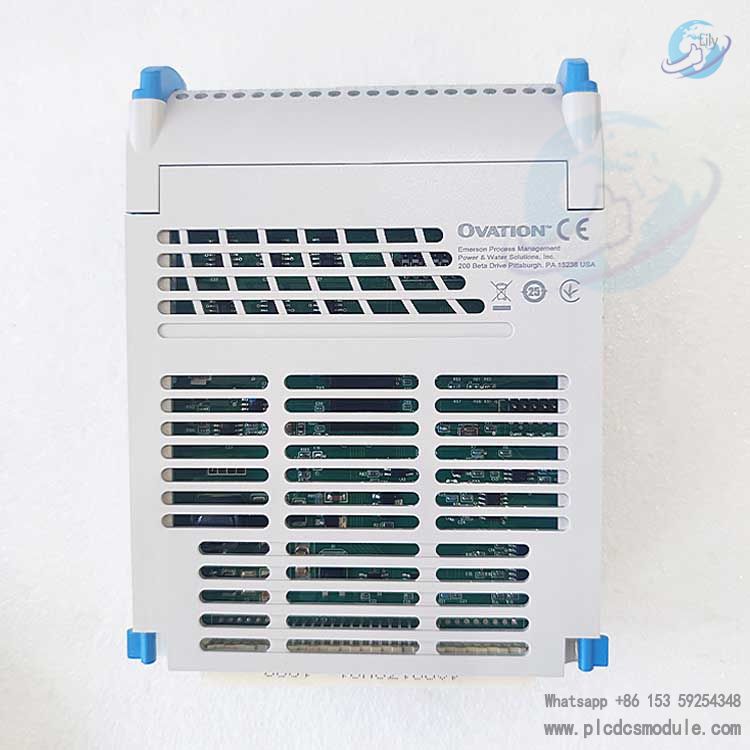

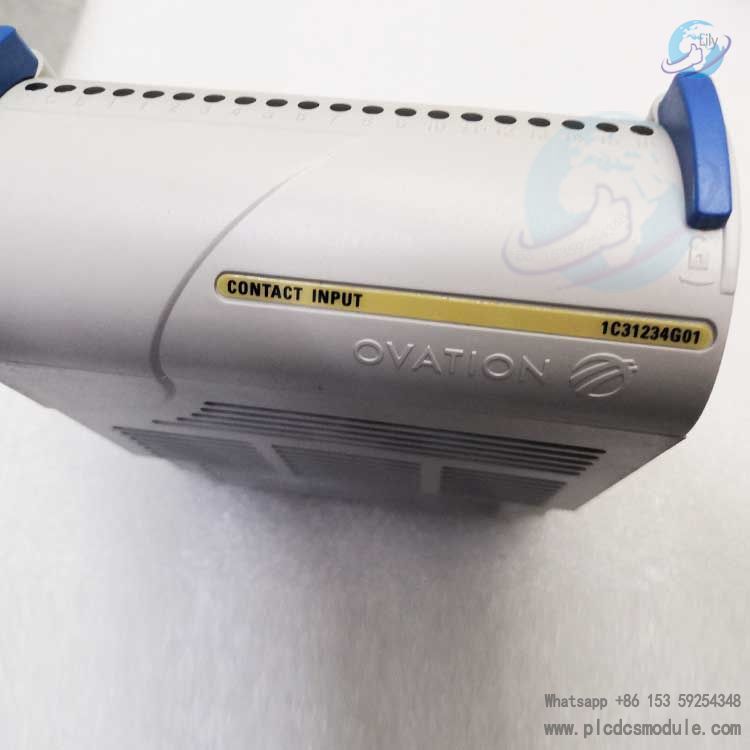

1C31234G01 is a 16-channel compact digital input electronic module that belongs to the Emerson Ovation automation control system family. It plays a crucial role in the industrial automation field, responsible for accurately collecting and transmitting digital signals from external devices, thus laying a solid foundation for the stable operation and precise control of the system. It is widely used in industries with stringent requirements for automation control, such as oil, chemical, and electric power.
Technical Specifications
Number of Channels: 16 channels.
Auxiliary Power Supply: Onboard 42 - 55VDC auxiliary power supply providing a common ground return for 16 contact inputs.
Propagation Delay: Maximum 7 milliseconds.
Contact Bounce Suppression: Contact state changes are always suppressed; contact state changes are always accepted after 7 milliseconds.
Closed Contact Output Current: 4 - 8 milliamperes.
Diagnostic Function: Capable of diagnosing internal module operational faults and detecting ground faults.
Insulation Characteristics: Dielectric isolation between channels and logic is 1000V AC/DC.
Key Features and Advantages
High Real-Time Performance: Capable of receiving and converting digital signals from external devices accurately in real-time, with rapid response to external inputs.
High Reliability: Equipped with diagnostic functions to detect internal faults and ground faults, facilitating timely issue identification and resolution to ensure stable system operation.
Technical Parameters
Module Power Consumption: Typical 4.56W, maximum 4.75W.
Operating Temperature Range: 0 - 60°C (32 - 140°F).
Storage Temperature Range: -40 - 85°C (-40 - 185°F).
Humidity: 0 - 95% (non-condensing).
Applications
Widely used in industrial automation control systems across sectors such as oil, chemical, power, and manufacturing. It monitors and controls process parameters like temperature, pressure, and flow to ensure production stability and efficiency.
Compatible Products: Typically integrated with other Emerson Ovation series products, including:
Ovation Controllers: I/O Modules (Digital Output Modules, Analog Input/Output Modules, etc.)
SCADA Monitoring Software
Field Sensors
Actuators
