Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. Product Overview

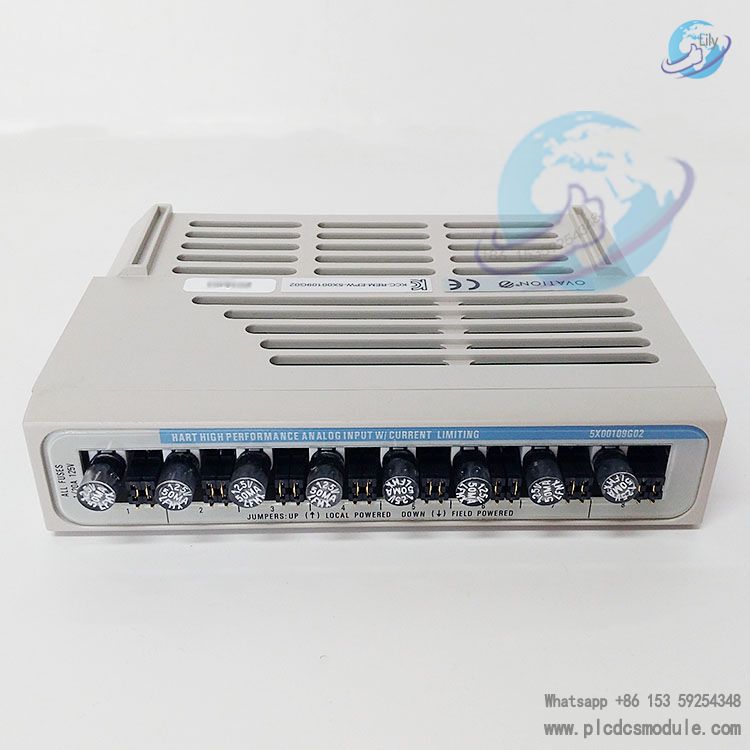

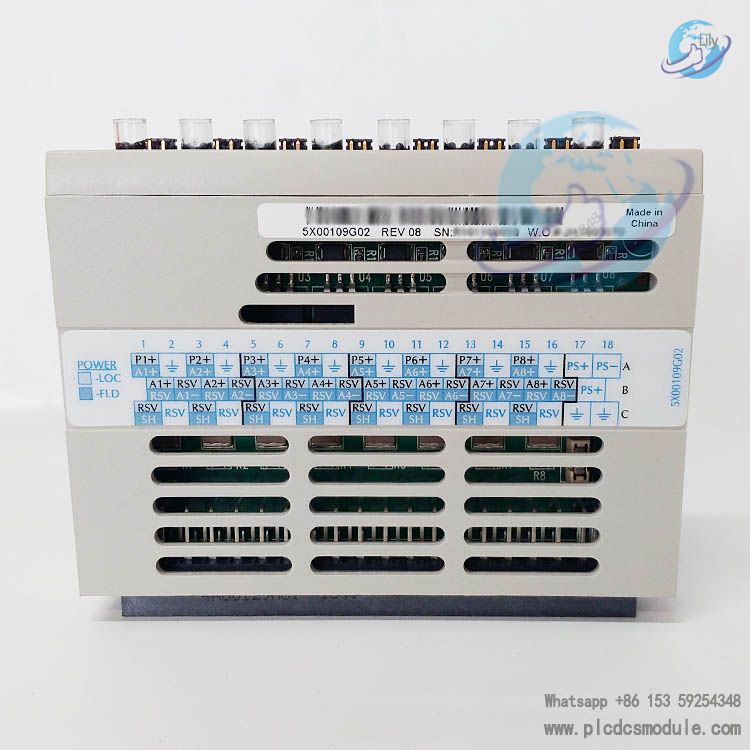

The Emerson 5X00109G02 is a high-performance Personality module designed for the HART High Performance Analog Input (HHPAI) system, engineered to deliver reliable and flexible signal processing for industrial process control applications. It is fully compatible with Ovation control systems, specifically supporting Ovation 3.4.0 and later releases as well as Ovation 3.3.1 with the OVA331063 patch installed, ensuring seamless integration into existing industrial setups. This module features eight fused inputs, providing robust protection for connected devices, and user-accessible jumpers that allow individual configuration of each channel for either field-powered or locally powered transmitters, adapting to diverse field device power supply requirements. A key enhancement of the 5X00109G02 is the addition of active current limiting in two-wire mode, which further improves operational safety and stability by preventing excessive current flow that could damage equipment. As a CE Mark Certified component (for Non-EMC Cabinet configurations when paired with the appropriate Electronics module), it adheres to strict industrial standards, making it suitable for use in a wide range of industrial environments that demand high reliability and compliance.
related documents
5X00109G02.pdf
Technical Specifications
Channel ConfigurationEquipped with 8 individual channels, each configurable via user-accessible jumpers for field-powered or locally powered transmitters, enabling tailored setup for different field devices.
Input ProtectionFeatures eight fused inputs to safeguard the module and connected field devices against overcurrent damage, enhancing system durability.
Special FunctionIncorporates active current limiting in two-wire mode, providing an extra layer of protection to prevent current overloads and ensure stable operation.
CompatibilityDesigned to work seamlessly with Emerson HHPAI Electronics modules (5X00106G01 and 5X00109G02), forming a complete HART-enabled analog input subsystem. Compatible with Ovation 3.4.0 and later releases, as well as Ovation 3.3.1 with the OVA331063 patch.
CertificationCE Mark Certified, meeting rigorous European industrial standards for safety, electromagnetic compatibility, and performance, ensuring compliance in global industrial applications.
Communication SupportWorks in conjunction with HART transceivers (integrated in the HHPAI system) to enable optically isolated digital communication via dedicated UARTs, maximizing HART communication throughput without interfering with the 4-20 mA analog signal.
Application ScopeOptimized for industrial process measurement and control systems, supporting HART-enabled "smart" field devices that transmit both analog 4-20 mA signals and digital data over the same wire pair.
Key Features
- 1Flexible Channel Setup: User-accessible jumpers allow each of the 8 channels to be independently configured for field or local power, accommodating various types of transmitters and simplifying system design.
- 2Enhanced Safety: Fused inputs and active current limiting in two-wire mode minimize the risk of equipment damage from overcurrent, ensuring reliable operation in harsh industrial conditions.
- 3Seamless System Integration: Fully compatible with Ovation control systems and HHPAI Electronics modules, enabling easy integration into existing Emerson process control infrastructures without extensive modifications.
- 4HART Protocol Support: Facilitates communication with HART-enabled smart devices, allowing access to additional measurement data, device diagnostics, and configuration settings beyond the standard 4-20 mA analog signal.
- 5Certified Reliability: CE Mark Certification confirms adherence to high industrial standards, ensuring consistent performance, safety, and compatibility in critical process control applications.
Application Scenarios
Oil & GasChemical ProcessingPower GenerationWater TreatmentManufacturing
The Emerson 5X00109G02 is ideal for use in industrial sectors such as oil and gas, chemical processing, power generation, water treatment, and manufacturing, where precise and reliable analog signal acquisition from HART-enabled field devices is essential. It is particularly suitable for applications requiring flexible channel configuration, robust input protection, and seamless integration with Ovation control systems. Whether used in new system installations or existing system upgrades, this module provides a dependable solution for processing 4-20 mA analog inputs while supporting HART digital communication, enabling smarter process monitoring and control.
Emerson HHPAI (HART High Performance Analog Input) Product Series
5X00106G01Emerson HHPAI Electronics Module (HART High Performance Analog Input)
5X00109G02Emerson HHPAI Personality Module (8-Channel Configurable Input)
5X00110G01Emerson HHPAI Personality Module (4-Channel Compact Design)
5X00111G01Emerson HHPAI Enhanced Personality Module (16-Channel High Density)
5X00112G01Emerson HHPAI Redundant Personality Module (Dual Redundancy Support)
5X00113G01Emerson HHPAI Intrinsically Safe Personality Module (Hazardous Area)
5X00114G01Emerson HHPAI Low Power Personality Module (Energy-Efficient Design)
5X00115G01Emerson HHPAI Extended Temperature Personality Module (-40°C to 85°C)
5X00116G01Emerson HHPAI Explosion-Proof Personality Module (ATEX Certified)
5X00117G01Emerson HHPAI High Precision Personality Module (0.01% Accuracy)
5X00118G01Emerson HHPAI Modular Personality Module (Configurable 4/8/16 Channel)
5X00119G01Emerson HHPAI Smart Personality Module (Built-in Diagnostics) 5X00120G01Emerson HHPAI SIL 3 Certified Personality Module (Safety Integrity Level)
5X00121G01Emerson HHPAI Universal Personality Module (Multi-Signal Input Support)
5X00122G01Emerson HHPAI Fast Response Personality Module (1ms Signal Latency)
