Product Overview

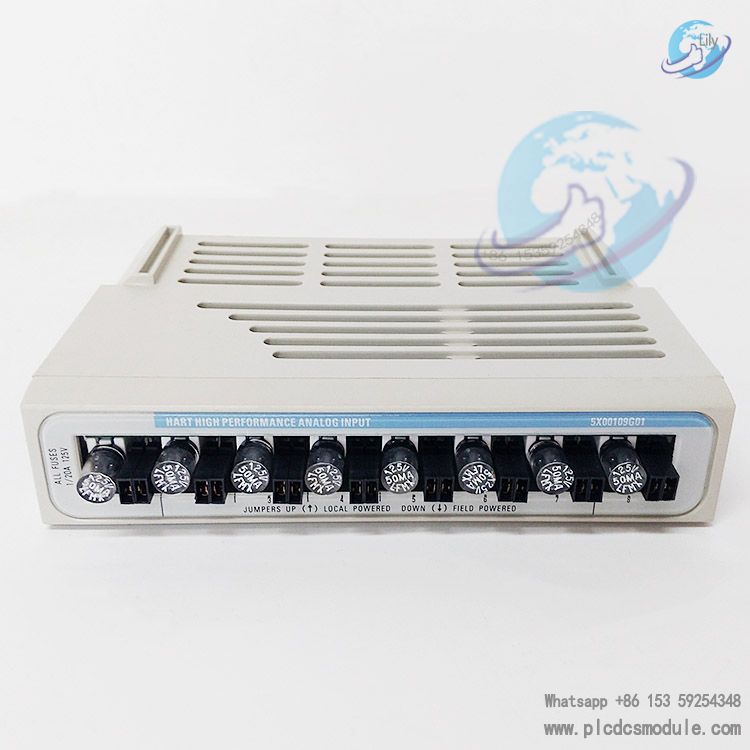

Emerson 5X00109G01 Ovation Analog Input Module
Emerson 5X00109G01 is a high-performance Ovation 8-channel analog input module specifically designed for various industrial process control scenarios such as petrochemical, power, metallurgy, and water treatment. It can accurately collect key process parameters including pressure, temperature, flow rate, and liquid level, boasting excellent reliability and compatibility, and is fully compliant with CE Mark certification standards.
related documents
Key Technical Specifications
- As a core component of the HART High Performance Analog Input system, this module, when paired with the 5X00106G01 (standard type) or 5X00106G02 (reduced radiated emissions type) electronics module, enables stable acquisition of 4-20 mA current signals.
- All 8 channels adopt galvanic isolation design, which can effectively avoid signal interference and ensure the accuracy of data collection.
The module is equipped with 8 fused input interfaces, and each channel can be independently configured via user-accessible jumpers to flexibly adapt to field-powered or locally powered transmitters.
Communication Features
HART Transceiver
Its integrated HART transceiver adopts optically isolated communication technology, which, when combined with a dedicated UART, maximizes HART communication throughput.
Signal Transmission
Supports superimposing low-level frequency-shift-keyed sine wave digital signals on the 4-20 mA current loop to achieve parallel analog measurement and digital communication.
Multi-parameter Support
Allows field smart devices to provide multi-parameter transmission functionality and breaking the single measurement limitation of traditional analog signals.
Environmental and Protection
| Operating Temperature Range | 0 to 60°C (32°F to 140°F) |
|---|---|
| Storage Temperature Range | -40°C to 85°C (-40°F to 185°F) |
| Humidity Tolerance | 0 to 95% non-condensing environment |
| Radiation Compatibility | Certain configurations (paired with 5X00106G02 electronics module) feature reduced radiated emissions, complying with relevant electromagnetic compatibility standards |
Application Scenarios of Industrial Module
Core Application Fields
This module is widely applied in industrial process control fields including:
- Petrochemical
- Power
- Metallurgy
- Water Treatment
Key Process Parameters
Suitable for accurate collection and transmission of the following parameters:
- Pressure
- Temperature
- Flow rate
- Liquid level
Core Features & Advantages
Intelligent Control System Compatibility
Particularly suitable for intelligent control systems that need to simultaneously obtain analog measurement data and equipment digital information.
HART Protocol Integration
Can cooperate with HART protocol-compatible smart transmitters to realize integrated management of process monitoring, equipment status diagnosis, and remote maintenance.
Adaptability to Special Environments
Applicable to conventional industrial scenarios, low-radiation environments with special electromagnetic compatibility requirements, and complex sites that need to flexibly adapt to transmitters of different power supply types.
This module provides stable and reliable solutions, helping industrial systems improve control accuracy and operation & maintenance efficiency.
