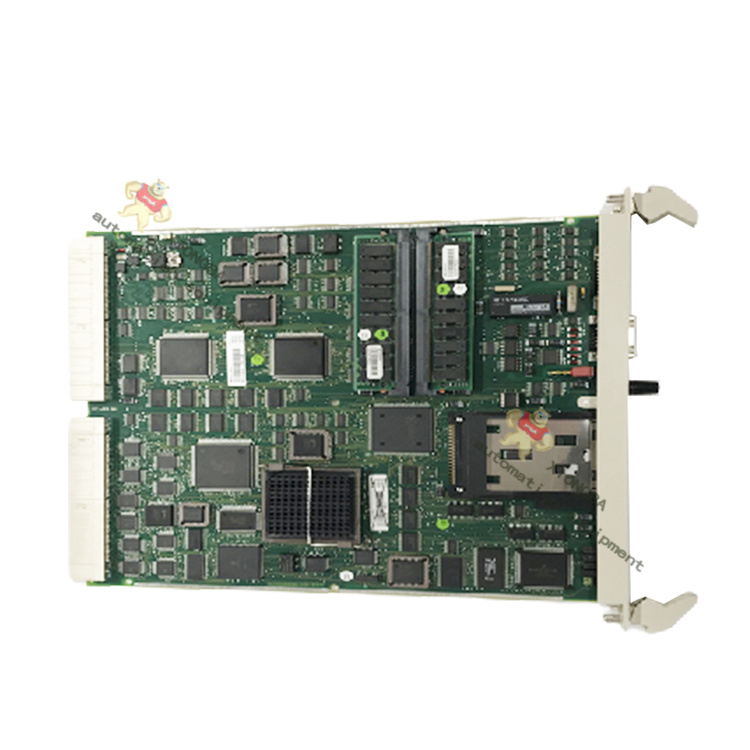

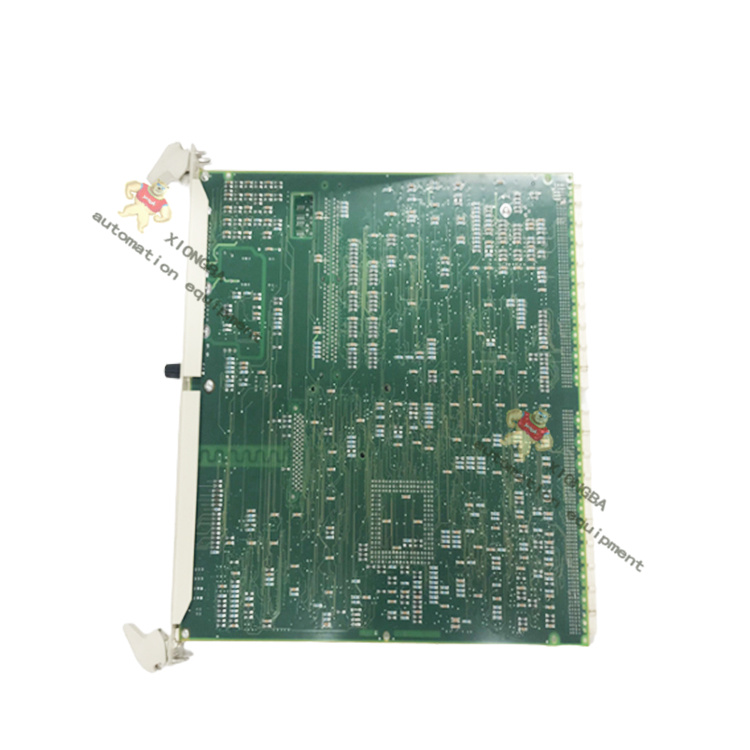

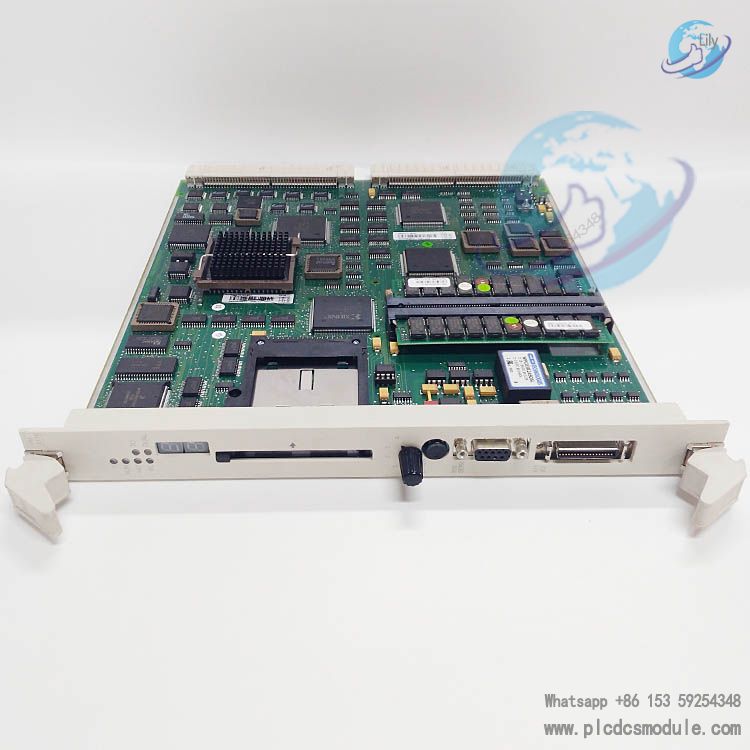

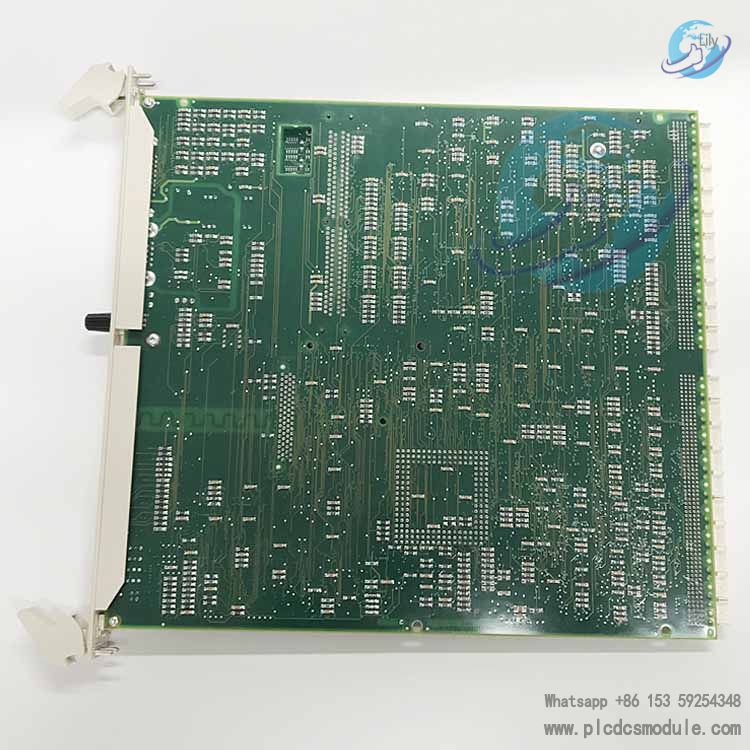

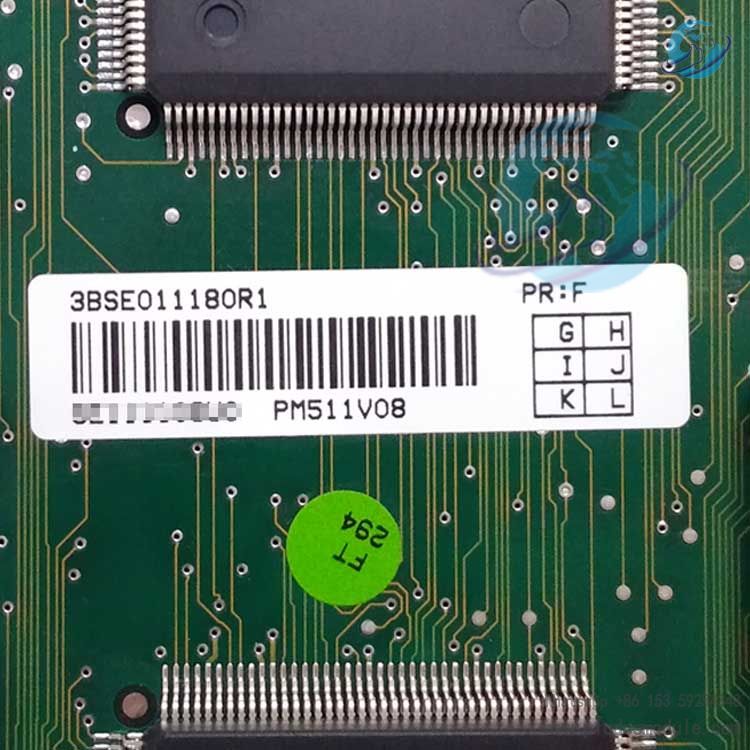

The ABB PM511V08 (Product ID: 3BSE011180R1) is the core processor module of the Advant Controller 450 control system. It features high reliability and industrial-grade performance, and is specially designed for binary control, process regulation and monitoring scenarios. Based on the Motorola 68040 microprocessor architecture, this module integrates 8MB of dynamic RAM with Error-Correcting Code (ECC), which can store system programs, controller configurations and application programs. Meanwhile, it supports redundant hot standby configuration and multi-interface expansion, and can adapt to diverse requirements ranging from standalone control to distributed industrial environments. It serves as a key hardware unit for the Advant Controller 450 to achieve high availability and high processing capacity.
related documents
Hardware Specifications and Architecture
1. Processor and Memory Configuration
Core Chip: Equipped with the Motorola MC68040 microprocessor running at a frequency of 25 MHz, it delivers high-efficiency instruction execution capability to meet the requirements of multi-task concurrent processing in industrial scenarios, such as running logic control, data acquisition, and communication protocol parsing simultaneously.
Memory Features: Built-in 8MB dynamic RAM (upgradeable to 16MB via a dedicated kit, corresponding to model PM511V16), integrated with an ECC error correction circuit. It can automatically detect and correct single-bit memory errors, preventing system malfunctions caused by abnormal memory data and ensuring stable program operation.
Memory Backup: Dependent on the system backup power supply and battery (e.g., SB522 battery module), it can maintain RAM data for at least 2 hours after power failure (2 hours in redundant configuration and 4 hours in single-module configuration). To extend the backup duration, the SB510 backup power unit (doubling the battery life) or the SB511 external battery interface (compatible with 24V/48V external batteries) can be added.
2. Interfaces and External Connections

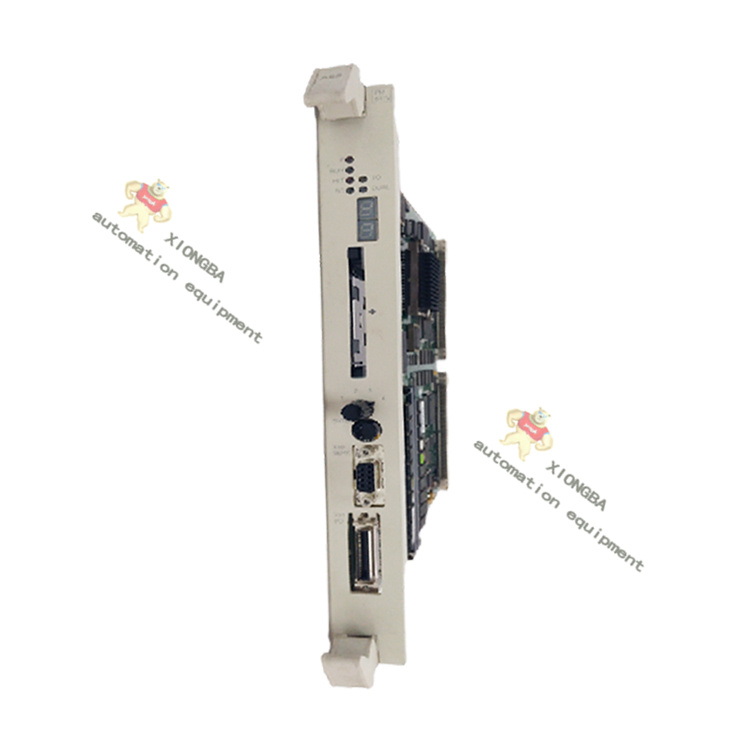

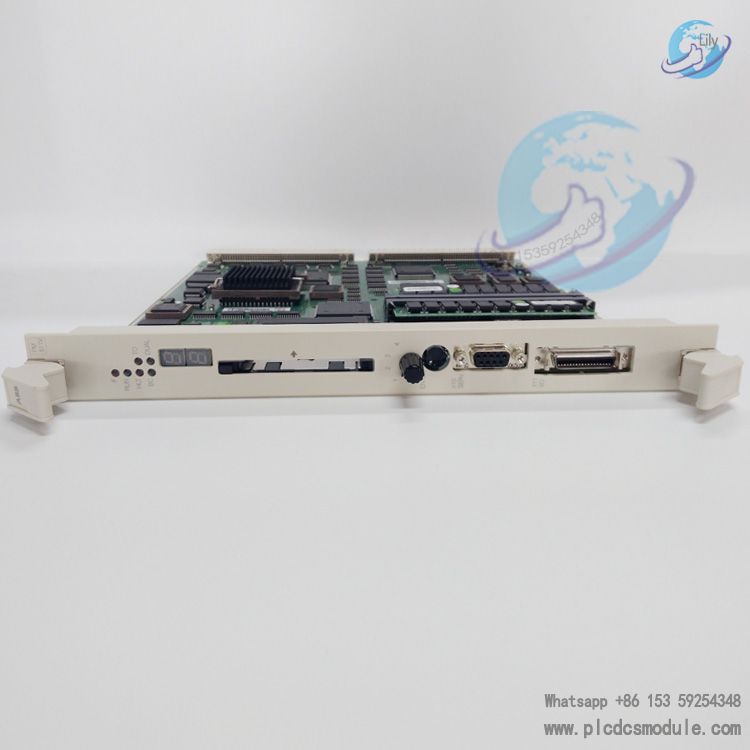

The front panel of the module integrates a variety of dedicated interfaces to support hardware expansion and maintenance operations, including the following:
Program Card Interface: A dedicated PCMCIA slot designed for inserting system program cards (storing the basic program module QC07-BAS41 and optional modules). It is mandatory to keep the program card in place when the backup CPU in redundant configuration is booting up.
S100 I/O Bus Interface: Directly connects to the S100 I/O bus extension cable (maximum length: 12m), supporting single-bus or redundant-bus configurations to enable high-speed data exchange with I/O subracks.

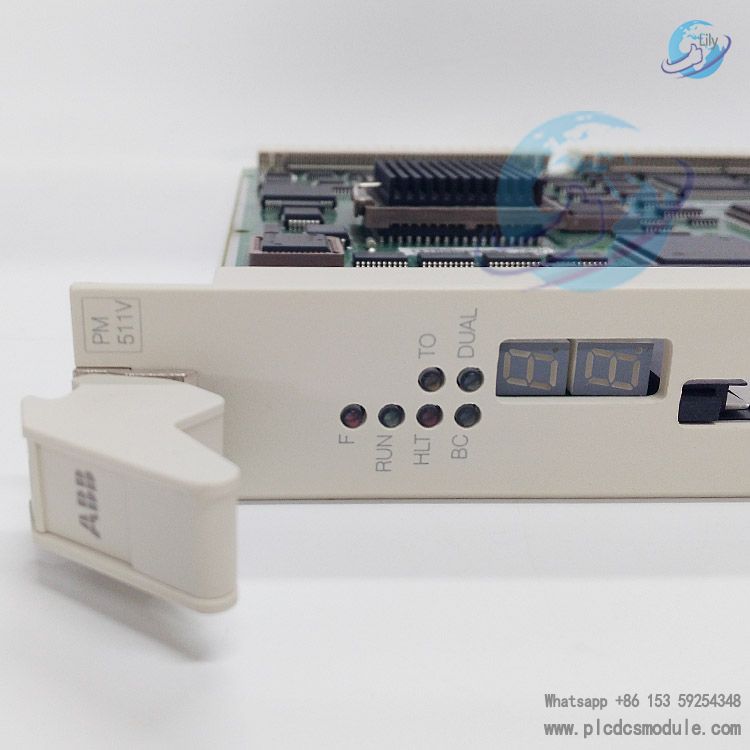

Configuration and Maintenance Interface: Supports connection to configuration tools such as the Advant Station 140 for system configuration, program downloading, and fault diagnosis. It is also equipped with status indicator lights and a character display screen, which can display real-time CPU operating status, fault codes, and other information to facilitate on-site maintenance.
Mode Control Components: Includes a four-position rotary switch (for selecting CLEAR/STOP/AUTO/OFF LINE startup modes) and a reset button. It supports choosing different startup methods based on the duration of power failure; for example, the Auto mode enables automatic restart and recovery of pre-failure operating status after power restoration.
Redundancy Features and High-Availability Design
1. Redundancy Configuration Characteristics
The Advant Controller 450 supports the construction of a redundant hot standby system with dual PM511V08 modules, with the following core features:Hot Standby Mechanism: When the active master module is executing process control functions, the backup module stays in the hot standby state. It synchronizes the configuration data and operating status of the master module in real time via an automatic checkpoint mechanism, requiring no manual intervention.Fault Switchover: In the event that the master module detects a hardware fault (e.g., CPU abnormality, memory error), it will stop running immediately, and the backup module will seamlessly take over control tasks within 25 ms to achieve disturbance-free switchover, preventing process interruption. The switchover status will be fed back synchronously via module indicator lights and AdvaCommand system alarms.Configuration Requirements: The two PM511V modules in redundant configuration must have the same RAM capacity (either 8MB or 16MB for both), and program cards must be inserted into both the master and backup modules simultaneously to ensure that the backup module can load the complete system program during startup.
2. System-Level Reliability Assurance
Power Supply Redundancy Support: It can be paired with dual SR511 voltage regulators and dual mains power supplies to achieve power system redundancy. The regulators and power supply modules support hot swapping, allowing replacement without system shutdown and further improving system availability.I/O Redundancy Expansion: Redundant backup of I/O data transmission is realized through redundant S100 I/O buses (dual DSBC 174 bus expansion cards) or Advant Fieldbus 100 redundant buses, avoiding I/O communication interruption caused by a single bus fault.
Technical Parameters and Performance Indicators
Processor: Motorola 68040, 25 MHz
RAM Capacity: 8MB (with ECC), upgradable to 16MB
Redundancy Switchover Time: ≤ 25 ms
Supported I/O Capacity: Up to 5,700 I/O points, covering S100, S800 and S400 I/O systems
Supported Communication Protocols: MasterBus 300/300E, Advant Fieldbus 100, PROFIBUS-DP, LONWORKS, etc.
Program Execution Cycle: PC program cycle is configurable in the range of 5 ms to 32 s, with support for 3-level priority scheduling
Environmental Protection: Compatible with RM500 cabinet, available with protection class IP21, IP41 or IP54
Power Supply Requirements: Powered by SR511 regulator which provides 5V/35A DC power, supporting 120/230V AC or 24/48V DC input
Ordering Information and Accessory Matching
1. Product Models and Ordering Codes
- Core Module: PM511V08 Processor Module (8MB RAM), Ordering Code: 3BSE011180R1
- Upgrade Kit: 8MB→16MB RAM Upgrade Kit (for upgrading PM511V08 to PM511V16)
- Redundancy Accessories: Redundant Bus Connection Kit (including 2×TK589, TK566), used for connecting dual PM511V08 modules to form redundant control links
2. Key Supporting Components
- Program Card: PCMCIA System Program Card (including QC07-BAS41) — Stores system programs and supports hot-swappable backup
- Voltage Regulator: SR511 (3BSE000863R1) — Provides 24V→5V regulated output and supports redundant configuration
- I/O Bus Expansion: DSBC 176 (single bus)/DSBC 174 (redundant) — Expands the S100 I/O bus and connects to I/O subracks
- Backup Power Supply: SB510 (3BSE004450R1) — Extends RAM backup time and is compatible with 120/230V AC mains
- Communication Submodule: CI522A (Advant Fieldbus 100) — Enables fieldbus communication with S800 I/O or drives
Software Compatibility and Functional Support
1. Dependencies on Basic Software Modules
The PM511V08 must operate with dedicated software modules for the Advant Controller 450, with QC07-BAS41 serving as the core basic module. Its functions include:
- Basic PC elements such as logic control, arithmetic operation, data processing and sequence control (e.g., AND/OR logic blocks, PID regulators, pulse counting elements);
- Support for communication protocols including MasterBus 300/300E, GCOM and RCOM/RCOM+;
- Integration with S100/S800 I/O systems (e.g., S800 I/O modules must communicate with CI522A interface modules via Advant Fieldbus 100).
2. Expansion with Optional Software Modules
Based on application requirements, the following optional modules can be loaded to extend functions. All modules are stored on the program card and run on the PM511V08:
- QC07-LIB41: Adds feedback control and analog thyristor converter connection functions, including PI/PID control elements and filter elements (e.g., FILT-1P first-order filter);
- QC07-LIB42: Supports advanced process control such as adaptive self-tuning PID (PIDCONA) and Novatune self-tuning control;
- QC07-FUZ41: Provides fuzzy control functionality (FUZZYCON element), supporting fuzzy algorithm configuration for multi-input multi-output variables;
- QC07-OPF41: Enables AdvaCommand operator station functions, such as trend data storage, event alarm grouping and HMI interaction;
- QC07-LOS41: Supports the MasterView 320 local operator terminal, realizing process data display, manual operation and event list printing.
Hardware Compatibility and Installation Requirements
1. Subrack and Cabinet Installation
Subrack Compatibility
The PM511V08 must be installed in Area Part A of the RF533 dedicated subrack for Advant Controller 450. The subrack features 8 slots in total and can accommodate up to 2 processor modules. It is also integrated with the RC527 fan unit (for heat dissipation) and the TC520 supervision unit (for collecting system bus signals and external clock synchronization signals).
Cabinet Selection
The module must be paired with RM500 series cabinets (RM500V1 or RM500V2). For example, the RM500V1 cabinet has dimensions of 800mm (width) × 512mm (depth) × 2125mm (height), supports IP21/IP41/IP54 protection classes, and is suitable for various industrial environments (e.g., the IP54 sealed cabinet can be used in dusty or humid scenarios).
2. Environmental and Electrical Requirements
Operating Temperature
The operating temperature range is 0~40℃. Heat dissipation measures must be considered inside the cabinet (e.g., a heat exchanger needs to be installed in sealed cabinets) to prevent performance degradation of the module due to overheating.
EMC Compliance
The product complies with the EMC Directive 89/336/EEC and the Low Voltage Directive 72/23/EEC. During cabinet installation, it is necessary to ensure that the shielding layer of communication cables is grounded via TX507 capacitors to reduce electromagnetic interference.
ESD Protection
The cabinet is equipped with a grounding wrist strap. The wrist strap must be worn when plugging or unplugging the module to avoid electrostatic damage to sensitive components (e.g., RAM chips and CPU pins).
Application Scenarios and Typical Configurations
As the core component of the Advant Controller 450, the PM511V08 is widely used in industrial scenarios with high reliability requirements such as chemical engineering, electric power, and metallurgy. Typical configuration examples are as follows:
- Standalone Control Scenario: 1 PM511V08 module + 1 S100 I/O subrack (including AI/AO/DI/DO boards) + QC07-BAS41 software, applicable to small and medium-sized process control (e.g., temperature/pressure control of a single reactor);
- Distributed Redundancy Scenario: 2 redundant PM511V08 modules + 2 redundant Advant Fieldbus 100 buses + multiple S800 I/O stations + QC07-BAS41 & QC07-LIB42 software, applicable to large-scale distributed systems (e.g., coordinated control of multiple units);
- High-Availability Scenario: Redundant PM511V08 modules + redundant power supplies + redundant I/O buses + MasterView 320 local terminal, applicable to continuous production processes (e.g., petroleum refining equipment) to ensure uninterrupted operation.
