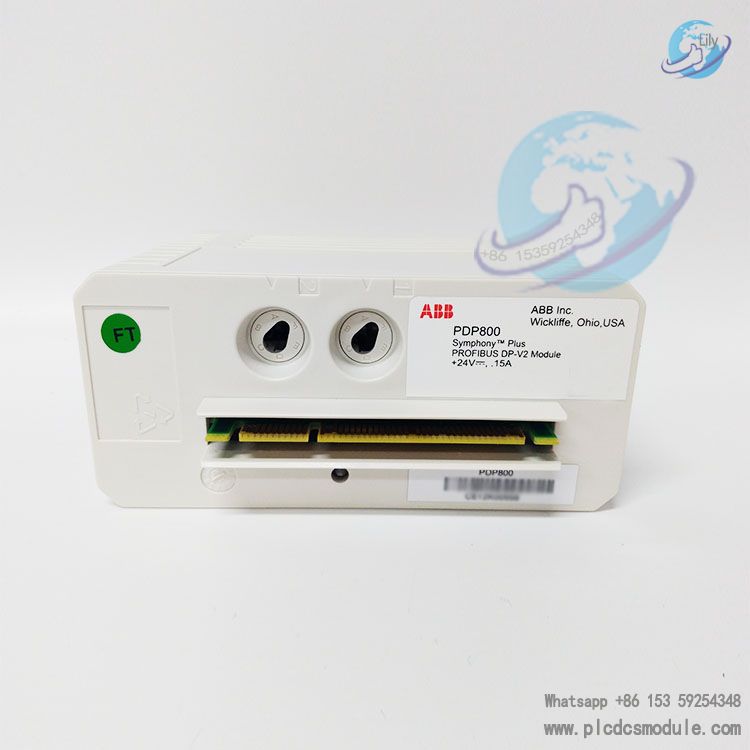

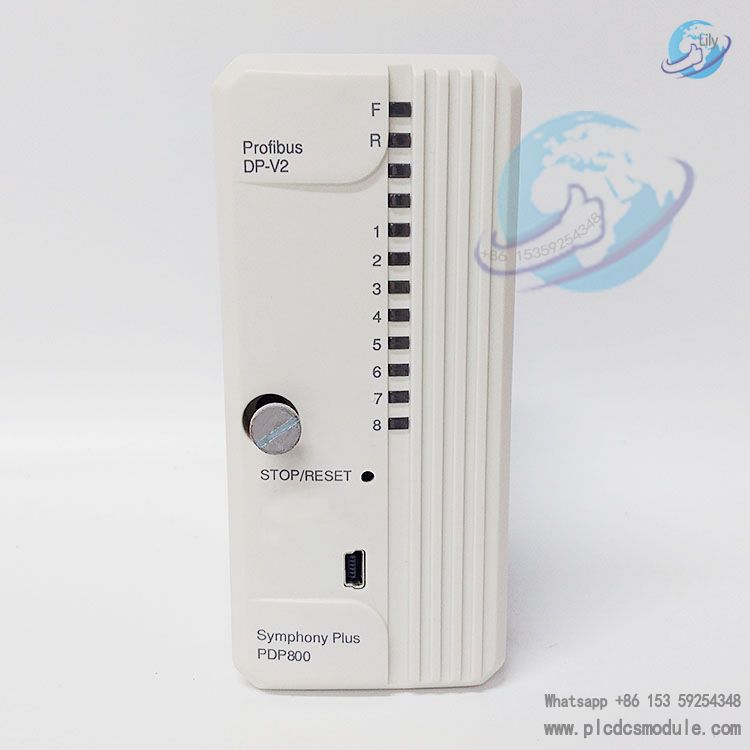

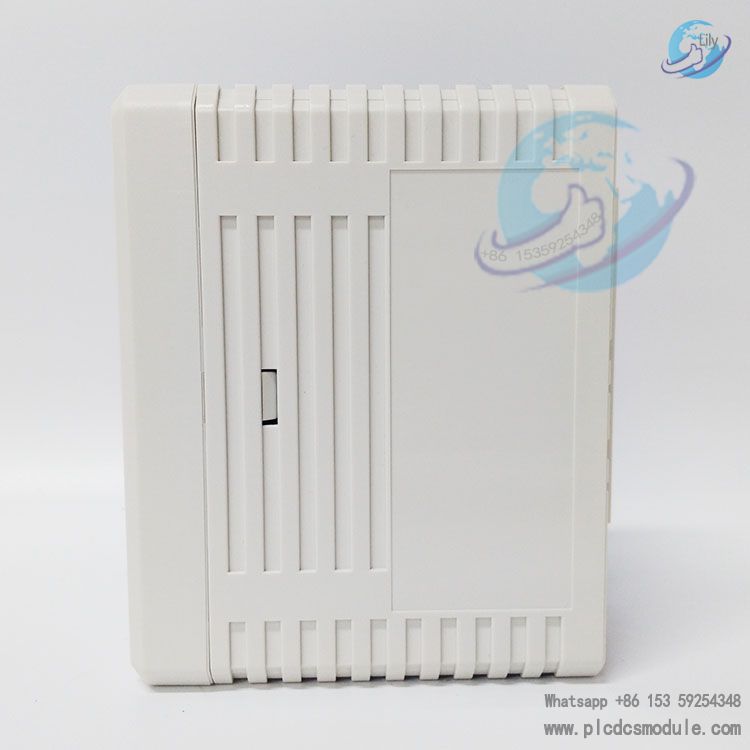

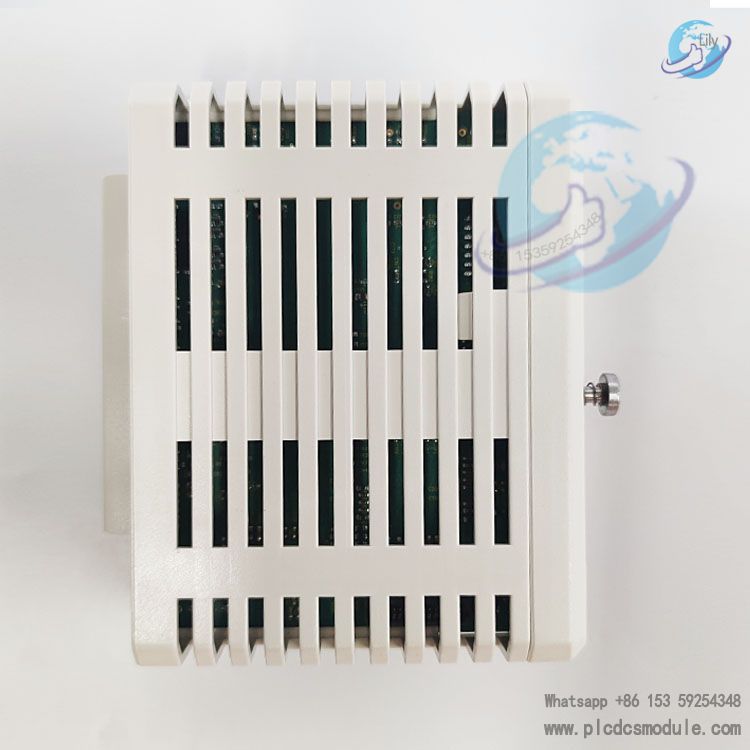

The ABB PDP800 is a PROFIBUS interface module belonging to the Symphony Plus SD Series. It serves as a critical connection between Symphony Plus controllers and PROFIBUS DP communication channels, enabling easy integration of intelligent devices like smart transmitters, actuators, and intelligent electronic devices (IEDs). As part of the Symphony Plus family, which is a new generation of ABB's renowned distributed control systems (DCS) widely used in power generation and water industries, it benefits from the family's over 30-year evolution and backward compatibility.
DATA SHEET
Key Features
Supports PROFIBUS DP V0, V1, and V2, enabling versatile communication with various devices.
Allows connection to PROFIBUS PA devices through a DP/PA linking device, expanding the range of compatible field devices.
Offers 1 msec time stamping of devices via PROFIBUS DP V2, ensuring precise event recording.
Works with both electric and fiber optic media for the PROFIBUS DP link, providing flexibility in installation.
Achieves a data transfer rate of up to 12 Mbps for the PROFIBUS DP link, ensuring efficient data transmission.
With fiber optic media, the PROFIBUS DP link can extend up to 15 km, suitable for large-scale industrial facilities.
Supports full redundancy at all levels, including the PDP800 module, power supplies, PROFIBUS DP link, and controller communication bus (HN800), ensuring high reliability and availability.
I/O Support
Enables Symphony Plus controllers to connect to S800 I/O via PROFIBUS DP V2. S800 I/O covers all signal types, from basic analog and digital inputs/outputs to pulse counters and intrinsically safe applications.
Supports the sequence of events functionality of S800 I/O with 1 msec accuracy event time stamping at the source, thanks to PROFIBUS DP V2.
Facilitates connectivity between Symphony Plus controllers and S+ Turbine’s specialty modules via PROFIBUS DP V2, supporting turbine control solutions such as turbine protection (TP800), valve positioning (VP800), generator auto synchronization (AS800), and condition monitoring (MCM800).
Integration and Configuration
Enables seamless integration of field devices with Symphony Plus controllers. PROFIBUS I/O and related control strategies are configured using ABB’s field-proven standard function code algorithms and S+ Engineering’s graphical design tools.
Data from devices is accessible to other S+ system nodes (control, operation, engineering, and information) over the redundant Plant Network (PN800).
Within the S+ Engineering workbench, the Field Engineering tool supports configuration, commissioning, and maintenance of PROFIBUS devices using device type manager (DTM) technology. A basic PROFIBUS DTM is available for devices with conventional GSD files to enable standardized configuration.
Advantages
Delivers tighter and more reliable process control solutions.
Reduces installation costs by minimizing wiring and system footprint.
Lowers system costs through the use of S+ Engineering for configuring and maintaining PROFIBUS networks, devices, and related control strategies.
