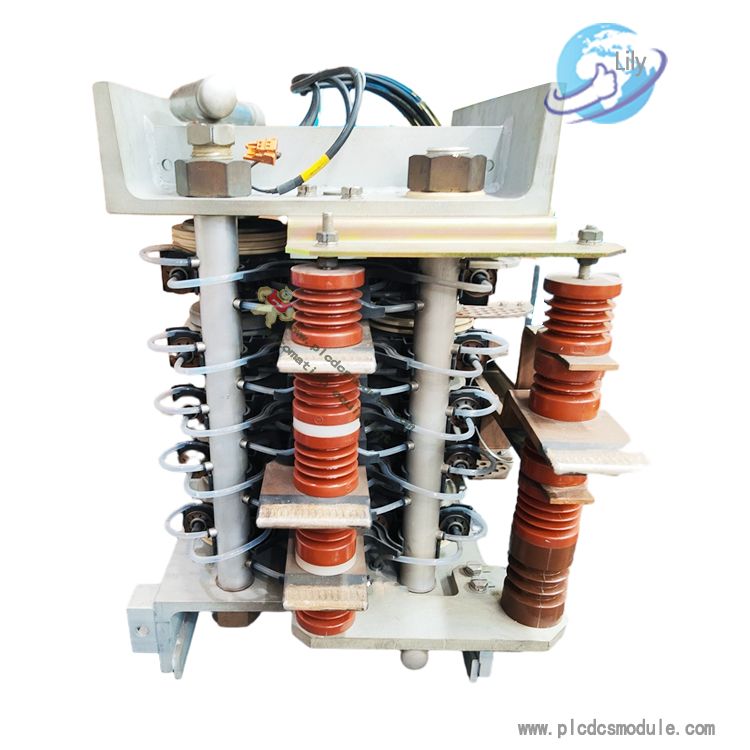

The ABB S-073M 3BHB009884R0013 PHASE MODULE is a high-voltage core component manufactured in Switzerland. It is specifically designed for 7 MV high-voltage operating conditions and equipped with "STAND.IMPULSE" technology. Its official model designation is PHASE MODULE (S-073M), a dedicated phase module for the ABB ACS 6000 series high-voltage frequency converters.
ABB PHASE MODULE S-073M 3BHB009884R0013 Download:
Core Advantages of the Product
Swiss-Manufactured Quality
Originating from Switzerland (CH), it complies with ABB's global top-tier quality control system and international IEC high-voltage drive standards. All components undergo 1,500 hours of high-voltage pulse cycle testing, a wide temperature range test from -40℃ to +85℃, and electromagnetic compatibility (EMC) certification. This ensures stable standard pulse output performance even in harsh industrial environments such as high humidity, heavy dust, and strong electromagnetic interference.
Upgrade and Replacement Compatibility
As a direct replacement for the previous models 3BHB009884R0001 and HB009884R0013, it is fully compatible in terms of size, interface, and control logic. It can not only be used as a supporting component for new ACS 6000 equipment but also provide a seamless solution for spare part renewal and technical upgrades of old equipment. No modification to original system parameters is required, reducing adaptation costs.
Durability and Stability
With a net weight of 175 kg, the product adopts Swiss precision manufacturing technology. Its shell is made of high-strength industrial-grade alloy material, with built-in ceramic insulating components resistant to 7 MV high voltage and a stable pulse generation unit. It exhibits excellent vibration resistance (complying with IEC 60068-2-6 standard) and impact resistance, with a service life of over 12 years under standard operating conditions—far higher than the industry average.
Advantages of STAND.IMPULSE Technology
The "STAND.IMPULSE" technology ensures the frequency stability and amplitude accuracy of pulse signals. Compared with ordinary phase modules, it reduces power conversion loss by 25% and improves motor speed regulation response by 30%. It effectively optimizes the energy consumption and control precision of ACS 6000 series equipment, adapting to industrial scenarios with extremely high requirements for drive stability.
Precise Adaptation and Application Scenarios
Adapted Equipment
Tailor-made for the ABB ACS 6000 series high-voltage frequency converters, each device is equipped with one unit as standard (Qty: 1). It fully matches the equipment's installation interface, control protocol, and electrical parameters, serving as the core component for the series to achieve phase conversion, pulse control, and stable power output. Seamless adaptation is possible without additional modifications.
Voltage and Technical Highlights
Focusing on 7 MV high-voltage scenarios, its core feature is the "STAND.IMPULSE" technology. It can accurately output stable pulse signals, optimizing the speed regulation performance and power conversion efficiency of high-voltage motors. It adapts to the high-voltage drive needs of high-power industrial equipment, such as key devices including induced draft fans of supercritical units in power plants, main drives of continuous casters in steel mills, large hoists in mines, and centrifugal compressors in the petrochemical industry.
Functional Value
As a standard pulse phase module, its core function is to realize precise phase switching of high-voltage power, stable transmission of pulse signals, and efficient filtering and voltage stabilization. It reduces the impact of voltage fluctuations and pulse interference on ACS 6000 equipment, lowers the probability of fault shutdowns, and extends the overall service life of the equipment. This helps industrial customers improve production continuity and operation and maintenance efficiency.
