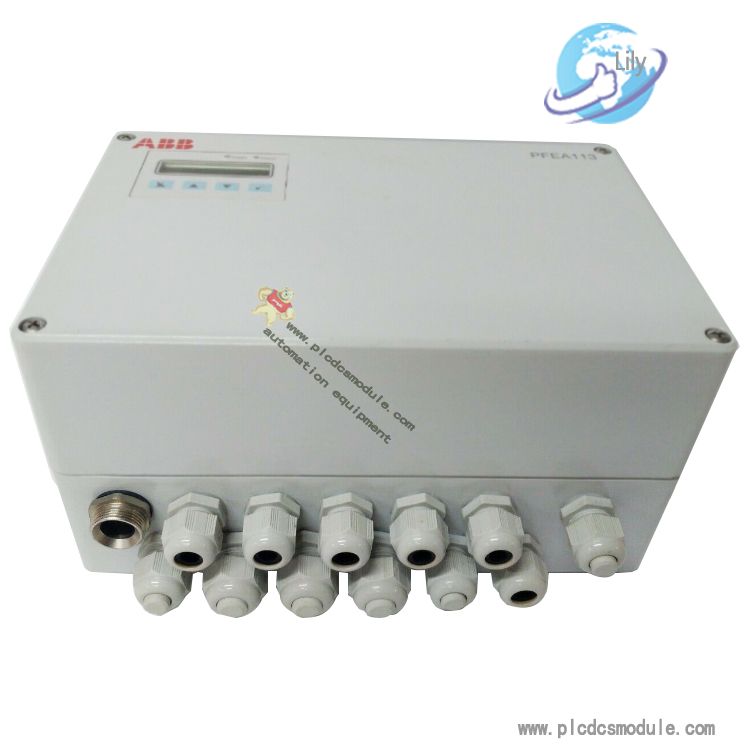

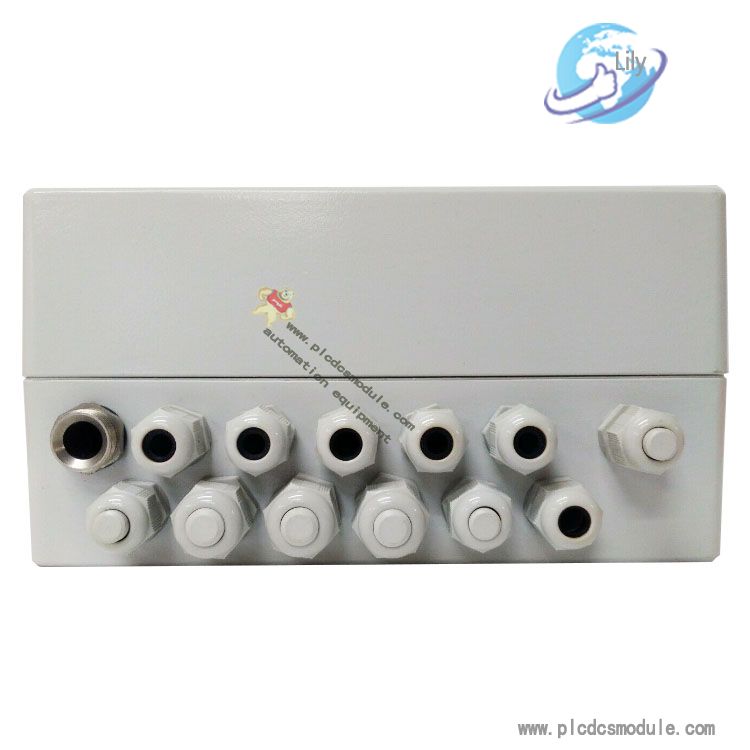

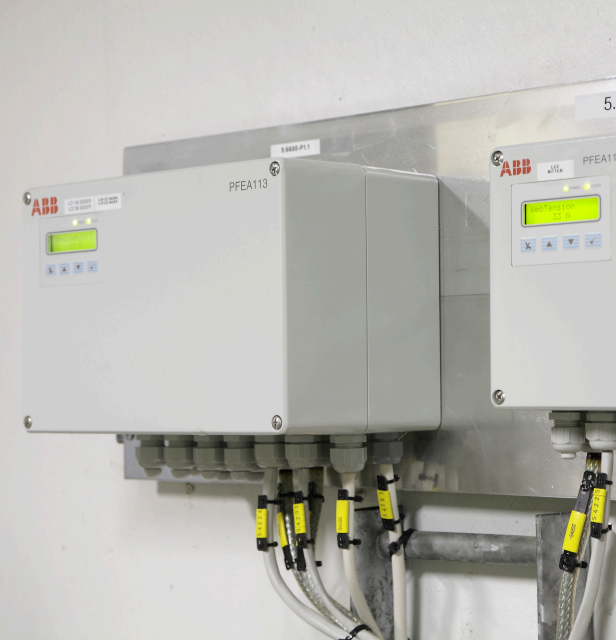

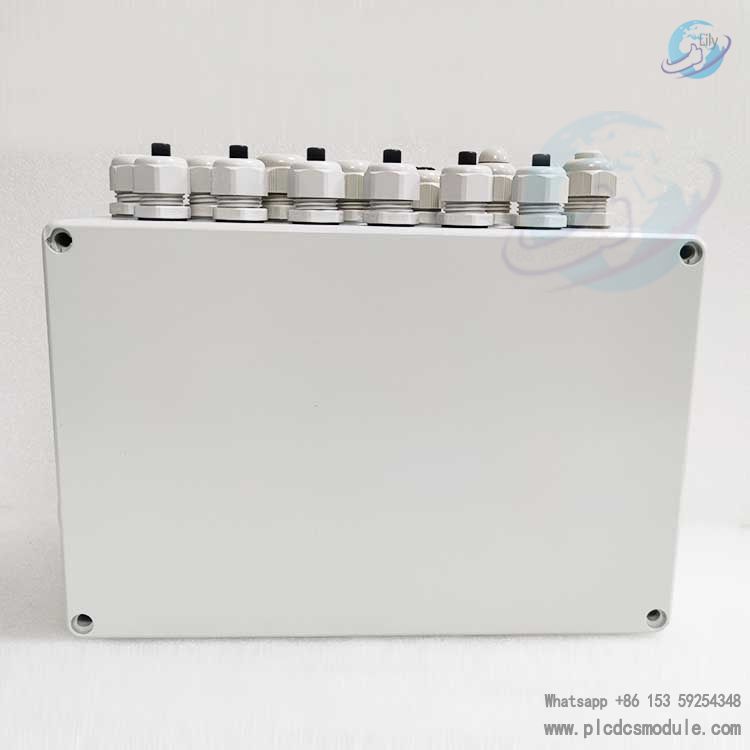

PFEA113-65 3BSE028144R0065 is a tension electronic controller belonging to ABB tension control series. It accurately measures tension by connecting load cells, provides 4 analog output channels and a Profibus DP communication interface, and supports industrial standard protocols for remote monitoring. The controller can work in collaboration with ABB drive products (such as ACS series frequency converters), motors, and sensors to form a complete tension control system, which is widely used in production lines of industries like steel, papermaking, and printing to achieve precise tension control in the coil processing.
Technical Specifications
Power Supply
IP20 Protection: 24V DC (18-36V range).
IP65 Protection: 24V DC (18-36V) or 100(-15%)-240(+10%)V AC, 45-65Hz; Power consumption: 12W.
Load Cell Interface
Supports up to 4 load cells.
Excitation current: 0.5A rms at 330Hz.
Maximum load: 4 load cells + 10Ω cable resistance.
I/O Configuration
Digital Inputs: 1
Analog Inputs: 2
Analog Outputs: 6 (selectable voltage/current):
Voltage: -5 to +11V
Current: 0 to 21mA
Digital Outputs: 4
Filter Options: 15, 30, 75, 250, 750, 1500ms (configurable for analog outputs).
Scaling Function: Available for analog outputs.
Diagnostic & Display
Self-diagnosis with status indication via green/red LEDs.
Alarm output via digital outputs and Profibus.
Multilingual interactive display supporting units: N, kN, kg, lbs, N/m, kN/m, kg/m, pli.
Memory functions: Maximum load and zero offset.
Communication
Profibus DP compatible with GSD file: abb_0716.gsd.
Environmental Compliance
EMC Directive: 2014/30/EU.
Low Voltage Directive: 2014/35/EU.
UL 508 Industrial Control Equipment Safety Standard.
Operating Temperature: +5°C to +55°C.
Protection Class: IP20 or IP65 (configurable).
Features
Robust Design: Industrial-grade electronic components ensure reliability in harsh environments.

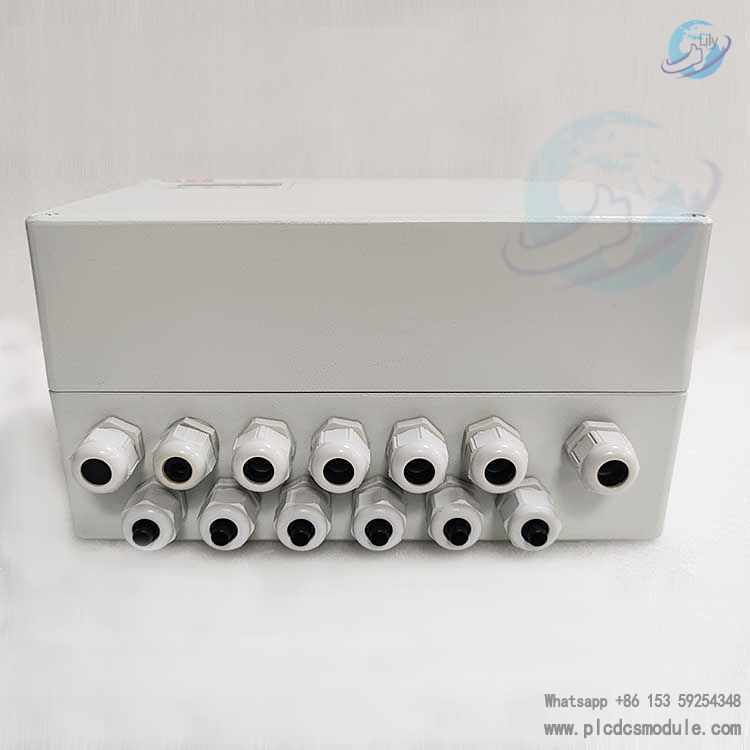

Easy Installation: Removable screw terminals at the bottom simplify wiring, with built-in grounding for cable shielding.
Simplified Commissioning: Step-by-step setup instructions, predefined standard measurement modes, and intuitive configuration for analog/digital I/O.
Advanced Functionality: Level detector, unit selection (N, kN, kg, etc.), and simulation mode for system integration testing.
Applications
Energy Sectors: Steel production, thermal/hydro/nuclear/wind power generation.
Manufacturing: Glass processing, paper mills, machinery, electronics, automotive, aerospace.
Resources: Chemicals, coal, oil & gas, mining (metallic & non-metallic).
Tension Control: Ideal for web handling, coil processing, and precision tension applications in production lines.
