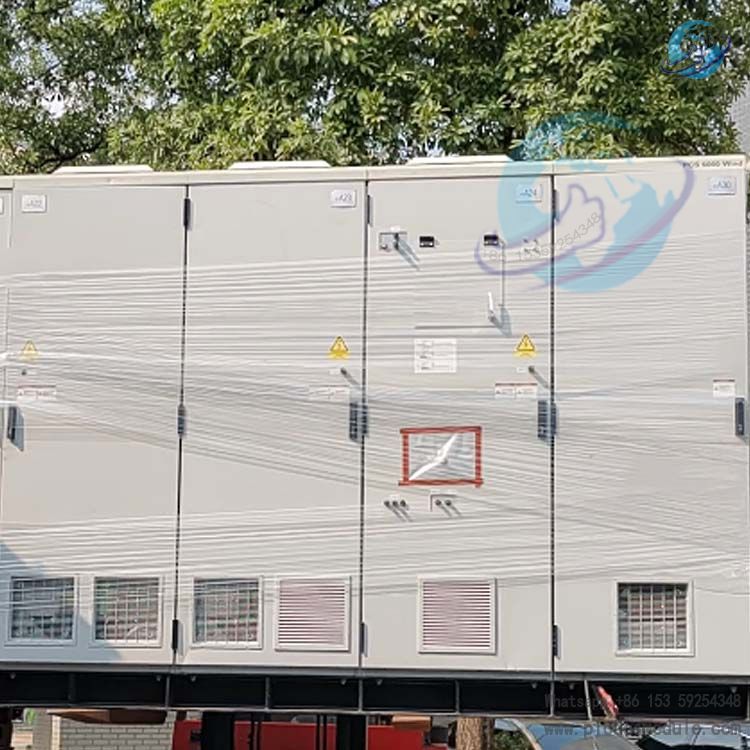

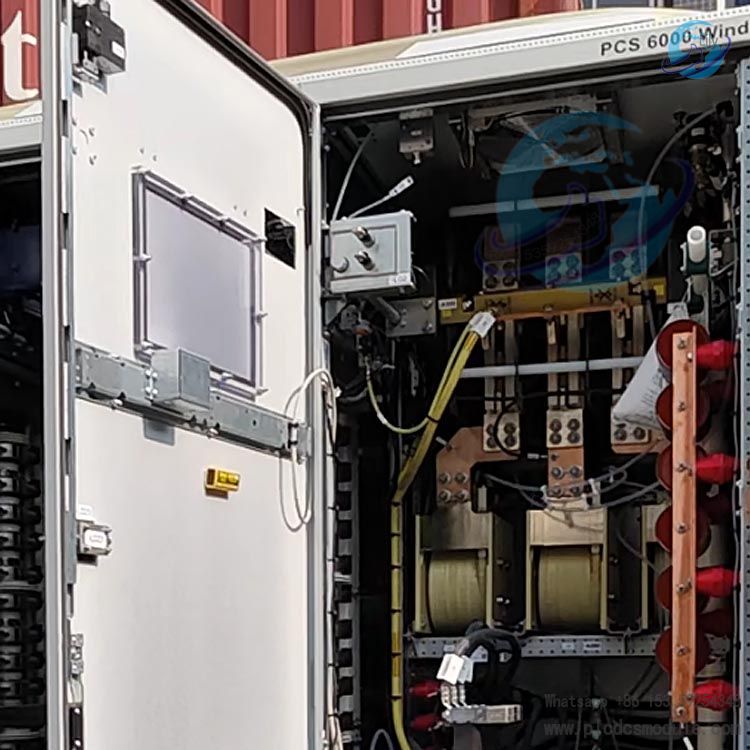

ABB PCS6000 Medium Voltage Wind Turbine Converter: Powering Large-Scale Wind Energy Efficiently
In the global shift toward renewable energy, wind power has emerged as a cornerstone of sustainable electricity generation. As wind turbine technology advances, modern large-scale turbines now boast increasingly high power ratings—making low-voltage systems inadequate for managing the associated currents, losses, and operational demands. ABB PCS6000 Medium Voltage Wind Turbine Converter addresses this challenge head-on, delivering a full-power, medium-voltage solution tailored to the needs of large wind turbines (4-15 MW). Designed for optimal performance, reliability, and grid compliance, the PCS6000 sets a new standard for efficient wind energy conversion.
Why Medium Voltage for Large Wind Turbines?
Low-voltage systems struggle to handle the high currents and energy losses in large wind turbines, leading to inefficiencies, complex hardware, and higher maintenance costs. Medium voltage (MV) technology solves these pain points by:
ABB is a global leader in medium voltage frequency converters, with thousands of successful installations across industrial drives, railway grids, battery storage, and static VAr compensators. The PCS6000 leverages this expertise to deliver a solution optimized for the harsh, variable conditions of wind energy operations.
Key Product Features of ABB PCS6000
The PCS6000 combines cutting-edge technology with practical design to meet the demands of large wind turbines. Its core features include:
| Feature | Details & Benefits |
|---|---|
| Full Power Converter Topology | Decouples the turbine’s mechanical drivetrain from the electrical grid, minimizing mechanical stress and ensuring compliance with strict grid codes. Enables optimal wind utilization at any turbine speed. |
| Medium Voltage Specifications | 3.3 kV rating with 4-quadrant, 3-level NPC (Neutral Point Clamped) topology. Supports turbine power ratings from 3 MW to 15 MW, with converter ratings up to 9 MVA. |

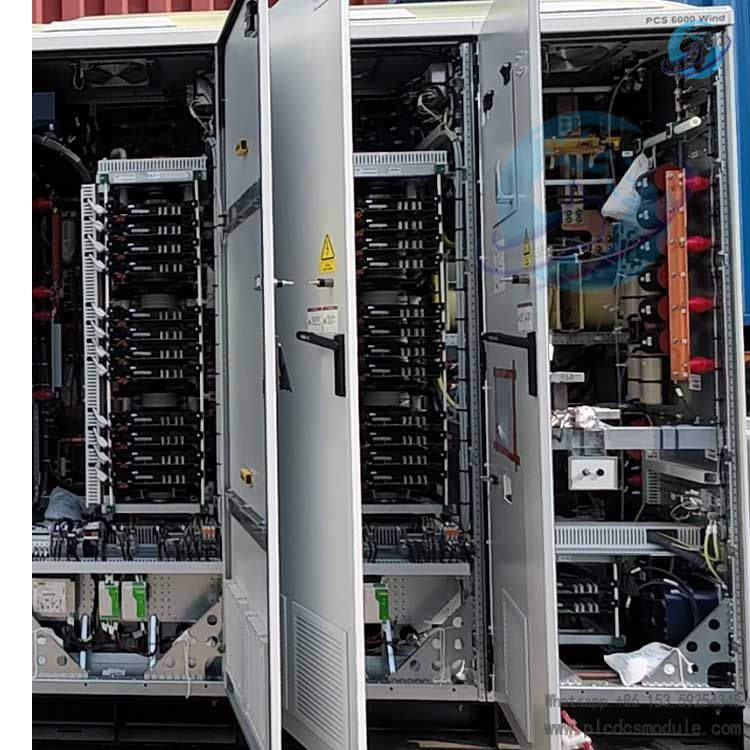

| IGCT Semiconductor Technology | Uses only 26 Integrated Gate Commutated Thyristors (IGCTs) across the generator and grid converters—no component paralleling required. This reduces part count, complexity, and failure rates while shrinking the converter’s footprint. |
| High Efficiency (>98%) | Minimizes energy loss through low-current operation and optimized cooling. Ensures maximum power output from the turbine to the grid. |
| Water-Cooled Closed-Loop System | Features a redundant cooling circuit with 2 pumps (100% redundancy) and a motor-driven three-way valve. Uses deionized water/glycol coolant, with automatic deionization and deaeration. Handles coolant inlet temperatures up to 45°C (higher on request), ensuring trouble-free operation in harsh environments. |
| Compact & Modular Design | Modular architecture allows flexible layouts (back-to-back, face-to-face, in-line) to fit confined spaces. Can be installed at the tower base or nacelle, reducing nacelle weight and simplifying maintenance. Customized solutions are available with minimal prototyping effort. |
| IEC & UL Certification | Meets global safety and performance standards, ensuring compatibility with wind farms worldwide. |
| Native Cloud Access | Enables remote monitoring, data logging, and predictive maintenance via ABB’s service tools. Reduces downtime by allowing remote restarts after cleared faults. |
| Fault Ride-Through Capabilities | Includes high/low voltage ride-through (HVRT/LVRT) and dynamic braking choppers. Keeps the turbine online during major grid disturbances and ensures safe shutdown even if the grid is lost. |
System Performance: Control, Protection, and Grid Compliance
The PCS6000 is engineered to deliver precise control, robust protection, and seamless grid integration—critical for reliable wind turbine operation.
1. Comprehensive Control Capabilities
2. Advanced Protection Features
3. Global Grid Compliance
The PCS6000 meets the strictest grid codes worldwide, including:
Technical Specifications (Facts & Figures)
For detailed integration and installation planning, the PCS6000’s key technical parameters are outlined below:
Auxiliary Supply
Cooling System
Turbine & Converter Ratings
Turbine Power | Generator-Side Converter Rating | Grid-Side Converter Rating (TenneT) | Grid-Side Converter Rating (UK) |
|---|---|---|---|
| 3 MW | ~3.3 MVA | ~3.7 MVA | ~3.6 MVA |
| 4 MW | ~4.4 MVA | ~5.0 MVA | ~4.8 MVA |
| 5 MW | ~5.5 MVA | ~6.2 MVA | ~6.0 MVA |
| 6 MW | ~6.6 MVA | ~7.5 MVA | ~7.2 MVA |
| 7 MW | ~7.7 MVA | ~8.7 MVA | ~8.4 MVA |
Enclosure & Environmental Limits
ABB End-to-End Support & Life-Cycle Management
The PCS6000 is more than a product—it’s a complete solution backed by ABB global service network. From turbine design to long-term operation, ABB provides:
Why Choose ABB PCS6000 for Your Large Wind Turbines?
For wind farm operators and turbine manufacturers, the PCS6000 delivers unmatched value:
