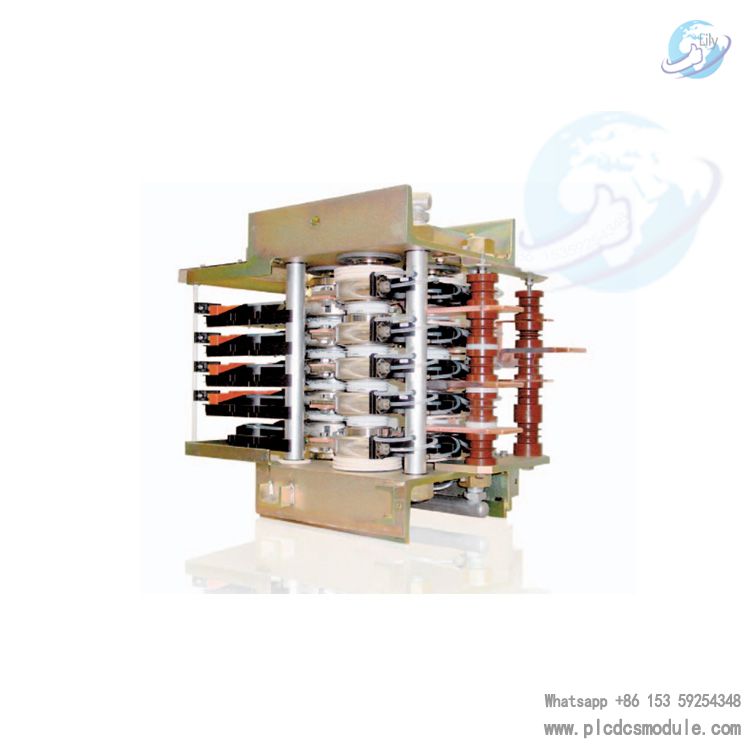

ABB S-073R 3BHB009884R5331 PHASE MODULE ACS 6000.The ABB S-073R 3BHB009884R5331 phase module needs to be used in combination with other modules of the ACS 6000 frequency converter to jointly form a complete frequency converter system. It is a key component for the ACS 6000 medium-voltage frequency converter to achieve phase control and power conversion. In the entire system, it is responsible for carrying out specific conversion and processing of the input electrical energy to precisely control the operation of the motor, ensuring that the motor can operate stably and efficiently under different working conditions. For example, in the application scenario of 7MV, it can accurately control the speed and torque of motors for constant torque applications such as pumps, fans, and conveyors. If more detailed technical materials and operation guidelines are required, it is recommended to refer to ABB's official product manuals or consult ABB's professional technical support personnel.
Function and Role:
Energy Conversion: It adopts a self-commutated 6-pulse, 3-level voltage source inverter with IGCT (Integrated Gate-Commutated Thyristor) technology. This inverter can convert the alternating current voltage on the secondary side into direct current voltage, supplying power to the capacitor in the DC circuit and keeping the voltage of the DC circuit constant. Meanwhile, according to the operation mode of the motor, it can obtain energy from the power grid or inject energy into the power grid, realizing the flow of energy.
Precise Control: By changing the phase angle and the amplitude of the secondary side voltage, it controls the current, thereby precisely controlling the operation of the motor to ensure that the motor can operate stably and efficiently under different working conditions.

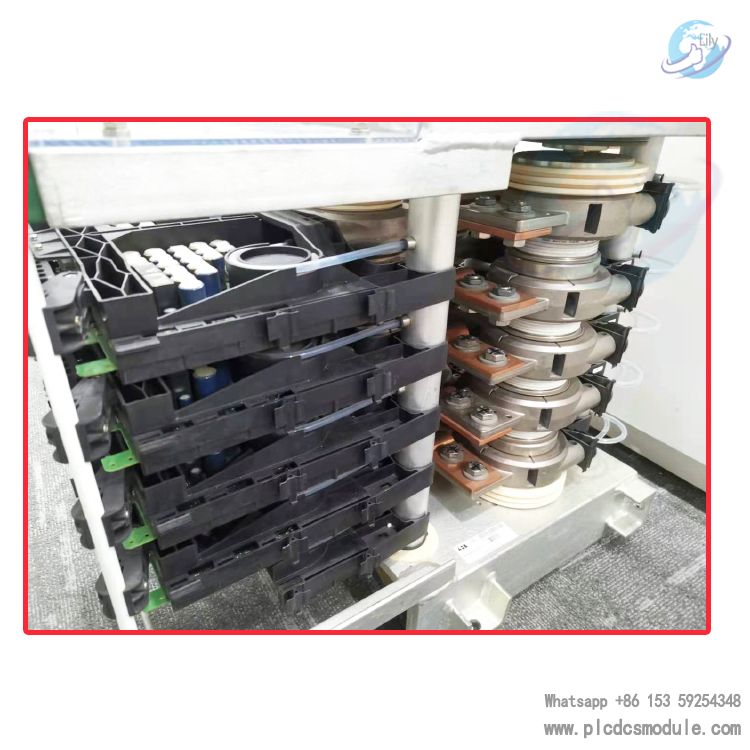

Composition Structure: Each phase module is composed of an Integrated Gate-Commutated Thyristor (IGCT), diodes, and a clamping capacitor. In addition, it also includes the Gate Unit Supply (GUSP), clamping diodes, EMC (Electromagnetic Compatibility) filter, Interface Board (INT), Fast Short Circuit Detection (FSCd) board, voltage and current detection board, etc. All these components work in coordination to realize various functions of the phase module.
Performance Parameters: Different models of phase modules vary in parameters such as current and voltage. Generally speaking, the range of phase current needs to meet the system requirements. Usually, the phase current is required to be greater than or equal to 10A and less than or equal to 63A. The range of phase voltage should be able to adapt to different supply voltages. Generally, the phase voltage is required to be greater than or equal to 380V and less than or equal to 690V.
Application Scenarios: It is widely applied in fields that require high-performance motor control, such as metallurgy, shipping, mining, oil and natural gas production, metal and mineral processing, pulp and paper, water and wastewater treatment, and other industries.
