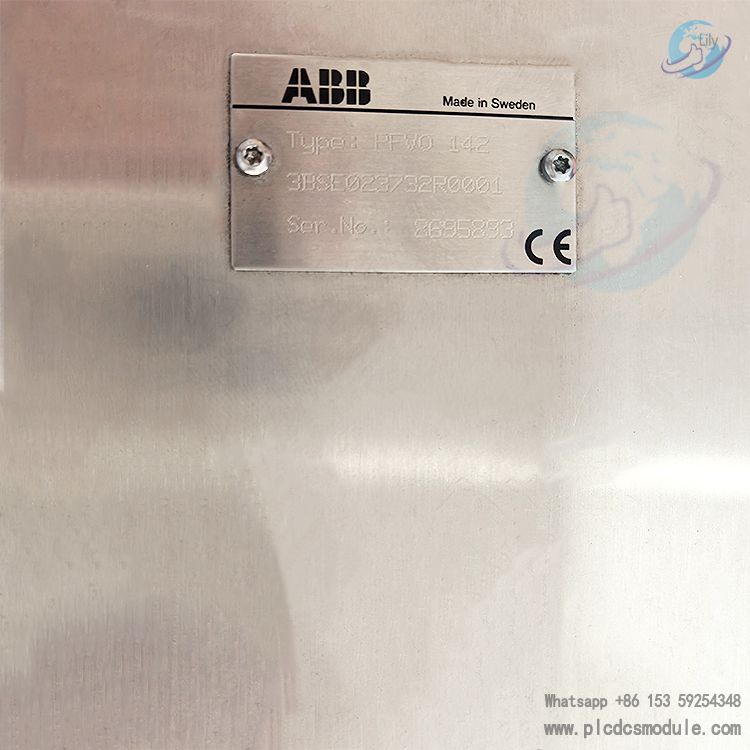

ABB PFVO142 3BSE023732R1 Matching Unit Module 25A, 1638 Hz PFVO 142 3BSE223732R0001.The PFVO 142 3BSE223732R0001 is a matching unit used to connect load cells in ABB's Millmate Roll Force Systems (rolling mill roll force measurement system), playing an indispensable role in the system. This system is designed to provide reliable and long - term roll force measurement solutions for rolling mills, which is crucial for achieving correct roll gap settings, monitoring the true roll force distribution, and supervising the backup bearings and roll eccentricity. The PFVO 142 can work in collaboration with the Millmate Controller 400 control unit and different types of load cells (such as PFVL 141C, PFVL 141V, PFVL 141R, etc.) to jointly form a complete roll force measurement system, ensuring the normal operation of the system. It has strong versatility and can be adapted to various types of load cells, such as circular (PFVL 141C) and rectangular (PFVL 141V) ones.

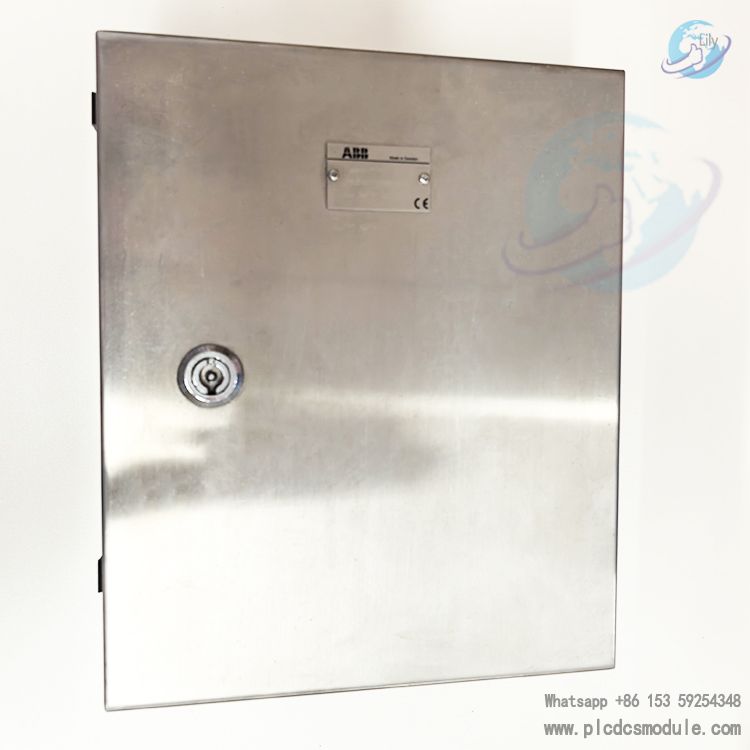

As a matching unit for connecting load cells in ABB's Millmate Roll Force Systems, the PFVO 142 has a series of unique features. In terms of technical parameters, its dimensions are 300 mm in height, 200 mm in width, and 120 mm in depth. The compact design facilitates flexible layout in the limited space of rolling mill equipment and enables it to adapt to different installation environments and equipment structures. With a protection rating of IP 65, it can effectively prevent dust and water splashes, protecting the internal electronic components, ensuring the stable operation of the equipment in harsh industrial environments, and extending its service life. It weighs 8 kg, which not only facilitates transportation and installation but also ensures stability after installation. The maximum installation distance from the relevant load cell can reach 25 m (depending on the rated load of the load cell), which greatly enhances the flexibility of the system layout and allows for reasonable positioning according to the actual structure of the rolling mill.
In terms of functionality and system compatibility, each load cell in the PFVL 141 series requires an interchangeable PFVO 142 matching unit. This unit is responsible for adapting and accurately transmitting the signals from the load cell to the control unit, enabling precise measurement of the rolling force and ensuring the stable operation of the system.
The PFVO 142 works in tandem with the Millmate Controller 400 control unit and various types of load cells (such as the circular PFVL 141C, rectangular PFVL 141V, and ring - shaped PFVL 141R). In the entire rolling force measurement system, the control unit provides power to the load cells, processes the signals, and communicates with other systems. The PFVO 142 undertakes the crucial task of signal transmission and adaptation, ensuring smooth information exchange among all components and providing strong support for the stable operation of the rolling mill and the control of production quality.
Moreover, in the installation layout of the rolling mill system, the PFVO 142 can be installed in a variety of ways in conjunction with other equipment. This meets the actual requirements of different rolling mill sites and enhances the system's applicability.
