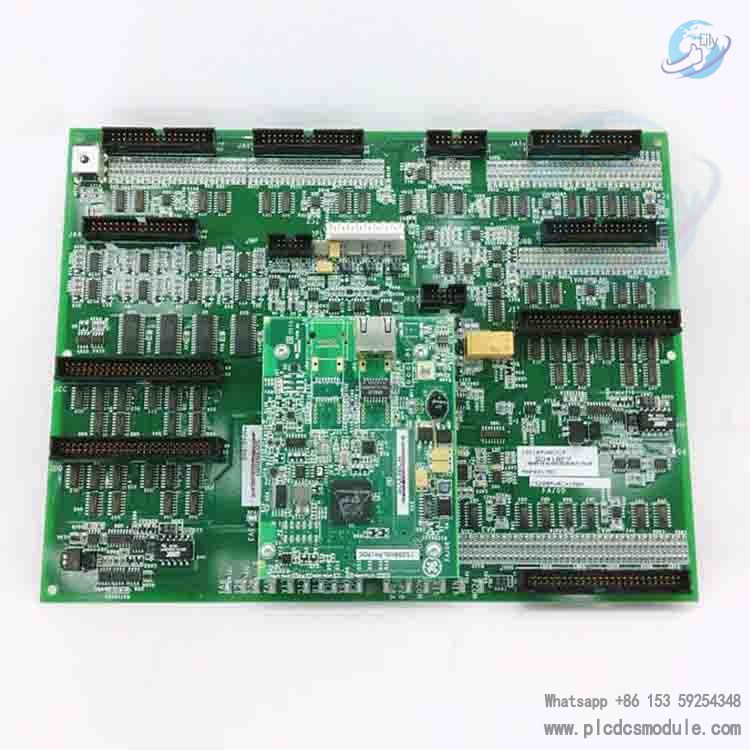

The GE IS210MVRCH1A MARK VIe PWA Assembly Board is a printed wiring assembly board developed by General Electric for large C-core systems. It is part of the MARK VIe excitation system and plays a key role in the management of steam or gas turbine systems.
Basic Information
Part Number: IS210MVRCH1A.
Manufacturer: General Electric (GE).
Product Type: Printed Wiring Assembly (PWA) Board.
Series: MARK VIe, belonging to GE Speedtronic series.
Country of Origin: USA.
Weight: Less than 5 lbs (approx. 2.27 kg); shipping weight approx. 3 kg.
Installation Location: Installed in the idle position 2 of the C-core.
Functional Features
Modular Design: The IS210MVRCH1A features a modular structure composed of a base printed circuit board (PCB) and a high-speed serial link board. This design facilitates maintenance, fault troubleshooting, and individual PCB upgrades/replacements.
High-Speed Data Communication: The high-speed serial link board serves as a critical component to enable high-speed data communication and connectivity within the MARK VIe system. It promotes efficient information exchange among different system components, enhancing overall system performance and coordination.
Port Connectivity: Equipped with multiple ports including JAA, JBB, JCC, JDD, JAR, JAS, JAT, as well as optional ports JHH and JII, the board connects cables for data, signal, or power transmission. This ensures seamless communication and integration with other system components or external devices.
Optional Individual Boards: Both the high-speed serial link board and base board are available for separate purchase, offering convenient and cost-effective solutions for maintenance or customization needs.
Application Scenarios
The IS210MVRCH1A is primarily used for managing steam or gas turbine systems. As part of the MARK VIe excitation system, it assists core components in controlling steam/gas turbine systems. Integrated with the overall system architecture, it enables reliable and continuous turbine control from the central control room. In practical use, avoid gel-filled cables and opt for high-quality branch cables and reinforced sub-cables to ensure system performance.
Technical Specifications
Featuring 12 mounting holes and 15 ports, this board upgrades MARK V systems to MARK VE standards. As a C-variant, it offers distinct characteristics and functions compared to A/B models in the series.
