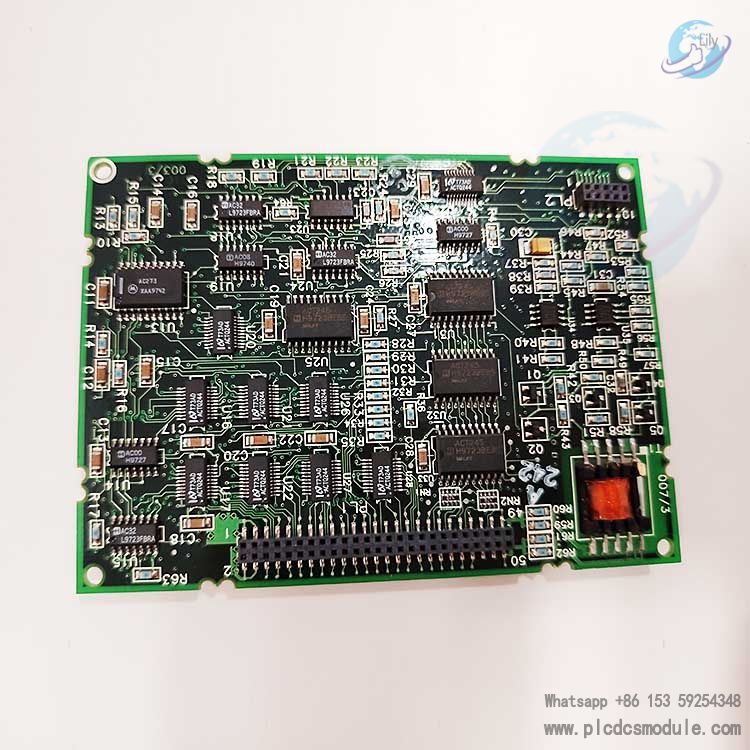

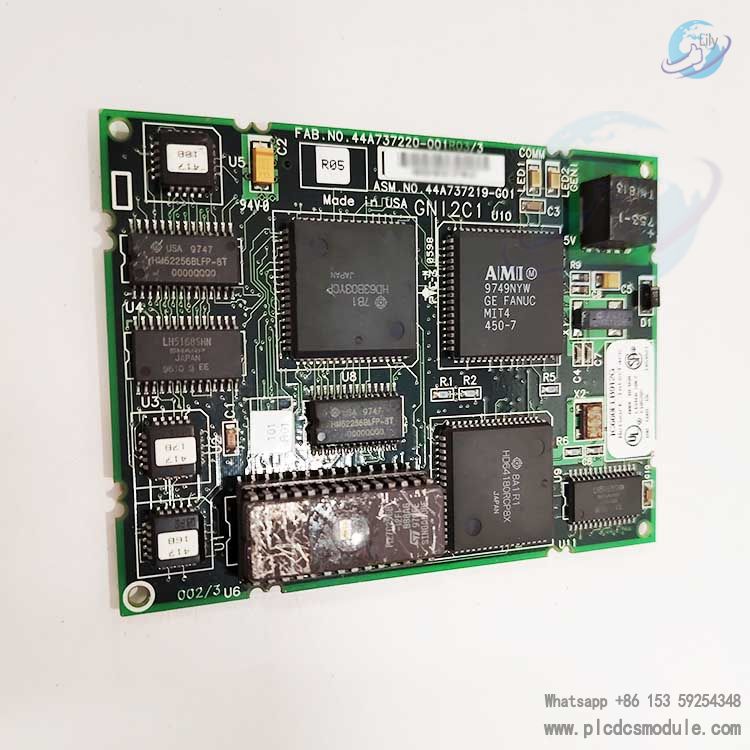

The General Electric IC660ELB912G is a Genius network interface module, mainly used for communication and control between PLCs and various I/O devices in industrial automation control systems.
Basic Information
Model: IC660ELB912G
Manufacturer: General Electric
Module Type: Genius network interface module, which is a daughterboard connected to a single - slot or two-slot IBM PC interface module (PCIM).
Technical Parameters
Power Supply: It requires a-volt DC rated power supply with a current of 400 milliamps to provide logic power.
Communication Baud Rate: It supports communication baud rates of 38.4K, 76.8K, 153.6K standard, or 153.6K extended, and can control up to 30 bus devices.
Memory: It has 16 KB of memory and backward-compatible blocks, and its shared RAM is optimized for use with IBM personal computers, storing buffered data, I/O data, and other information.
Input and Output Characteristics: Some sources indicate that it has 16 - channel digital inputs and 16 - channel digital outputs. The input voltage range is 12 - 30V DC, with a maximum input current of 7mA and a response time of less than 2ms. The output voltage range is 20.4 - 28.8V DC, with a maximum output current of 0.5A per channel, capable of driving resistive, inductive, and capacitive loads.
Electrical Isolation: There is 1500V AC isolation between inputs and outputs, and 500V AC isolation between channels.
Operating Temperature: The operating temperature range is- 20 °C to 70 °C, and the storage temperature range is -40 °C to 85 °C.
Relative Humidity: It can work in an environment with a relative humidity of 5% to 95%.
Product Features
Reliability: It adopts advanced circuit design and manufacturing technology to ensure stable operation in harsh industrial environments.
Flexible Configuration: It supports multiple communication protocols such as Profibus - DP, DeviceNet, and EtherNet/IP, which is convenient for users to integrate systems according to actual needs.
Fast Response: The input - output response time is short, which can meet the requirements of high - speed control.
Wide Voltage Range: It can adapt to power systems with different voltage levels, improving the compatibility of equipment.
Isolation Design: It has effective electrical isolation protection to prevent signal interference and fault spread.
Application Areas
This module is suitable for a variety of industrial automation control occasions, such as complex motion control, mining, water treatment, elevator control, high - speed packaging, injection molding, material handling, food processing, and continuous emission monitoring.
