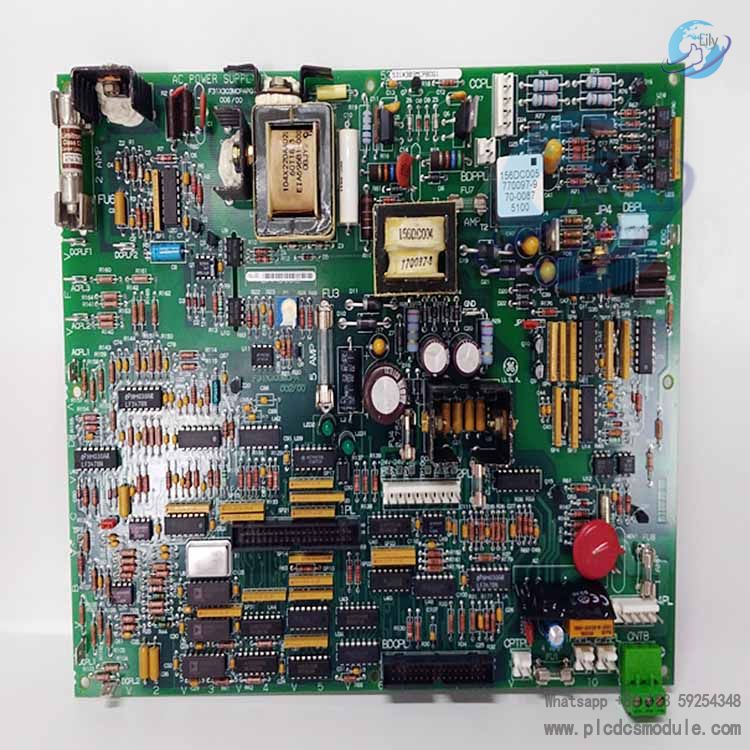

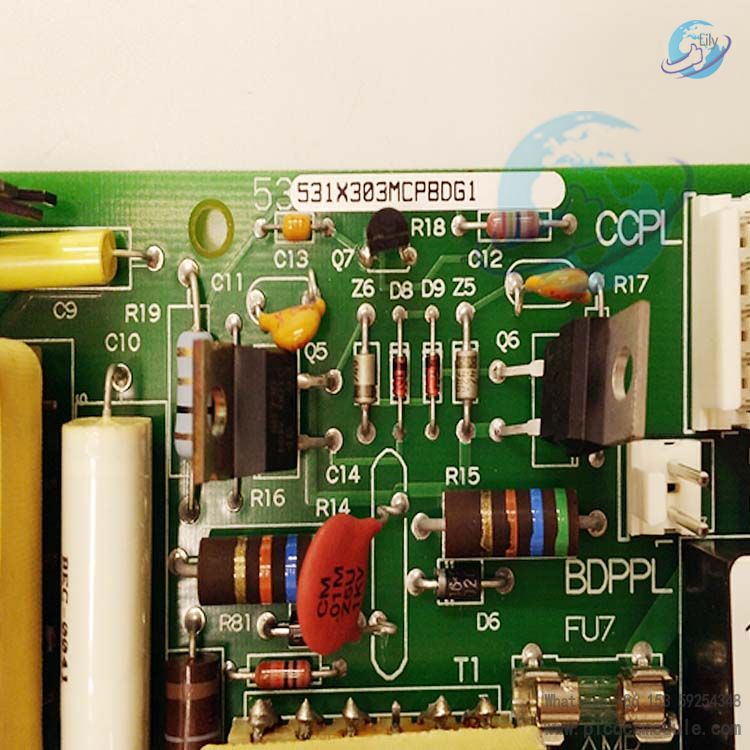

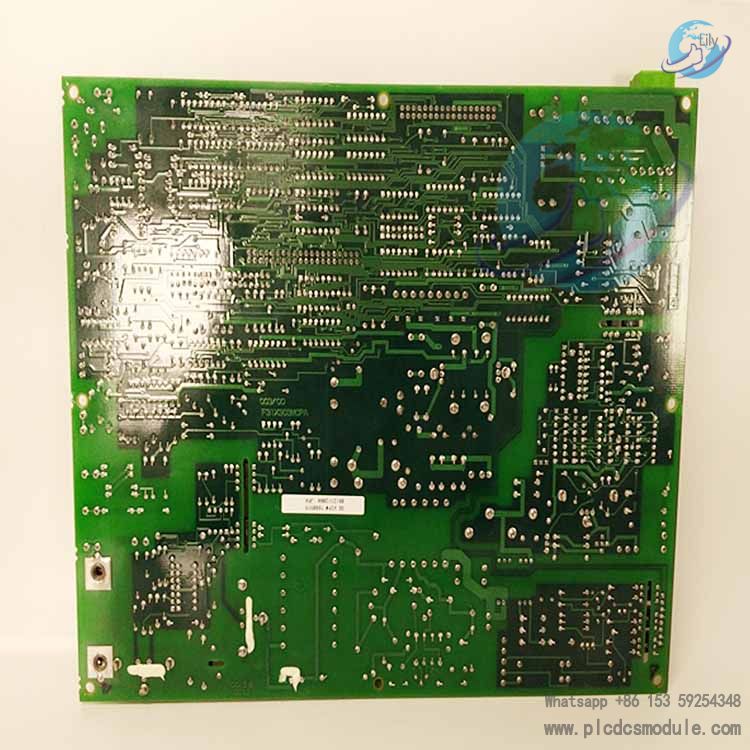

GE 531X303MCPBDG1 F31X303MCPA00300 UNMP Circuit Board

531X303MCPBDG1 is a core AC power supply card of the GE 531X series, professionally developed and manufactured by GE Boards & Turbine Control. Specifically designed for power supply and distribution in industrial drive systems, it serves as a key power supply component for older yet still widely used drive systems (such as the DC-300 drive system). Undertaking core responsibilities including AC voltage conversion, stable power output, and circuit safety protection, it is compatible with automation control scenarios in fields like manufacturing, energy, and transportation, thanks to its industrial-grade reliability and flexible compatibility.

Core Product Features and Design Advantages

Precise Power Supply and Energy Conversion Capability

• Core AC-DC conversion function: Equipped with three dedicated transformers and high-efficiency rectifier circuits, it can stably convert 380-525VAC industrial alternating current into 24VDC direct current. With an output current of up to 30A, rated power of 720W, and efficiency exceeding 90%, it provides continuous power support for motor controllers and other DC-powered equipment.
• Stable output control: Configured with over twenty resistor network arrays and hundreds of capacitors, it effectively suppresses voltage fluctuations through precise voltage division and energy storage regulation, ensuring low ripple and high stability of the output power supply, which is suitable for the power supply needs of precision control equipment.

Industrial-Grade Safety Protection Design

• Multiple fuse protection mechanisms: Integrates five large-size fuses and three small-size fuses (including key specifications such as 5A and 2A). In case of abnormalities like overload or short circuit in the circuit, they can quickly blow to cut off the power loop, preventing fault spread and damage to core components.
• Anti-interference and surge protection: Equipped with metal oxide varistors and shielded wiring structures, it can resist electromagnetic interference and transient voltage surges in industrial environments. Meanwhile, diode components can control one-way energy flow to prevent equipment damage caused by reverse current impact.
• Comprehensive status monitoring: Features two green LED indicators corresponding to power input and output status respectively. They light up when the power supply is normal, intuitively reflecting the operation of the circuit board and facilitating on-site personnel to quickly troubleshoot power supply faults.

Convenient Installation and Maintenance Design

• Precise positioning and fixing: The left and bottom edges of the circuit board are engraved with letter and number alignment marks, which, together with eight screw mounting points on the edges, enable precise alignment and stable fixing with the equipment chassis, reducing installation errors.
• Flexible connection interfaces: Equipped with small three-screw terminal blocks, vertical pin cable connectors, and multiple plug connectors. Among them, ten male connection terminals allow quick docking with the main system, and the plug-in design facilitates line disassembly and replacement during later maintenance.
• Efficient heat dissipation structure: Integrates six radiators, evenly distributed in high-power consumption component areas such as transistors and transformers. It quickly dissipates heat through air convection, and with the heat conduction effect of metal brackets, ensures stable operation of the equipment in a wide temperature range of -25℃~+70℃.

Wide Compatibility and Adaptability

• System adaptation range: Specifically designed for the GE DC-300 drive system, while compatible with other similar old drive systems, it can be seamlessly integrated into industrial automation control systems, building automation systems, and energy management systems.
• Communication protocol support: Built-in dedicated communication interfaces, supporting mainstream industrial communication protocols such as Ethernet, Modbus, and Profibus, enabling data interaction with upper-level control systems for convenient remote monitoring of power supply status and fault diagnosis.

531X Series

GE 531X series of power supply circuit boards takes output current as the core differentiation index, forming a product matrix covering different power requirements. Model selection needs to match the load current:

• 531X302MCPBBG1: Rated output current of 20A, suitable for light-load equipment such as small pumps and precision conveyors, and scenarios with power requirements below 480W.
• 531X303MCPBDG1: Rated output current of 30A, adapted to medium-power loads such as industrial fans and packaging machine motors, and is one of the most widely used main models in the series.
• 531X304MCPBBG1: Rated output current of 40A, designed for heavy-load equipment such as large compressors and mixers, with power support up to 960W.
