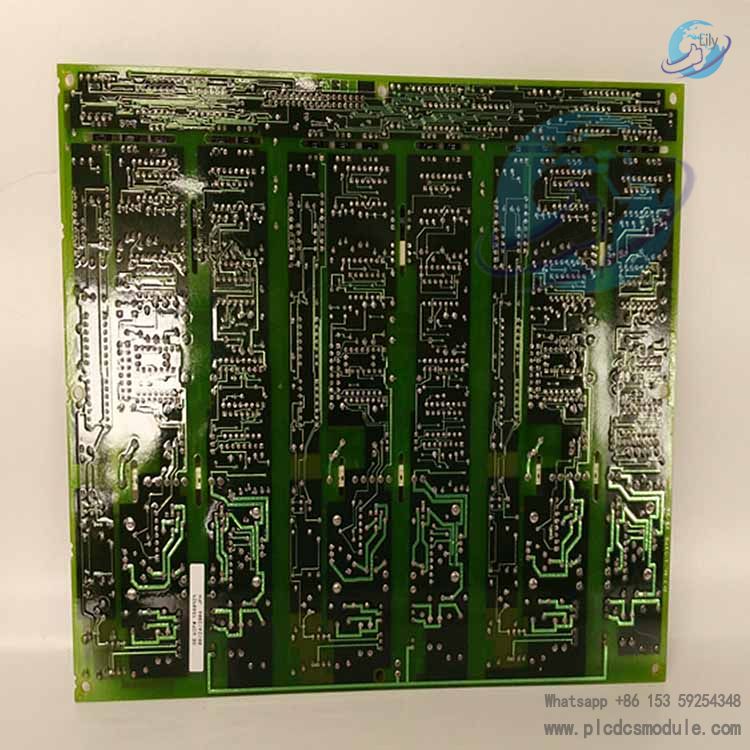

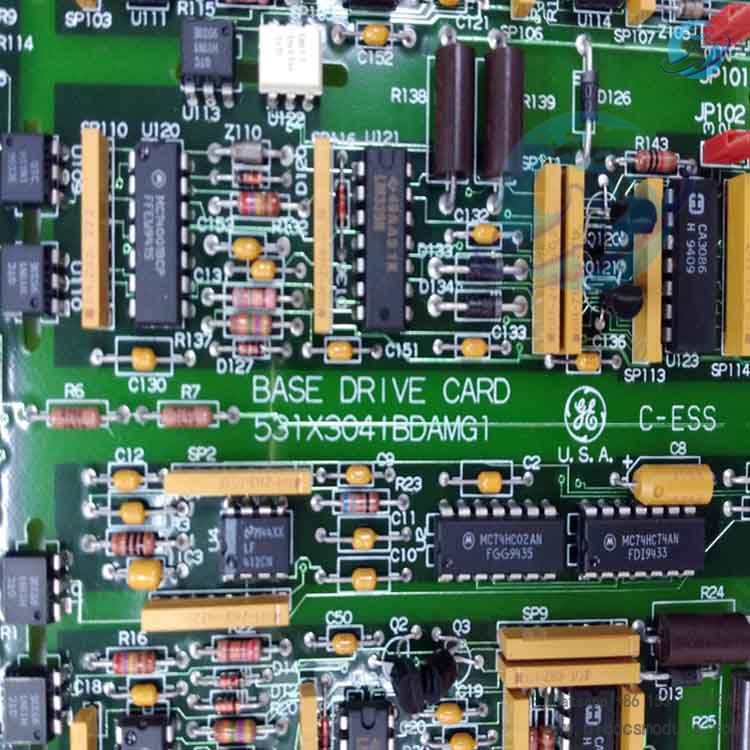

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. 531X304IBDAMG1 is a high-performance basic drive printed circuit board under the 531X product series, professionally developed and manufactured by GE Boards & Turbine Control. As a key component in industrial automation control systems, it integrates three core functions: precise AC motor driving, contact input isolation, and real-time status monitoring. It can seamlessly compatible with GE Mark VI/VIe/VIeS control systems and VME rack architecture, supporting simplex and triple modular redundancy (TMR) application scenarios. This circuit board can provide reliable control and stable signal transmission in harsh industrial environments, and is widely used in manufacturing, energy, transportation, and smart infrastructure fields.
Core Product Features and Advantages
Precise Motor Control and Isolation Performance
- Specifically designed for AC induction motor control, it supports core operations such as start-stop, speed regulation, and torque control, with an output frequency range of 0.5Hz to 200Hz, adapting to diverse operational needs.
- Equipped with 24 dry contact input channels, featuring group isolation design and 4-millisecond hardware filters, it effectively resists surge interference and high-frequency noise, ensuring accurate signal transmission.
- Integrated with a high-precision crystal oscillator and advanced digital signal processor (DSP), it delivers fast computing speeds and supports three control modes—Proportional-Integral-Derivative (PID), position, and speed—achieving micron-level motor operation precision.
Industrial-Grade Reliability and Durability
- Constructed with industrial-grade components including diodes, resistors, capacitors, integrated circuits, and transistors, paired with a dedicated transformer, it can withstand extreme temperature fluctuations and strong electromagnetic interference in industrial environments.
- Equipped with dual parallel radiators for balanced heat dissipation, preventing performance degradation due to overheating during long-term continuous operation and extending product service life.
- Adopts shielded terminals and robust metal brackets to enhance vibration and impact resistance, meeting the stringent environmental requirements of industrial on-site installations.
Flexible Integration and Configuration Capabilities
- Compatible with multiple communication protocols such as RS485, Modbus RTU, and CAN, it is equipped with dedicated JE1/JE2 power connectors and JR1/JS1/JT1 system connectors, enabling seamless integration with VTCC/VCRC processor boards and upper-level systems.
- Features a modular design with three independent functional units of identical structure, boasting clear component layout and jumper switches for manual configuration, allowing adaptation to different load types and application requirements without complex modifications.
- Supports both retrofit projects and new installations, easily integrating into GE AC2000, AC-300, and DC-300 drive systems to reduce system upgrade costs.
Detailed Technical Parameters
Electrical Parameters
- Operating Voltage: 24V DC (contact input excitation), 220V AC (operating voltage), compatible with industrial standard power supplies.
- Rated Performance: Rated current of 1.5A, output power of 500W, efficiency exceeding 95%, with low energy consumption.
- Communication Protocols: Supports Modbus RTU, RS485, and CAN, enabling bidirectional data transmission between upper-level systems and peripheral devices.
- Input Channels: 24 dry contact inputs, with group isolation and hardware filtering functions.
Physical and Installation Dimensions
- Dimensions (Length × Width × Height): 100mm × 50mm × 20mm, featuring a compact design for flexible layout in control cabinets.
- Weight: 0.5kg, with a lightweight design for easy installation and maintenance.
- Installation Method: Equipped with mounting holes at four corners, supporting rail mounting and fixed installation; terminal blocks are secured with two screws and can be disassembled without tools.
- Wiring Compatibility: Terminals can accommodate wires up to #12 AWG, adapting to various industrial wiring standards.
531X Series Products
The 531X series offers differentiated models to meet diverse power and functional requirements, with model selection requiring precise matching based on application scenarios:
- 531X302IBDARG1: Rated current of 20A, suitable for low-power motor drives and light-load industrial equipment (such as small pumps and precision conveyors).
- 531X303IBDARG1: Rated current of 30A, adapted to medium-power load control (such as industrial fans and packaging machine motors).
- 531X304IBDARG1: Rated current of 40A, specifically designed for medium and high-power motors and heavy-load working conditions (such as large compressors and mixer drives).
- 531X304IBDANG1: A functional alternative to 531X304IBDAMG1, focusing on AC system drives with interchangeable core performance.
- 531X304IBDAMG1: Rated current of 1.5A, with contact isolation function, suitable for precision control scenarios requiring signal stability (such as sensors in automated production lines and turbine control systems).
