Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. The IS200AEADH1AAA control circuit board by GE FANUC is specifically manufactured for General Electric Mark VI turbine control system series. This series plays a crucial role in the control systems of automation drive components for gas, steam, and wind turbines. Compared to the previous Mark V turbine control system, it has achieved significant improvements in functional applications. Although this component has been discontinued by the original equipment manufacturer (OEM), it can be purchased from us in the form of refurbished surplus or brand-new inventory.
Key Features
Structural Design

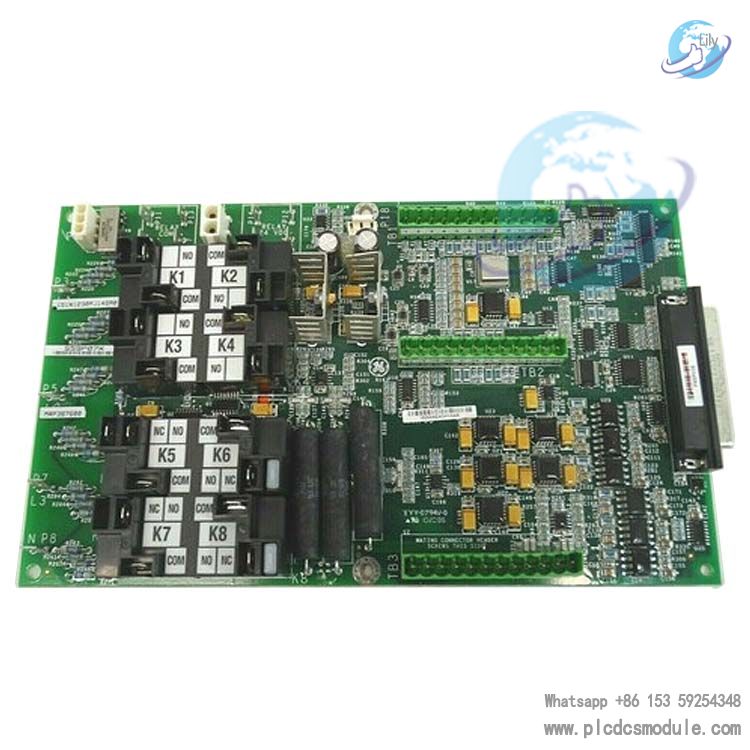

Shape and Drilling: The IS200AEADH1AAA is a rectangular circuit board with pre-drilled holes at each corner during manufacturing.

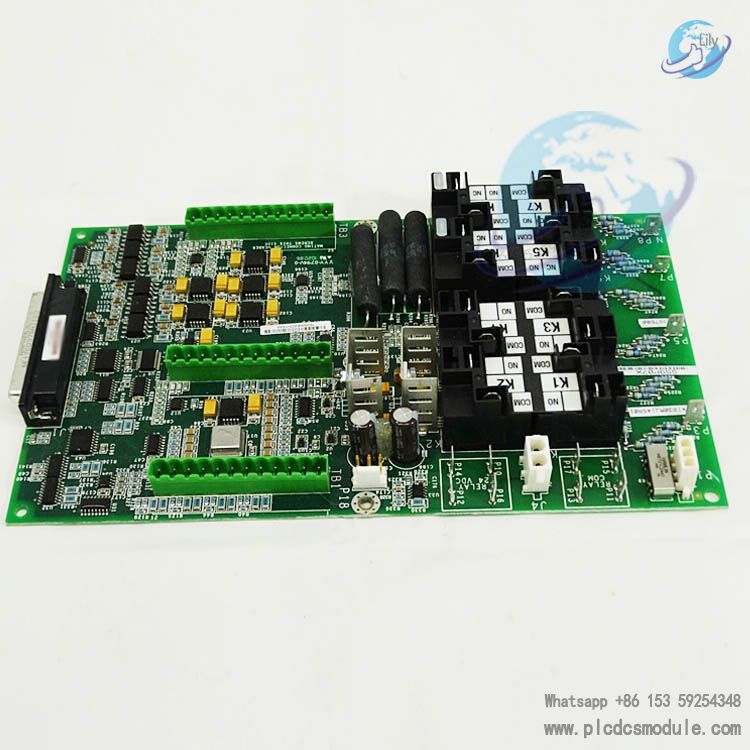

Terminal Strips and Connectors: There are three vertical terminal strips on the board, parallel to each other and to the long sides of the board. Each terminal strip is equipped with twelve pin connectors, providing abundant interface options for circuit connections. In addition, the board is fitted with other connectors, including four stab-on connectors placed together along the top edge, and another four stab-on connectors along one short edge. It also features two plug connectors and a right-angle terminal strip. The diverse connector design enables better adaptation to different circuit connection requirements.

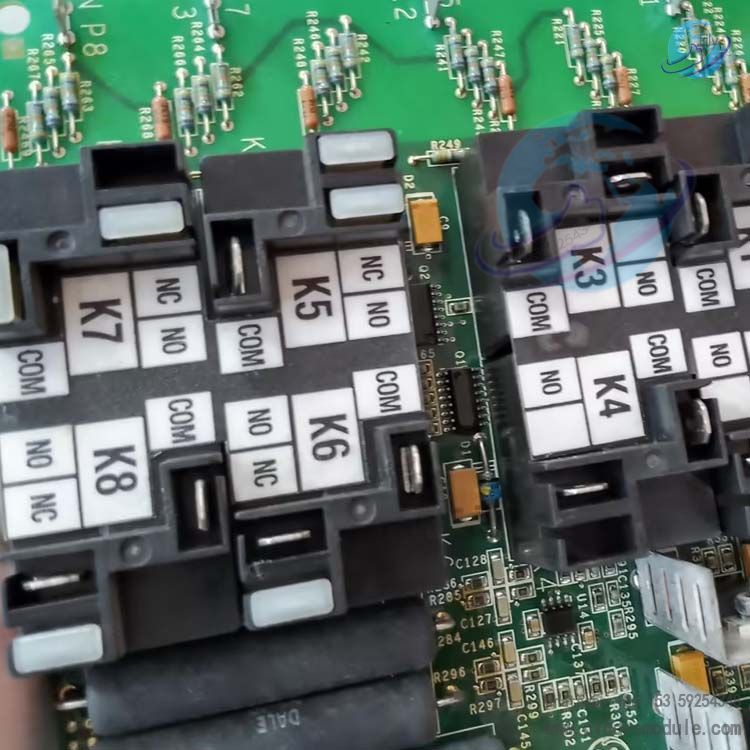

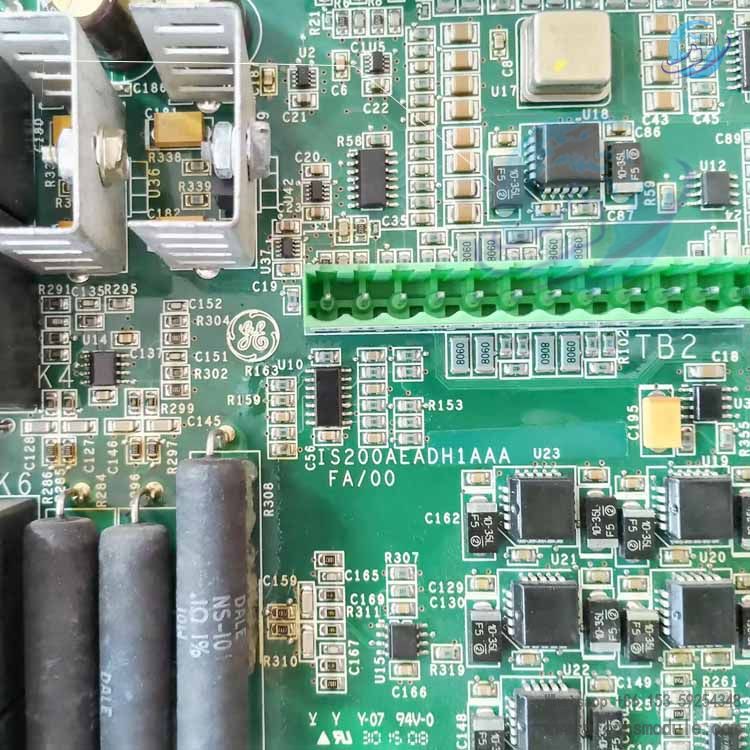

Internal ComponentsHeat Dissipation and Electrical Elements: The board is equipped with two heat sinks to effectively dissipate heat generated during operation, ensuring stable performance. It also contains eight relays for signal conversion and control. Furthermore, there are multiple high-voltage capacitors, other capacitors, resistors (including wire-wound resistors), and several integrated circuits. These components work together to ensure the various functions of the circuit board are realized.
Technical Specifications
Series: Mark VI IS200
Manufacturer: GE Boards & Turbine Control
Functional Part Number: IS200AEADH1AAA
Function Abbreviation: AEAD
Backward Compatibility: The first two versions are backward compatible
Assembly Type: Standard assembly
