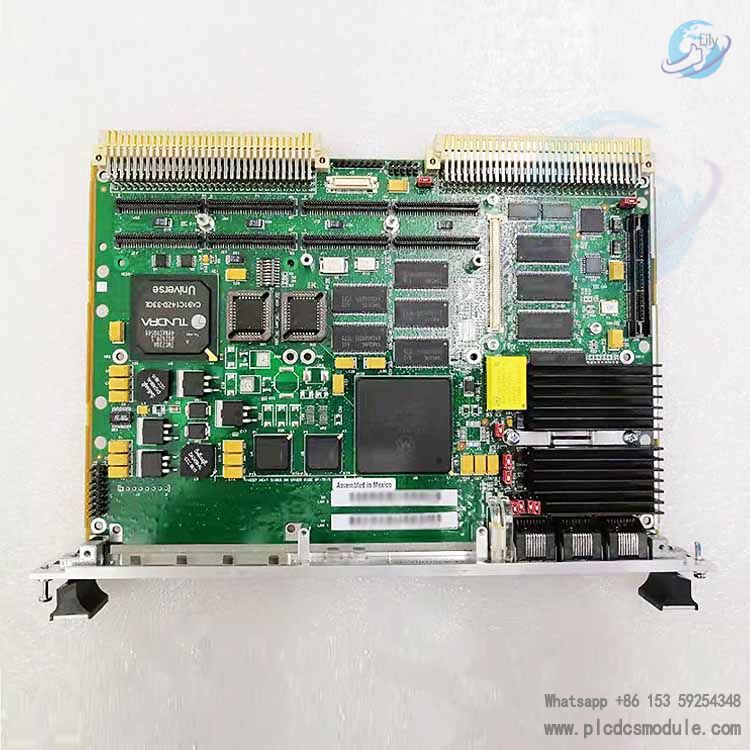

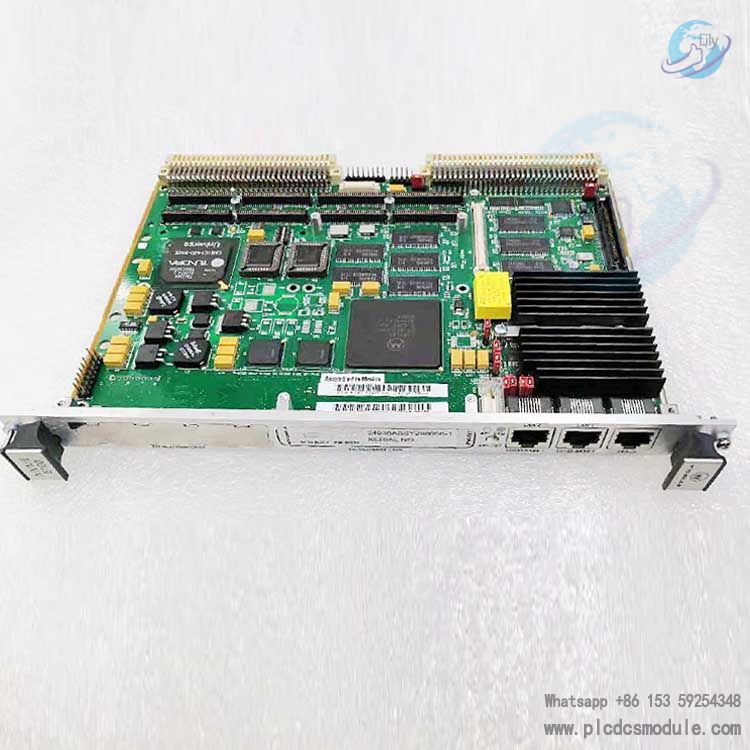

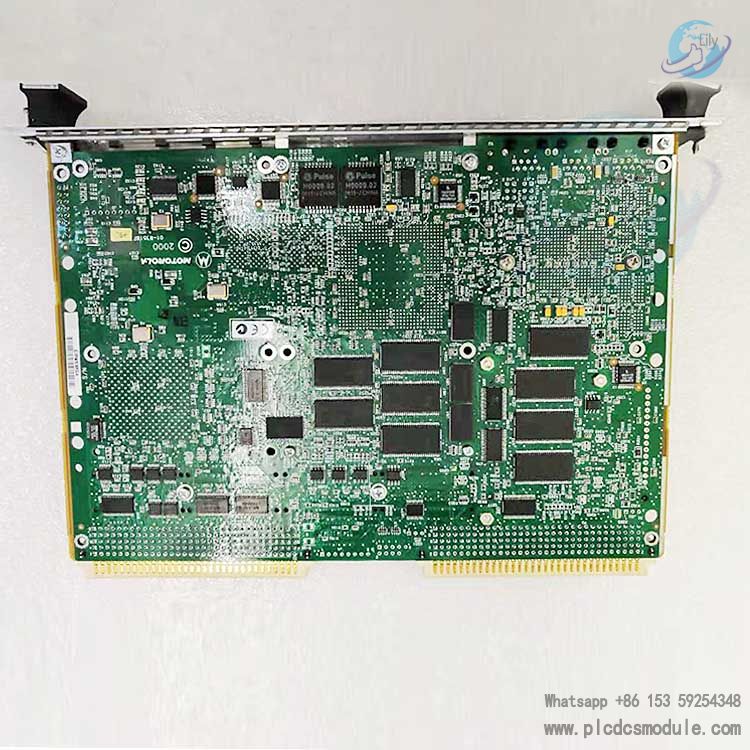

The Motorola Emerson MVME5100-0161 is a VMEbus single-board manufactured by Motorola Emerson. It is equipped with a 1GHz MPC 7457 PowerPC processor, featuring a 512kb on - chip L2 cache and a 2MB L3 cache, and comes with an Altivec coprocessor. This single-board has two banks of soldered flash memory, 32MB and 8MB respectively. It supports dual independent 64 - bit PCI buses and can be connected to multiple PMCs. It is suitable for scenarios such as industrial automation and data acquisition, providing high - efficiency computing and data - processing capabilities for related equipment.
The Motorola Emerson MVME5100 - 0161 is a VMEbus single - board computer with high - performance capabilities, rich interfaces, and excellent expandability. It can adapt to various industrial environments and is widely used in fields such as industrial automation and national defense aerospace.
Hardware Configuration: It is equipped with a 1GHz MPC 7457 PowerPC processor, has a 512kb on - chip L2 cache and a 2MB L3 cache, and is equipped with an Altivec coprocessor, making it suitable for high - performance computing applications. It has two sets of soldered flash memory (32MB and 8MB), two independent 64 - bit PCI buses and PMC sites. The bus speed can reach up to 66MHz. It has a Gigabit Ethernet interface and an additional 10/100BaseTX Ethernet interface. Through a 64 - bit PCI expansion mezzanine connector, up to four more PMCs can be connected.
Performance Characteristics: It adopts the PowerPlus II architecture and can support a full PCI throughput of 264MB/s to ensure the memory supply for the processor. It has a memory read bandwidth of 582MB/s and a burst write bandwidth of 640MB/s.
Compatibility and Expandability: Its I/O is compatible with the MV ME 51xx series and supports processor PMCs (PRPMCs). Through the 64 - bit PCI expansion mezzanine connector, up to four PMCs can be added. It also has two IEEE P1386.1 - compliant 32/64 - bit PMC expansion slots.
Environmental Adaptability: The standard commercial version has an operating temperature range of 0°C to 55°C, and the extended - temperature version has an operating temperature range of - 20°C to 71°C, meeting different environmental requirements.
Other Parameters: The brand is Motorola, the model is MVME5100 - 0161. It is manufactured by Motorola Emerson and is in good condition after refurbishment. It operates at a voltage of 12V DC, weighs approximately 3.5 pounds (about 1.59kg), and has dimensions of 13.5×9.5×1.5 inches (about 34.29×24.13×3.81cm).
