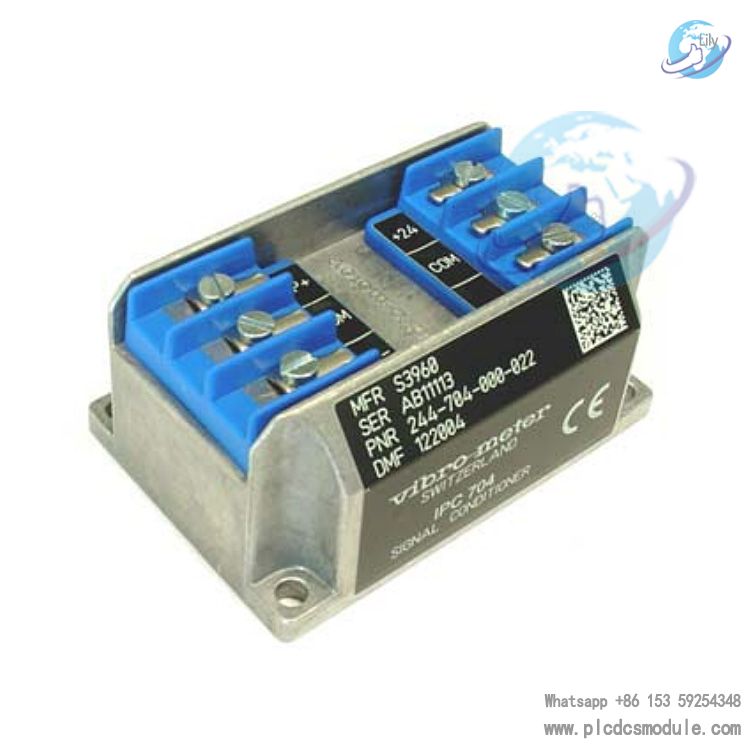

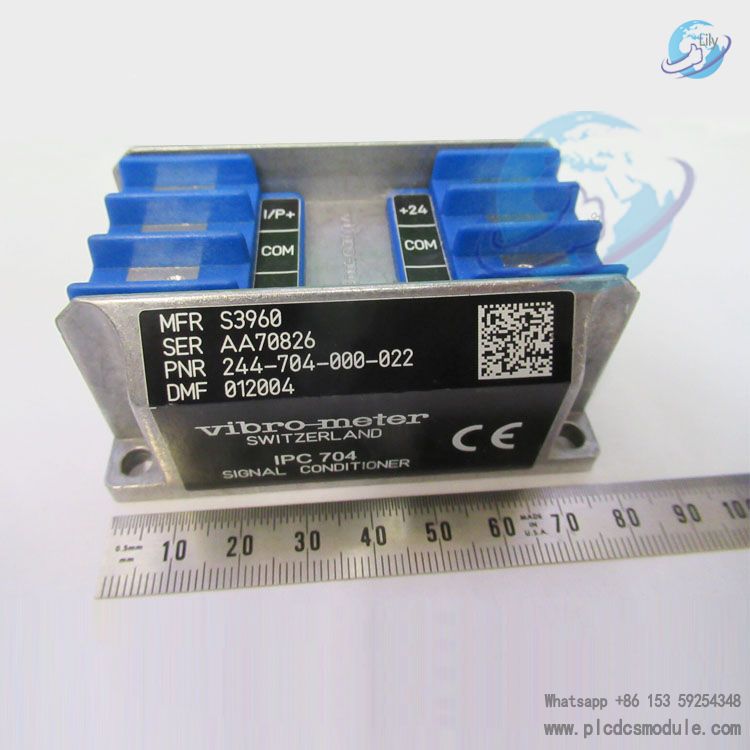

Vibro-Meter IPC704 244-704-000-022 signal conditioner

IPC704 244-704-000-022 is a high-performance signal conditioner in the Vibro-Meter product line, designed to convert charge signals from piezoelectric sensors into transmittable current or voltage signals. It is engineered for extreme environments, featuring hazardous area certifications and flexible configuration options to adapt to various industrial applications.

DATA SHEET

IPC704 244-704-000-022.pdf

Compatibility: Suitable for CAxxx series piezoelectric accelerometers and CPxxx series dynamic pressure sensors, including those using standard piezoelectric materials and GaPO piezoelectric materials.Signal Processing:Configurable high-pass (0.5 Hz to 10 Hz) and low-pass (200 Hz to 20 kHz) filters.Optional integrator for outputting velocity signals.

Transmission Method: Supports 2-wire current or 3-wire voltage transmission, with a maximum transmission distance of up to 1 km (requires GSI galvanic isolation unit).Hazardous Area Certification: Certified for use in potentially explosive environments (Ex i, Ex nA), with certifications from organizations such as ATEX, IECEx, NEPSI, and KGS.Installation Flexibility: Multiple installation options, including DIN rail adapters and industrial enclosures with IP66 protection rating.

Technical Specifications

• 2-wire current: Maximum ±5 mA peak, static current 12 mA±0.5 mA.
• 3-wire voltage: Maximum ±5 V peak, static voltage 7.5 V±0.2 V, output impedance 750 Ω.

• Housing: Injection-molded aluminum alloy (standard type) or glass fiber-reinforced polyester (industrial enclosure).
• Weight: 170 g (standard type); 250 g (explosion-proof type).
• Installation Methods: M4 screws, DIN rail (via MA130 adapter), or industrial enclosure with M6 screws.

• Input/output cable accessories (M16×1.5 cable gland, adapters for different cable diameters).
• Filter settings (high-pass/low-pass frequencies).

• Hazardous area certifications (Ex i, Ex nA).
