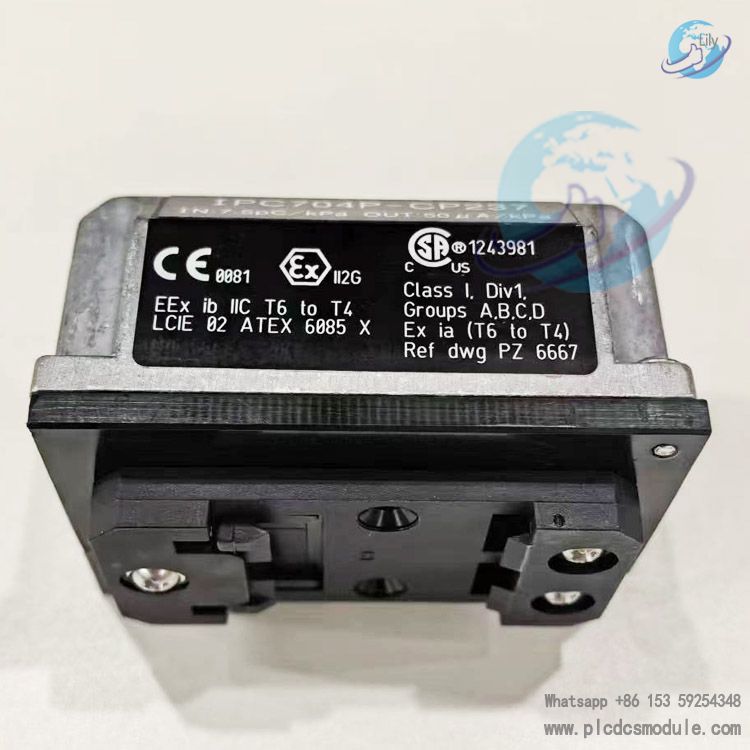

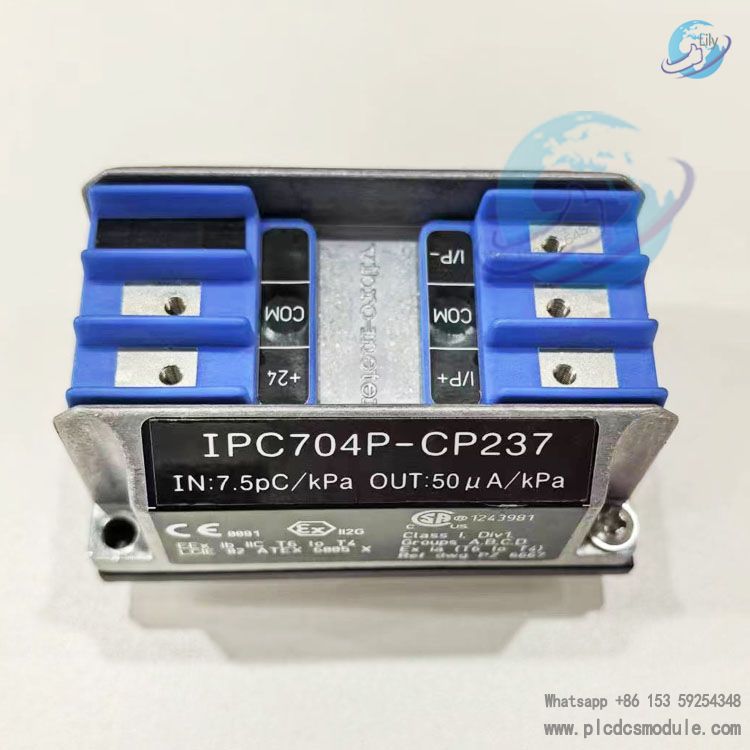

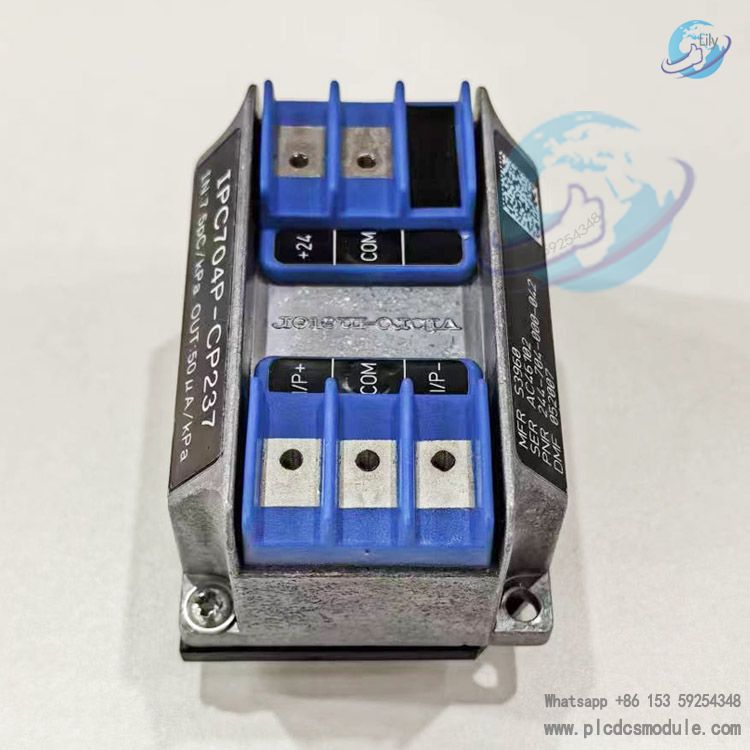

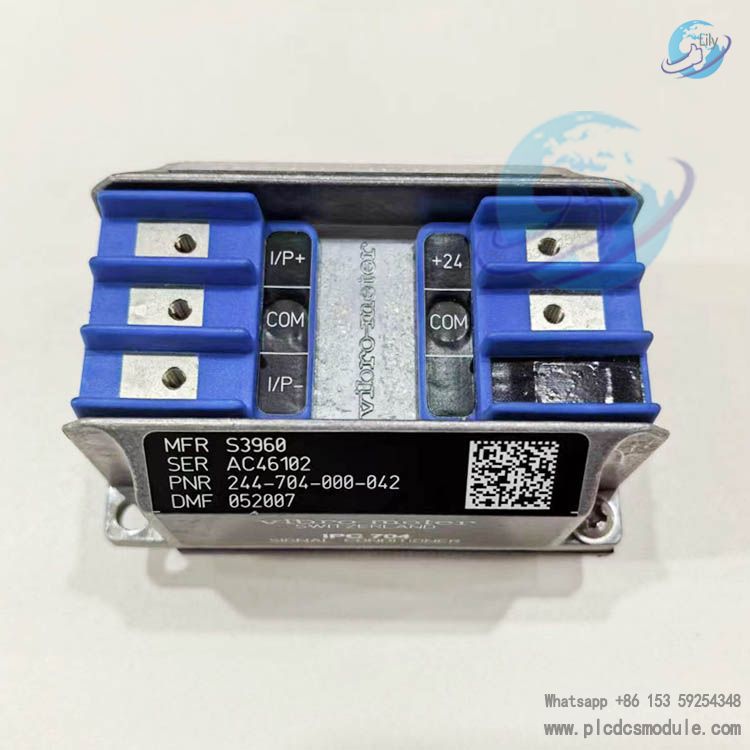

The VIBRO-METER IPC704P-CP237 244-704-000-042 signal conditioner is a high-performance device designed for harsh industrial environments, used to optimize the processing of sensor signals. It mainly works in conjunction with piezoelectric sensors, including accelerometers (ca) and dynamic pressure sensors (cp). This signal conditioner comes from VIBRO-METER, a company with profound technical accumulation in the field of sensors and signal processing, providing key support for equipment condition monitoring and data analysis in many industries.
Charge Signal Conversion: It can accurately convert the charge signals generated by piezoelectric sensors into current or voltage signals for output, adapting to the input requirements of subsequent processing electronic equipment. This conversion process is stable and reliable, effectively ensuring the accuracy of signals during transmission and processing, and providing a solid foundation for equipment condition monitoring.
High Configurability:
Wide Frequency Range Coverage: It has an extremely wide frequency response range, from 0.5Hz to 20000Hz, which can accurately capture dynamic changes of various vibration and pressure signals. Whether it is low-frequency mechanical vibration or high-frequency pressure fluctuations, it can effectively measure them, making it suitable for equipment condition monitoring under various complex working conditions.
Diverse Output Options: Supports two output modes. Current output is suitable for long-distance signal transmission, which can stably transmit signals over a distance of up to 1km, meeting the application scenarios where sensors and control systems are far apart in large industrial facilities; voltage output is suitable for short-distance signal transmission, with fast response speed, which can quickly transmit processed signals to adjacent processing equipment.
Adaptation to Harsh Environments: Designed to achieve long-term stable operation in hazardous areas (potentially explosive environments). Its enclosure protection level reaches IP40, which can effectively prevent the intrusion of solid foreign objects with a diameter greater than 1mm and the impact of splashing water, ensuring normal operation in harsh industrial environments, such as petrochemical, mining and other places with flammable and explosive gases or dust.
Application Scenarios
Industrial Equipment Condition Monitoring: In various industrial production equipment, it is used to monitor the vibration status of rotating machinery (such as motors, fans, pumps, etc.). By analyzing the signals collected by accelerometers and processed by IPC704P-CP237, equipment imbalances, bearing failures, misalignments, and other mechanical defects can be detected in a timely manner. This allows early warning of potential equipment failures, ensuring the continuity and stability of production, and reducing equipment maintenance costs.
Structural Health Monitoring: It is applied in the field of health monitoring of bridges, buildings, large mechanical structures, etc. Using dynamic pressure sensors in conjunction with this signal conditioner, it monitors the pressure changes and vibration responses of structures under environmental loads (such as wind loads, earthquakes, etc.), evaluates the integrity and safety of the structures, and provides data basis for structural maintenance and reinforcement.
Environmental Noise and Vibration Analysis: In fields such as environmental protection and scientific research, it is used to monitor environmental noise and vibration levels. For example, in urban environmental noise monitoring stations, by connecting vibration and pressure sensors, it collects and processes noise and vibration signals in the environment, providing accurate data support for environmental assessment, noise pollution control, etc.
