Exclusively designed for Electro-Craft series motors, its core function is to provide the necessary system power and control support for the F-series and S-series motors of this range. Its compact structural design facilitates integration into various existing mechanical equipment, while the panel indicator lights and well-organized interface layout also enable operators to conveniently judge the equipment's operating status and perform wiring operations.
| Parameter Type | Specific Value |
|---|---|

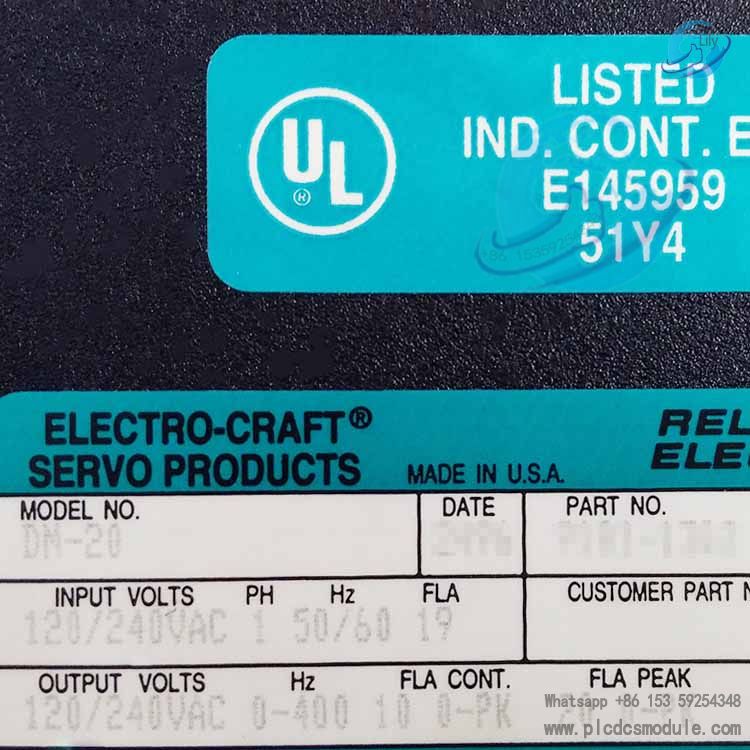

| Input Voltage | 100-240 Vac, compatible with 120/240 Vac voltage specifications |
| Input Phase | Single-phase |
| Operating Frequency | 50/60 Hz |
| Current Rating | Peak current: 20 A; Continuous current: 10 A |
| DC Bus Voltage | 141-340 V DC; when connected to 230 V AC input, the DC voltage can reach 325 V |
| Command Signal Range | ±10 V DC with an impedance of 13.3 kΩ |
| Shunt Power Related | Maximum dissipated shunt power: above 100 W; typical power loss is about half of the maximum value; continuous shunt power: 50 W; peak shunt power: 4.5 kW |
Mechanical and Physical Parameters
Interface Type: Equipped with D-shell connectors to ensure the stability of electrical connections; a terminal block is arranged at the bottom left of the panel, and 6 additional connectors are distributed on the right side to meet the requirements of multi-line access.

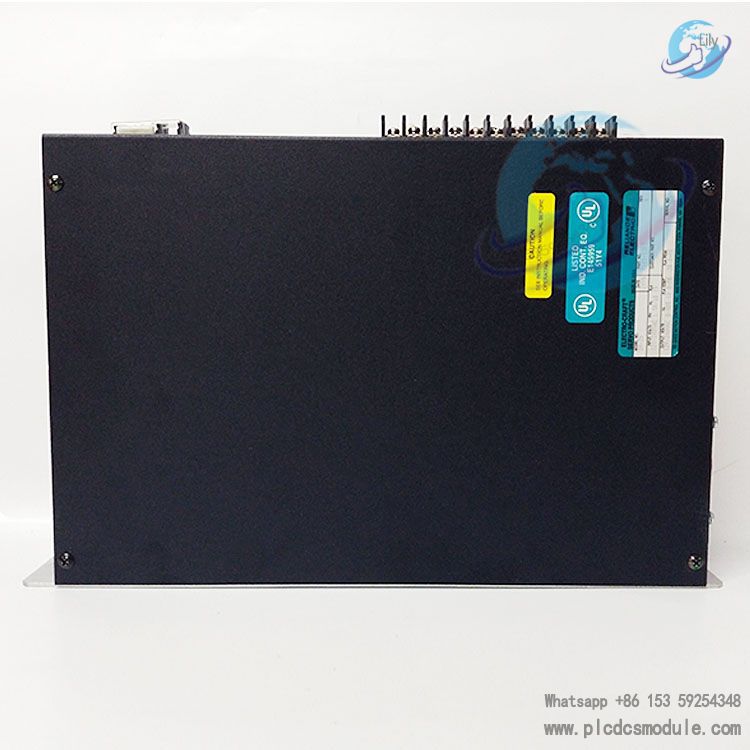

Mounting Method: Adopts a flat mounting design with factory-prefabricated insulated drill holes for secure installation, which is suitable for equipment assembly needs in industrial scenarios.
Weight: Approximately 15 pounds. The moderate weight not only facilitates installation and handling but also ensures stability after mounting.

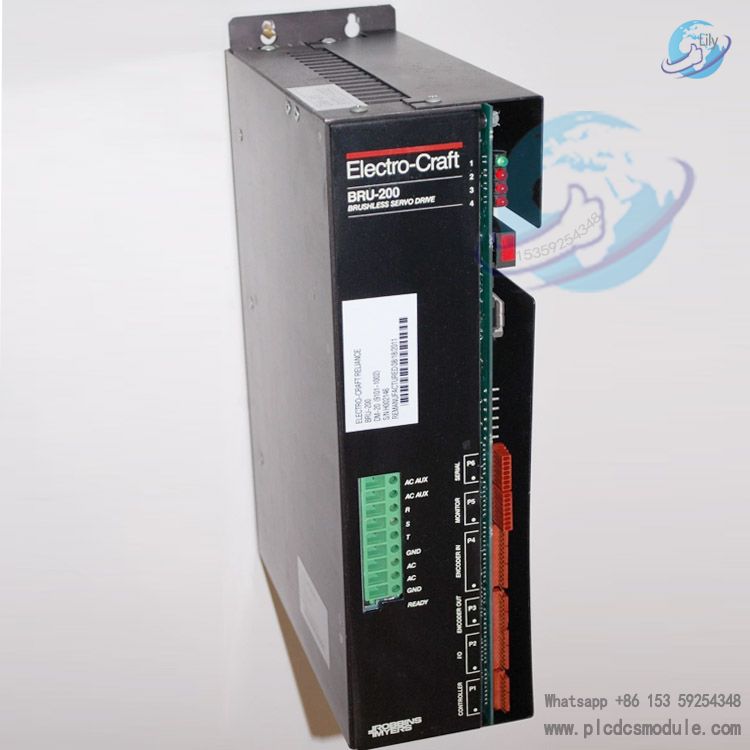

Indicator Configuration: The panel is equipped with not only a small green ready indicator to signal whether the device is ready for operation but also 4 red-green indicators marked with numbers 1-4, helping operators fully grasp the device's operating status.
Compatibility and Adaptation Information
This servo drive is a dedicated matching drive for Electro-Craft series motors. The officially recommended motor models for pairing include three types: F-4030, S-3016, and S-4030. In addition, the product has a replacement model 9101-1302, which can be referred to for procurement or accessory replacement.
