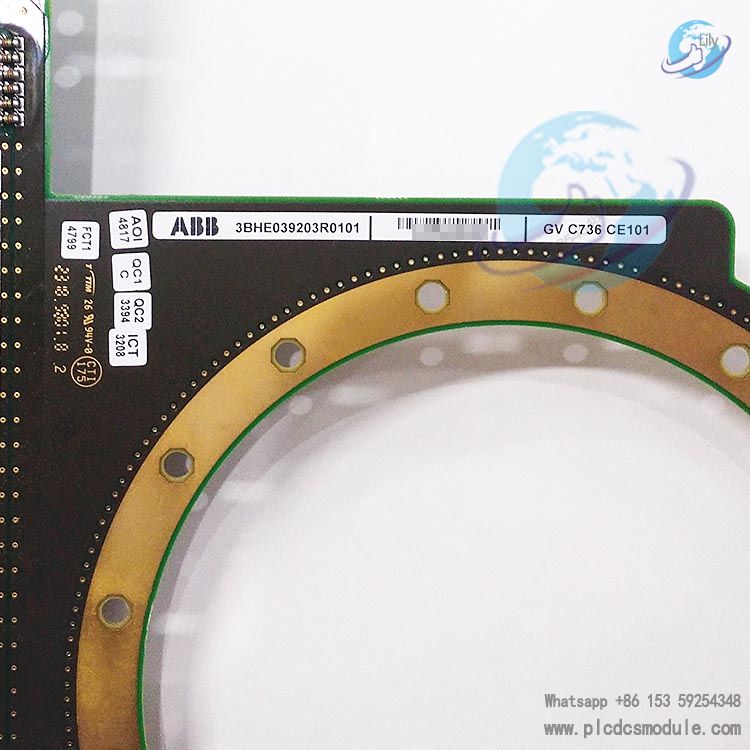

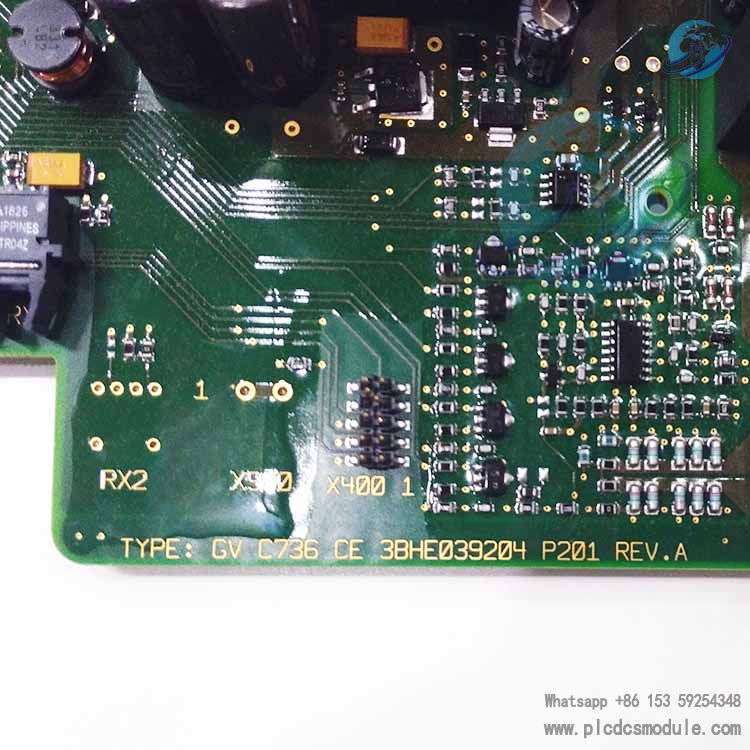

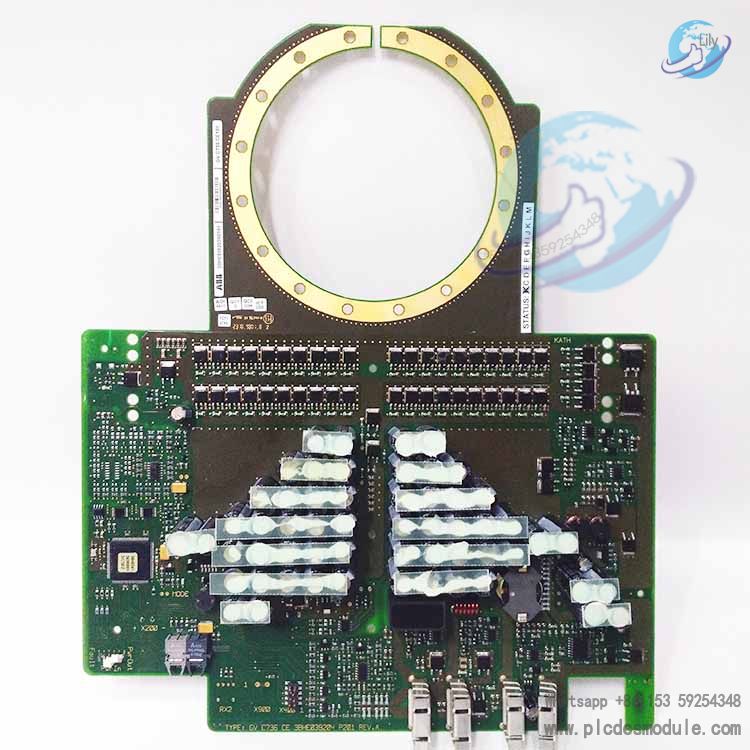

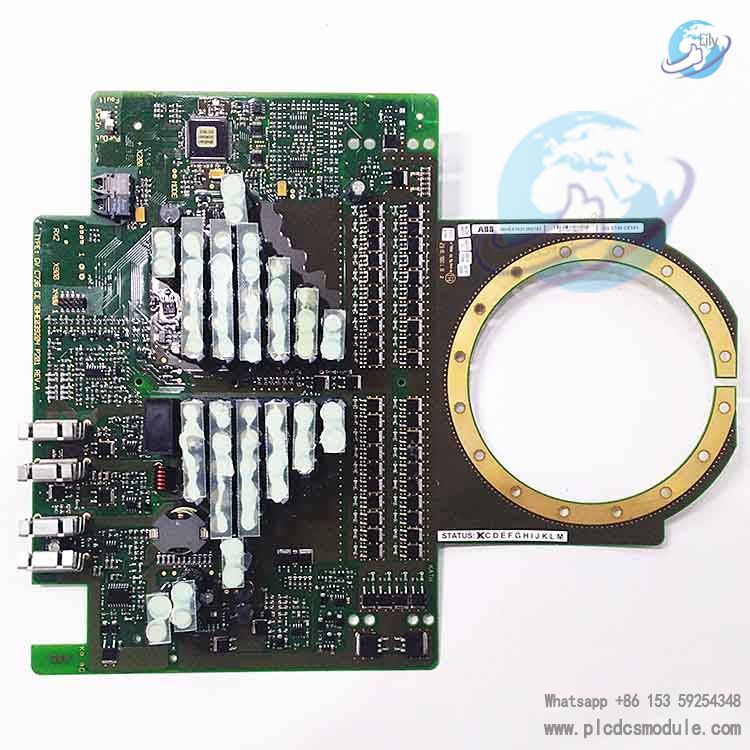

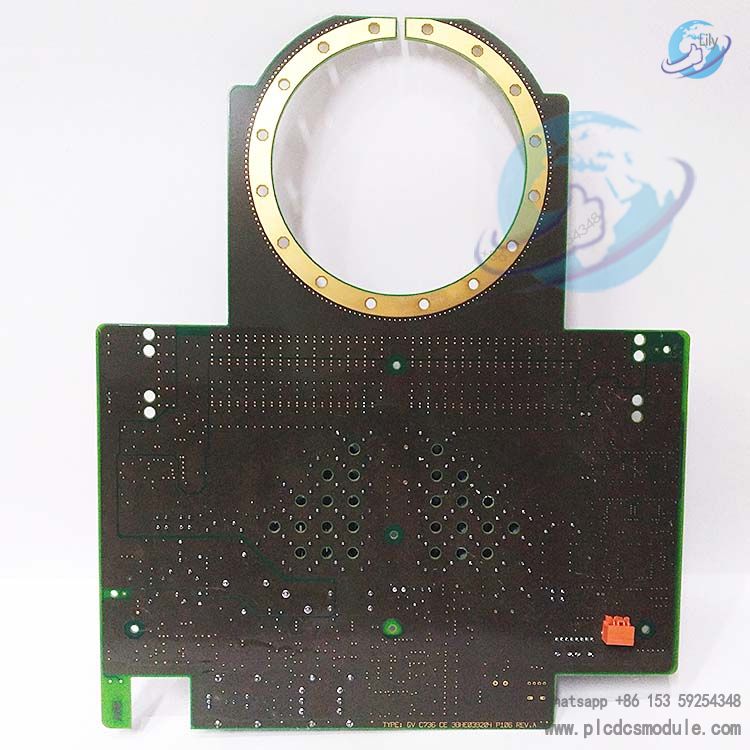

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. ABB 3BHE039203R0101, 3BHE036204P201, 3BHE039204P106 and GVC736CE101 is an Integrated Gate-Commutated Thyristor (IGCT) power control module. It is typically used as the core power unit of medium and high-voltage inverters/converters, and is compatible with ABB medium-voltage drive systems such as ACS6000 and ACS800MV. Boasting high blocking voltage, low conduction loss, fast switching speed and high reliability, it is widely applied to high-power motor drives, grid conversion and power quality management in fields including metallurgy, mining and power generation. It enables efficient AC-DC-AC power conversion and precise power control.
Positioning and Functions
This module is a key component for ABB medium-voltage power electronic conversion. Essentially, it is a power module integrating IGCT chips, anti-parallel diodes and gate drive circuits, with the following core functions:
Power Conversion: It performs DC-AC conversion in inverters/converters, providing three-phase output with adjustable frequency and voltage for medium and high-voltage motors. It is suitable for standalone applications ranging from 0.5 to 6 MVA, and can be scaled up to hundreds of MVA-level systems through series and parallel connection.
Precise Drive Control: It receives control signals via optical fibers to achieve millisecond-level switching response. No additional snubber circuits are required, which simplifies system design and improves operational reliability.
System Protection: It integrates protection mechanisms against overcurrent, overvoltage and overtemperature. Working with the upper controller, it can quickly cut off faulty circuits to ensure the safe operation of the entire equipment.
Key Technical Specifications
Its basic electrical parameters include a rated voltage of 600 V and a rated current of 120 A; the on-state resistance is ≤ 2.0 mΩ, and the reverse leakage current is ≤ 10 mA—these are typical operating values, subject to fine adjustment according to heat dissipation conditions. In terms of switching performance, the switching frequency is ≤ 20 kHz; it features a short turn-off time and can operate stably within the dynamic avalanche limit, making it suitable for high-frequency power conversion scenarios. For control and power supply, it adopts a 24 VDC control power supply with power consumption < 5 W; trigger signals are transmitted via optical fibers, which delivers strong anti-interference capability and is ideal for industrial environments with intense electromagnetic interference. Regarding environmental adaptability, it has an operating temperature range of -40°C to +60°C and a storage temperature range of -40°C to +85°C, with an IP20 protection rating, meeting the installation requirements of outdoor and harsh industrial environments. Its physical specifications include approximate dimensions of 200×150×100 mm and a weight of around 3 kg; the modular design facilitates easy installation and maintenance.
Core Advantages
High Efficiency & Low Power Loss: It combines the low conduction loss characteristic of GTO thyristors with the fast switching performance of IGBTs. Featuring low switching loss, it improves the overall energy efficiency of the equipment and reduces operational costs.
High Reliability: Adopting ABB advanced packaging technology, the module has passed rigorous EMC and environmental tests. Its snubber-circuit-free design reduces potential fault points, making it suitable for long-term continuous operation scenarios.
Flexible Integration: The modular architecture enables seamless integration with ABB medium-voltage frequency converters, excitation systems and other equipment. It supports fiber optic communication and industrial Ethernet, catering to multi-protocol system interconnection requirements.
Easy Maintenance: With standardized interfaces and a modular design, it facilitates on-site replacement and fault diagnosis, thereby shortening equipment downtime.
Application Scenarios
Industrial Drives: Speed regulation of high-power medium-voltage motors for applications such as metallurgical rolling mills, cement kiln main drives, and mine hoists, suitable for heavy-duty working conditions in petrochemical, building materials and other industries.
Power Systems: Converter valve module for equipment including HVDC converter stations, Static Var Compensators (SVC), and STATCOM, used for grid voltage stabilization and harmonic mitigation.
Power Generation: Excitation system of large synchronous generators, providing adjustable excitation current to optimize unit grid-connection performance and dynamic response.
Rail Transit: Traction converters for subways and high-speed railways, ensuring the efficient and stable operation of traction motors.
Compatibility & Interoperability
System Compatibility: Specifically designed for ABB ACS6000 and ACS800MV medium-voltage frequency converters, it is compatible with their main circuits and control systems, supporting seamless replacement of original power modules.
Accessory Matching: Must be used with ABB-specified heat sinks, fiber optic driver boards and control units to ensure matching of electrical and thermal performance.
Protocol Compatibility: Supports industrial fieldbuses such as PROFIBUS and PROFINET, and can be integrated into PLC systems like ABB AC800M to achieve centralized monitoring.
Products of the same series as 3BHE039203R0101 (3BHE Series, IGCT Power Modules):
3BHE009681R0101 (GVC750BE101)
3BHE019719R0101 (GVC736BE101)
3BHE010751R0101
3BHE024855R0101
3BHE021951R0124
3BHE024747R0101
3BHE027632R0101
3BHE024415R0101
3BHE014185R0001
3BHE023784R1023
3005319639
