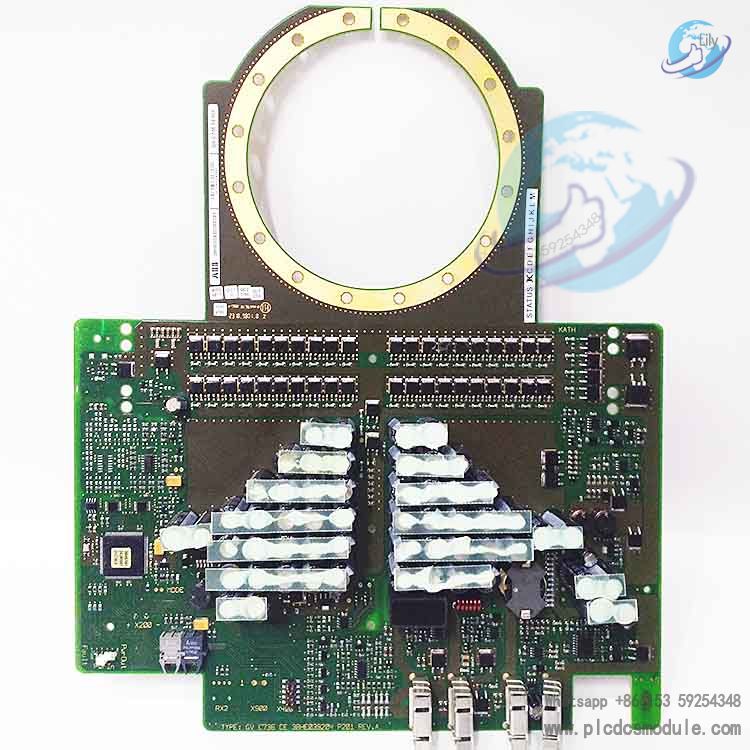

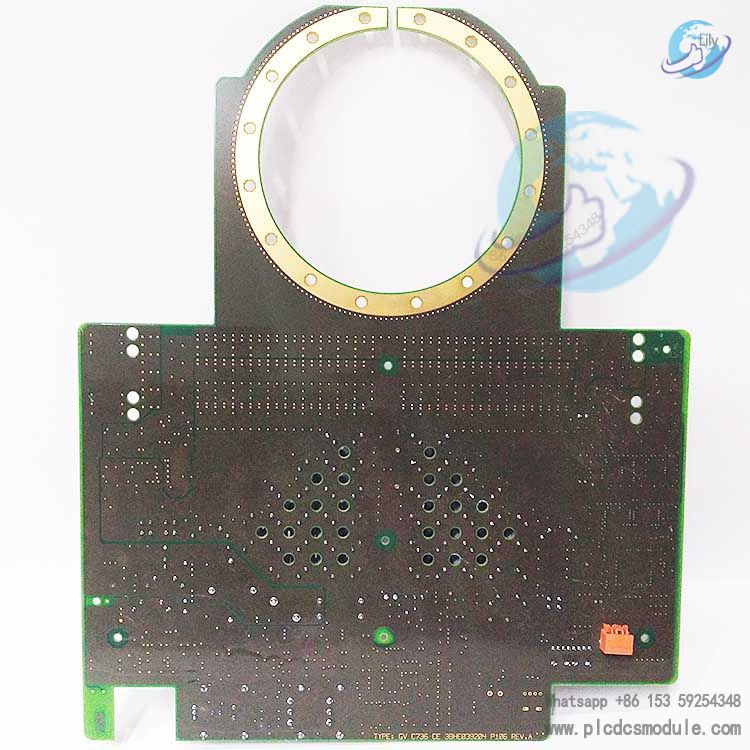

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. 3BHE039204P106 GVC736CE101 is a high-performance Integrated Gate-Commutated Thyristor (IGCT) power module belonging to ABB core power electronic component series. It is primarily designed for medium-high voltage and high-power power conversion and control scenarios, serving as a critical component for ABB medium-voltage drive systems (including the ACS6000 and ACS800MV) and grid converter devices. Combining the high-voltage and large-current handling capability of GTOs with the fast, controllable turn-off characteristics of IGBTs, it integrates gate drive and protection circuits, eliminating the need for external snubber circuits. This design significantly enhances system reliability and power density, and the module is suitable for medium-to-high frequency operating conditions ranging from 500 Hz to 2 kHz. It is widely used in industrial applications such as metallurgical rolling mills, mine hoists, marine electric propulsion systems and flexible grid transmission projects.
Technology and Structure
Device Principle
An IGCT is essentially a thyristor integrated with a gate driver. Through hard gate drive technology, it switches the device from the pnpn latching state to the pnp transistor mode within 1 μs, eliminating the risk of latch-up during turn-off. Its Safe Operating Area (SOA) covers the dynamic avalanche region. The gate adopts coaxial feedthrough and low-inductance connection via a multi-layer PCB. At a gate voltage of 20 V, it can achieve a current slew rate of ≥5–6 kA/μs. During turn-off, the cathode current drops to zero before the anode voltage rises, which significantly reduces turn-off losses.
Module Integration
It incorporates an anti-parallel freewheeling diode, gate drive unit and protection circuit, supporting fiber-optic isolated triggering with high electrical isolation rating and strong electromagnetic interference (EMI) immunity. Adopting an industrial-grade hermetic ceramic-to-metal package and equipped with standard cooling interfaces, it is compatible with forced air cooling or water cooling systems, ensuring thermal stability under high-power operating conditions.
Technical Specifications
The model designators are 3BHE039204P106 / GVC736CE101, which are supporting order numbers compatible with 5SHY power chip modules in the same series. The repetitive peak off-state voltage (Vdrm) is 4500 V. The average on-state current (IT (AV)) ranges from 2500 A to 3000 A, measured under power frequency of 50 Hz and standard cooling conditions. The gate drive voltage is +20 V / -15 V, featuring positive-negative bipolar drive to ensure reliable switching performance. The switching frequency ranges from 500 Hz to 2 kHz, suitable for medium-voltage variable frequency and grid conversion scenarios. The available cooling methods include water cooling and forced air cooling; water cooling is recommended to support continuous full-power operation. The operating temperature spans from -40℃ to +85℃, thanks to its industrial-grade wide-temperature design, making it suitable for harsh working conditions. Integrated protection functions cover overcurrent, overvoltage, overtemperature and gate fault; the module will shut down rapidly and send an alarm signal when a fault occurs.
Core Advantages
High Efficiency & Low Power Consumption: It operates in thyristor mode for conduction, delivering a low on-state voltage drop (approximately 30% lower than that of IGBTs). The snubber-circuit-free design reduces additional power losses, boosting the overall system efficiency to over 98%.
High Reliability: The integrated design reduces external components and potential fault points. Enhanced packaging and thermal design ensure its vibration and shock resistance complies with the IEC 61800-5-1 standard, with a Mean Time Between Failures (MTBF) of over 100,000 hours.
Easy Integration & Maintenance: It features standardized mechanical interfaces and electrical terminals, supporting hot swapping in select systems. Fully compatible with ABB AC800M controllers and S800 I/O modules, it supports industrial protocols including PROFIBUS and PROFINET, delivering strong engineering adaptability.
Application Scenarios
Medium & High-Voltage Industrial Drives: Speed regulation of large motors in industries such as metallurgy, mining and cement, e.g., main drives of rolling mills, mine hoists, and variable-frequency control of fans and pumps. It is compatible with ABB ACS6000/ACS800MV medium-voltage frequency converters.
Power Grid & Energy Conversion: Flexible AC Transmission Systems (FACTS), Static Var Compensators (SVC) and Line-Commutated Inverters (LCI), used to improve power quality and stabilize grid voltage.
Marine & Rail Transit: Marine electric propulsion systems, port cranes and electric locomotive traction converters, suitable for applications requiring high power density and vibration resistance.
