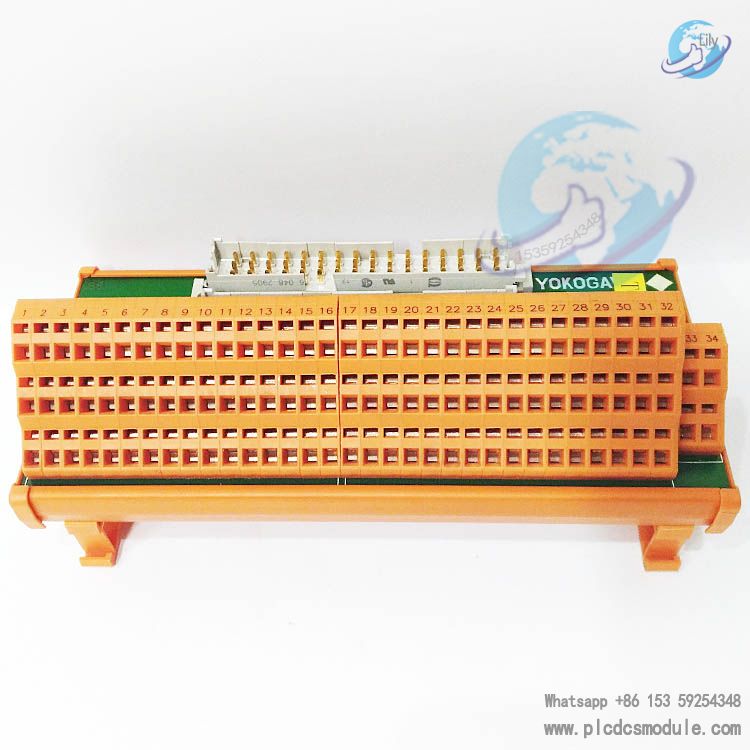

YOKOGAWA Weidmüller 8596020000 Terminal Board is a high - performance, reliable terminal connection device co-branded by YOKOGAWA and Weidmüller, which is mainly used to realize the reliable connection between field instruments and control systems in industrial automation fields such as process control and factory automationYokogawa Electric Corporation. It adopts Weidmüller mature terminal connection technology and is compatible with YOKOGAWA's control system modules, which can ensure the integrity and stability of signal transmission, and is easy to install, maintain and expand, and can meet the harsh working environment requirements of industrial sites, providing a safe and efficient connection solution for industrial control systems.
Basic Information
| Item | Content |
|---|
| Product Model | 8596020000 |
| Brand | YOKOGAWA Weidmüller |
| Product Type | Terminal Board |
| Application Field | Industrial automation, process control, factory automation, etc. |
| Core Function | Signal transmission and electrical connection between field equipment and control system modules |
| Cooperation Mode | YOKOGAWA provides system compatibility design, Weidmüller provides terminal connection technology support |
Technical Parameters
Electrical Parameters
- Rated Voltage: 300V AC/DC (conforms to IEC standards).
- Rated Current: 10A, which can meet the current transmission requirements of most industrial field instruments.
- Wire Gauge Range: Compatible with 12-26AWG wires, suitable for different specifications of field wiring.
- Insulation Resistance: ≥100MΩ (500V DC), ensuring good insulation performance between terminals.
- Withstand Voltage: 500V AC, 1 minute, no breakdown or flashover phenomenon, guaranteeing the safety of use.
Structural Parameters
- Number of Terminals: 14 positions, single - row design, compact structure, saving installation space.
- Connection Method: Screw connection, which has the advantages of reliable connection, simple operation and easy disassembly and maintenance.
- Installation Method: It can be installed on 32mm/35mm DIN rails, which is convenient for centralized installation and management in the control cabinet.
- Shell Material: High - quality thermoplastic material, flame - retardant grade UL94 V - 0, which can effectively prevent fire spread.
- Operating Temperature: -40°C to +85°C, suitable for various harsh industrial environments.
- Protection Grade: IP20, which can prevent the entry of solid foreign objects with a diameter of more than 12mm, ensuring the safety of internal components.
Functional Features
- Reliable Connection Performance: Adopting Weidmüller's classic screw connection technology, the contact resistance is small, the connection is firm, and it has excellent anti - vibration performance, which can avoid poor contact caused by vibration in industrial sites.
- Strong Compatibility: It is perfectly compatible with YOKOGAWA's CENTUM VP, CENTUM CS 3000 and other series of control system modules, such as AAI141, AAR145 and other analog and RTD modules, and can directly connect with the system without additional adaptersYokogawa Electric Corporation.
- Easy Installation and Maintenance: The DIN rail installation method enables quick installation and disassembly. The clear marking on the terminal makes the wiring operation simple and easy to check, which can effectively shorten the engineering construction and maintenance time.
- Good Safety Performance: The shell has good flame - retardant and insulation properties, and the design of the terminal spacing meets the safety specifications, which can prevent short - circuit accidents caused by wrong wiring.
- Flexible Expansion: Multiple terminal boards can be combined and installed according to the actual number of field instruments, which is convenient for system expansion and transformationYokogawa Electric Corporation.
Application Scenarios
- Process Control System: It is used in petrochemical, chemical, pharmaceutical and other industries to connect field instruments such as temperature transmitters, pressure transmitters and flow meters with the DCS system, realizing the collection and transmission of process parametersYokogawa Electric Corporation.
- Factory Automation: In the production lines of automobile manufacturing, electronic processing and other industries, it is used for the connection of sensors, actuators and PLC modules to ensure the stable operation of the production line control system.
- Power System: It is applied in power plants and power distribution rooms to connect electrical measuring instruments, protection relays and control equipment, ensuring the reliable transmission of electrical signals.
- Environmental Monitoring System: Used in environmental protection monitoring stations and sewage treatment plants to connect monitoring sensors and data acquisition modules, realizing the collection and transmission of environmental data.
Maintenance and Matters Needing Attention
- Wiring Operation: When wiring, ensure that the wire end is stripped properly, and the screw is tightened to avoid poor contact caused by loose connection; at the same time, pay attention to the positive and negative poles and signal polarity to prevent reverse connection.
- Regular Inspection: Regularly check the tightness of the terminal screws and the insulation performance between the terminals. If any loosening or insulation reduction is found, deal with it in time.
- Environmental Requirements: Avoid installing in environments with high temperature, high humidity, corrosive gas and strong vibration for a long time, so as not to affect the service life and performance of the terminal board.
Compliance with Specifications: During use and maintenance, relevant electrical safety specifications must be followed to prevent electric shock and other safety accidents.
