Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. The Moore 16147-51-2 is a dedicated Advanced Control Module (ACM) adapter board designed for the Moore APACS Distributed Control System (DCS). As a critical transition interface between the control modules and the backplane bus in the APACS system, it fulfills core functions of signal adaptation, electrical connection conversion and inter-module communication bridging. It ensures the stable installation and reliable operation of ACM modules within the system, and is compatible with components such as the APACS Control and Computer Modules product lines. Widely applied in process industries including power generation, petrochemicals and oil refining, this adapter board serves as a key component for maintaining legacy APACS systems. Its replacement model is 16147-51-02, which also plays an important role in the upgrading and retrofitting of APACS systems.
Core Parameters
Product Model: 16147-51-2 (Replacement Model: 16147-51-02)

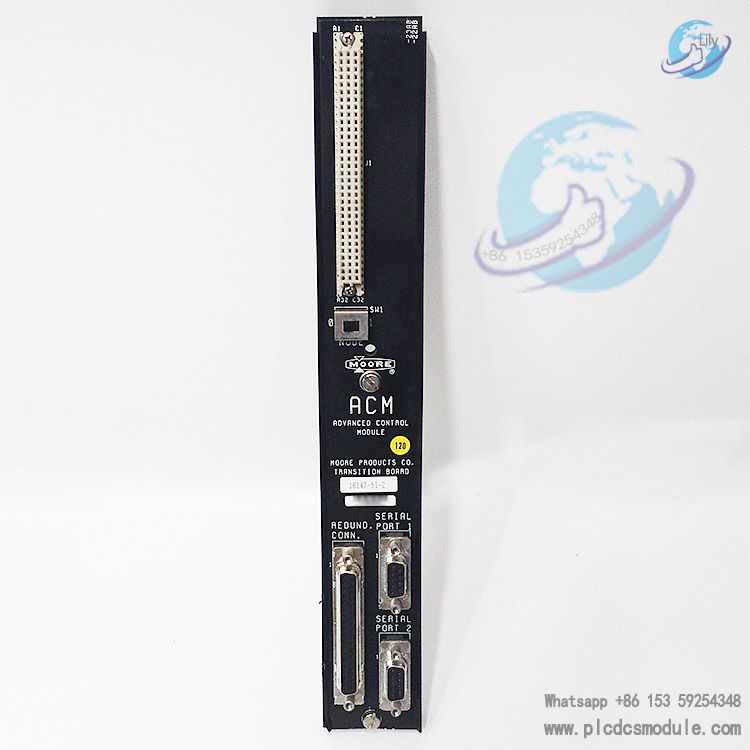

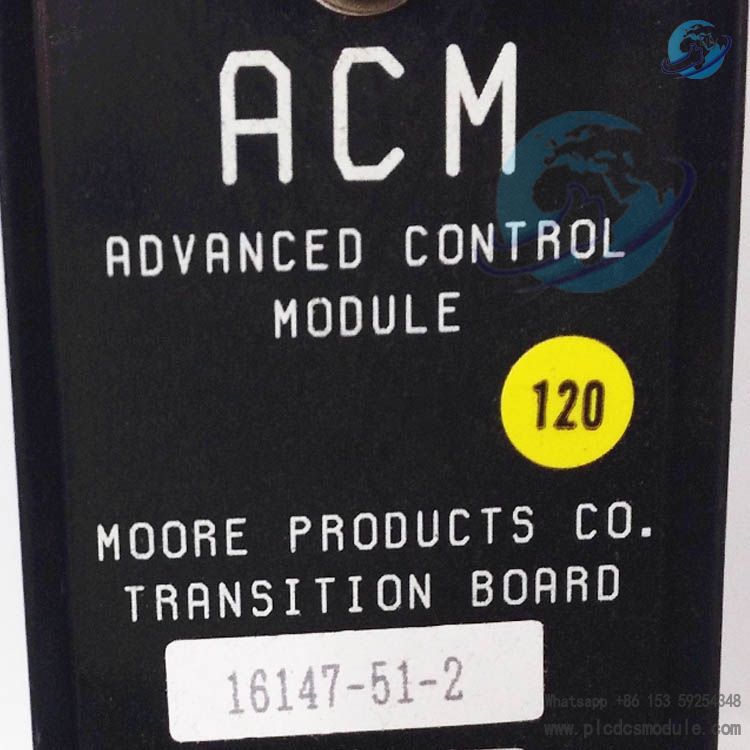

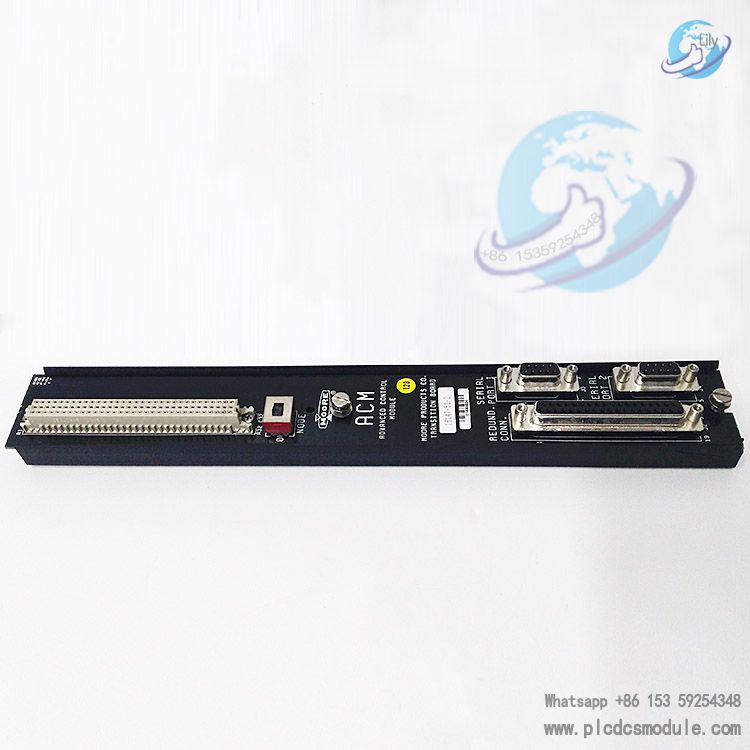

Product Name: ACM Transition Board
Compatible System: Moore APACS Distributed Control System (DCS)
Dimensions: Approx. 5.1cm × 5.1cm × 30.5cm (2.0" × 2.0" × 12.0")
Weight: Approx. 0.2kg (0 lbs 7.1 oz)
Country of Origin: USA
Core Functions
Interface Conversion and AdaptationIt enables physical and electrical interface matching between ACM modules and the backplane bus of the APACS system, resolving connection compatibility issues between different modules. This allows ACM modules to be accurately integrated into the system bus architecture, ensuring the stability and accuracy of signal transmission.
Signal Relaying and ConditioningIt performs relay amplification and electrical conditioning on various control signals and data signals transmitted by ACM modules, reducing signal attenuation and interference during transmission. This ensures the reliable delivery of control commands and feedback data, and improves the system’s control precision.
Mounting, Positioning and SupportIt provides a stable mounting datum and mechanical support for ACM modules, ensuring secure installation of modules inside the control cabinet and preventing connection loosening caused by vibration and other factors. Meanwhile, it standardizes the module mounting layout, facilitating system maintenance and troubleshooting.
System Expansion and CompatibilityDuring APACS system upgrading or module replacement, it is compatible with ACM modules of different versions (both legacy and new models). This reduces system upgrade costs, eliminates the need for large-scale modification of core components such as the original backplane bus, and ensures smooth transition of system upgrading.
Product Advantages
High CompatibilityExclusively engineered for the APACS system, it is compatible with a wide range of ACM modules as well as both legacy and new system versions, which reduces the difficulty of spare parts procurement and system maintenance.
Superior Stability and ReliabilityAdopting industrial-grade design and manufacturing processes, it boasts excellent electromagnetic interference resistance and vibration resistance, along with other robust characteristics. It is suitable for harsh industrial field environments and ensures long-term stable operation.
High Cost-effectivenessAs an adapter component, it eliminates the high cost of replacing the entire backplane bus or system due to module interface incompatibility, thus saving users substantial operation, maintenance and upgrade expenses.
Easy InstallationIts structural design complies with APACS system installation specifications. The installation process is straightforward, requiring no complex debugging, and enables quick module replacement and system restoration.
Application Scenarios
Maintenance of Legacy APACS SystemsFor long-operating Moore APACS DCS, the 16147-51-2 adapter plate enables direct adaptation of new modules when ACM modules are damaged or aged and require replacement. It quickly restores system control functions, minimizes downtime, and ensures continuous and stable industrial production.
System Upgrades and RenovationsDuring the hardware upgrade of APACS systems, such as replacing ACM modules with higher-performance alternatives, this adapter plate resolves compatibility issues between new modules and the original system backplane. It helps users improve system performance at a low cost without the need for a full system replacement.
Assistance in New System ConstructionIn some new engineering projects that adopt the APACS system architecture, the 16147-51-2 can serve as a standard accessory for ACM modules, ensuring standardized connection of all control modules in the new system and improving the efficiency and stability of system setup.
Troubleshooting and TestingDuring system fault diagnosis, the adapter plate allows quick replacement and testing of ACM modules to locate fault points and shorten troubleshooting time. It can also be used for offline testing of new modules, ensuring reliable performance before the modules are integrated into the system.
