Brand Evolution

The 8105 blank panel originates from the Invensys Triconex product line. Invensys was later acquired by Schneider Electric. Early industry documents label it as GE Tricon, while it is now officially categorized under the Schneider EcoStruxure Triconex safety system hardware portfolio. It is originally manufactured in the United States, and no domestically manufactured compatible replacement panels can meet the matching requirements for TÜV and FM safety certifications.

Same Series Model Differentiation

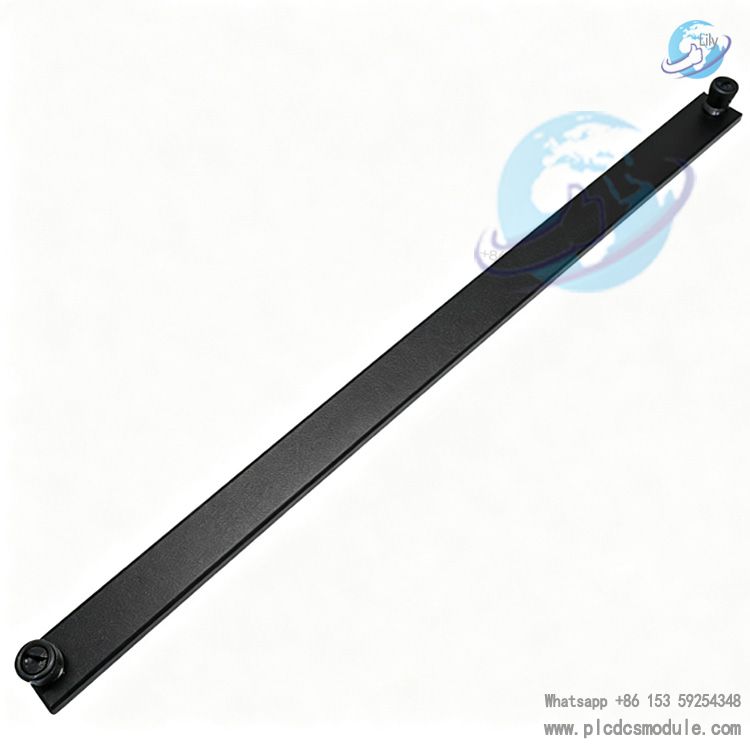

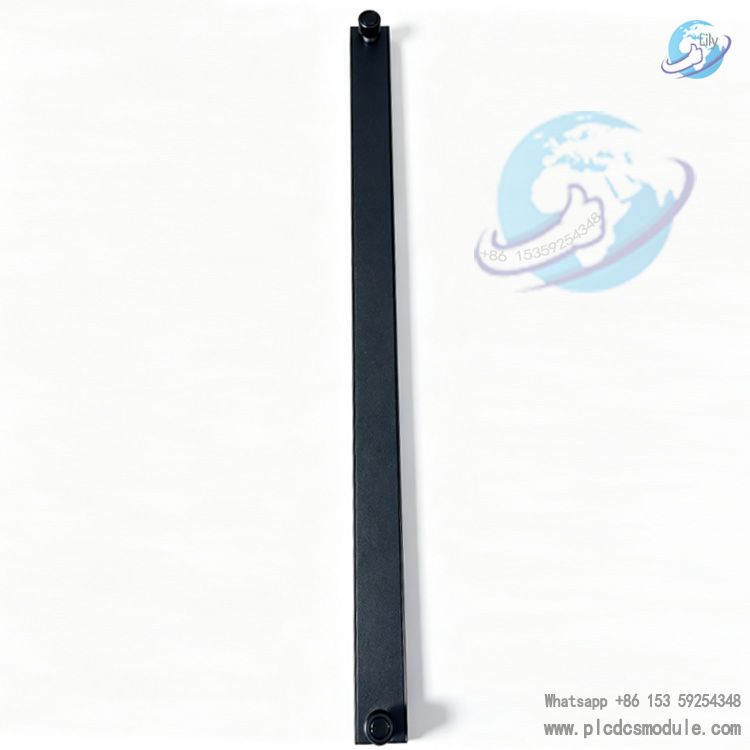

• 8105: Blank cover for I/O logic slots (the product covered herein), used to fill vacant I/O module slots inside the rack
• 8106: Terminal-side blank cover, designed for empty positions on rear terminal bases of racks; not interchangeable with the 8105

Core Functions

1. Airflow Regulation & Thermal Management

Tricon racks adopt a through-type forced convection cooling air duct running front to back. Uncovered empty slots cause airflow short-circuiting and eddy currents, resulting in insufficient heat dissipation for adjacent active modules and shortened service life under persistent high temperatures. The integrated closed panel of the 8105 seals slot openings and forces cooling air to flow evenly across all powered modules, stabilizing internal rack temperature rise. Official installation manuals specify that for environments with ambient temperatures above 50°C, missing 8105 panels will create rack overheating hazards and reduce the service life of processors and I/O cards.

2. Dust, Moisture & Foreign Object Protection

The fully enclosed metal panel seals front rack slot openings, blocking dust, moisture, metal shavings, cable debris and other contaminants from entering the TriBus triple redundant backplane bus contacts inside the rack. This prevents bus short circuits, poor contact and latent module failures. It suits dusty, high-humidity industrial control rooms in oil & gas, chemical and power industries, and meets protection standards for 5% to 95% relative humidity without condensation.

3. Electromagnetic Shielding & System Fault-Tolerance Integrity

The Tricon system features a TMR (Triple Modular Redundant) fault-tolerant architecture. A complete continuous metal panel assembly on the rack forms an integrated shielding enclosure. Empty slots break the closed shielding loop and weaken resistance to EMI/RFI electromagnetic interference, which easily causes analog signal drift, disordered SOE event timestamps and transient communication outages. Installing 8105 panels preserves full-system electromagnetic shielding integrity and prevents degradation of the safety system’s SIL performance level.

4. Personal Safety & Cabinet Compliance

It covers live backplane slots to prevent maintenance personnel from accidentally touching high-voltage/signal TriBus contacts inside the rack and reduce electric shock risks. It also complies with NEMA industrial cabinet standards and IEC 61508 functional safety installation specifications. Third-party safety acceptance inspections for oil & gas, nuclear power and thermal power projects strictly verify complete installation of 8105 panels; missing panels will lead to failure of SIS system safety acceptance.

5. Standardized Phased Capacity Expansion

During phased system expansion and incremental addition of I/O points, temporary vacant slots can be filled with standard 8105 panels without custom baffles. When AI/DI/AO/communication modules are added later, the 8105 panel can be simply removed and replaced with functional modules, requiring no rack structural modifications and simplifying retrofitting construction procedures.
