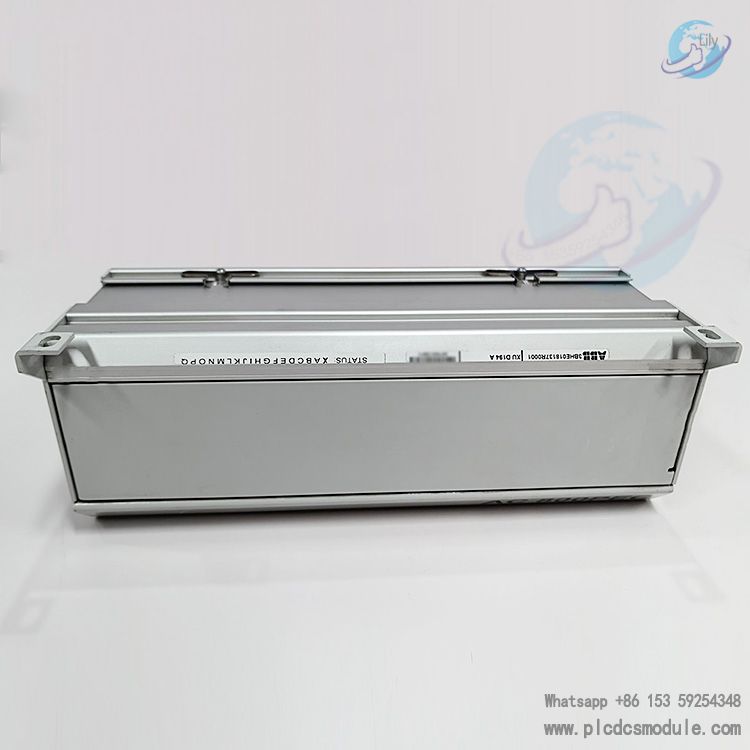

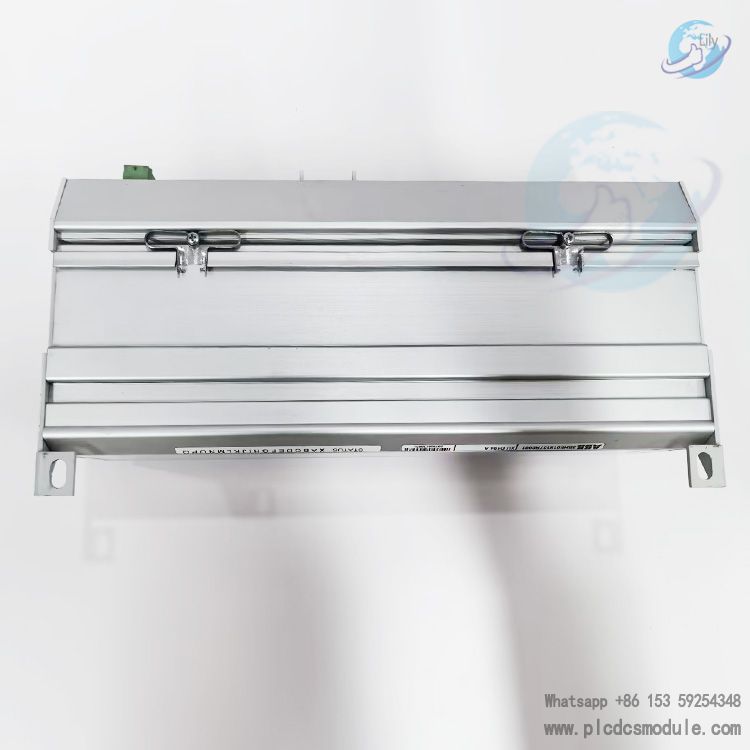

ABB XUD194 3BHE018137R0001 RCI-Box Module | PCS6000 | XU D194

The RCI-Box XUD194 3BHE018137R0001 module is a commissioning tool for the PCS6000 system, with an input of 24V DC. As a remote control interface, it can convert the digital measurement signals of the main controller into analog signals and transmit them to an oscilloscope. It supports freely selecting monitoring signals through the PCS6000 HMI, with a maximum of 8 channels that can be monitored simultaneously. It can monitor the internal signals of the converter in real-time without the need for installing probes, providing convenience for commissioning and service work.

The technical specifications and parameters of the RCI-Box XU D194 3BHE018137R0001 module are as follows:

Weight: approximately 2 kg.

Dimensions: Length: 275 mm, Width: 136 mm, Height: 101 mm.

Input: 24V DC.

Functional parameters: It can convert internal digital signals into analog signals and send them to an oscilloscope. The signals to be monitored can be freely selected through the PCS6000 HMI, and a maximum of 8 channels can be monitored simultaneously.

DATA SHEET

XUD194 Manual_PCS6000.pdf

1. Non-intrusive Monitoring: It enables real-time monitoring of internal measurement signals without the need to install probes inside the converter, avoiding potential disruptions to the equipment’s operation or risk of damaging sensitive components.
2. Flexible Signal Selection: Through the PCS6000 HMI, users can freely choose which signals to monitor, with support for up to 8 channels simultaneously, adapting to diverse debugging and maintenance needs.
3. Simplified Signal Conversion: It seamlessly converts digital internal signals to analog signals for transmission to an oscilloscope, facilitating intuitive analysis of signal waveforms and parameter changes.
4. Enhanced Efficiency: By providing direct access to critical internal data, it streamlines commissioning processes, accelerates fault diagnosis, and supports performance evaluation, reducing downtime during service and maintenance work.

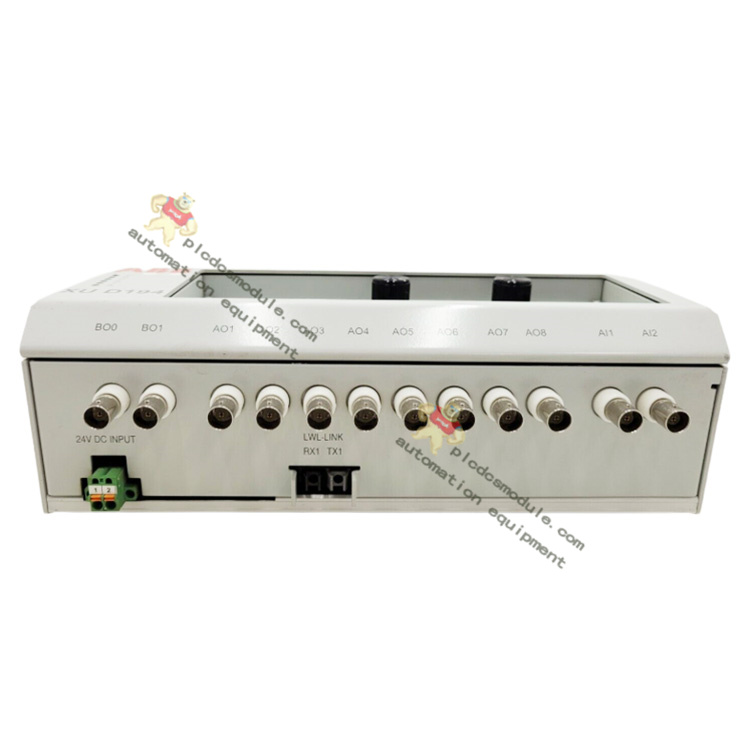

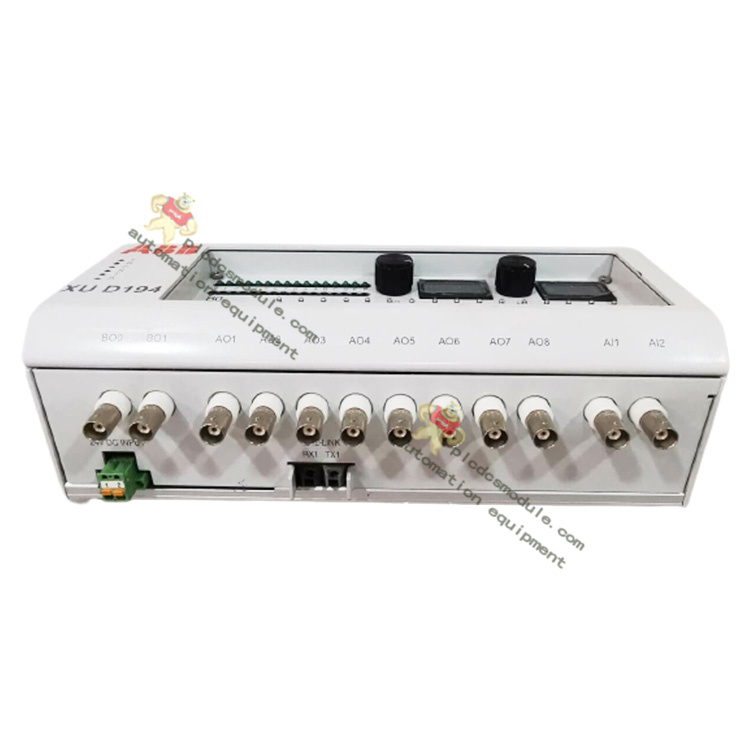

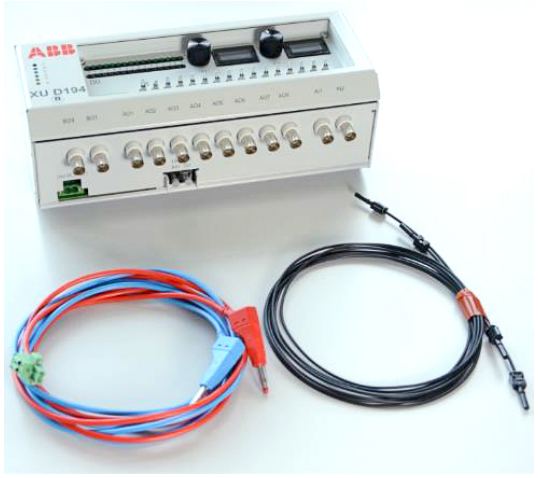

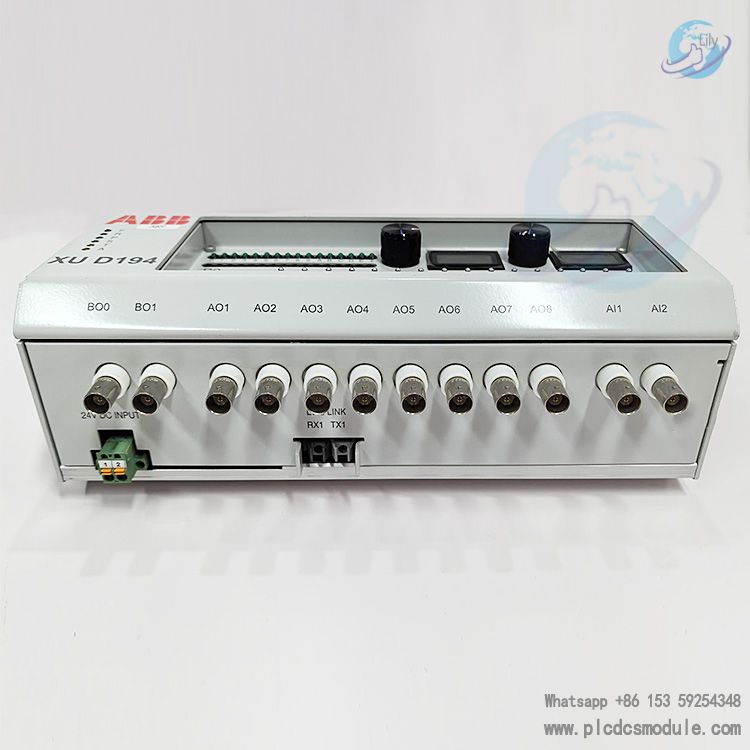

5. Easy Integration: Equipped with power and fiber optic cables, it connects easily to the PCS6000 system, ensuring reliable signal transmission without complex setup procedures.

The application scenarios of the XU D194 3BHE018137R0001 RCI-Box module mainly revolve around the commissioning and service work of the PCS6000 converter, specifically including:
It is used in the commissioning process of the PCS6000 to monitor the internal measurement signals of the converter in real time, helping technicians understand the operating status and parameter changes of the equipment.
In the service and maintenance work of the equipment, by converting internal digital signals into analog signals and transmitting them to the oscilloscope, it assists in troubleshooting, analyzing equipment abnormalities, and provides data support for fault diagnosis and performance evaluation.
It can be used with the PCS6000 HMI. When specific signals need to be monitored, up to 8 channels can be freely selected for simultaneous monitoring to meet the signal observation needs in different scenarios.

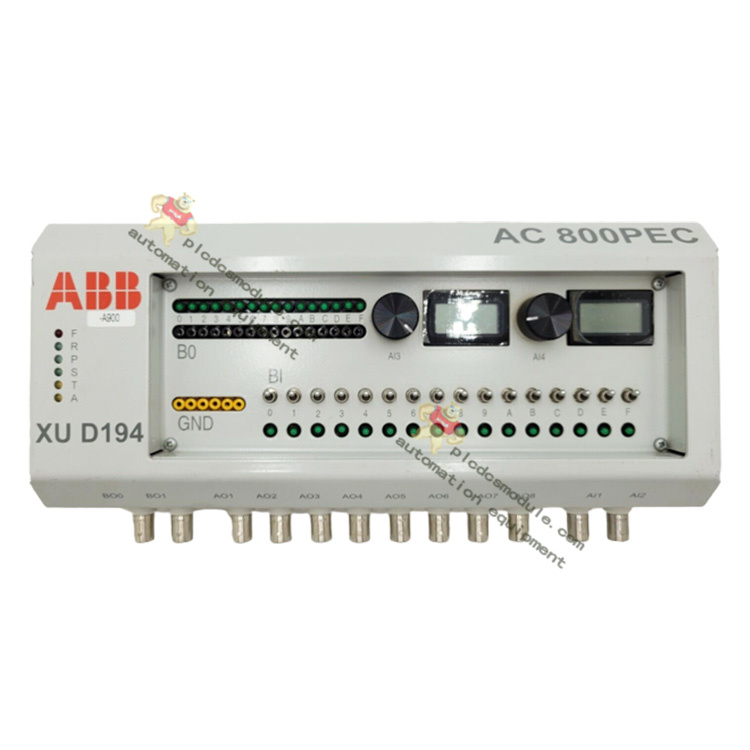

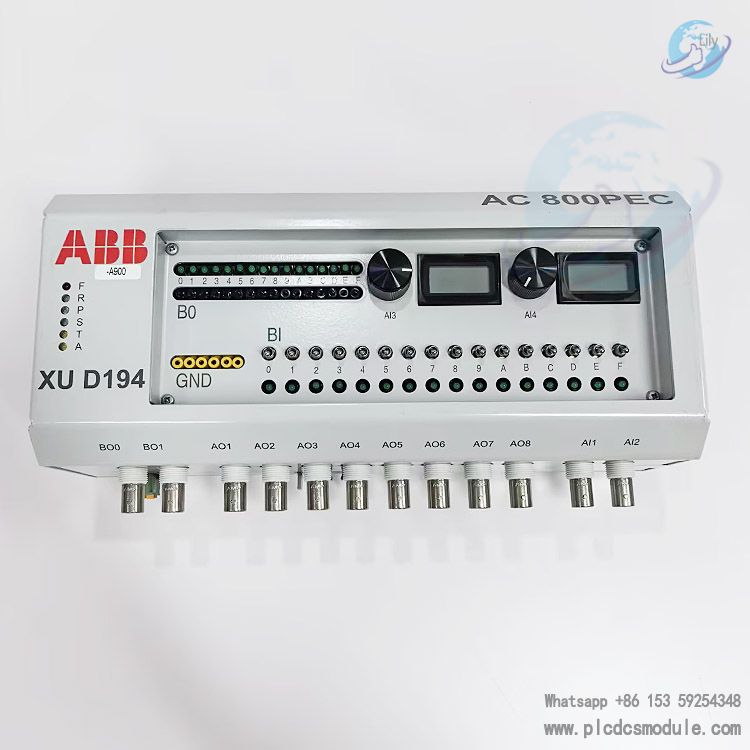

The RCI-Box (Remote Control Interface) XU D194 is used to transfer digital measurement signals from the main controller to an oscilloscope. This allows to monitor internal measurement signals in real-time without having to install any probes in the converter.

The digital internal signals are converted to analog signals and sent to the oscilloscope by the RCI-Box. The signals to be monitored can be freely selected in the PCS6000 HMI. A maximum of 8 channels can be monitored simultaneously with one RCI.Box.
