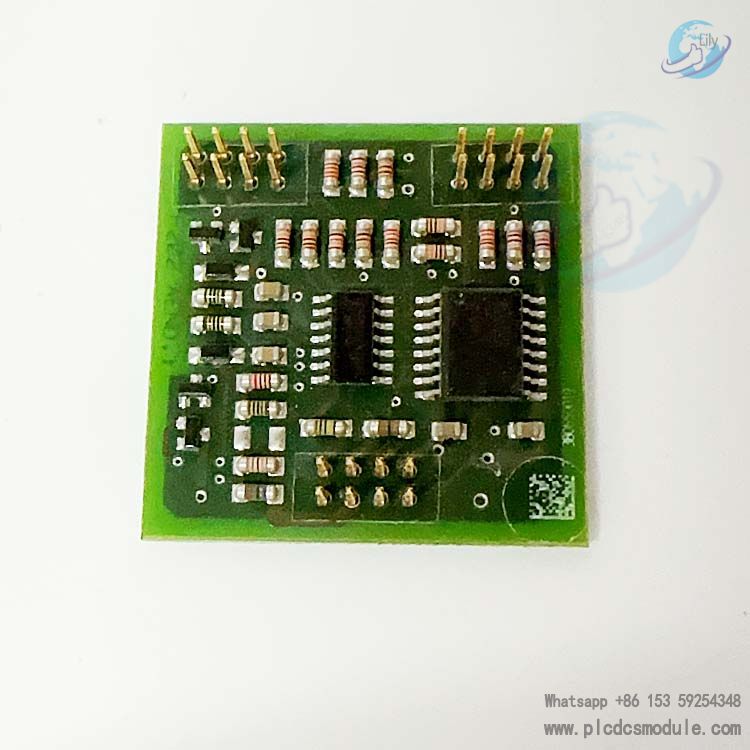

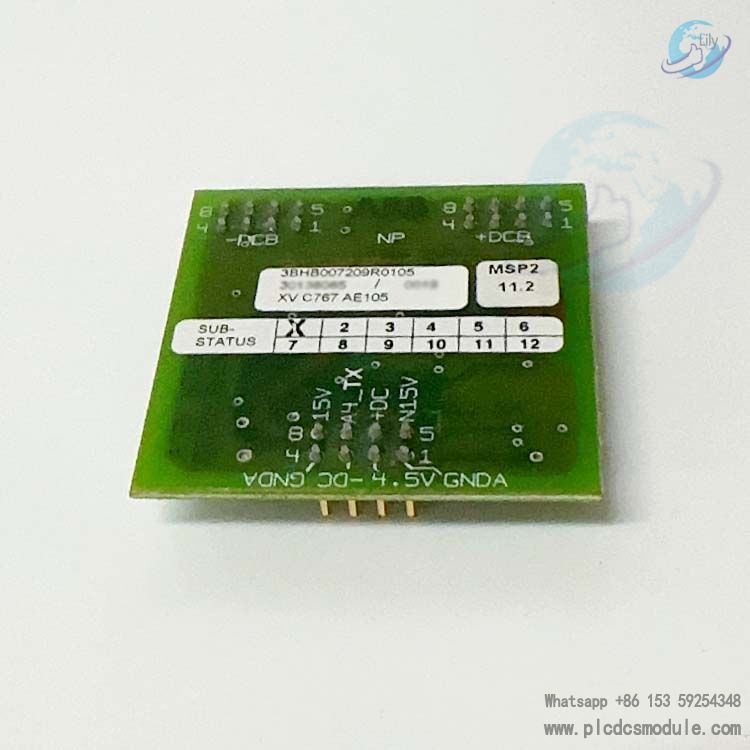

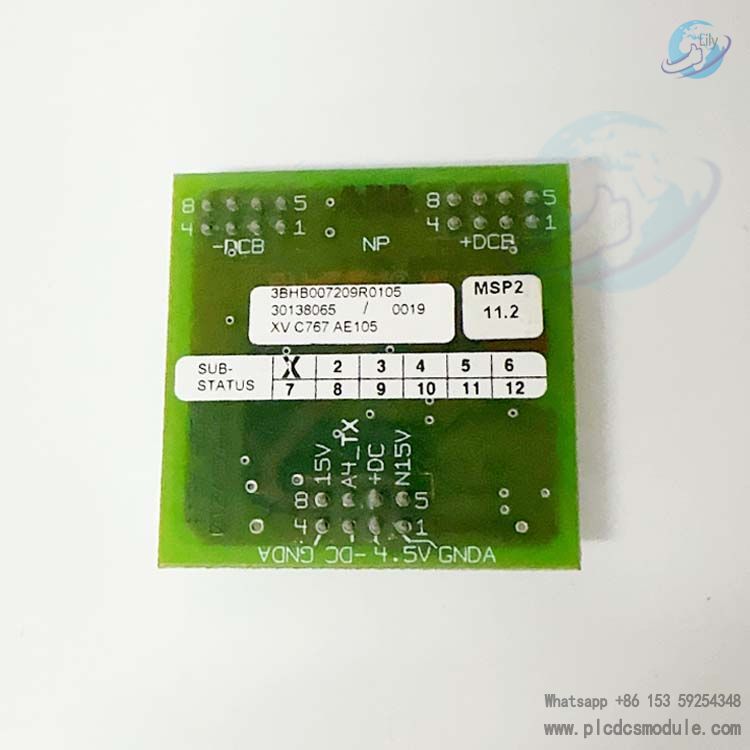

ABB XVC767AE105 3BHB007209R0105 Circuit board.As a medium and high voltage control circuit board, the ABB XVC767AE105 3BHB007209R0105 is mainly applied to industrial automation scenarios with high requirements for signal acquisition, processing, and control, relying on its high-precision analog input, anti-interference capability, and reliable electrical performance.
ABB XVC767AE105 3BHB007209R0105 Parameter Specifications:
Input Characteristics
Channels: 8 channels, suitable for 0...20mA and 4...20mA DC single-ended unipolar inputs.
Isolation: 1 group of 8 channels isolated from ground, with 12-bit resolution.
Protection:
Input shunt resistors protected by PTC resistors up to 30V.
Analog input short-circuit protection to ZP or +24V.
Inputs withstand HART communication.
Electrical Parameters
Input Impedance: 230–275kΩ (current input including PTC).
Isolation Mode: Group-isolated from ground.
Range Deviation: 0% (lower) / +15% (upper).
Temperature Drift:
Typical value: 50ppm/°C.
Maximum value: 80ppm/°C.
Input Filter (Rise Time 0–90%): 180 ms.
Update Cycle Time: 1 ms.
Field Cable Length: Up to 600 meters (656 yards).
Input Voltage (Non-Destructive): 30V DC.
Noise Immunity (NMR, 50Hz/60Hz): >40 dB.
Rated Insulation Voltage: 50V.
Dielectric Test Voltage: 500V AC.
Power Consumption and Current Draw
Power Consumption: 1.1W.
Current Draw:
+5V module bus: 70 mA.
+24V module bus: 0 mA.
+24V external: 30 mA.
Connection Method
Process and power connections via detachable connectors.
The ABB XVC767AE105 3BHB007209R0105 belongs to ABB's medium and high voltage controller module series, which is commonly used in scenarios such as excitation PLC systems and multi-functional high voltage variable frequency power supply control. It plays a crucial role in the industrial automation field, particularly in systems involving medium and high voltage control, by collecting and processing analog signals.
