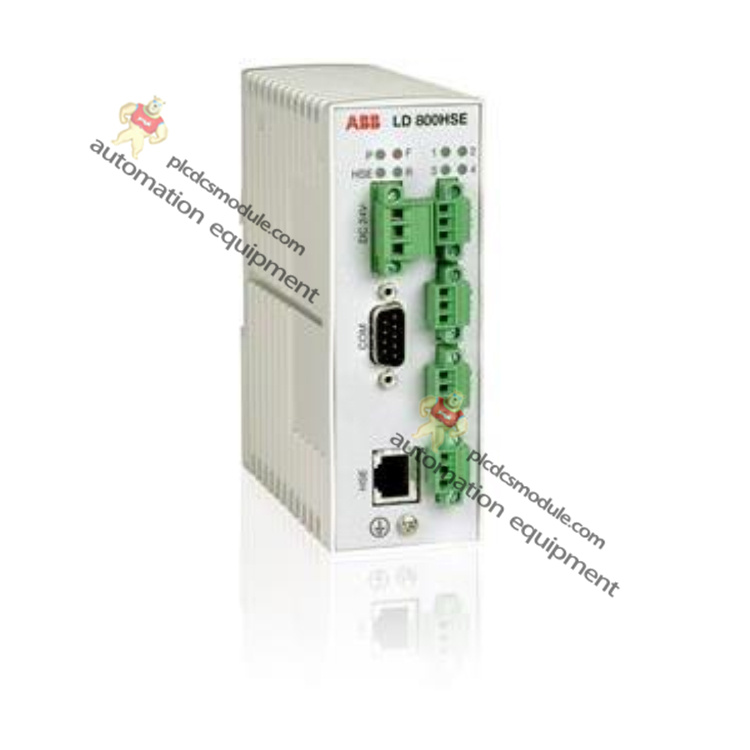

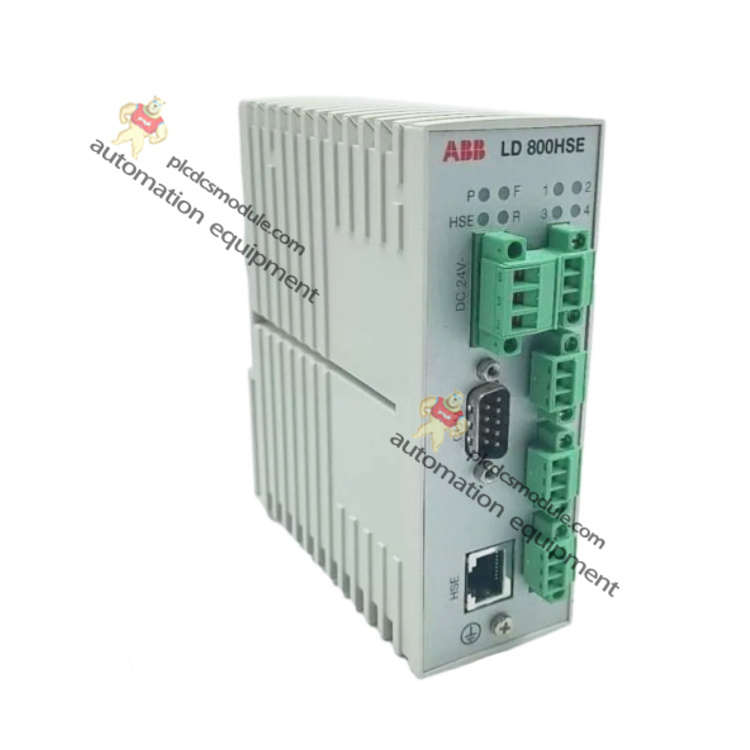

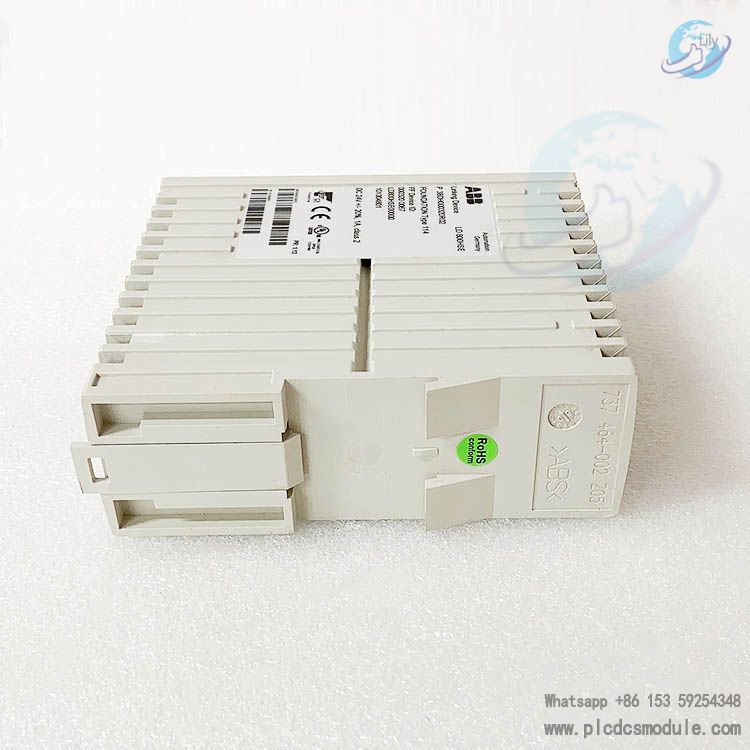

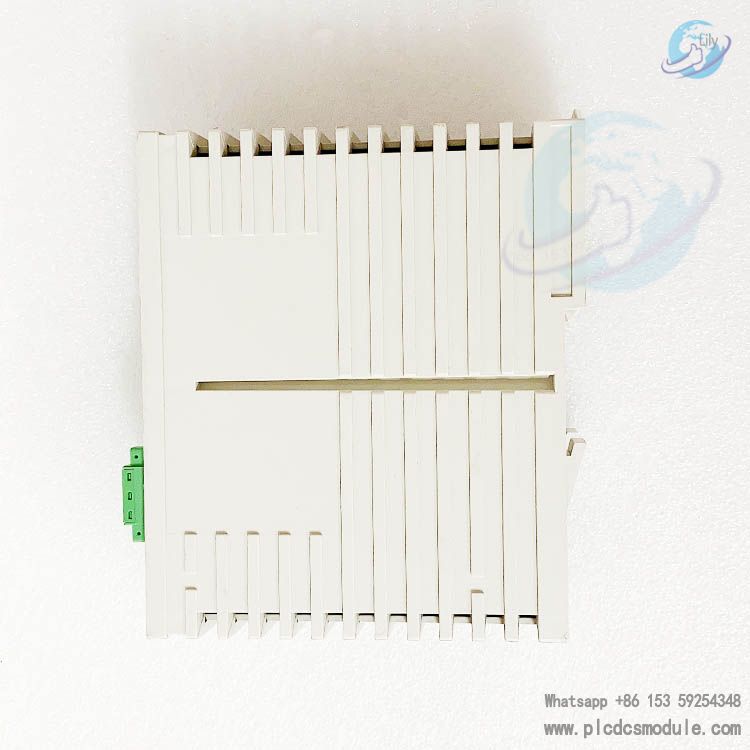

The ABB LD800HSE 3BDH000320R02 is a communication gateway module in the FOUNDATION Fieldbus system. It complies with the 42c class standard of the FF HSE protocol and is used to connect the FF H1 fieldbus link with the FF HSE high-speed Ethernet subnet. It supports redundant configuration.
Core Functions:
Device Management: Identifies devices on the H1 link and enables system management (SM) and network management (NM) to configure and monitor H1 devices via HSE.
Data Interaction: Bidirectionally forwards process data (e.g., sensor signals, control commands) between H1 links and between H1 and HSE.
Distributes alarm and event information from H1 devices to the HSE network.
Time Synchronization: Acts as the Link Master for H1 links and the SM Time Publisher to ensure network-wide time synchronization.
Protocol Conversion: Supports protocol conversion between HSE and H1, enabling interoperability between devices at different network levels.
Technical Specifications:
Complies with Class 42c of the FF HSE protocol.
Connects FF H1 fieldbus links to FF HSE high-speed Ethernet subnets.
Redundancy configuration supported for high availability.
Technical Table:
ABB LD800HSE 3BDH000320R02 FOUNDATION Fieldbus Linking Device.pdf
Key Features
Hardware and Installation
Protection and Mounting: IP20 protection level, supports DIN rail mounting, suitable for industrial control cabinet environments.
Dimensions and Weight: 47*131*111 mm (Length*Height*Width), approximately 0.4 kg in weight.
Power Supply:24 V DC power supply (with ±20% voltage fluctuation tolerance), typical current consumption 200 mA, power consumption 4.8 W.

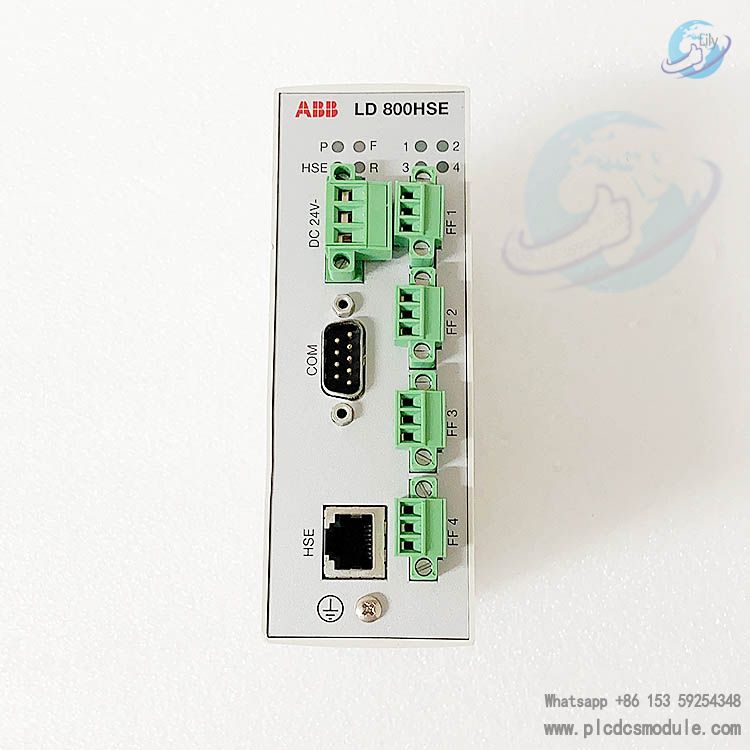

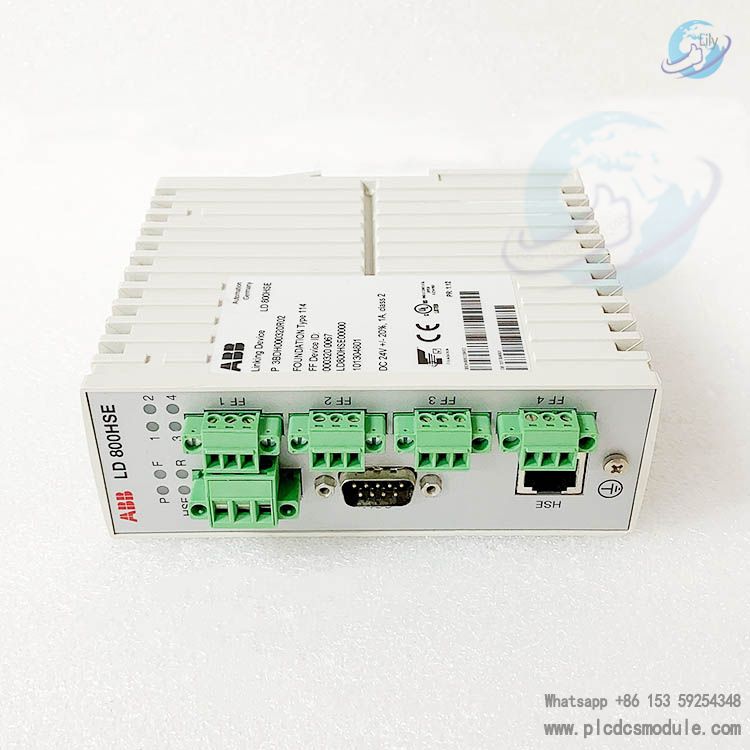

Interfaces
HSE Ethernet: 1*10/100 Mbit/s auto-negotiation port (RJ45), supports SNTP time synchronization; IP address configurable via built-in Web server.
H1 Fieldbus: 4*electrically isolated H1 channels (3-pole screw terminals), supports standard power signals (31.25 kbit/s transmission rate), requires separate power supply.
Redundancy Interface: Connected to redundancy modules via RS-232 serial port (9-pin SubD) to exchange redundancy control information.
Certifications and Environmental Adaptability
Explosion-Proof Certifications:
Suitable for hazardous areas Zone 2/Division 2, with certifications including:
cULus Class I, Division 2, Groups A/B/C/D
IECEx Ex nA IIC T4 Gc
ATEX II 3G Ex nA IIC T4 Gc
Environmental Tolerance:
Operating Temperature: 0°C ~ +55°C (Upper limit may decrease for non-vertical installation or poor ventilation).
Storage Temperature: -20°C ~ +70°C, relative humidity 0%~95% (non-condensing).
Circuit Board Coating: Complies with ANSI/ISA 71.04 and EN 60068-2-60 standards (G3-level corrosion protection).
The ABB LD800HSE 3BDH000320R02 FOUNDATION Fieldbus Linking Device has a wide range of application fields. In terms of process automation, it can be used in distributed control systems (DCS) in industries such as chemical, oil and gas, and power to achieve real-time data interaction between field devices and upper-level control systems. In hazardous area scenarios, it is suitable for Zone 2/Division 2 explosion-proof environments and can directly connect to H1 devices in hazardous areas. In the field of Industrial Internet of Things (IIoT), it can access field data into the ABB Ability™ system through the HSE network to support remote monitoring and predictive maintenance. In terms of accessories and compliance, this device requires a separately ordered 0.5 m redundancy link cable, and complies with the EMC Directive (2004/108/EC), Low Voltage Directive (2006/95/EC), and ATEX Explosion-Proof Directive (94/9/EC), with electromagnetic compatibility meeting the FCC Part 15 Subpart B Class A and VCCI Class 2 standards.
