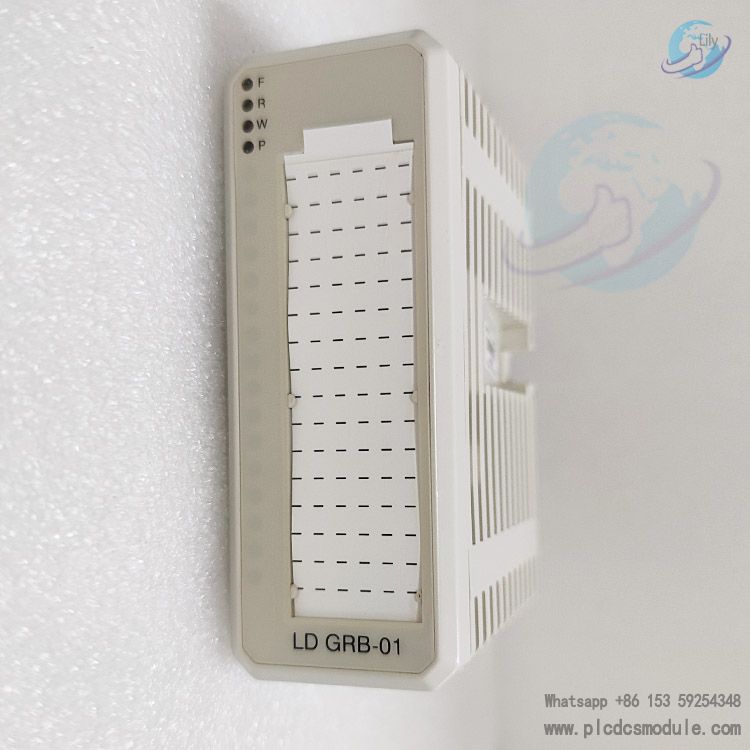

ABB LDGRB-01 3BSE013177R1 interface module

LDGRB-01 3BSE013177R1 is an interface module typically used for data transmission and communication between ABB control systems and field devices. Its main function is to collect digital signals, which can receive status information from devices such as switches, buttons, and sensors, represented in the form of logic 0 and logic 1. It supports multiple channels, enabling simultaneous monitoring of multiple input devices, and can process digital signals, such as detecting signal state changes, recording events, counting, etc., as well as generating alarms and sending notifications.

Functional Characteristics of LDGRB-01 3BSE013177R1

In terms of load grouping and relay output, the module can group loads and control different devices or systems according to requirements. It usually has multiple relay outputs, which can control loads such as motors, valves, and lights. The relay outputs can be switched according to control logic and input signals to achieve precise control of the loads.

In terms of communication interfaces, it supports multiple communication protocols such as Modbus and Profibus, and can exchange data and communicate with control systems such as PLC and DCS, facilitating connection with other devices to realize system integration and optimization.

In terms of electrical characteristics, it provides DC 9-36V wide redundant dual power supplies, with DC1500V power isolation and reverse connection protection. The electrical interface has 4000V lightning protection, 1.5A overcurrent protection, 600W surge protection, and has passed EMC test certification.

In terms of installation and protection, it has an IP30 protection rating, adopts a wavy aluminum reinforced casing, and supports standard industrial 35mm guide rail installation.

Technical Parameters of LDGRB-01 3BSE013177R1

Size: Approximately 30×20×20cm

Weight: Not explicitly mentioned; the actual weight usually varies depending on the specific design and configuration

Operating temperature range: 0℃ to 55℃

Storage temperature range: -20℃ to 70℃

Humidity: The relative humidity during operation and storage is usually 5% to 95% without condensation

Power supply: Usually 24VDC, depending on specific equipment and system requirements

Bus protocol: Supports Profibus DP, etc. The rate can be set by a dip switch or select rate adaptation

Data transmission medium: Such as CC - Link dedicated cables (three - core shielded twisted pair), etc., depending on the specific protocol

Transmission rate: Varies with communication protocols; for example, Profibus DP can support multiple rates such as 10Mbps

Transmission distance: Varies with communication protocols and transmission rates; for example, the transmission distance of CC - Link under different rates ranges from ≤100m to ≤1200m

Application Fields of LDGRB-01 3BSE013177R1

Precautions

• During installation, it should be installed in accordance with the standard guide rail installation method to ensure firm installation, and attention should be paid to leaving sufficient heat dissipation space around the module.
• When connecting the power supply and signal lines, it is necessary to ensure that the power supply voltage meets the module's requirements and that the wiring is correct to avoid module damage caused by wrong wiring.
• Although the module has electrical protection functions, it is still necessary to avoid using it in environments with strong electromagnetic interference. If the on-site electromagnetic interference is strong, corresponding shielding measures must be taken.
