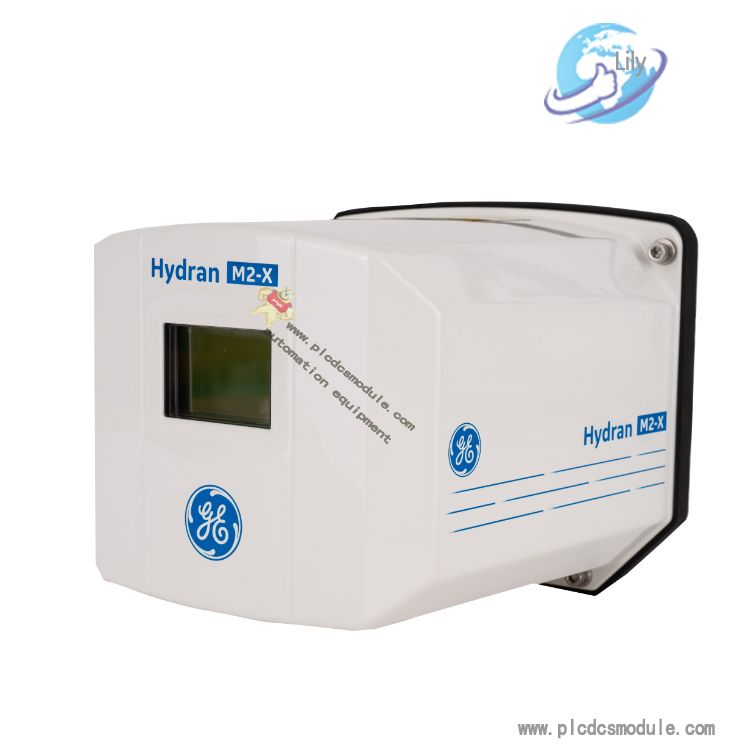

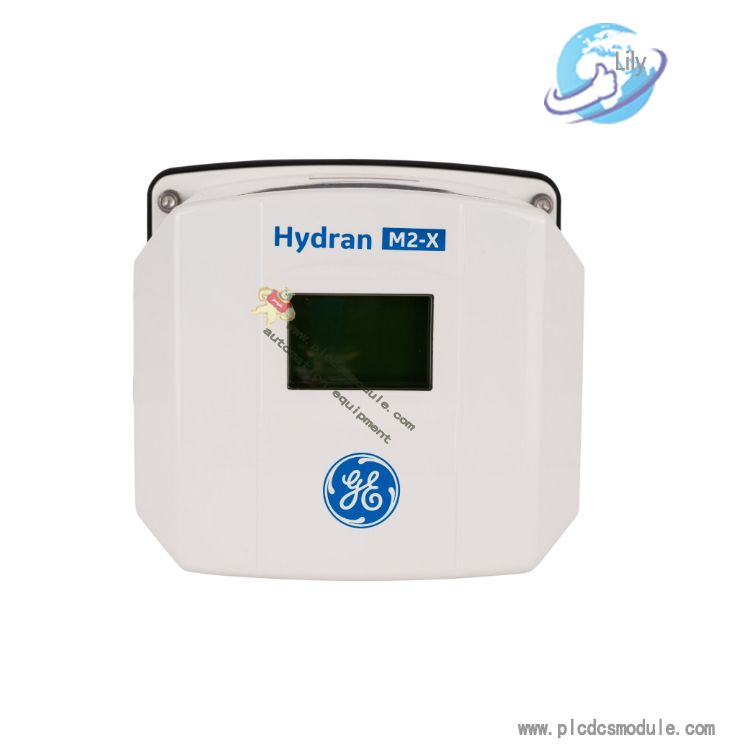

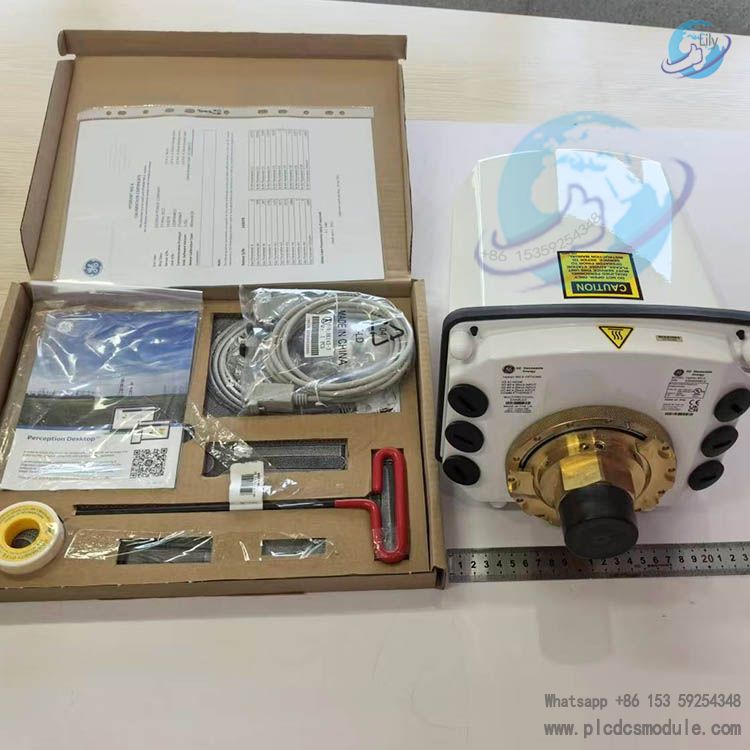

Hydran M2‑X Mark III is a new-generation online monitoring device for dissolved gas and moisture in transformer oil, launched by GE Grid Solutions. Building on over 40 years of proven DGA online monitoring technology, it provides continuous, reliable and low-maintenance condition monitoring for utility and industrial transformers.
As a comprehensive upgrade from the classic Hydran series, this device features long-life sensors, no moving parts, compact size, high scalability and optional explosion-proofing. It can detect insulation oil degradation and potential faults in real time. Overload, overheating, discharge and other faults in the transformer insulation system cause oil/paper degradation, generating dissolved gases and moisture, accelerating aging and potentially leading to catastrophic failure. This device effectively reduces the risk of unplanned outages, extends sensor service life and optimizes asset operation and maintenance efficiency.
Compatible with various insulating media including mineral oil, natural ester and synthetic ester, the unit enables simultaneous multi-parameter monitoring of gas composition, moisture-in-oil, oil temperature and load current. It supports IEEE hot-spot model calculation and seamlessly integrates with GE Perception™, Predix, SCADA and third-party APM platforms, providing critical data support for transformer fleet management, condition-based maintenance and fault early warning.
In addition, a UL-certified hazardous area version (M2‑X‑HZ) is available, suitable for Class I, Division 2 hazardous locations where flammable gases, vapors or liquids are unlikely under normal operating conditions but still pose potential safety risks. It serves as a core online monitoring terminal for the full-lifecycle health management of transformers.
Download
Key Advantages
Ultra-Long Service Life & High Reliability
- Fuel cell sensors with an expected lifespan of over 10 years, backed by a standard 7-year system warranty.
- Maintenance-free design with no moving parts, significantly reducing on-site operation and maintenance costs.
- Protection rating NEMA 4X/IP56, capable of withstanding harsh environments from -40℃ to +55℃.
- UL-certified explosion-proof version M2‑X‑HZ available for installation in hazardous areas.
Comprehensive Monitoring Capabilities
- Choice of standard composite gas sensors (H₂, CO, C₂H₂, C₂H₄) or single H₂ sensor.
- Integrated thin-film capacitive moisture-in-oil sensor, supporting dual-unit readings in % RH and ppm.
- Expandable with oil temperature, ambient temperature, load CT, analog I/O, and digital input.
Full Medium Compatibility
- Fully compatible with three mainstream transformer insulating media: mineral oil, natural ester fluid, and synthetic ester fluid.
Accurate Diagnosis & Advanced Algorithms
- Calculates winding hot-spot temperature based on IEEE standards, improving fault location accuracy.
- Supports multi-level alarms by absolute value, rate of change, and daily trends for early detection of incipient faults.
- Moisture alarm supports both threshold and average modes, accurately identifying seal leaks and paper insulation aging.
Simplified Deployment & Open Compatibility
- Single-valve installation with no outage required in most scenarios.

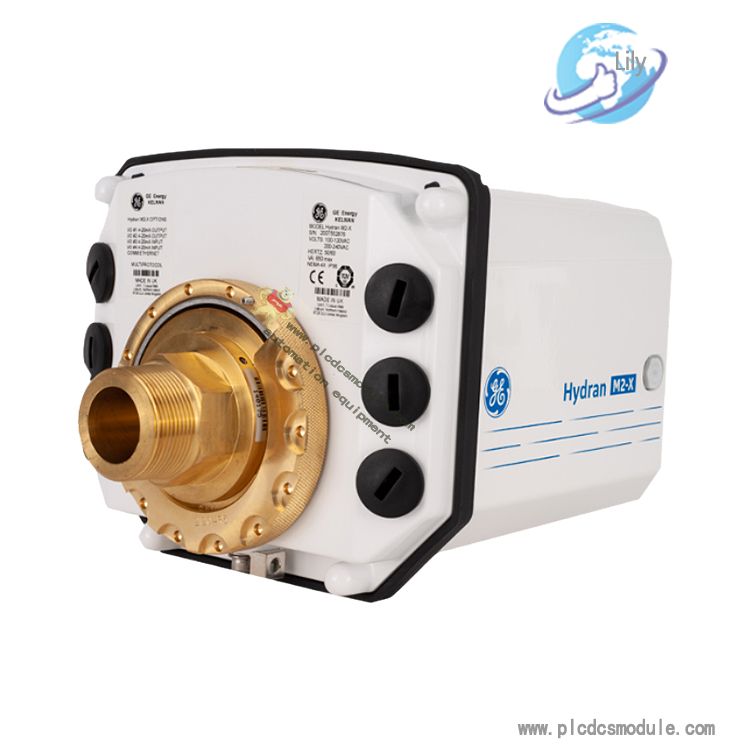

- 1.5” NPT standard connection, compatible with gate and globe valves; optional radiator and reducing fittings available.
- Supports full-scenario communication including Modbus, DNP3.0, IEC 61850, Ethernet, fiber optics, and GPRS.
Asset-Level Management Capabilities
- Supports transformer fleet deployment and integrates with GE APM and Perception software.
- Works synergistically with Kelman multi-component DGA and Multilin 845 monitoring devices to enable synchronized analysis of electrical and chemical parameters.
Technical Specifications
1. Measurement Performance
| Item | Specification |
|---|---|
| Composite Gas Range | 25–2000 ppm (H₂ equivalent) |
| Measurement Accuracy | ±10% of reading ±25 ppm |
| Response Time | 10 minutes (90% step change) |
| Moisture-in-Oil | 0–100% RH, accuracy ±2% RH, ppm display supported |
| Sensor Type | Fuel cell (gas); thin-film capacitor (moisture) |
2. Environmental & Mechanical
- Operating temperature: -40℃ ~ +55℃; oil temperature: -40℃ ~ +105℃ (with radiator)
- Pressure resistance: 0–700 kPa (100 psi), vacuum-resistant design
- Dimensions: 315×219×196 mm; Weight: 7.5 kg
- Power supply: 90–132/180–264 Vac auto-adaptive, 47–63 Hz
- Explosion-proof certification: M2‑X‑HZ is UL certified for Class I, Division 2 hazardous locations
3. Communication & Alarm
- Standard: RS‑232, RS‑485 (2000 Vac isolation)
- Optional: Ethernet, multi-mode fiber, PSTN/GPRS/3G/4G
- Protocols: Modbus, DNP3.0, IEC 61850 (TCP/IP)
5-channel Type C SPDT relay outputs, 3A@250 Vac/30 Vdc
Applications
- Online continuous DGA and moisture monitoring for grid main transformers, station auxiliary transformers and distribution transformers
- Condition monitoring of critical transformers in renewable energy power stations, data centers, rail transit and industrial facilities
- Explosion-proof monitoring for transformers in Class I, Division 2 hazardous areas
- Transformer fleet asset management and condition-based maintenance (CBM)
Integrated monitoring solutions combined with relay protection, online temperature monitoring and partial discharge systems
FAQ
Q1: What are the core differences between M2‑X Mark III and the standard Hydran M2?A: Mark III is an enhanced version with longer sensor life, better algorithms, stronger scalability, and support for ester-based insulating fluids. It is compatible with the IEEE hot-spot model, offers more comprehensive communication protocols, and comes with a 7-year warranty. It is especially suitable for long-term unattended substations.
Q2: Does it support transformers using natural ester or synthetic ester oil?A: Yes. O1 (natural ester) and O2 (synthetic ester) models are available, fully covering monitoring requirements for new eco-friendly insulating fluids.
Q3: Does installation require transformer outage?A: In most cases, it can be directly connected to existing 1.5” or larger valves without oil drainage or power outage, enabling fast on-site deployment.
Q4: How long is the actual sensor life, and does it require frequent replacement?A: Accelerated aging tests show a mean time to failure of approximately 11.5 years, with real-world service life exceeding 10 years. Backed by a 7-year warranty, it provides long-term maintenance-free operation after installation.
Q5: How to integrate with existing monitoring systems or SCADA?A: Modbus and DNP3.0 are standard; IEC 61850 is optional. It supports RS‑485, Ethernet, fiber optics and other interfaces for plug-and-play connection to substation or dispatching systems.
Q6: Can it monitor oil temperature, load current and hot-spot temperature?A: External magnetic oil temperature sensors and split-core CTs can be connected. The built-in IEEE model automatically calculates winding hot-spot temperature for a more comprehensive assessment of thermal degradation of insulation.
Q7: How are alarm logic settings configured to avoid false alarms?A: High and high-high thresholds are supported. Gas alarms can be triggered by hourly or daily rate of change, and moisture alarms by average value. Multiple criteria greatly reduce false triggers caused by interference.
Q8: Is an explosion-proof version available, and for which applications?A: Yes, the M2‑X‑HZ (UL-certified) version is suitable for Class I, Division 2 hazardous areas — transformer locations where flammable gases or vapors are unlikely under normal operating conditions but still present potential safety risks.
Q9: Can moisture be displayed in both % RH and ppm?A: Yes, the unit supports dual-unit display of moisture-in-oil in % RH and ppm to meet different operation and maintenance standards.
Q10: What are the two sensor options?A: You can choose either the Hydran composite gas sensor (H₂, CO, C₂H₂, C₂H₄) or a single-component hydrogen (H₂) sensor, based on project requirements.
