Bently Nevada 3500/94M VGA Touchscreen Display Module
The Bently Nevada 3500/94M VGA Touchscreen Display Module, featuring a color touchscreen and I/O capabilities, delivers critical 3500 system data directly at the machine or within the control room. It visualizes vibration levels, system/alarm event logs, module/channel status, and alarm thresholds, with nine customizable display profiles. Pre-configured "Quick View" screens for raw vibration, 1X vibration, gap measurement, and alarm summaries eliminate setup complexity.
Key Features
Size & Compatibility
Available in 10" and 15" screen sizes, supporting simultaneous monitoring of up to four independent 3500 racks on a single display, ideal for centralized multi-system oversight.
Mounting Options
Flexible installation configurations include hinged mounts (for easy access) and latched panel mounts (space-saving in control panels), adapting to diverse industrial environments.
Safety Certifications
Optional hazardous area certifications (e.g., ATEX, IECEx) ensure compliance with explosive atmosphere requirements, enabling deployment in high-risk zones.
Functional Advantages
Plug-and-Play Operation: Pre-built screens simplify commissioning, reducing setup time for rapid deployment.
Integrated Visualization: Real-time synchronization of vibration, clearance, and alarm data empowers operators to address anomalies promptly.
Scalable Connectivity: I/O module support enables seamless data exchange with 3500 system relay logic and external control systems (e.g., PLCs, DCS), facilitating automation workflows.
For detailed specifications or certification details, refer to the Bently Nevada official product manual.
System Components
Core Modules
3500/94M VGA Module
Processes data and drives display output for the 3500 system.
I/O Modules
Support RS232 communication and power distribution, with two types available:
Standard I/O Module (190214-01)
Used for regular data interaction.
Power-only I/O Module (190214-02)
Specifically designed to power front-mounted displays.
VGA Touchscreen Displays
10-inch (Advantech ANA-D3510-100-A1, P/N 120M8155-01)
Certified for hazardous areas (ATEX/IECEx, Class I, Division 2) with IP54 protection.
15-inch (Advantech FPM-8151H, P/N 102M8950)
No hazardous area certification, but features IP65 protection.
Expansion Components
Display Router Box (P/N 149356-01)
Enables a single display to connect with up to four 3500 racks, requiring a router cable (e.g., 3500/94M-07-12-XX).
KVM Extenders
Wired CAT5 UTP Extender
Transmission distance: 6.4–305 m (21–1,000 ft). The receiver is certified for North American Class I, Division 2 hazardous areas.
Single-mode Fiber Optic (SM FO) Extender
Transmission distance: up to 10 km (6.2 miles). No hazardous area certification.
Translation Notes:
Maintained technical terms (e.g., "IP54", "ATEX/IECEx") for industry compliance.
Used "power-only" to clarify the dedicated function of the I/O module.
Structured components into "Core Modules" and "Expansion Components" for clarity.

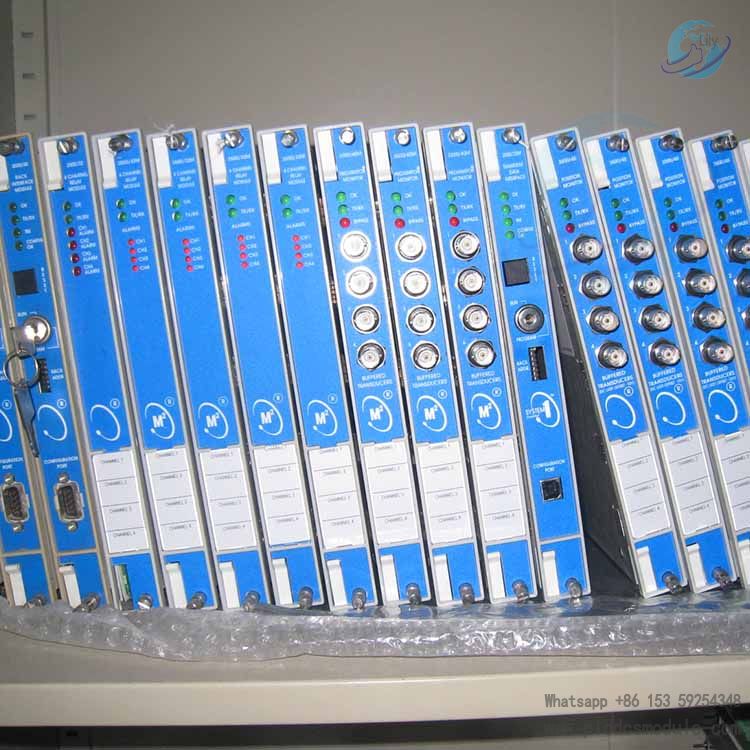

The Bently Nevada 3500 system is designed for continuous and permanent monitoring of rotating and reciprocating machinery across various industries, particularly suited for automatic shutdown mechanical protection applications with extremely high requirements for reliability and availability. The system is widely applicable to multiple machine types, including but not limited to industrial gas turbines and steam turbines for power generation and mechanical drive, aerodynamic gas turbines for power generation and mechanical drive, hydraulic turbines for power generation, compressors (air/process gas, radial/axial, centrifugal/positive displacement), turbine expanders, electric motors and generators, excitation machines, gearboxes, pumps (centrifugal and positive displacement), fans and blowers, reciprocating compressors, extruders and pelletizers.
