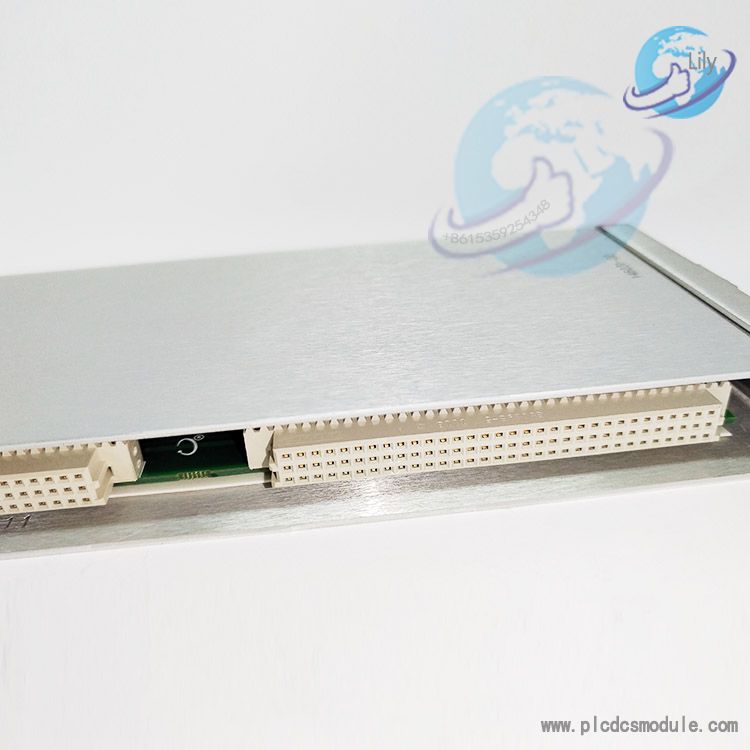

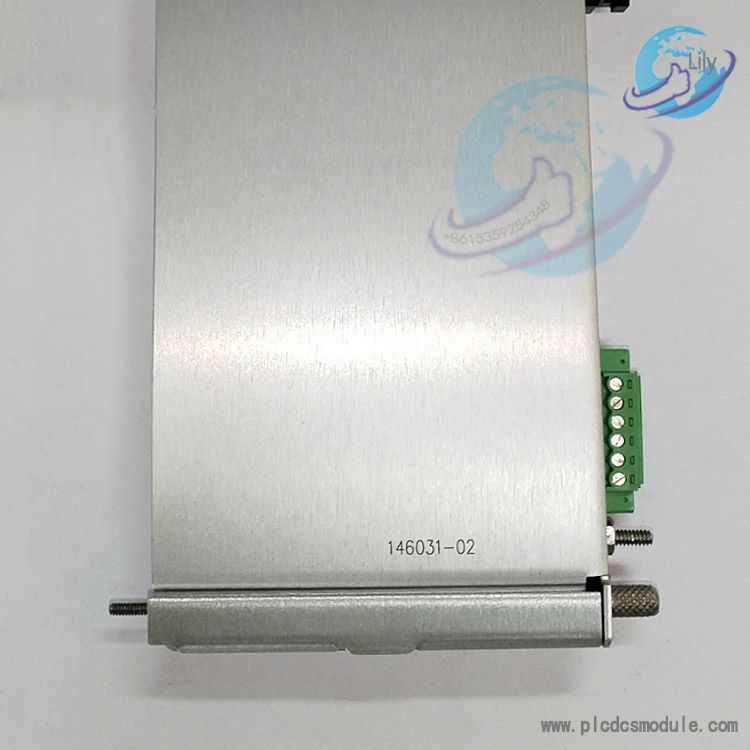

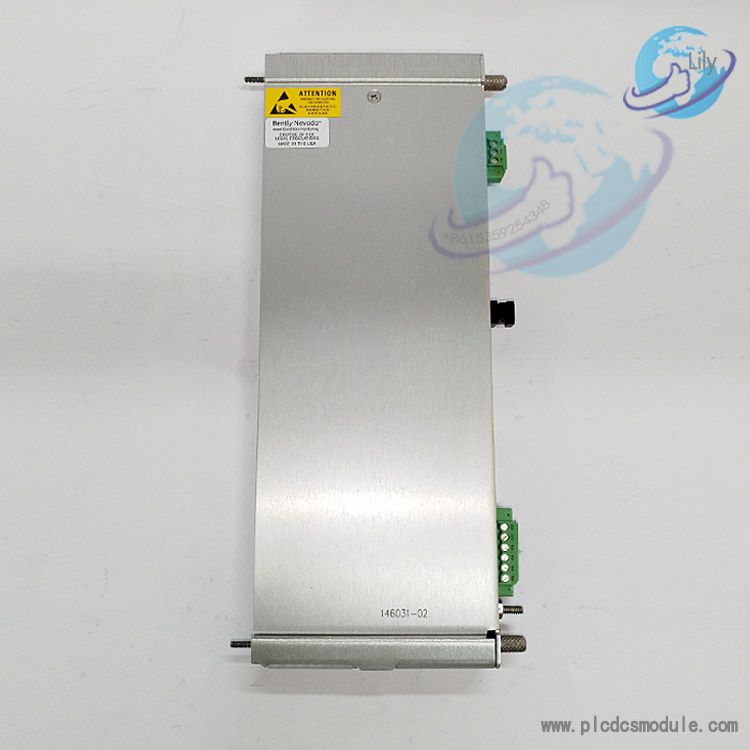

Bently Nevada 146031-02 3500/22M 100Base-FX (Fiber Optic) I/O Module.The Bently Nevada 146031-02 100Base-FX (Fiber Optic) I/O Module is part of the 3500/22M. This product is a key component of Bently Nevada's industrial equipment condition monitoring system. It is widely used in various types of rotating machinery, such as steam turbines, compressors, and pumps. It can accurately monitor and analyze the operating status of equipment, thus ensuring the safe and stable operation of the equipment. As part of the 3500 monitoring system, the 146031-02 rear card plays an important role in data transmission and communication.
Bently Nevada 146031-02 3500/22M 100Base-FX (Fiber Optic) I/O Module Technical Parameters:
Fiber Optic Interface: Adopting the 100Base-FX standard, using ST-type fiber optic connectors, it supports multimode or single-mode fibers, and can be flexibly selected according to the requirements of the actual application scenarios and transmission distances.
Transmission Rate: As high as 100Mbps, it can meet the requirements of high-speed data transmission and ensure that the operation data of the equipment can be transmitted in a timely and accurate manner.
Operating Temperature Range: Generally between -40°C and +70°C, it can adapt to various harsh industrial environment temperature conditions, ensuring that the rear card can work properly in different environments.
Power Supply Requirements: Generally, it requires a 24VDC power supply. When the power input fluctuates within a certain tolerance range, the rear card can still operate stably.
Protection Level: Usually, it has a relatively high protection level, such as IP65, etc., which can effectively prevent the intrusion of dust and water, further improving the reliability and stability of the rear card in harsh industrial environments.
Bently Nevada 146031-02 3500/22M 100Base-FX (Fiber Optic) I/O Module Main Functions
Data Transmission: It achieves high - speed and stable data transmission through the 100Base - FX fiber - optic interface. It can accurately transmit the equipment operation data (such as parameters like vibration, temperature, and pressure) collected by the 3500 monitoring system to the host computer or other monitoring devices at a rate of 100Mbps. Fiber - optic transmission features low loss and strong anti - interference ability, effectively ensuring the integrity and accuracy of data during long - distance transmission.
Communication Protocol Support: This rear card supports multiple communication protocols, enabling seamless communication with different types of devices and systems. Through these protocols, it can exchange data with other monitoring modules, data acquisition systems, and industrial control systems of Bently Nevada, thus establishing a complete equipment condition monitoring network.
Signal Isolation: It has excellent signal isolation capabilities, effectively isolating electrical interference between different devices and systems, and preventing interference signals from having a negative impact on data transmission and monitoring results. This characteristic allows the rear card to operate stably and reliably in complex industrial electromagnetic environments.
