This product update notice provides information on updates, enhancements, improvements, certifications, and other changes related to existing and newly released products and services of Bently Nevada. It aims to help customers make the most of the benefits from the continuous improvement of Bently Nevada products and services and achieve the best return on investment in Bently Nevada solutions.
The 3500 monitoring system power supply is a half - height module. It accepts a wide - range input voltage and converts it into the voltage required for the operation of other 3500 modules. The power supply consists of a main power module installed on the front of the frame and a power input module (PIM) on the back of the frame.
The main modules include AC main modules and DC main modules; and they are further divided into high - voltage and low - voltage types. As a result, there are four unique 3500/15 power supply ordering options: High - Voltage AC (HVAC), Low - Voltage AC (AC), High - Voltage DC (HVDC), and Low - Voltage DC (LVDC).
This product update notice is to inform customers that there is an updated design available for the AC version of the 3500/15 power supply. This updated design includes new ordering options and spare part numbers for the 3500/15 AC power supply. Currently, these new options and spare part numbers do not affect the DC model options and spare part numbers.
For the 3500/15 AC power supply, the design has been changed so that for all AC voltage input ranges from 85 to 264 Vac, the same model of main power supply module and power input module are used.
- The connector of the power input module connected to the external power supply has been changed to a pluggable terminal block connector, which makes the wiring of the main power supply cable more convenient.
- The fuse of the universal AC power input module has been redesigned. The fuse cannot be accessed and/or replaced without removing the metal cover plate of the power input module, and the spare replacement fuse has a new part number.
Bently Nevada has launched a new - generation 3500/15 AC power supply module to replace the original two types of AC power supply modules (HVAC and WVAC). The new design uses the same main power supply module and power input module for all 85 - 264 Vac AC voltage input ranges.
The price of the product remains unchanged. Customers who need to place orders in the future should order according to the new PN (Part Number). At present, this new design will not affect the DC voltage power supply models.
By using relevant keywords such as "Bently Nevada 3500/15", "AC power supply module", "selection change", "product update", etc., this content is optimized for Google SEO to increase the visibility of the content in search results related to Bently Nevada product updates.

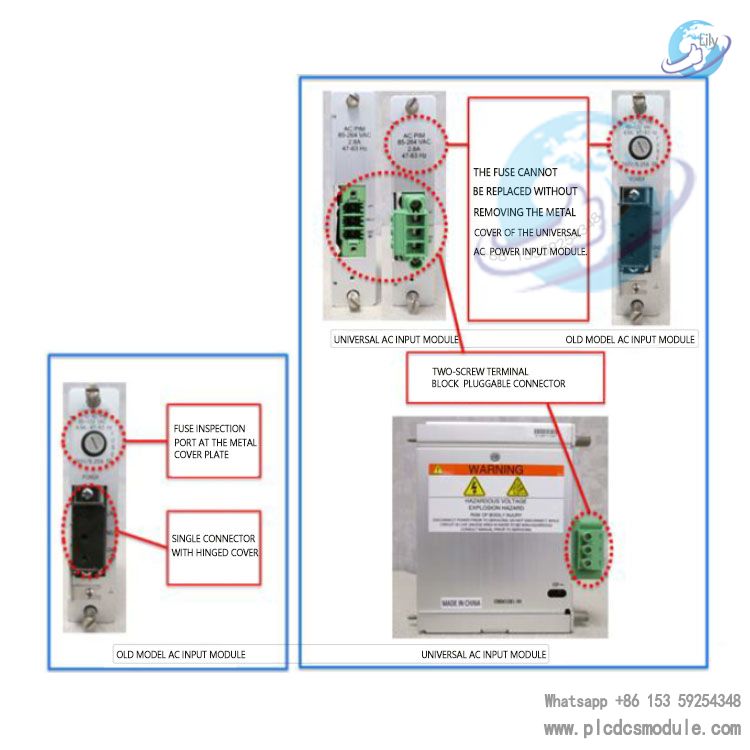

Figure 1: Design Update of Universal AC Power Input Module Connector and Fuse
When ordering the 3500/15 in the 3500 system, a summary of the old and new ordering options is provided in Table 1 below:

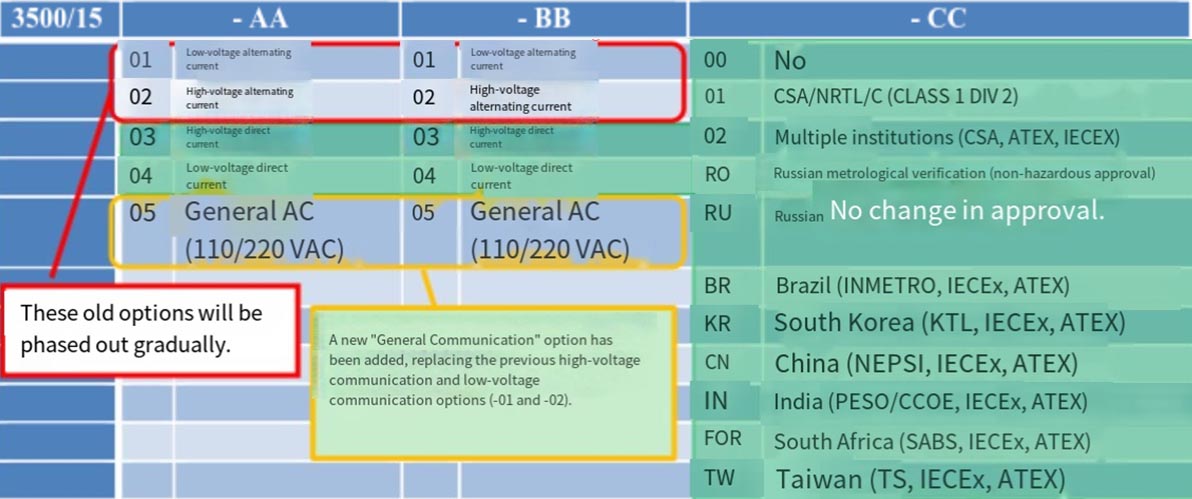

Table 1: 3500/15 Ordering Options and Structure
In addition to the changes in the ordering structure of the above - mentioned 3500/15 part numbers, the spare part numbers of the new general - purpose AC main power supply module and power input module are also different from those of the current high - voltage AC and low - voltage AC main modules and power input modules. The new general - purpose AC main module and power input module can completely replace the old 3500/15 in terms of function. The complete list of spare part models of the 3500 main power supply module and power input module is shown in Table 2.

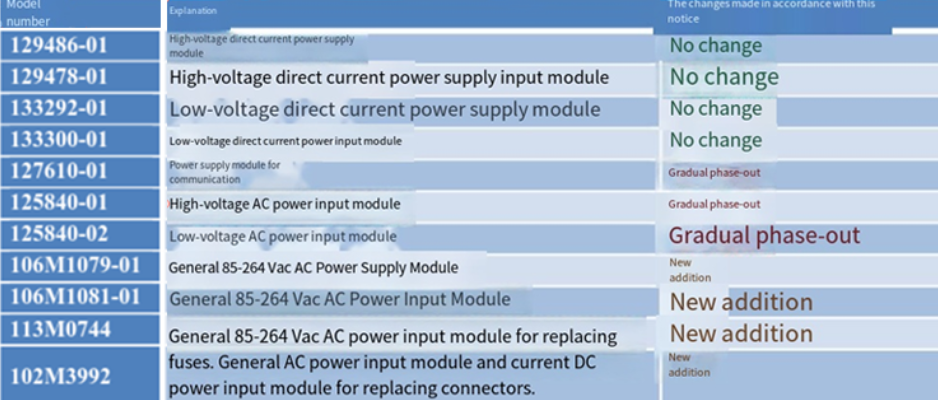

Table 2: Spare Part Models of 3500/15 Power Supply Module

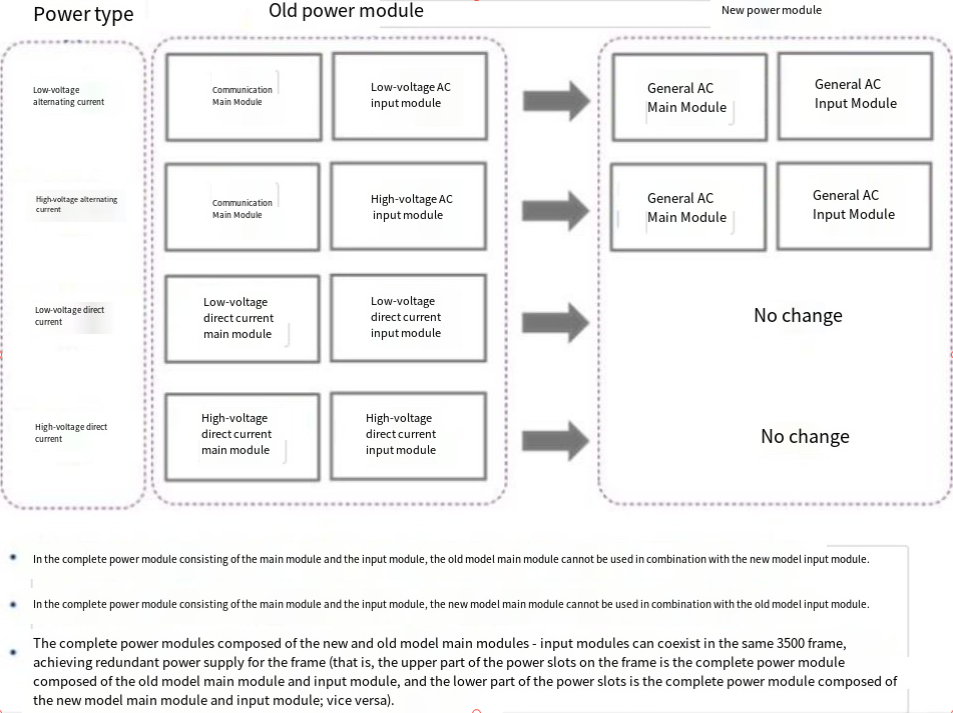

Figure 2: Several combination cases of 3500/15 AC power input modules and power supply modules

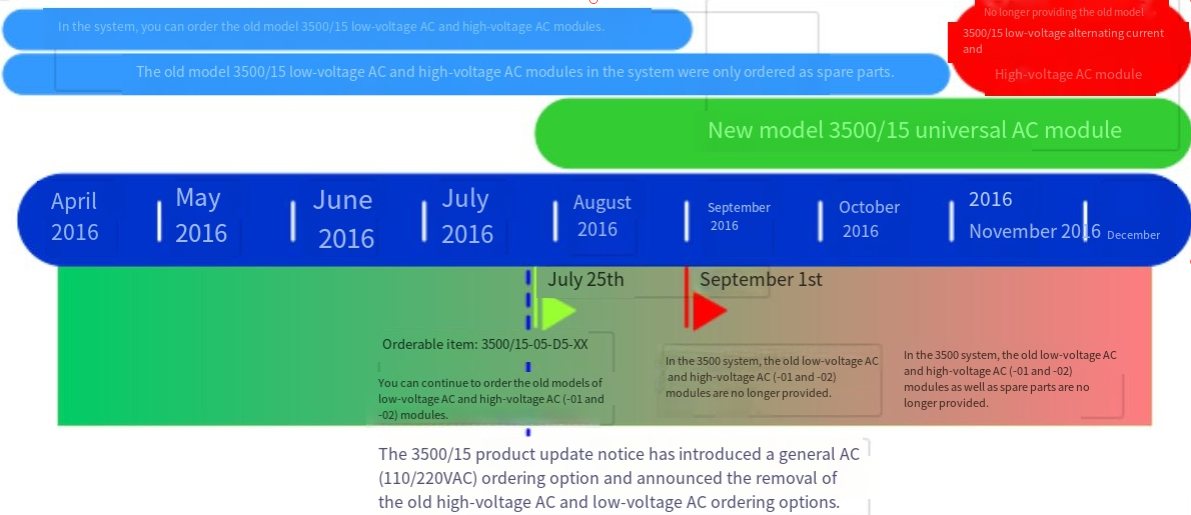

Figure 3: Update Schedule of 3500/15 AC Power Supply Module
According to the schedule in Figure 3 above, you can now order the new general - purpose AC main modules and input modules for the 3500 system, and they can also be ordered as spare parts. For the old - model high - voltage AC and low - voltage AC options (as well as spare parts), they can still be ordered for about one more month in the future; however, the exact time depends on the inventory consumption situation, so it will change. The main purpose of this time window for the co - existence of the new and old - model AC power supply modules is to, on one hand, continue to fulfill the existing orders for the old - model AC power supply module options for our customers, and on the other hand, let them transfer the new quotes and orders to the new general - purpose AC power supply options.
With the release of the new general - purpose AC power supply module options, it is recommended that our customers update the affected system orders and modify the model numbers of the power supply modules and spare parts in the original technical documents to the new general - purpose AC ordering options. This will especially affect OEM customers; it will also have an impact on the phased ongoing projects that need to enter orders and be fulfilled within this time period. Therefore, it is necessary to pay attention to the affected customers and projects in advance to ensure a smooth transition.
We plan to continue to allow customers to order the old - model high - voltage AC, low - voltage AC power input modules, and old - model AC main modules only as spare parts (non - system) until the inventory of these old models is exhausted. This time is estimated to be within 1 - 2 months; after that, when ordering a new 3500 system, the old - model modules will no longer be provided. When the old - model modules are no longer provided, but there is a need for spare parts or on - site replacement of the old - model high / low - voltage power input modules or old - model AC main modules, customers will be required to replace them with the new - model main modules and power input modules in pairs at the same time to avoid the mixed use of the new and old - model main modules - power input modules.
List of Affected Components
For more details, please refer to Table 1 and Table 2.
3500/15 3500 Power Supply
127610 - 01 AC Power Supply Module
125840 - 01 High - Voltage AC Power Input Module
125840 - 02 Low - Voltage AC Power Input Module
106M1079 - 01 General - Purpose 85 - 264 VAC Power Supply Module
106M1081 - 01 General - Purpose 85 - 264 VAC Power Input Module
113M0744 Fuse for Replacing the General - Purpose 85 - 264 VAC Power Input Module
102M3992 General - Purpose AC Power Input Module and Current DC Power Input Module
