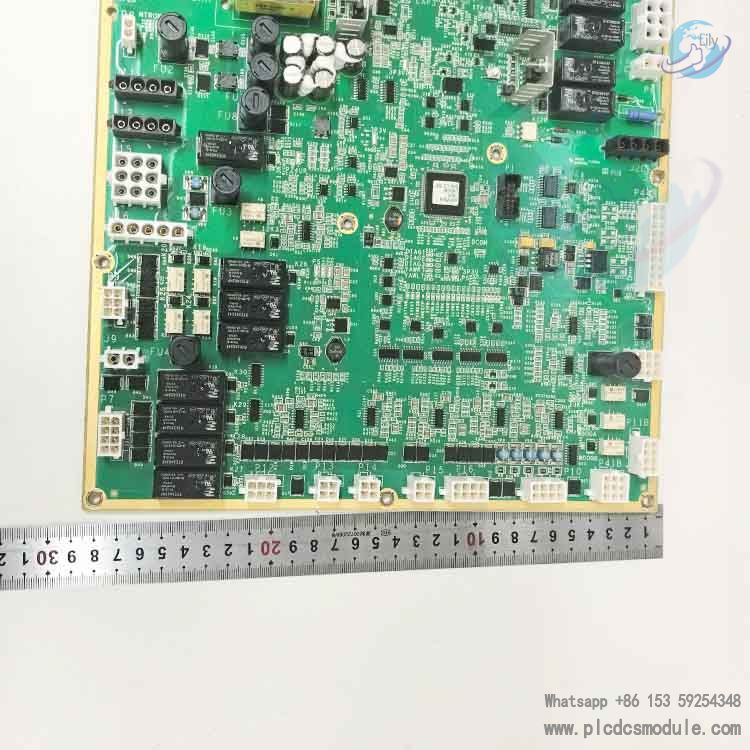

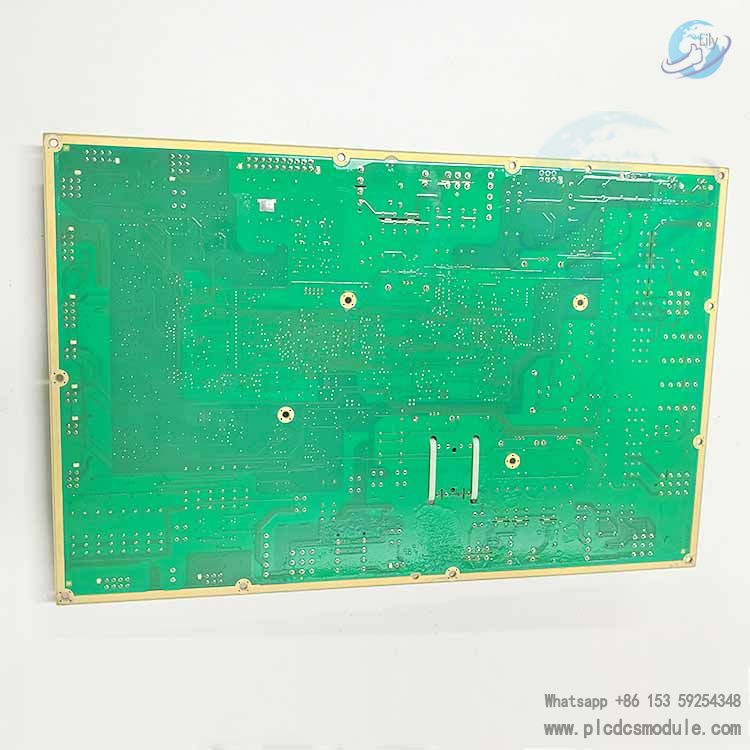

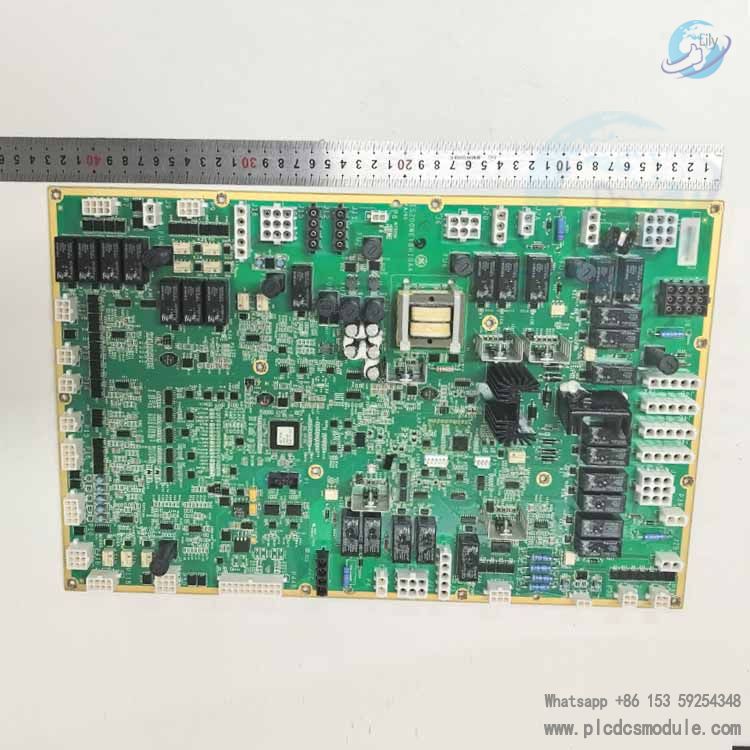

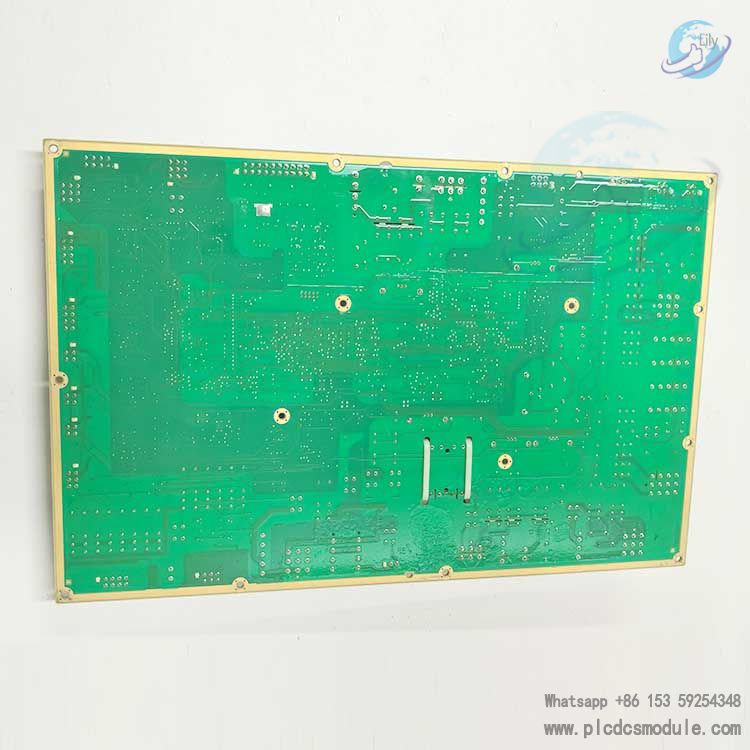

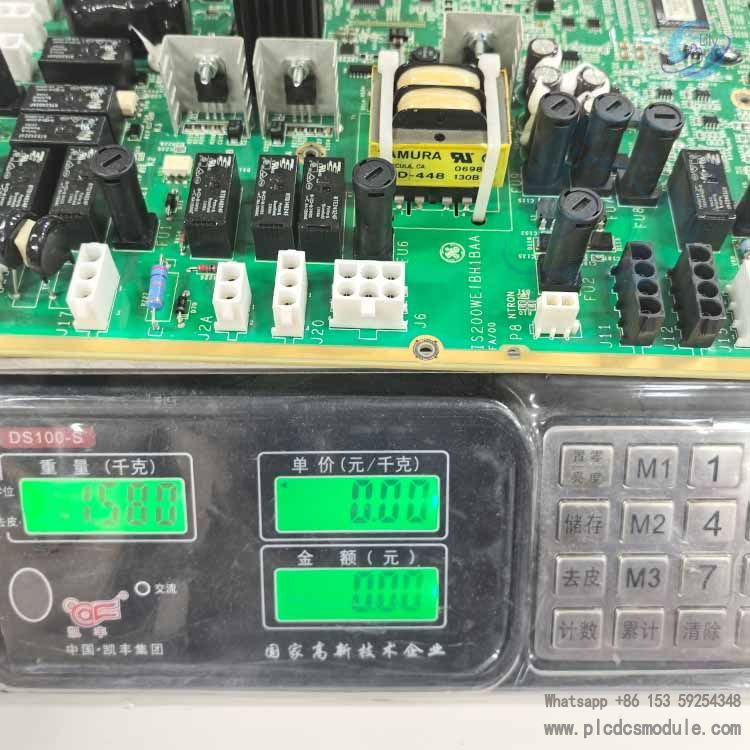

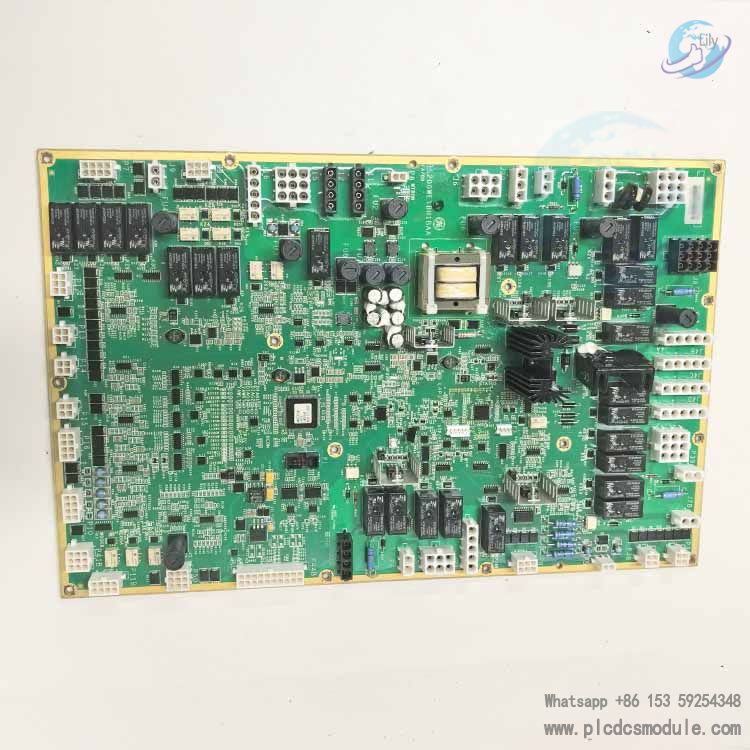

GE IS200WETBH1BBA Mark VIe Wind WETB Board.The GE IS200WETBH1BBA is a WETB board specifically designed for the Mark VIe Wind control system, playing a crucial role in the wind power generation system. It is designed to meet the demanding requirements of harsh industrial environments, ensuring the stable and efficient operation of wind power generation equipment.
Specification
Manufacturer: GE Energy
Series: Mark VIe Wind
Part Number: IS200WETBH1BBA
Functional Acronym: WETB
Functional Description: WETB Top Box B Board Assembly
PCB Coating: Conformal Coating
Functional Revision: B
Country of Origin: USA
Functional Features of IS200WETBH1BBA:
Signal Processing and Transmission: The IS200WETBH1BBA can accurately process signals from various sensors, such as wind speed sensors, wind direction sensors, and generator status sensors. It rapidly and precisely converts the collected analog signals into digital signals and efficiently transmits them to other core components of the control system, providing real-time and reliable data support for system decision-making. For example, it can quickly respond to changes in wind speed and promptly transmit the wind speed data to the main control unit, enabling the adjustment of the angle of the fan blades to achieve the best wind energy capture efficiency.
Execution of Control Commands: It receives control commands from the main control system and then precisely controls many key components of the wind turbine. This includes but is not limited to adjusting the pitch system. By controlling the pitch angle of the blades, the wind turbine can maintain good aerodynamic performance at different wind speeds, ensuring a stable power generation output. At the same time, it controls the yaw system to adjust the direction of the wind turbine so that it always faces the wind direction, maximizing the capture of wind energy.
Communication Function: It has a powerful communication capability and supports a variety of industrial standard communication protocols, such as MODBUS, PROFIBUS, etc. It can easily interact with other devices or systems for data exchange, enabling centralized monitoring and management of the entire wind farm. This allows wind farm operators to, through the central monitoring system, have real-time knowledge of the operating status of the WETB board in each wind turbine and the working conditions of related equipment, making it easy to promptly detect and solve potential problems.
Fault Diagnosis and Protection: It is equipped with an advanced fault diagnosis mechanism that can monitor the operating status of itself and associated equipment in real time. Once an abnormal situation is detected, such as signal transmission interruption, component overheating, or overcurrent faults, it immediately triggers corresponding protection measures to prevent the further expansion of the fault. At the same time, it sends fault alarm information to the control system, facilitating maintenance personnel to quickly locate and troubleshoot the fault, effectively improving the reliability and stability of the wind power generation system.
Application Scenarios:
Onshore Wind Farms: It is widely applied in various onshore large, medium, and small wind farms and is suitable for wind turbine generators of different power ratings. From small wind turbines with a single-unit capacity of several hundred kilowatts to large wind turbines of megawatt levels, the GE IS200WETBH1BBA Mark VIe Wind WETB board can give full play to its excellent performance, ensuring the stable operation of the wind turbines and improving the power generation efficiency.
Offshore Wind Farms: Due to the harsher offshore environment, there are extremely high requirements for the reliability and stability of the equipment. Relying on its excellent protection performance, wide operating temperature range, and efficient signal processing capability, this WETB board can operate reliably in complex offshore environments such as high humidity, strong salt spray, and large waves, providing key control support for offshore wind power generation equipment. It is an important part of the control system of offshore wind farms.
